Crafting a Frontend Application

Component Configuration, UI Development, and WebSocket Integration.

Cleaning Stuff

First, let's remove the changes which we are not going to use in our application.

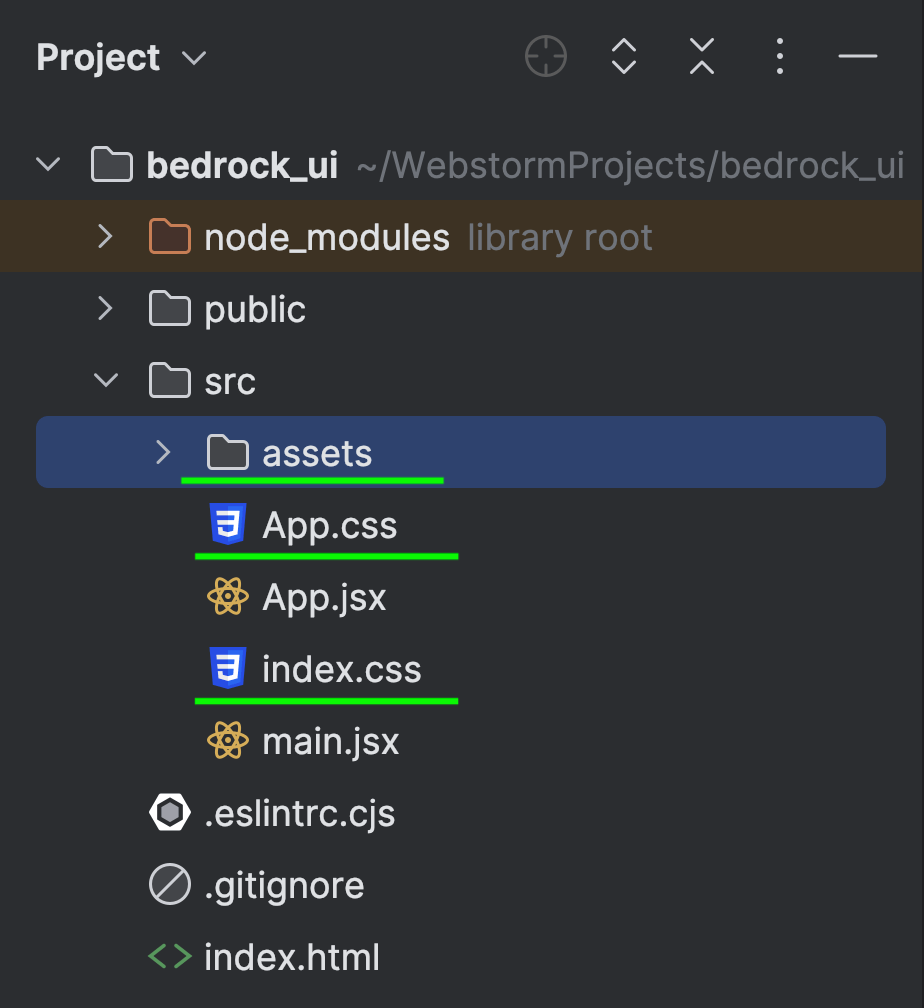

Remove assets, App.css and index.css.

step1

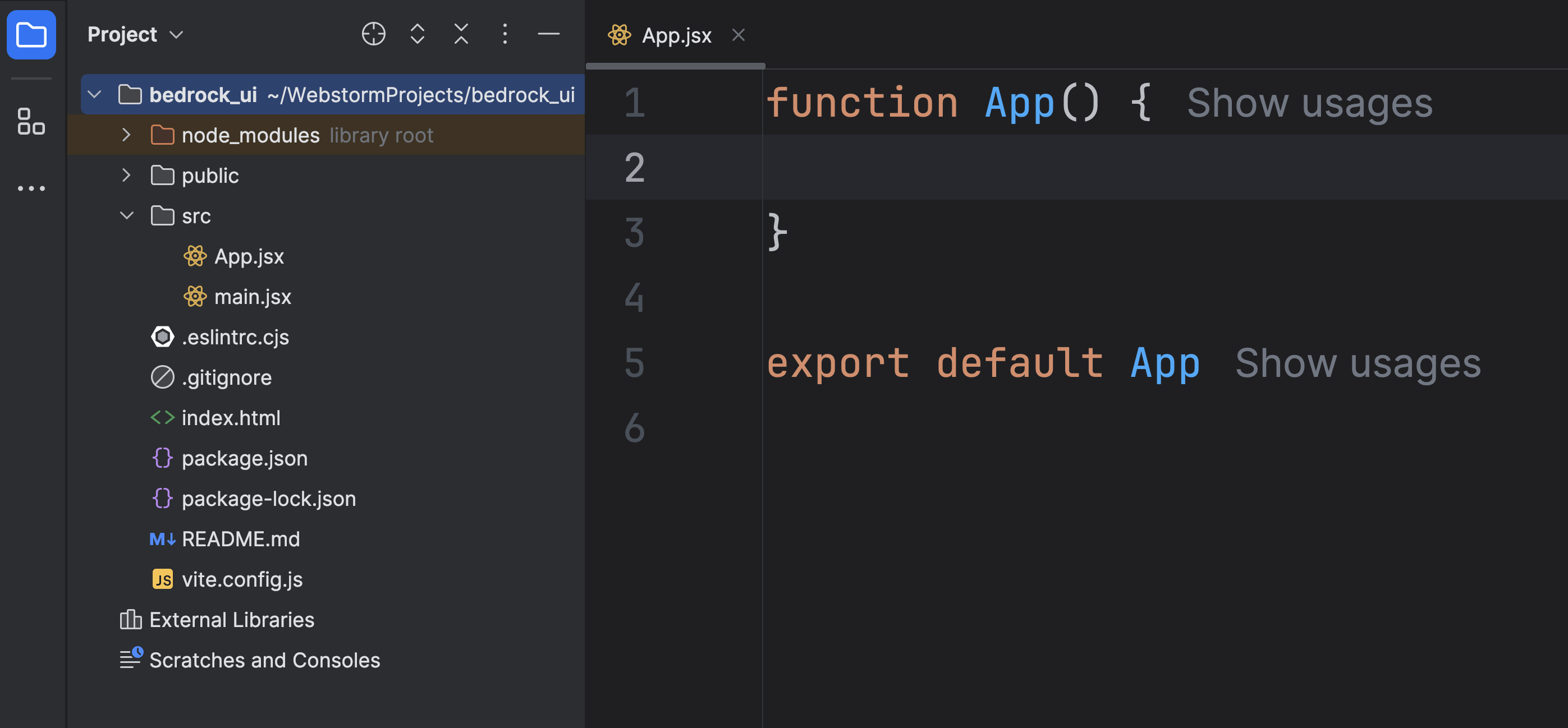

Let's perform code cleanup by removing everything from App.jsx and creating an empty App() function. Refer to the image below for guidance.

step2

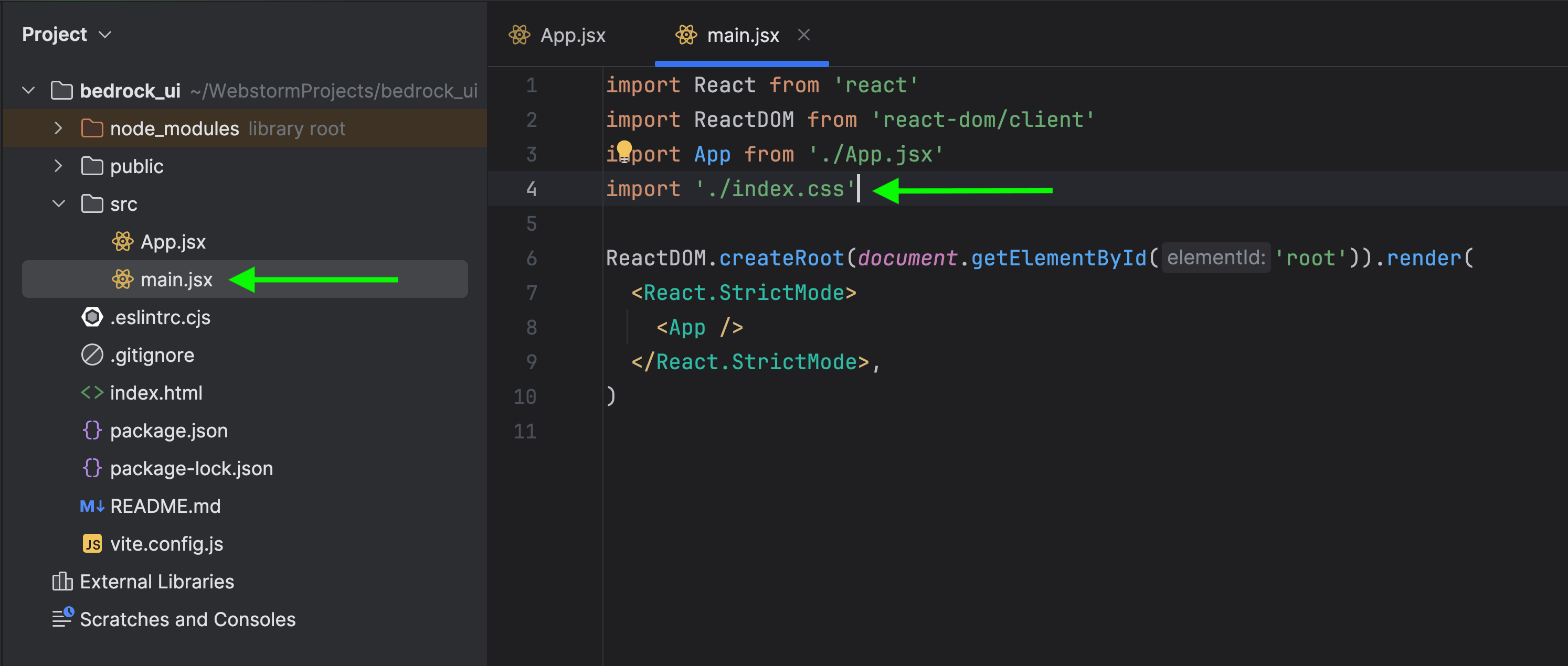

Remove index.css from main.jsx.

step3

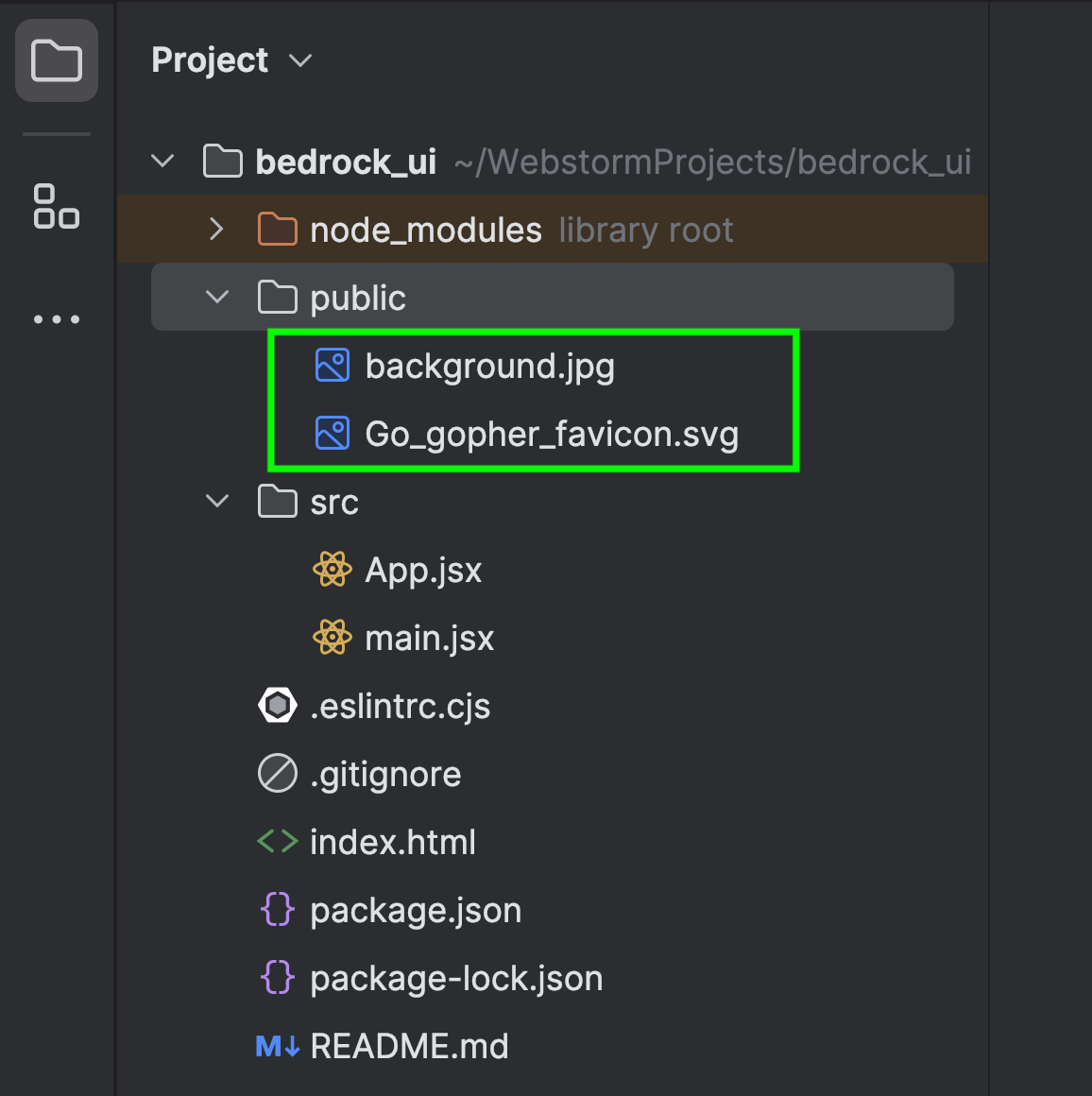

Add these two logos in your public directory. You can download them from my repo.

step4

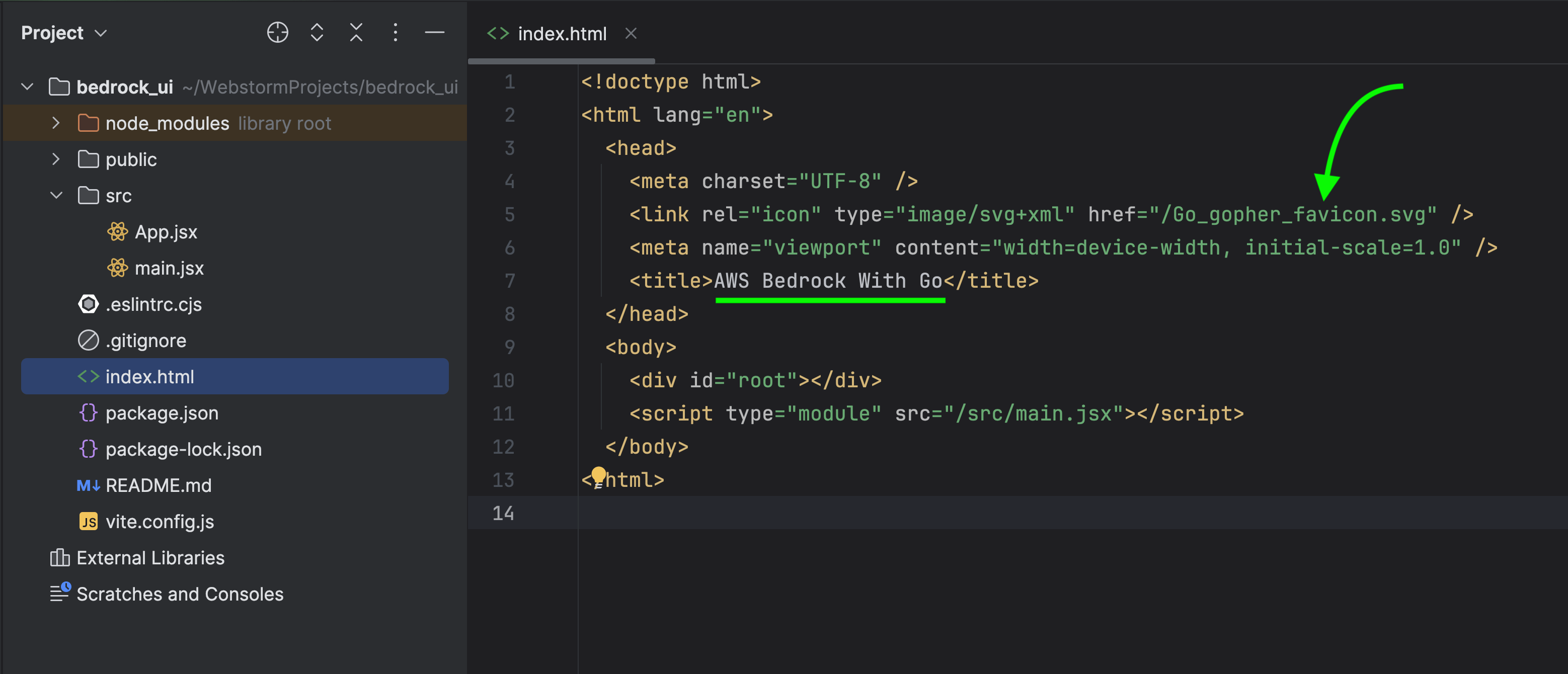

Update index.html with your new favicon and title.

step5

Now, we are good to go ahead.

Development Time

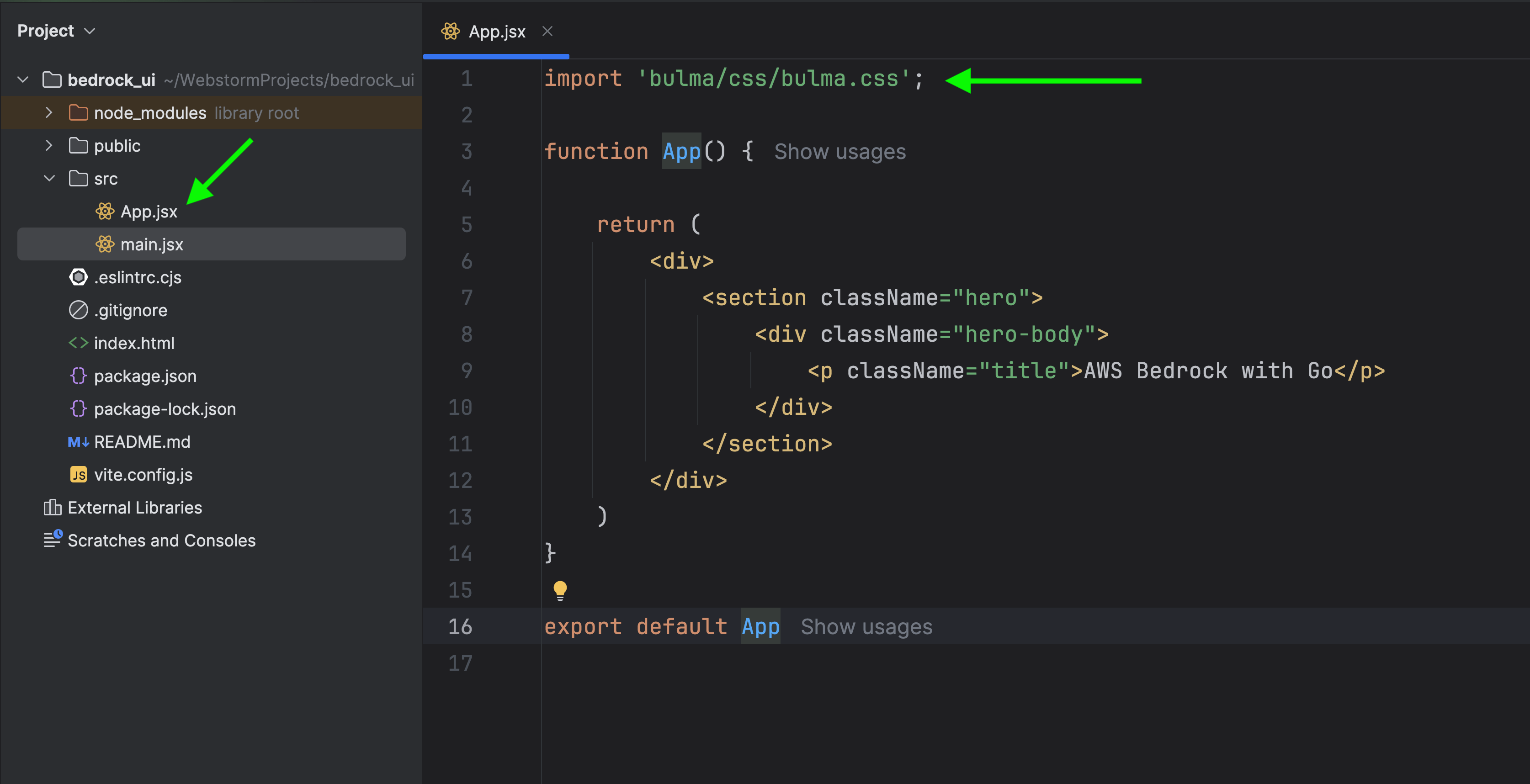

Let's begin first by opening App.jsx.

The App is a functional React component. It returns some JSX, a syntax similar to HTML, used to define UI structures in React. When rendered, App displays a section with a title "AWS Bedrock with Go" inside a div. The hero, hero-body, and title are CSS class names used to style these elements, and these are actually coming from Bulma. So, make sure to import bulma at the top.

step6

Next, we are going to set a new background image.

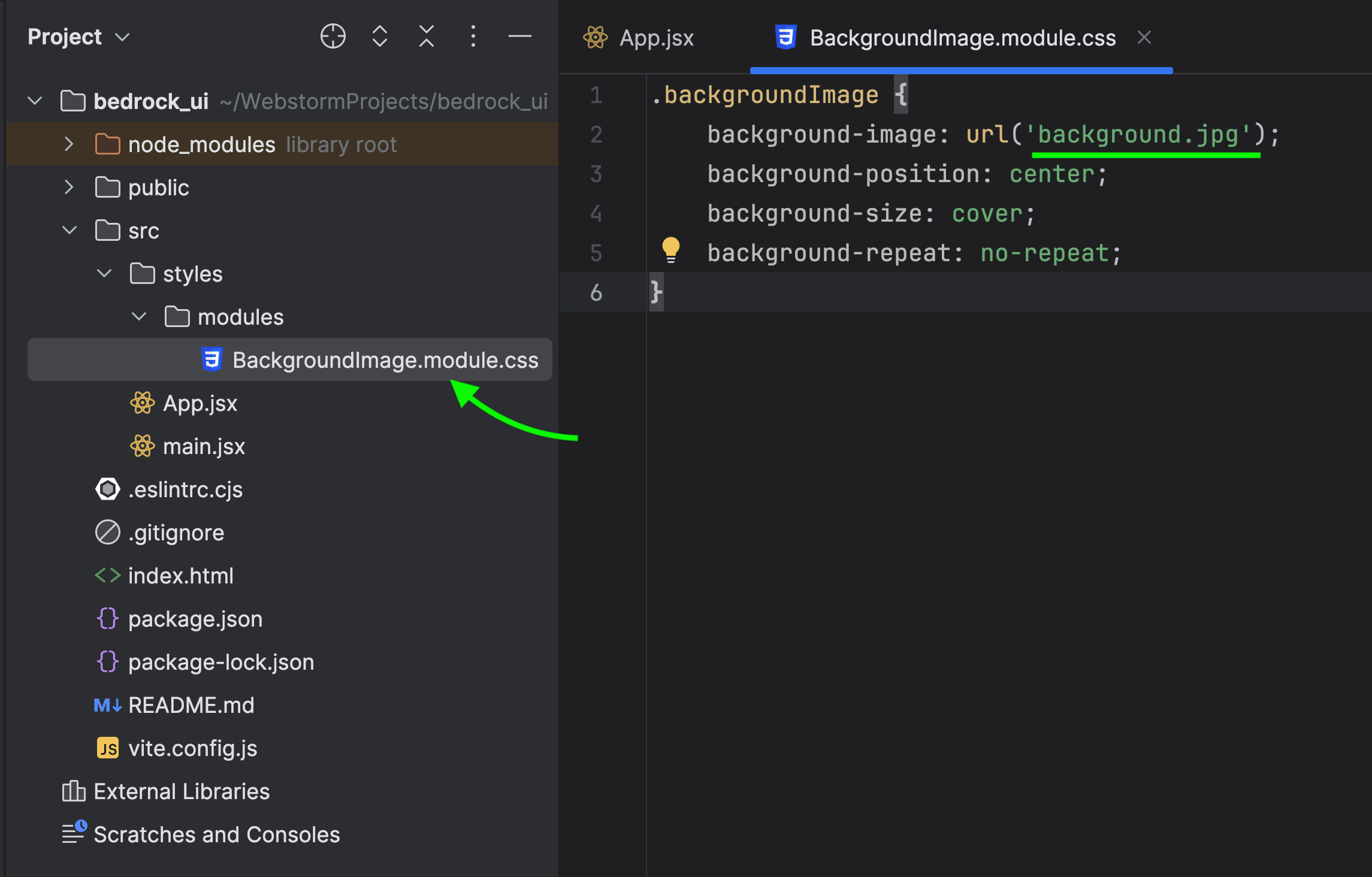

Create a new file BackgroundImage.module.css under src/styles/modules.

When CSS files end with .module.css, they're using a feature called CSS Modules. CSS Modules use local scope to avoid style conflicts across different project parts, allowing component-scoped styling.

step7

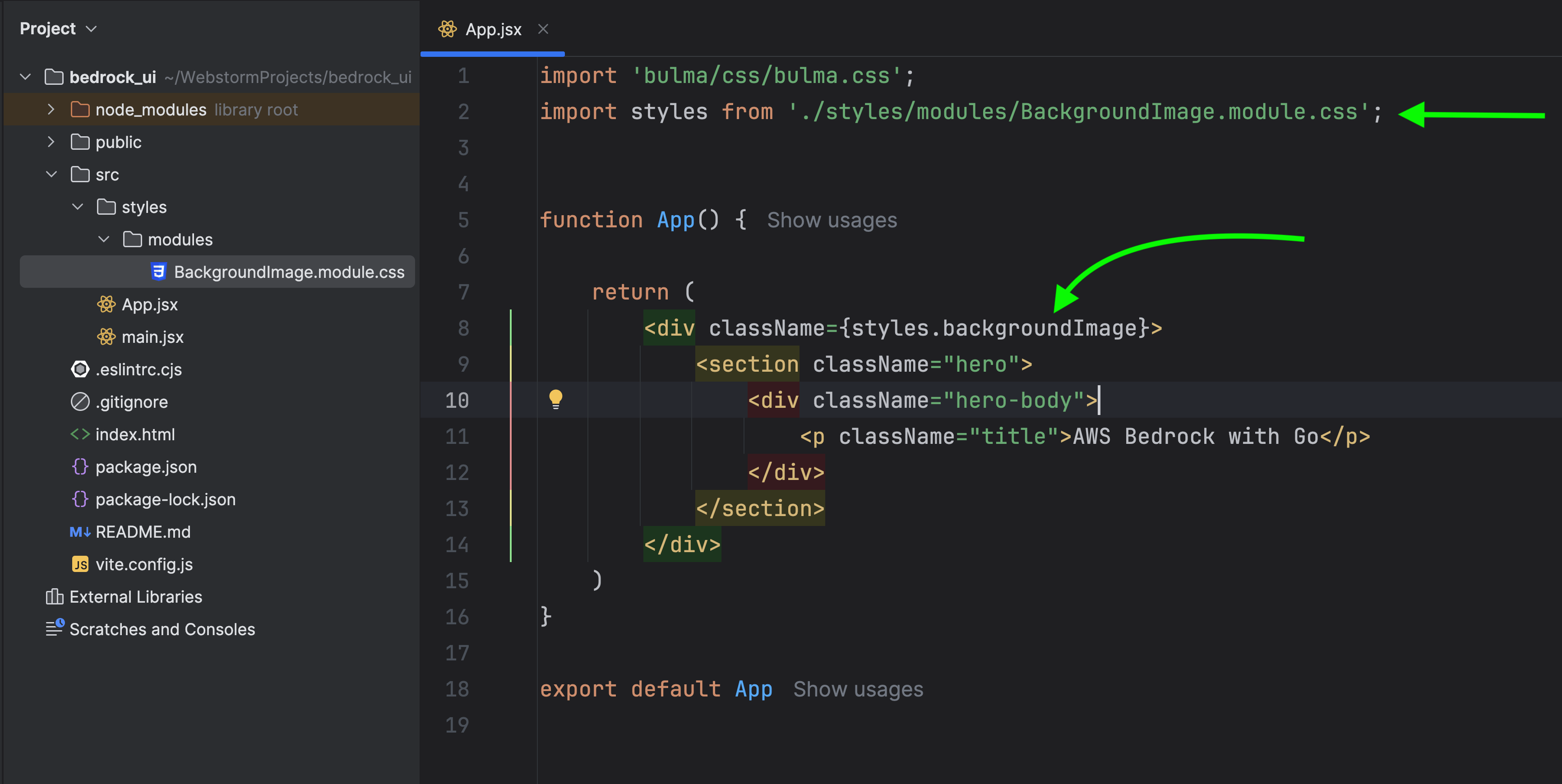

Update App.jsx with the new styling to apply the background.

step8

Creating Components

We will be creating multiple components. Let's start first with showing AI-related logos in our UI.

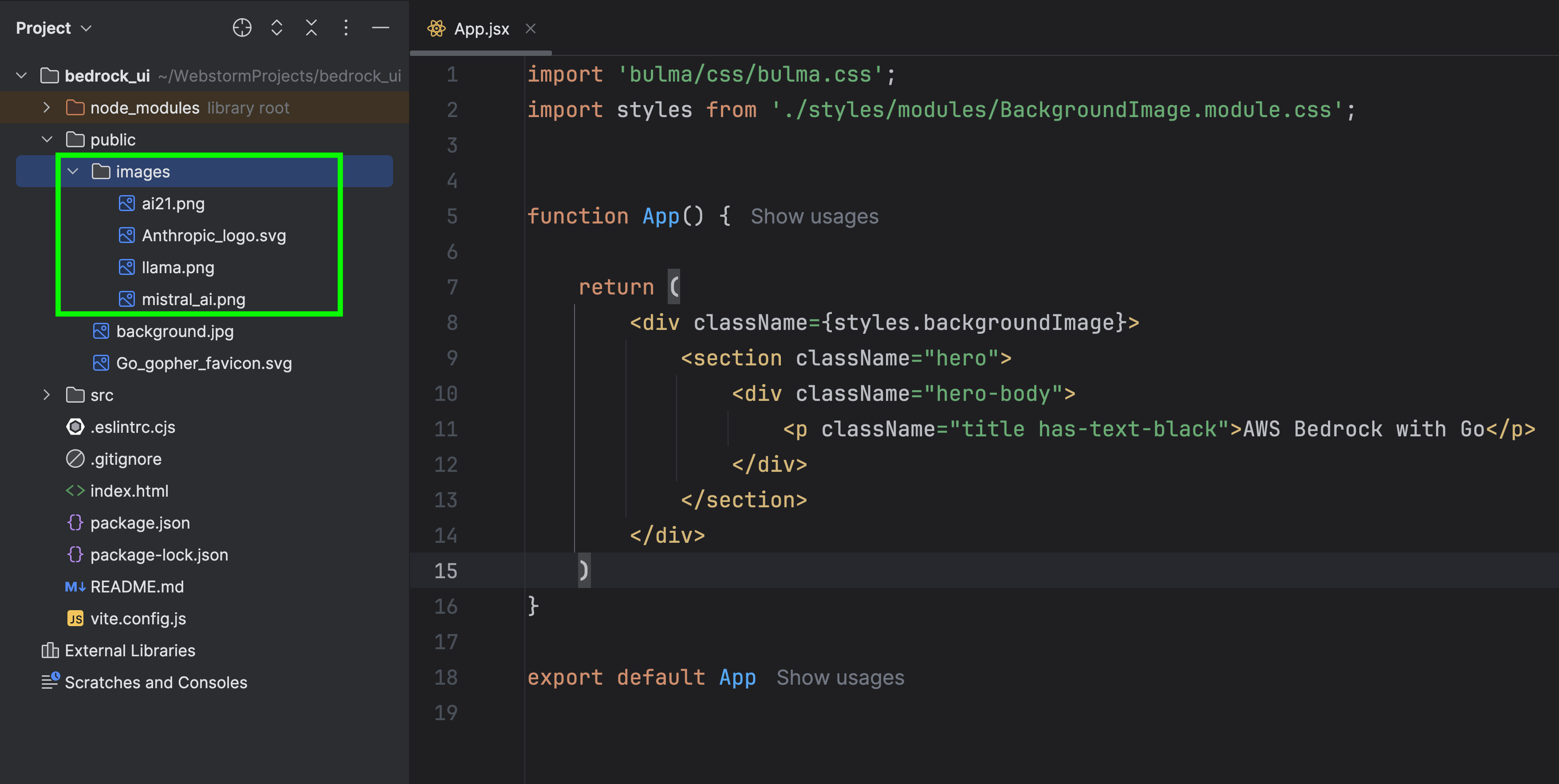

You need to place new images under public/images. Download these images from my repo.

step9

Next, create a new directory called components under src, followed up with a new file AILogoComponent.jsx.

step10

In this component we are displaying a layout containing four logos.

import AnthropicLogo from "/images/Anthropic_logo.svg";
import LlamaLogo from "/images/llama.png";
import AI21Logo from "/images/ai21.png";
import MistralAiLogo from "/images/mistral_ai.png";

function AILogoComponent() {
	return (
		<div className="columns is-mobile mt-6">
			<div className="column"></div>
			<div className="column">
				<div className="card">
					<div className="card-image">
						<figure className="image is-4by3">
							<img src={AnthropicLogo} alt="anthropic" />
						</figure>
					</div>
				</div>
			</div>
			<div className="column">
				<div className="card">
					<div className="card-image">
						<figure className="image is-4by2">
							<img src={LlamaLogo} alt="llama" />
						</figure>
					</div>
				</div>
				<div className="card">
					<div className="card-image">
						<figure className="image is-4by2">
							<img src={AI21Logo} alt="ai21" />
						</figure>
					</div>
				</div>
				<div className="card">
					<div className="card-image">
						<figure className="image is-4by2">
							<img src={MistralAiLogo} alt="mistral" />
						</figure>
					</div>
				</div>
			</div>
			<div className="column"></div>
		</div>
	);
}

export default AILogoComponent;

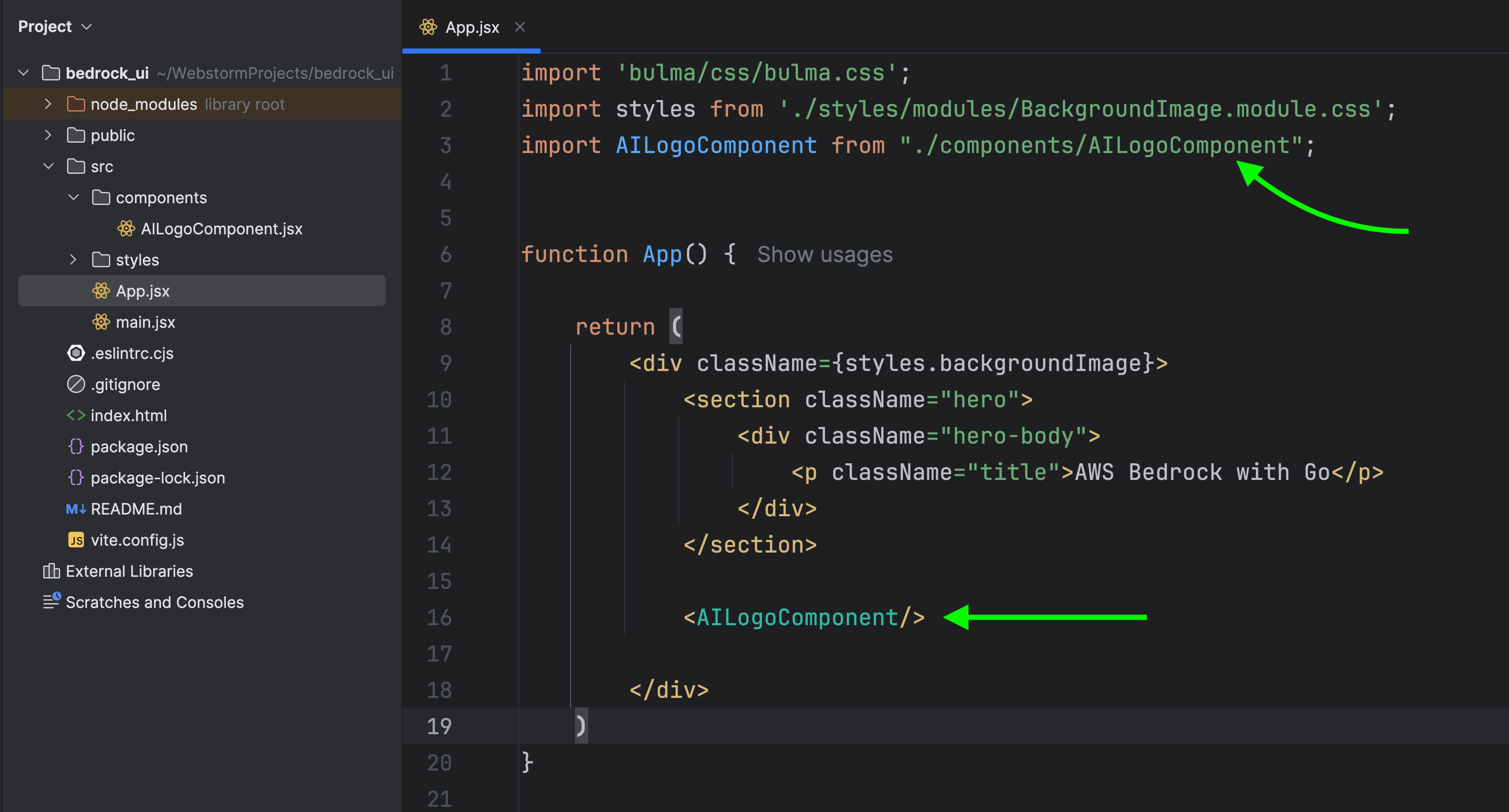

We need to import the above component in our App component.

step11

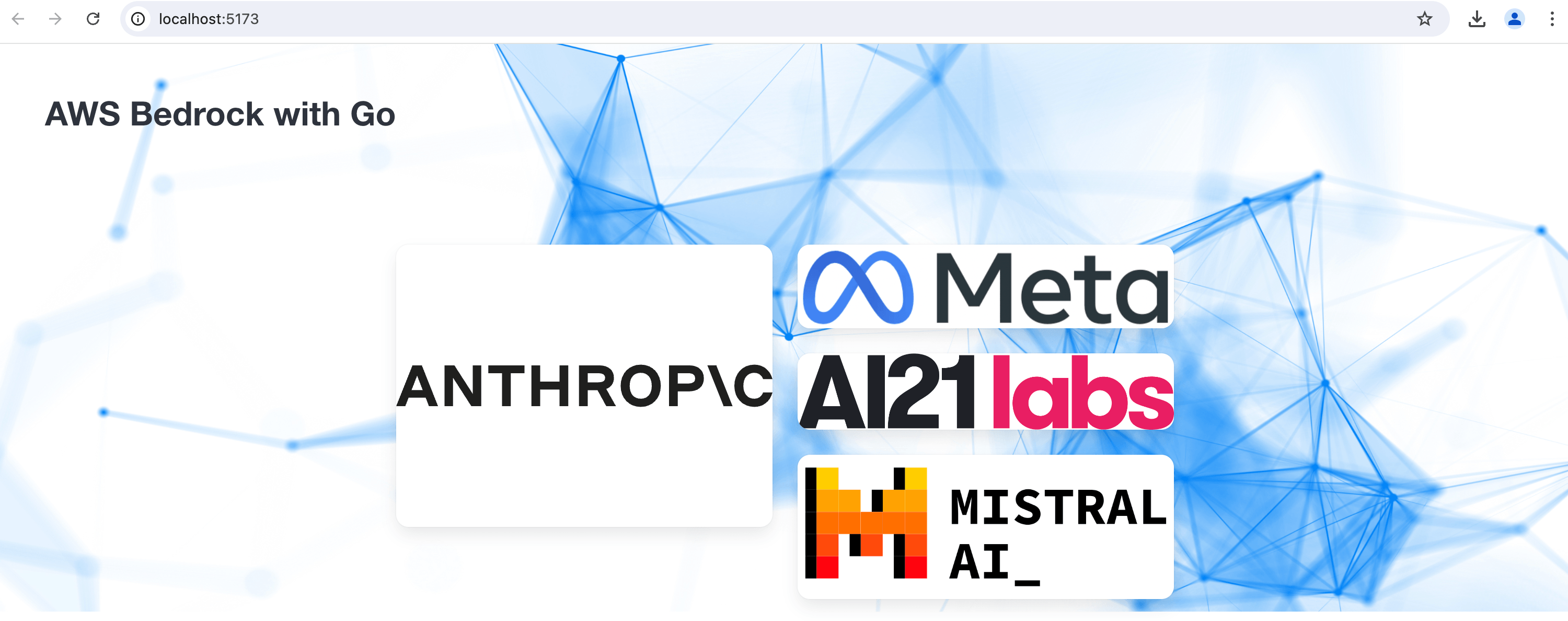

This is the current state of our UI. Well, you can play around and come up with your own creativity.

step12

Now, we will create one part named AIComponent which is going to our core component of our application. Inside AIComponent we will be creating multiple subcomponents that will be part of it.

step13

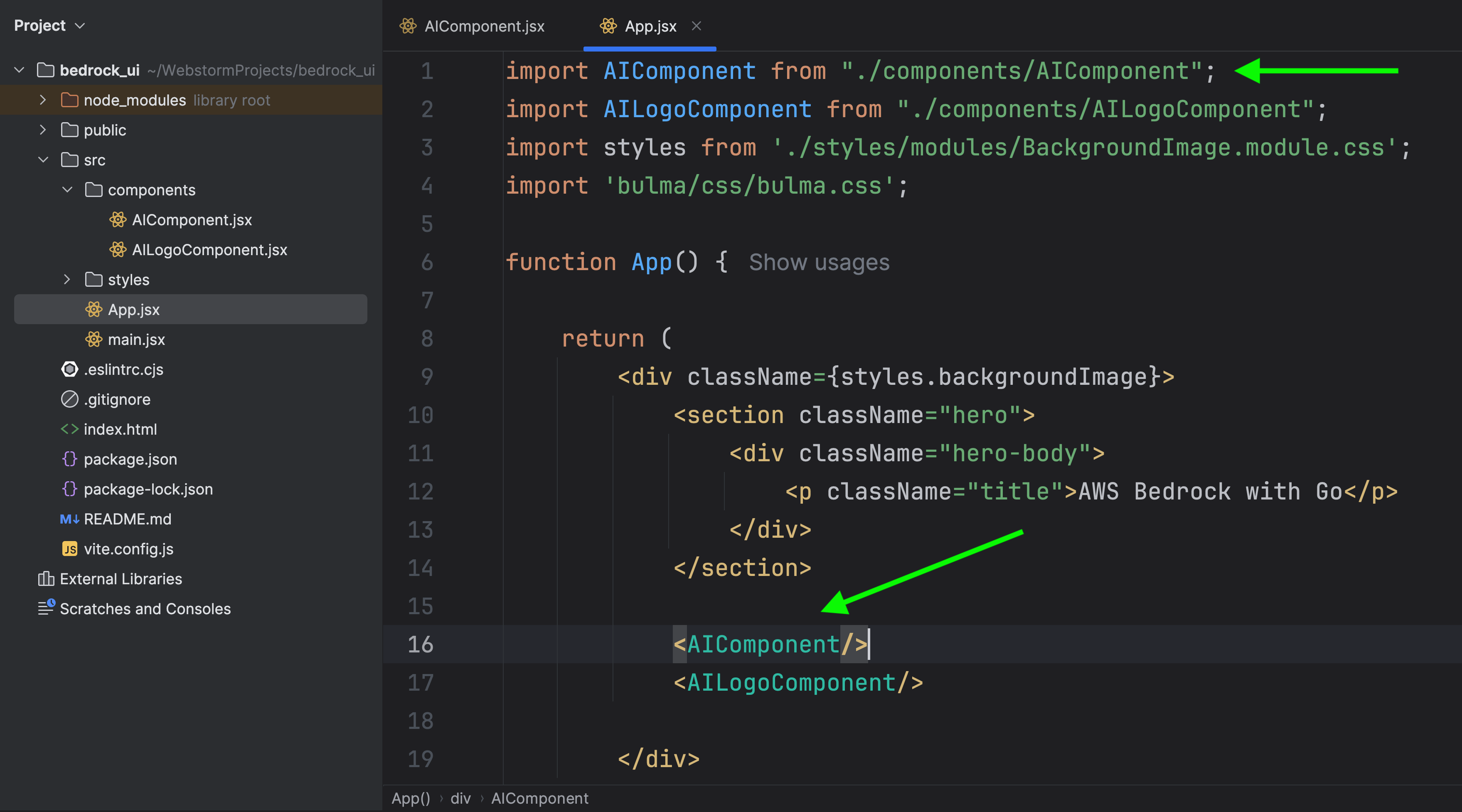

We need to import AIComponent inside App.jsx.

step14

Before we proceed with creating multiple smaller components, we need to implement a custom hook that will serve as the core of the application and handle everything.

WebSockets

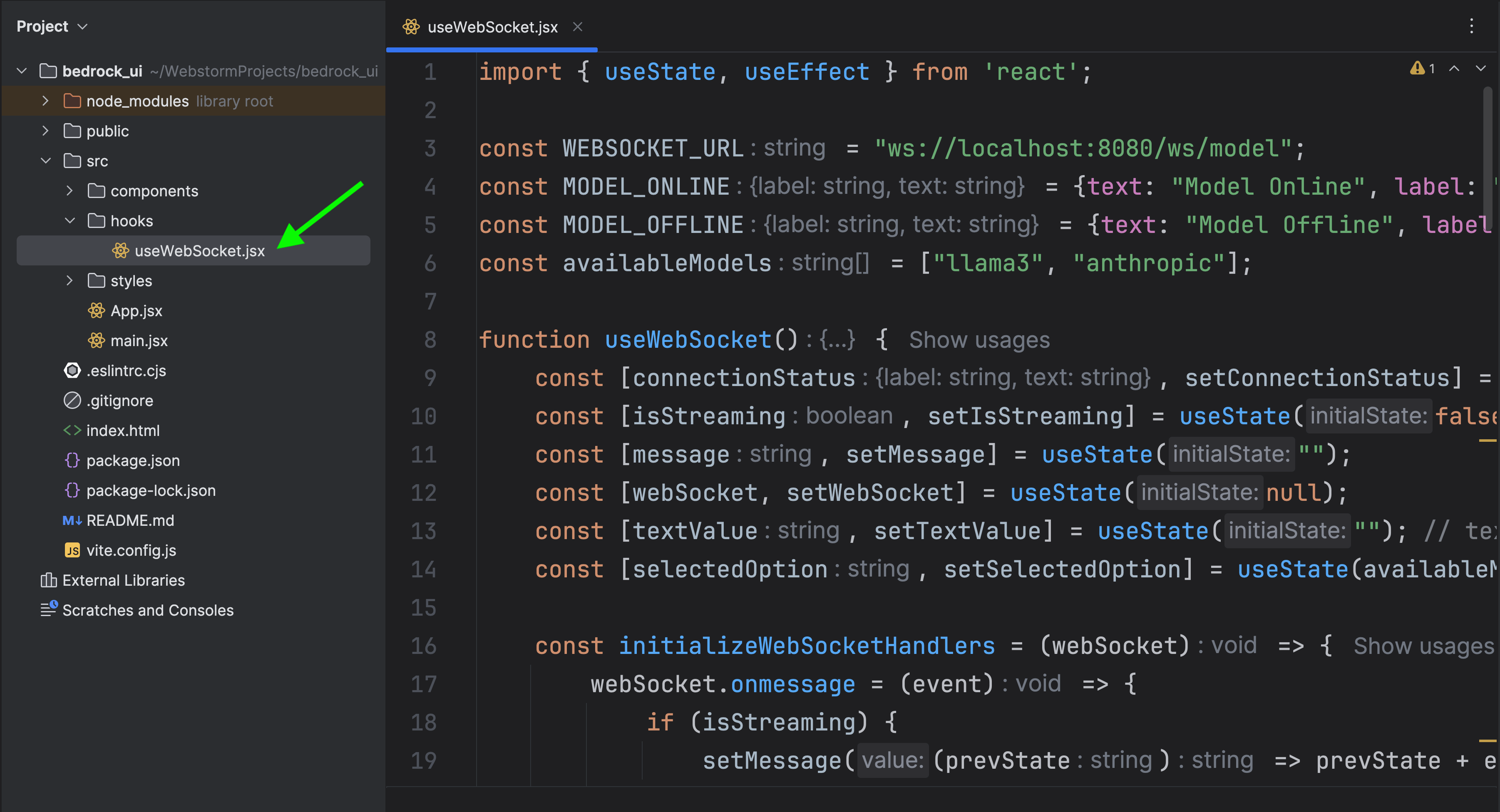

Create a new directory under src and name it hooks.

Under hooks create a new file called useWebSocket.js.

In React, custom hooks are named with a "use" prefix as a convention to signify that they adhere to the rules of hooks.

step15

useWebSocket is a custom hook for connecting to a WebSocket server, and managing state relevant to that connection in a React application.

import { useState, useEffect } from "react";

const WEBSOCKET_URL = "ws://localhost:8080/ws/model";
const MODEL_ONLINE = { text: "Model Online", label: "has-text-success" };
const MODEL_OFFLINE = { text: "Model Offline", label: "has-text-danger" };
const availableModels = ["llama3", "anthropic"];

function useWebSocket() {
	const [connectionStatus, setConnectionStatus] = useState(MODEL_OFFLINE);
	const [isStreaming, setIsStreaming] = useState(false);
	const [message, setMessage] = useState("");
	const [webSocket, setWebSocket] = useState(null);
	const [textValue, setTextValue] = useState(""); // textarea
	const [selectedOption, setSelectedOption] = useState(availableModels[0]);

	const initializeWebSocketHandlers = (webSocket) => {
		webSocket.onmessage = (event) => {
			if (isStreaming) {
				setMessage((prevState) => prevState + event.data + "\n"); // Append streaming text
			} else {
				setMessage(event.data + "\n");
			}
		};

		webSocket.onopen = () => {
			setConnectionStatus(MODEL_ONLINE);
			console.log("WebSocket Connected! | Model ->" + selectedOption);
		};
	};

	useEffect(() => {
		const webSocketURL = `${WEBSOCKET_URL}?streaming=${isStreaming}&model=${selectedOption}`;
		const webSocketInstance = new WebSocket(webSocketURL);
		setWebSocket(webSocketInstance);
		initializeWebSocketHandlers(webSocketInstance);

		// cleanup
		return () => {
			webSocketInstance.close();
			setWebSocket(null);
			setConnectionStatus(MODEL_OFFLINE);
			setMessage("");
		};
	}, [selectedOption, isStreaming]);

	const sendMessage = () => {
		if (webSocket) {
			// clear messages
			clearMessages();
			webSocket.send(textValue);
		}
	};

	const clearMessages = () => {
		setMessage("");
	};

	const handleStreamChange = (e) => {
		setMessage("");
		setIsStreaming(e.target.checked);
	};

	const handleDropdownChange = (event) => {
		console.log(event.target.value);
		setSelectedOption(event.target.value);
	};

	return {
		connectionStatus,
		selectedOption,
		textValue,
		setTextValue,
		message,
		isStreaming,
		availableModels,
		sendMessage,
		handleStreamChange,
		handleDropdownChange,
	};
}

export default useWebSocket;

Let's break it down.

We are going to create some constants that will be used throughout the hook.

  • WEBSOCKET_URL
  • MODEL_ONLINE
  • MODEL_OFFLINE
  • availableModels

useState is a React Hook that lets you add state variable to your components. The following state variables were created:

  • connectionStatus: This is indicating whether the WebSocket connection to the model is online or offline.
  • isStreaming: Maintains whether the data being received is streaming or not. message: Stores the message received from the WebSocket.
  • webSocket: Stores the Websocket instance.
  • textValue: The value from a textarea, which can be sent as a message over the WebSocket.
  • selectedOption: Keeps track of the selected model from availableModels.

initializeWebSocketHandlers(): A function that sets up listeners for the WebSocket. On receiving a message, the function either appends data or resets the message. The function sets MODEL_ONLINE once the connection is open.

useEffect: This is a Hook in React that lets you perform side effects in function components. In this useEffect, a WebSocket instance is created with the webSocketURL and the connection handlers are initialized. When the selectedOption or isStreaming state changes, this hook runs again as they are dependencies.

The cleanup function, returned by useEffect, runs before the component is removed from the UI to prevent memory leaks. This is where the WebSocket instance is closed, and all the state variables are reset to their initial values.

sendMessage(): Sends the textValue over the WebSocket if the webSocket instance exists and clears the messages.

clearMessages(): Clear all the messages received.

handleStreamChange(): handles the changes in streaming state. It clears existing messages and alters the isStreaming state.

handleDropdownChange(): It logs the selected model and updates the selectedOption.

The hook then finally returns an object containing all the state variables and functions so that they might be used by the calling component.

Sub-Components

Now, we will be handling multiple subcomponents. All the files will be placed under components directory.

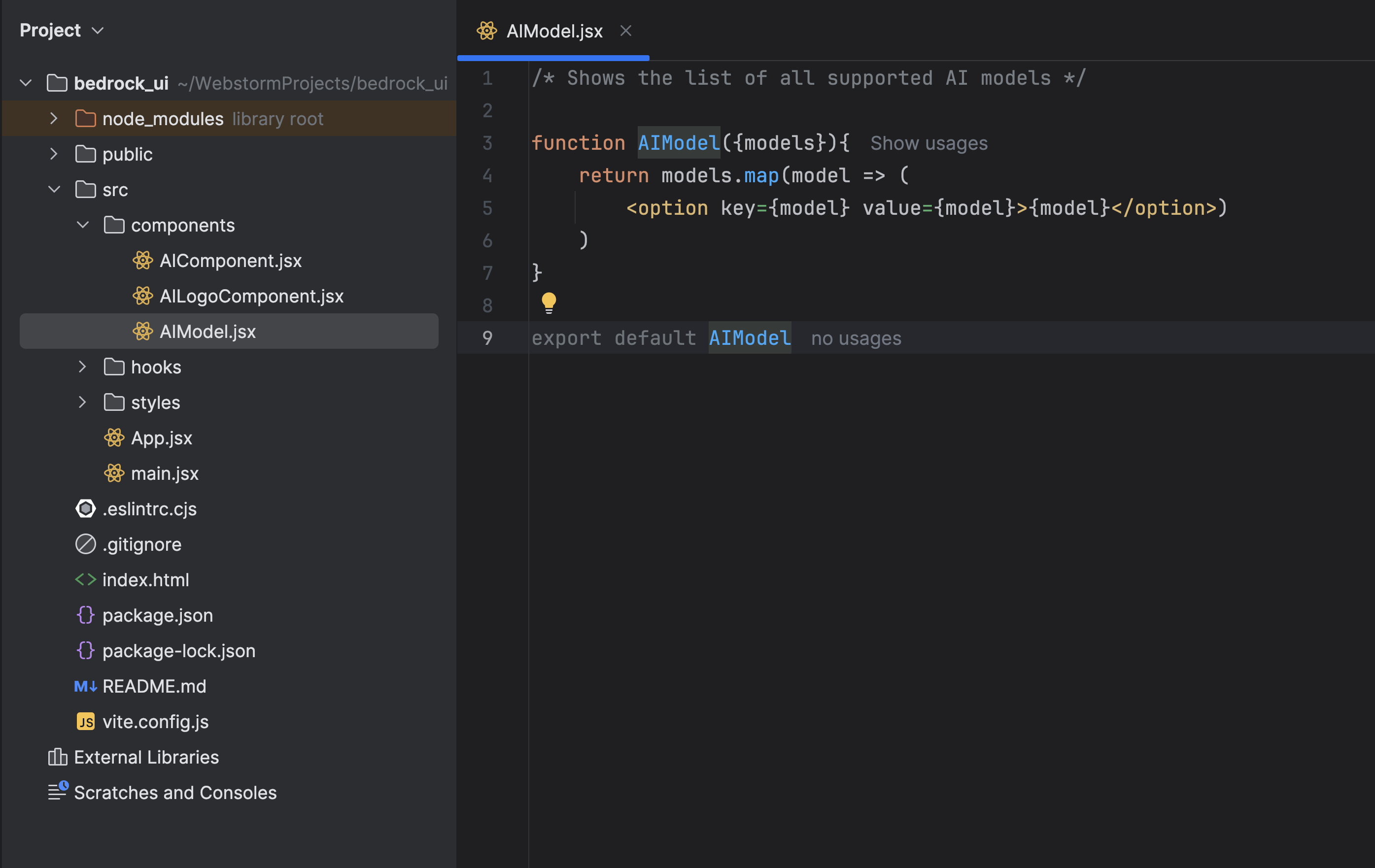

  • Let's begin first by creating AIModel.jsx.

step16

function AIModel({ models }) {
	return models.map((model) => (
		<option key={model} value={model}>
			{model}
		</option>
	));
}

export default AIModel;

In the UI, it's going to render options with llama3 and anthropic.

AIModel

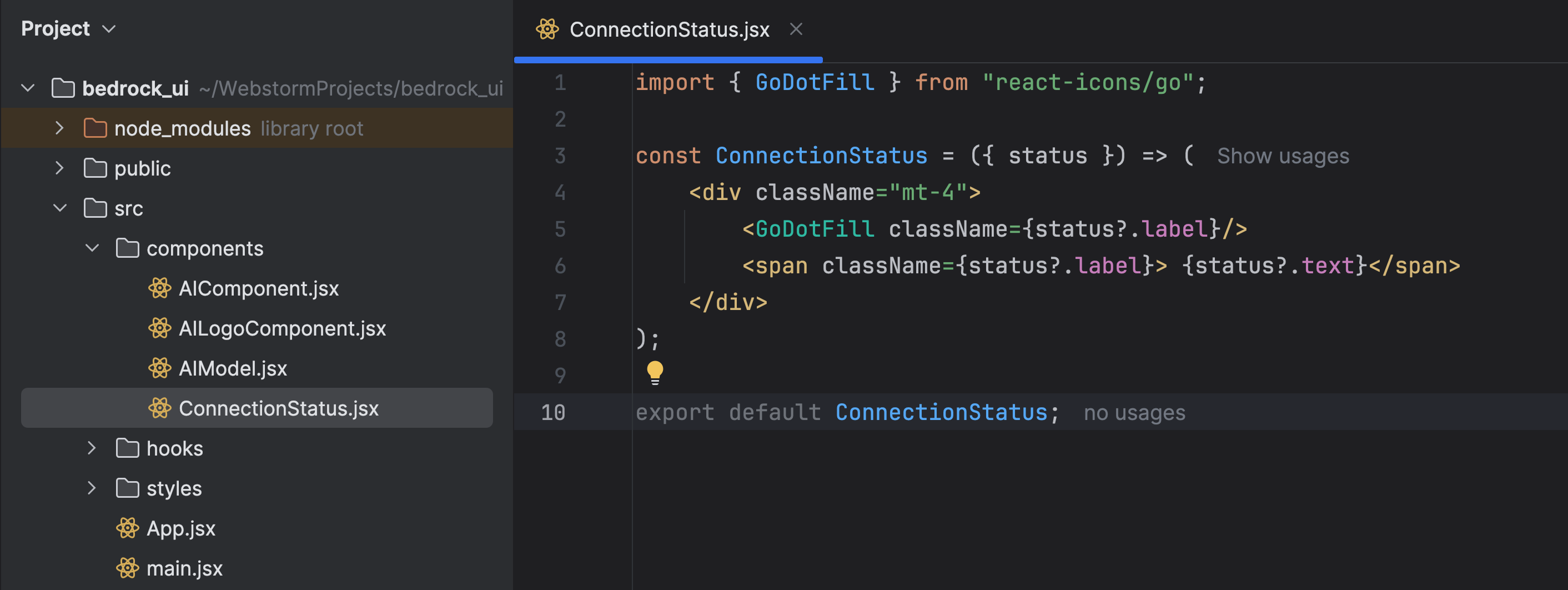

  • Create a new file ConnectionStatus.jsx.

step17

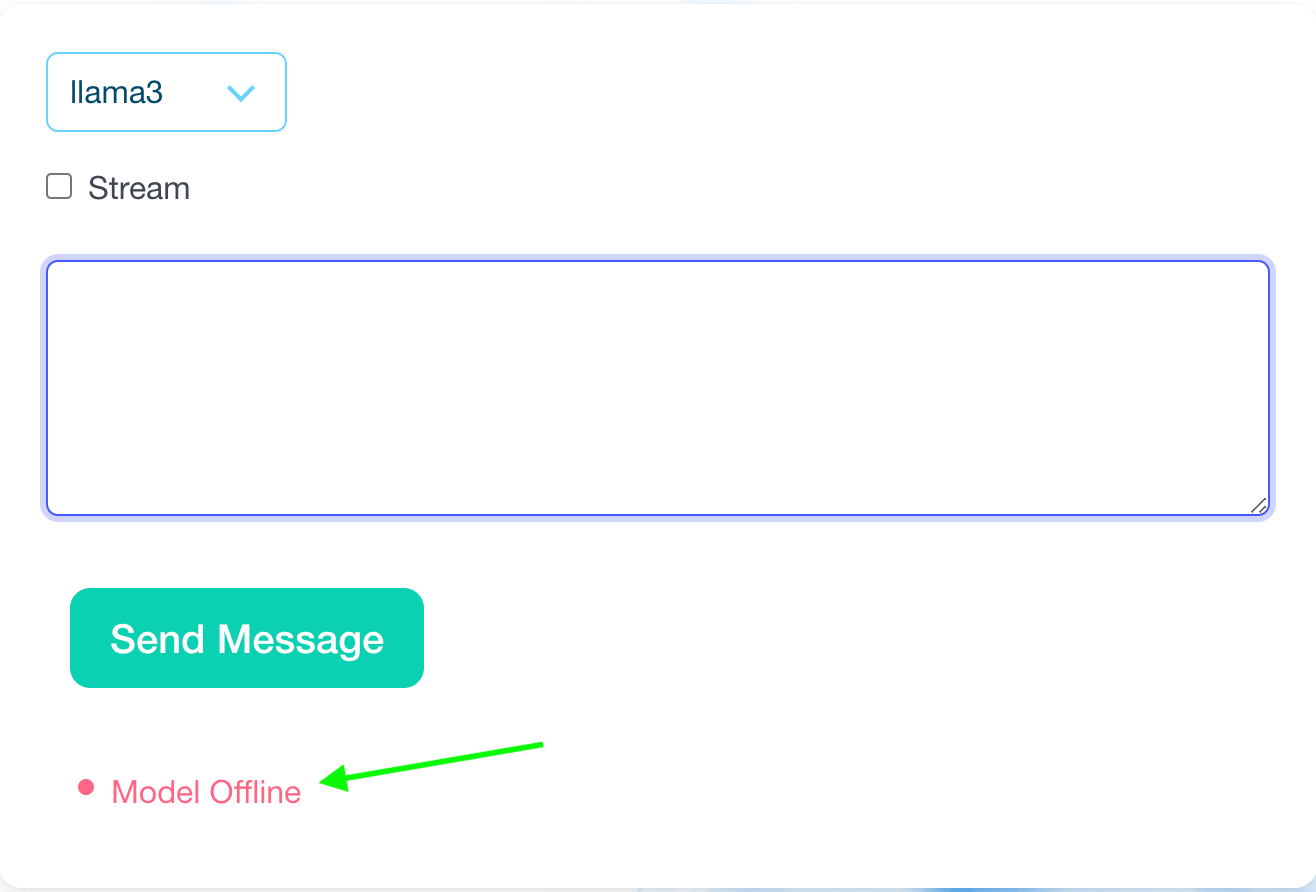

The text changes based on the websocket connectivity. If there is an active connection, it will say Model Online else Model Offline.

ConnectionStatus

import { GoDotFill } from "react-icons/go";

const ConnectionStatus = ({ status }) => (
	<div className="mt-4">
		<GoDotFill className={status?.label} />
		<span className={status?.label}> {status?.text}</span>
	</div>
);

export default ConnectionStatus;

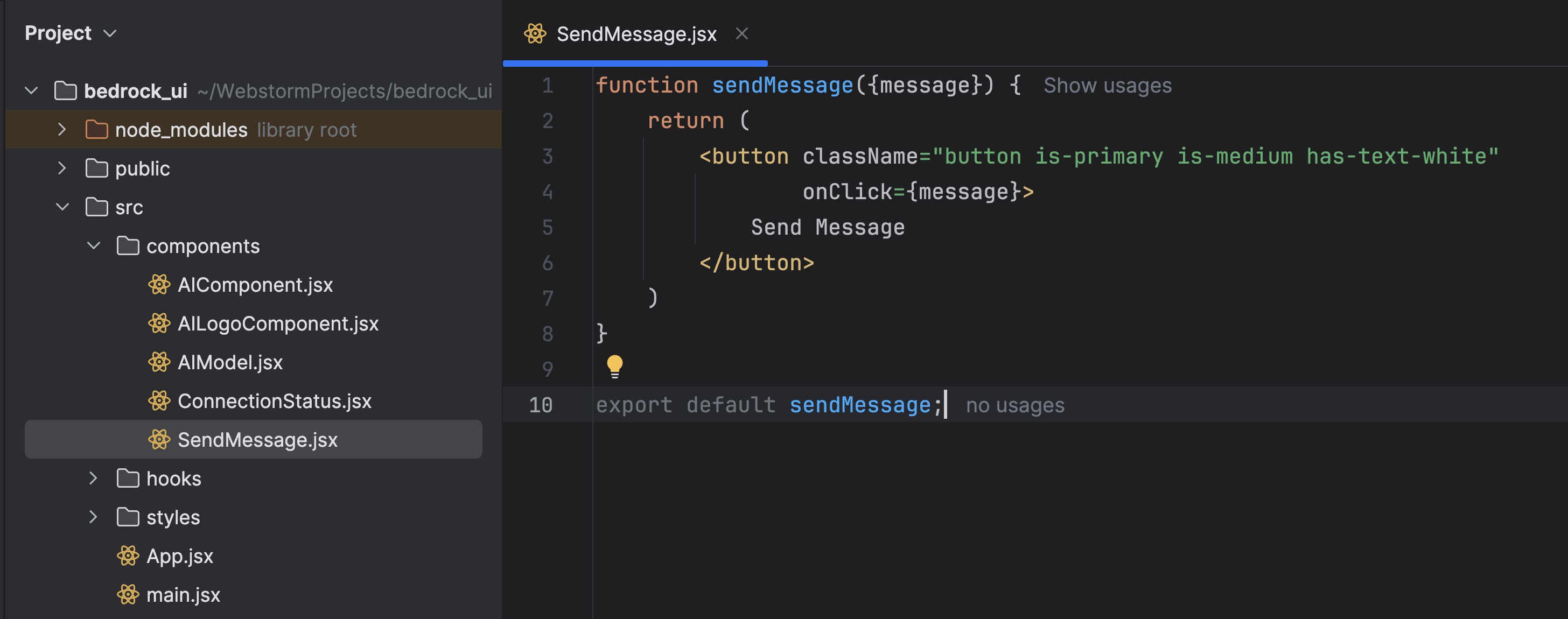

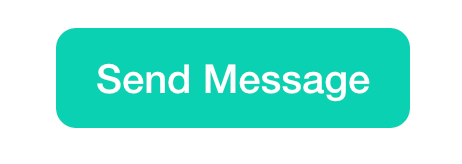

Create a new file SendMessage.jsx.

step18

function sendMessage({ message }) {
	return (
		<button
			className="button is-primary is-medium has-text-white"
			onClick={message}
		>
			Send Message
		</button>
	);
}

export default sendMessage;

SendMessage

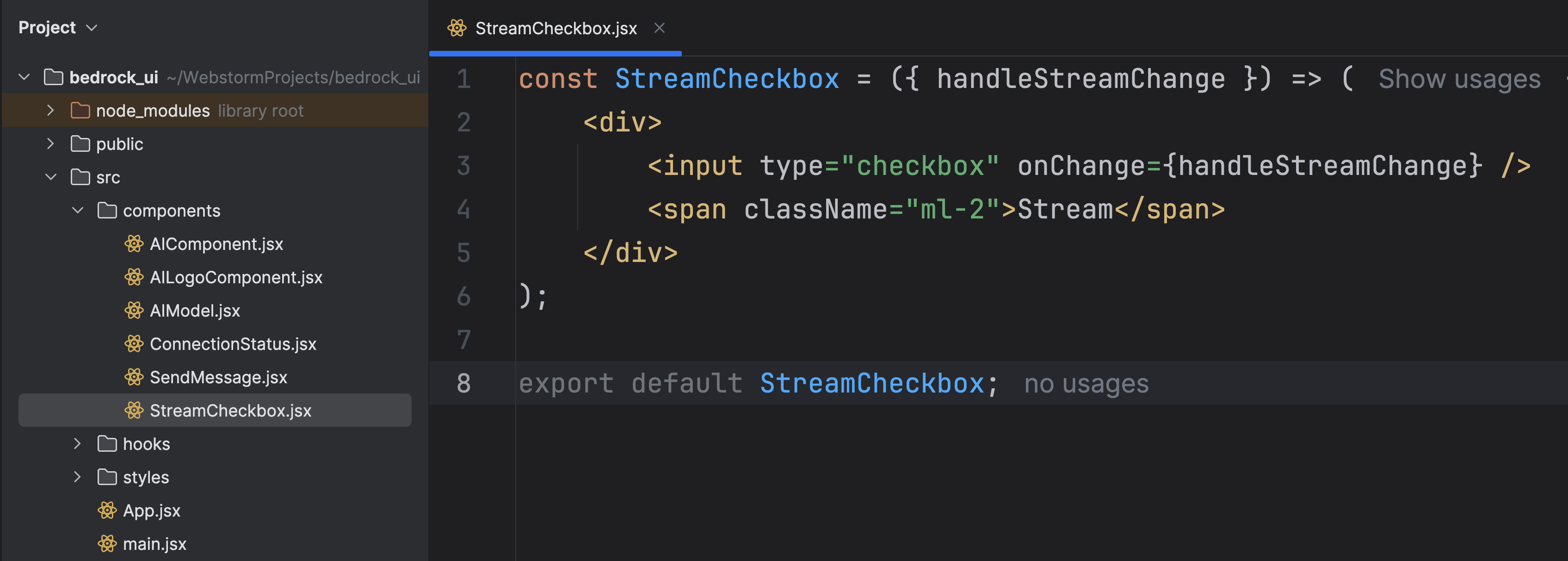

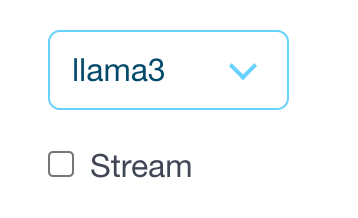

Create a new file StreamCheckbox.jsx.

step19

StreamCheckbox

const StreamCheckbox = ({ handleStreamChange }) => (
	<div>
		<input type="checkbox" onChange={handleStreamChange} />
		<span className="ml-2">Stream</span>
	</div>
);

export default StreamCheckbox;

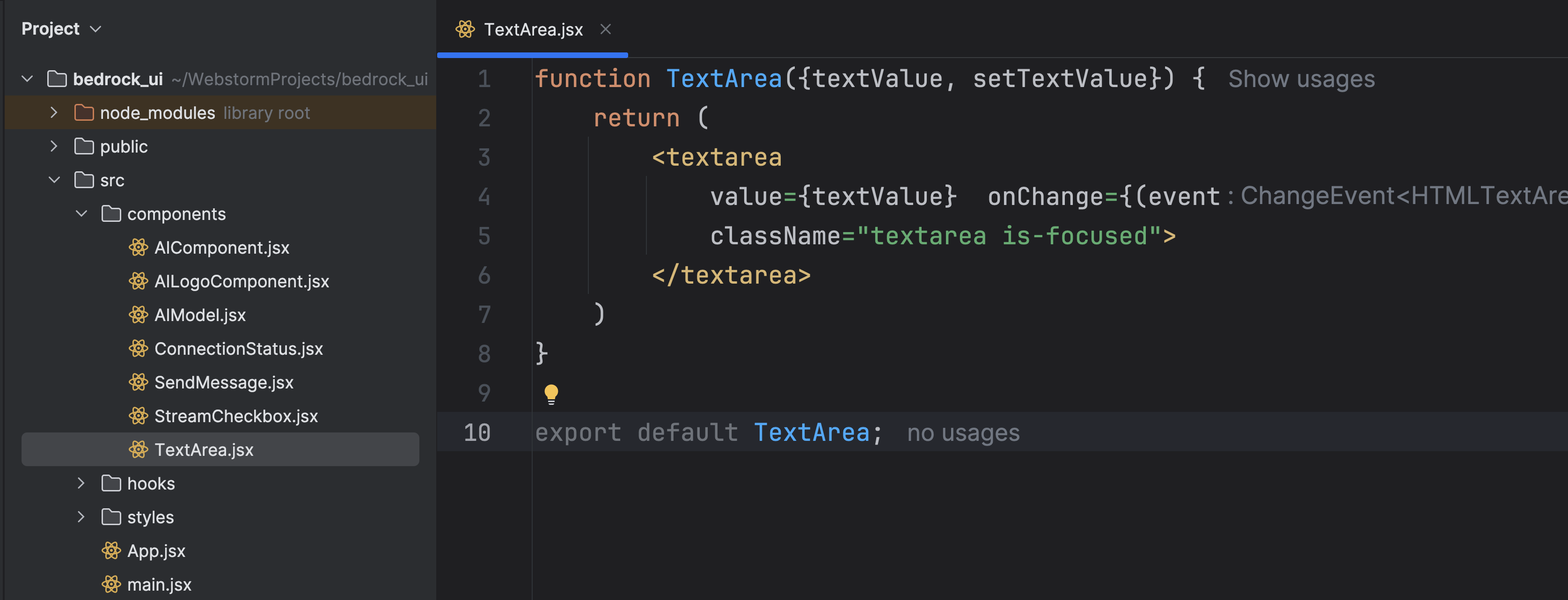

Create a new file TextArea.jsx.

step20

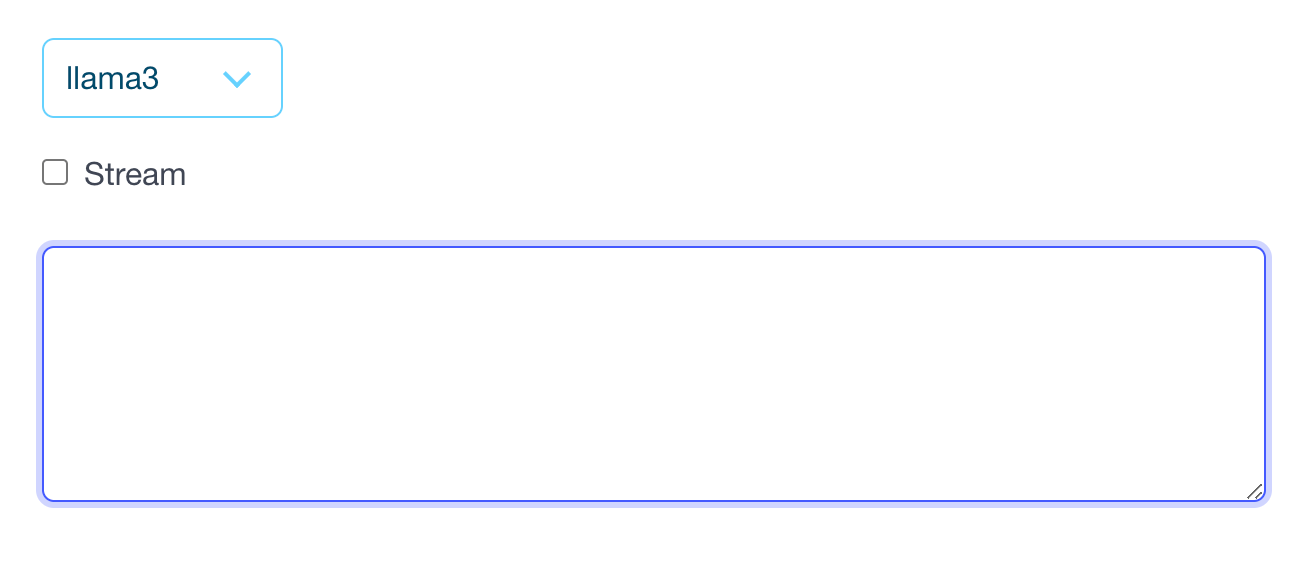

TextArea

function TextArea({ textValue, setTextValue }) {
	return (
		<textarea
			value={textValue}
			onChange={(event) => setTextValue(event.target.value)}
			className="textarea is-focused"
		></textarea>
	);
}

export default TextArea;

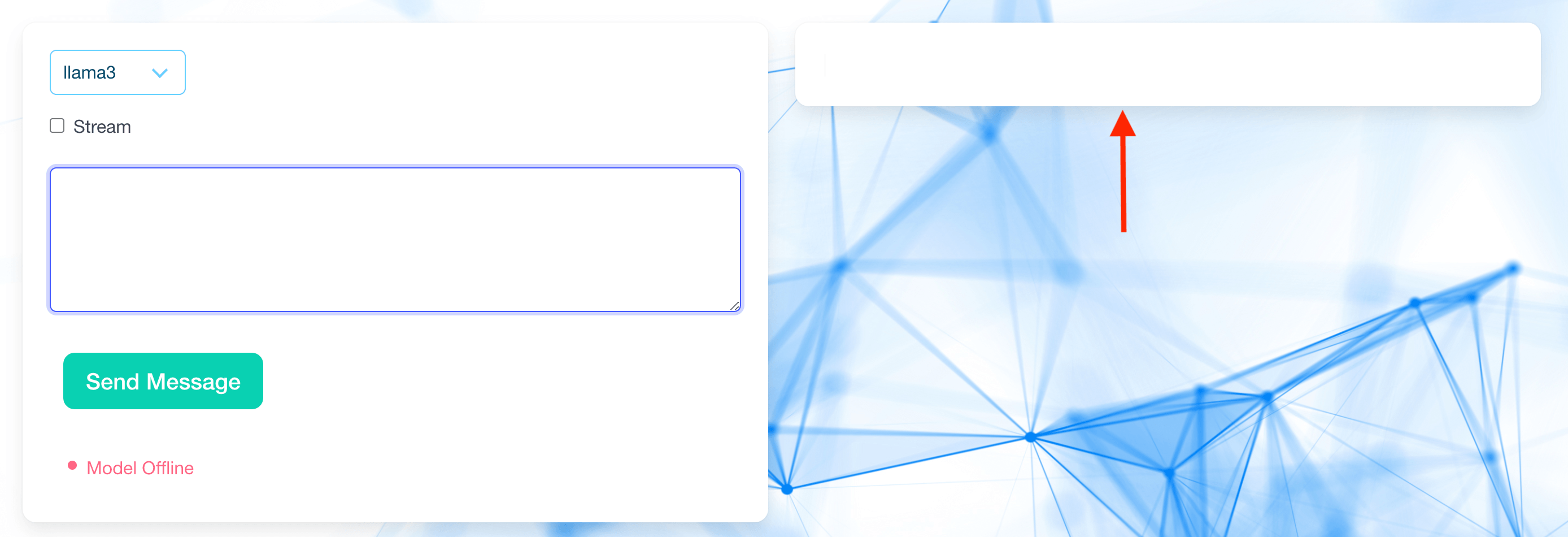

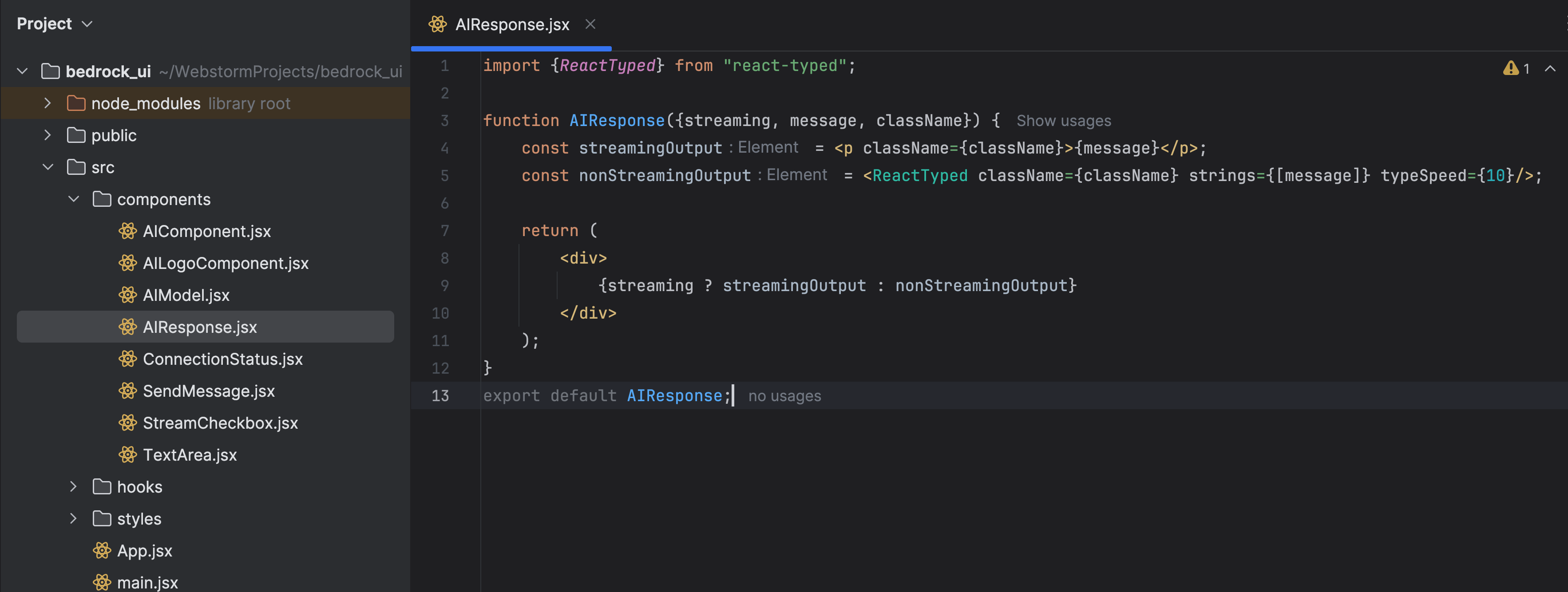

Create a new file AIResponse.jsx.

step21

AIResponse

import { ReactTyped } from "react-typed";

function AIResponse({ streaming, message, className }) {
	const streamingOutput = <p className={className}>{message}</p>;
	const nonStreamingOutput = (
		<ReactTyped className={className} strings={[message]} typeSpeed={10} />
	);

	return <div>{streaming ? streamingOutput : nonStreamingOutput}</div>;
}
export default AIResponse;

Stitching Together

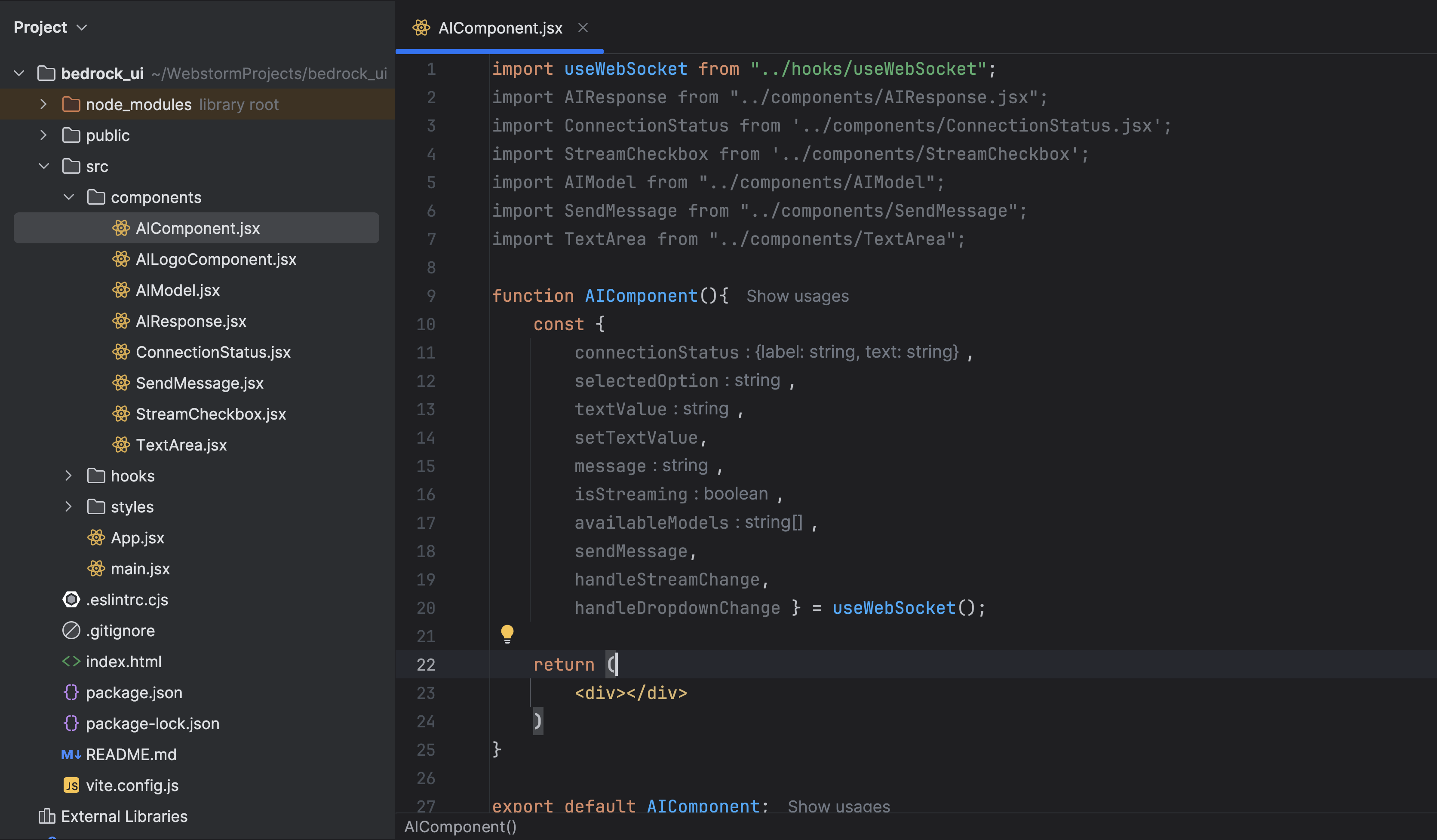

Come back to our main component AIComponent.jsx and do the necessary imports the state-related variables.

step22

import useWebSocket from "../hooks/useWebSocket";
import AIResponse from "../components/AIResponse.jsx";
import ConnectionStatus from "../components/ConnectionStatus.jsx";
import StreamCheckbox from "../components/StreamCheckbox";
import AIModel from "../components/AIModel";
import SendMessage from "../components/SendMessage";
import TextArea from "../components/TextArea";

function AIComponent() {
	const {
		connectionStatus,
		selectedOption,
		textValue,
		setTextValue,
		message,
		isStreaming,
		availableModels,
		sendMessage,
		handleStreamChange,
		handleDropdownChange,
	} = useWebSocket();

	return <div></div>;
}

export default AIComponent;

Let's now add the UI elements.

import useWebSocket from "../hooks/useWebSocket";
import AIResponse from "../components/AIResponse.jsx";
import ConnectionStatus from "../components/ConnectionStatus.jsx";
import StreamCheckbox from "../components/StreamCheckbox";
import AIModel from "../components/AIModel";
import SendMessage from "../components/SendMessage";
import TextArea from "../components/TextArea";

function AIComponent() {
	const {
		connectionStatus,
		selectedOption,
		textValue,
		setTextValue,
		message,
		isStreaming,
		availableModels,
		sendMessage,
		handleStreamChange,
		handleDropdownChange,
	} = useWebSocket();

	return (
		<div>
			<div className="container">
				<div className="columns">
					<div className="column is-6">
						<div className="card">
							<div className="card-content">
								<div className="select is-info mb-4">
									<select
										value={selectedOption}
										onChange={handleDropdownChange}
									>
										<AIModel models={availableModels} />
									</select>
								</div>

								<div className="columns">
									<div className="column">
										<StreamCheckbox handleStreamChange={handleStreamChange} />
									</div>
								</div>

								<div className="columns">
									<div className="column">
										<TextArea
											textValue={textValue}
											setTextValue={setTextValue}
										/>
									</div>
								</div>
								<div className="colums">
									<div className="column">
										<SendMessage message={sendMessage} />
									</div>
									<div className="column">
										<ConnectionStatus status={connectionStatus} />
									</div>
								</div>
							</div>
						</div>
					</div>
					<div className="column is-6">
						<div className="card">
							<div className="card-content">
								<AIResponse
									message={message}
									className="subtitle has-text-grey typing-text"
									streaming={isStreaming}
								/>
							</div>
						</div>
					</div>
				</div>
			</div>
		</div>
	);
}

export default AIComponent;

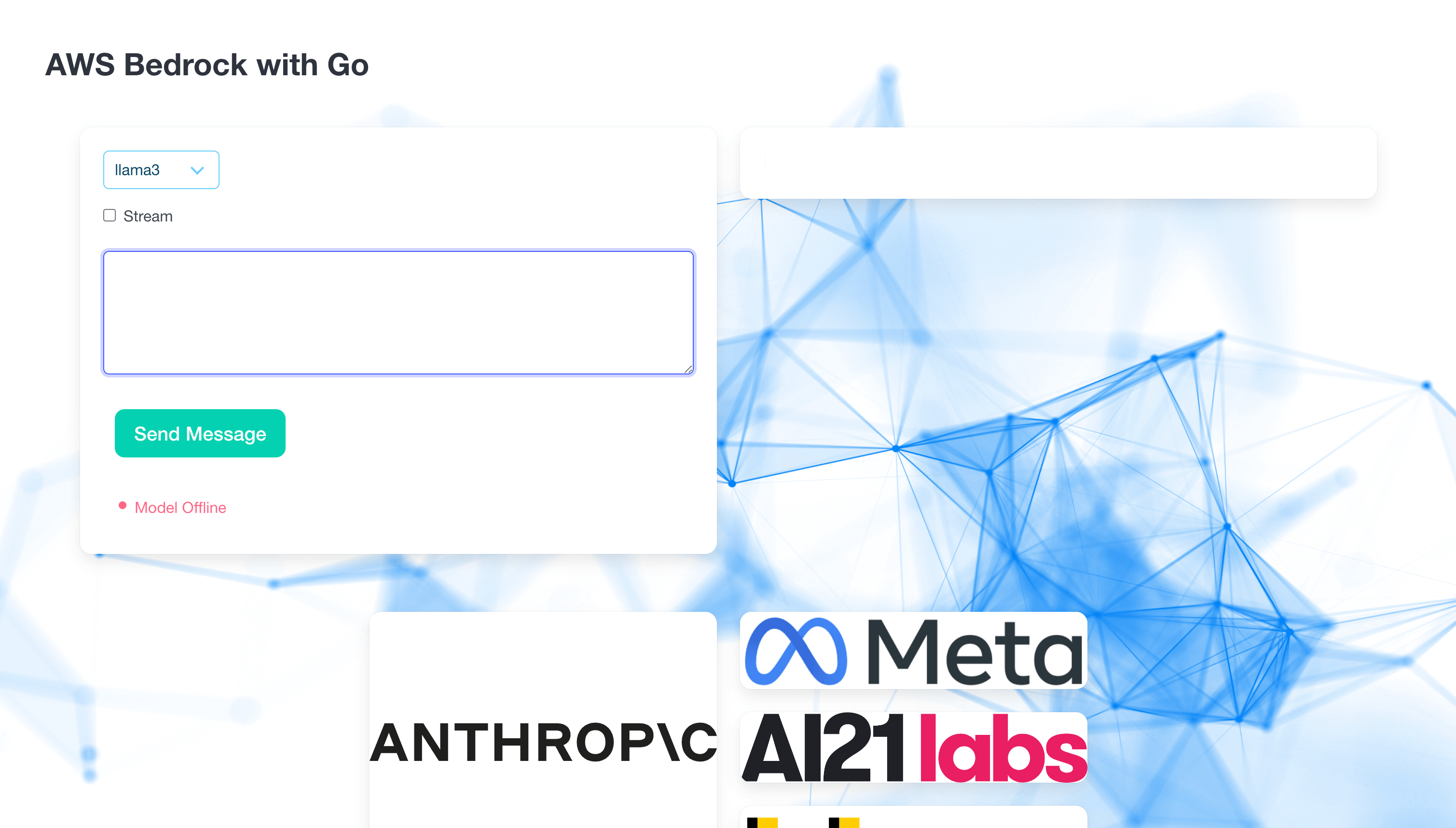

Once done, save and restart the server. This is how the complete UI will look.

step23

Great news! We did it—the application is functioning just as we hoped.
