Interacting with Anthropic in AWS Bedrock.

In this section we will be working with Anthropic. This section is quite similar to the previous one, implementing streaming and non-streaming features.

Anthropic has multiple types of models supported like Claude 3 Sonnet, 3.5 Sonnet, Opus and Haiku. You can check the inference parameters and code examples.

Anthropic Haiku

For this tutorial, we will be using Anthropic Haiku.

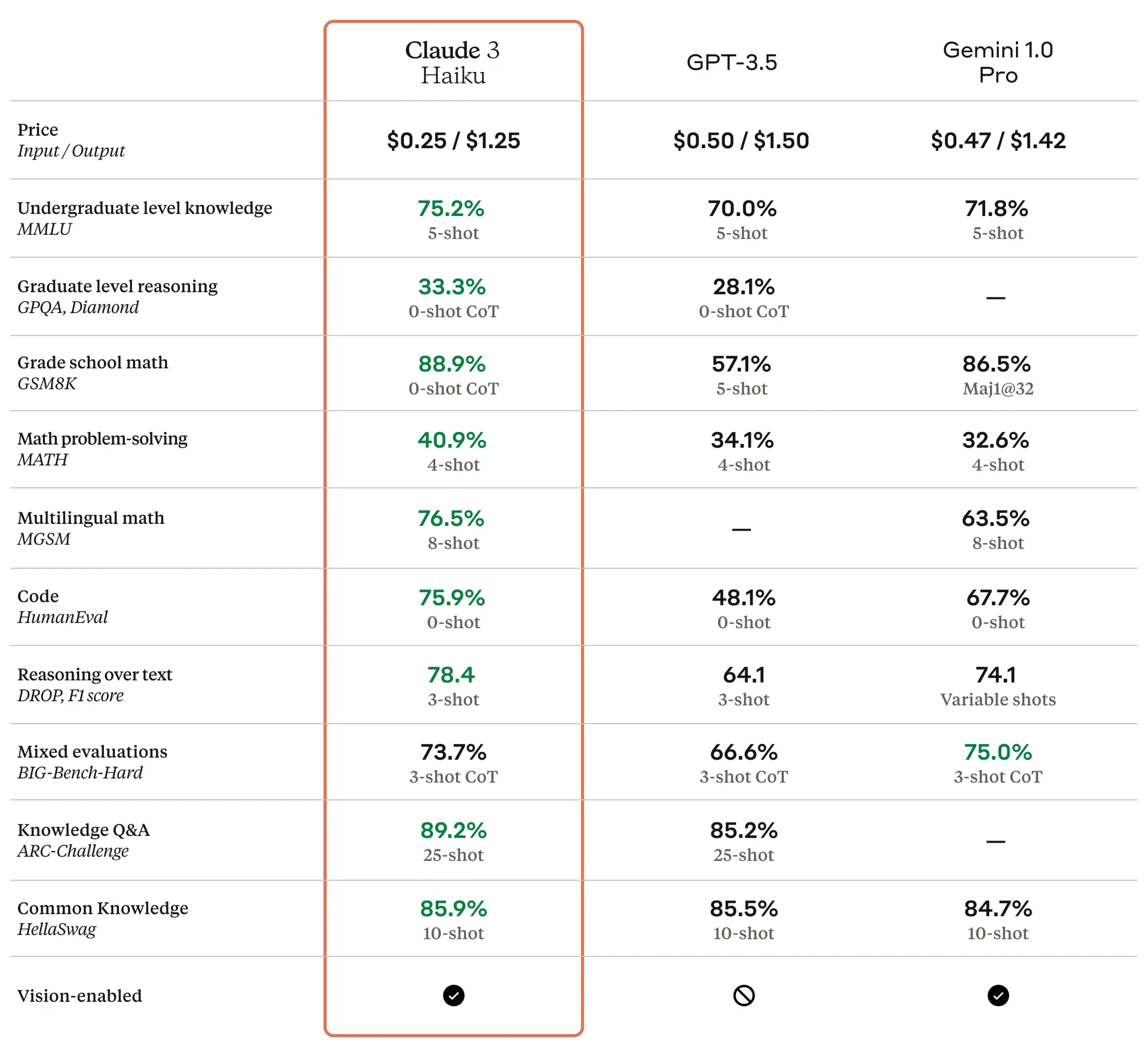

Haiku is the fastest and most cost-effective model on the market for its intelligence category. It can read an information and data dense research paper on arXiv (~10k tokens) with charts and graphs in less than three seconds.

step1

Read more: Claude 3 Haiku: our fastest model yet

Claude consists of a family of large language models that enable you to balance intelligence, speed, and cost.

step2

Non-Streaming

Let's first begin by implementing the non-streaming way to interact with Anthropic.

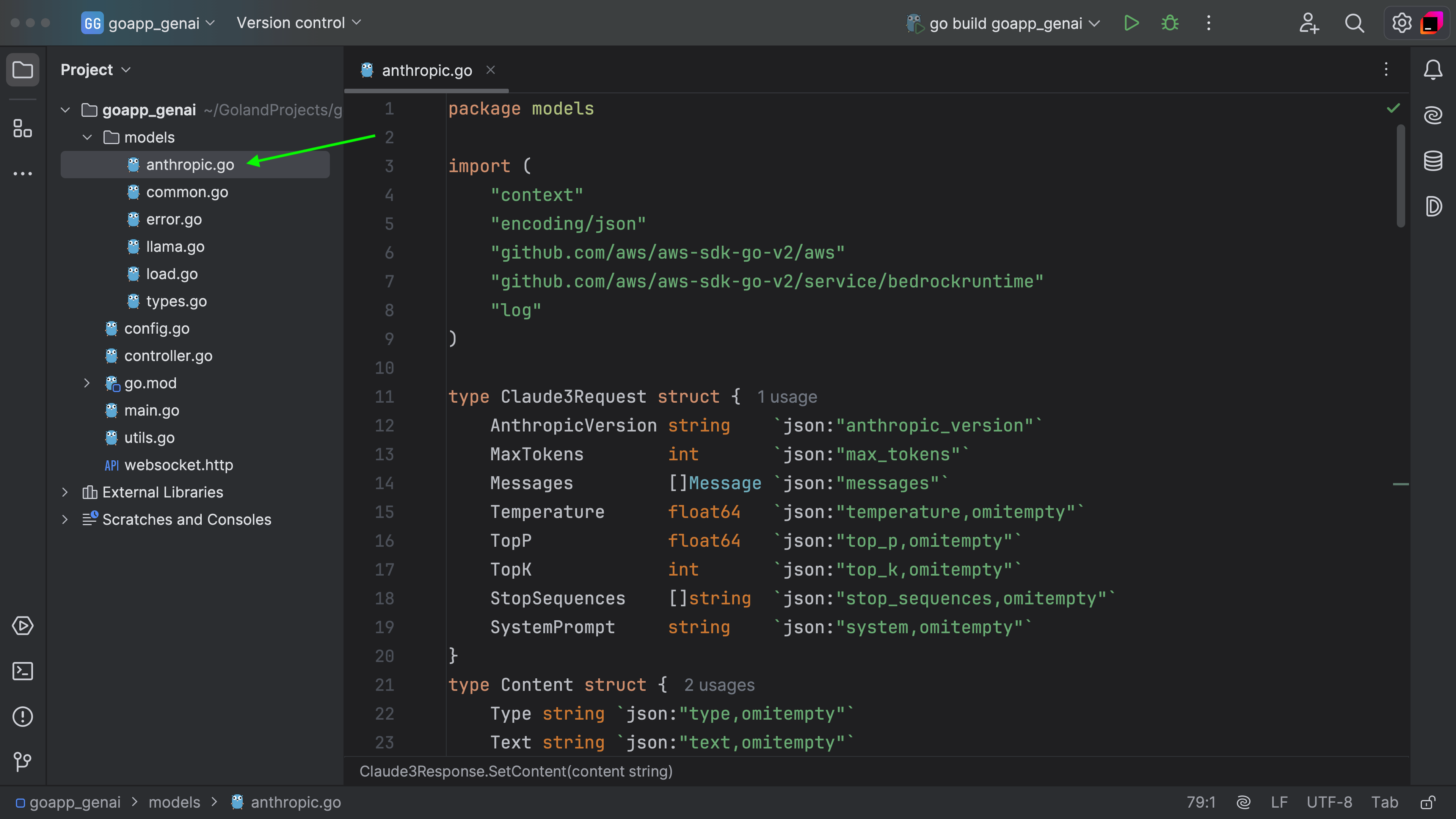

First thing is to create a file under models and name it anthropic.go.

step3

package models

type Claude3Request struct {
	AnthropicVersion string    `json:"anthropic_version"`
	MaxTokens        int       `json:"max_tokens"`
	Messages         []Message `json:"messages"`
	Temperature      float64   `json:"temperature,omitempty"`
	TopP             float64   `json:"top_p,omitempty"`
	TopK             int       `json:"top_k,omitempty"`
	StopSequences    []string  `json:"stop_sequences,omitempty"`
	SystemPrompt     string    `json:"system,omitempty"`
}
type Content struct {
	Type string `json:"type,omitempty"`
	Text string `json:"text,omitempty"`
}
type Message struct {
	Role    string    `json:"role,omitempty"`
	Content []Content `json:"content,omitempty"`
}

type Claude3Response struct {
	ID              string            `json:"id,omitempty"`
	Model           string            `json:"model,omitempty"`
	Type            string            `json:"type,omitempty"`
	Role            string            `json:"role,omitempty"`
	ResponseContent []ResponseContent `json:"content,omitempty"`
	StopReason      string            `json:"stop_reason,omitempty"`
	StopSequence    string            `json:"stop_sequence,omitempty"`
	Usage           Usage             `json:"usage,omitempty"`
}
type ResponseContent struct {
	Type string `json:"type,omitempty"`
	Text string `json:"text,omitempty"`
}
type Usage struct {
	InputTokens  int `json:"input_tokens,omitempty"`
	OutputTokens int `json:"output_tokens,omitempty"`
}

type PartialResponse struct {
	Type    string                 `json:"type"`
	Message PartialResponseMessage `json:"message,omitempty"`
	Index   int                    `json:"index,omitempty"`
	Delta   Delta                  `json:"delta,omitempty"`
	Usage   PartialResponseUsage   `json:"usage,omitempty"`
}

type PartialResponseMessage struct {
	ID           string               `json:"id,omitempty"`
	Type         string               `json:"type,omitempty"`
	Role         string               `json:"role,omitempty"`
	Content      []interface{}        `json:"content,omitempty"`
	Model        string               `json:"model,omitempty"`
	StopReason   string               `json:"stop_reason,omitempty"`
	StopSequence interface{}          `json:"stop_sequence,omitempty"`
	Usage        PartialResponseUsage `json:"usage,omitempty"`
}

type PartialResponseUsage struct {
	InputTokens  int `json:"input_tokens,omitempty"`
	OutputTokens int `json:"output_tokens,omitempty"`
}

type Delta struct {
	Type       string `json:"type,omitempty"`
	Text       string `json:"text,omitempty"`
	StopReason string `json:"stop_reason,omitempty"`
}

func (r Claude3Response) SetContent(content string) {
	r.ResponseContent[0].Text = content
}
func (r Claude3Response) GetContent() string {
	return r.ResponseContent[0].Text
}

Let's break it down.

The Claude3Request struct is used to send request to Claude Haiku API.

  • AnthropicVersion — A string indicating the version of the Anthropic API. The value must be bedrock-2023-05-31.
  • MaxTokens — The maximum number of tokens to generate before stopping.
  • Messages — An array of input messages.
  • Temperature — The amount of randomness injected into the response.
  • TopP — In nucleus sampling, Anthropic Claude computes the cumulative distribution over all the options for each subsequent token in decreasing probability order and cuts it off once it reaches a particular probability specified by top_p. You should alter either temperature or top_p, but not both.
  • TopK — Only sample from the top K options for each subsequent token.
  • StopSequences — Custom text sequences that cause the model to stop generating.
  • SystemPrompt — A system prompt is a way of providing context and instructions to Anthropic Claude, such as specifying a particular goal or role.

I won't go into more details as everything is mentioned in the official documentation.

For reference, you can check out the Claude Messages API and Anthropic API Docs.

Invoking from the CLI.

aws bedrock-runtime invoke-model \
--model-id anthropic.claude-3-haiku-20240307-v1:0 \
--body "{\"messages\":[{\"role\":\"user\",\"content\":[{\"type\":\"text\",\"text\":\"Hello\\nHello! How can I assist you today?\"}]}],\"anthropic_version\":\"bedrock-2023-05-31\",\"max_tokens\":2000,\"temperature\":1,\"top_k\":250,\"top_p\":0.999,\"stop_sequences\":[\"\\n\\nHuman:\"]}" \
--cli-binary-format raw-in-base64-out \
--region ap-south-1 \
invoke-model-output.txt

The sample payload will give you clarity about the above Go structs which we created.

{
	"messages": [
		{
			"role": "user",
			"content": [
				{
					"type": "text",
					"text": "Hello Hello! How can I assist you today?"
				}
			]
		}
	],
	"anthropic_version": "bedrock-2023-05-31",
	"max_tokens": 2000,
	"temperature": 1,
	"top_k": 250,
	"top_p": 0.999,
	"stop_sequences": ["Human:"]
}

Moving ahead, we need to create a new function named AnthropicBody. I believe now you can relate this function with the above JSON.

step4

This function accepts user-provided prompt and followed up with creating a new Claude3Request and framing the payload based on API specification and finally returning JSON byte slice.

func (wrapper Anthropic) AnthropicBody(prompt string) []byte {
	payload := Claude3Request{
		AnthropicVersion: "bedrock-2023-05-31",
		MaxTokens:        200,
		Messages: []Message{
			{
				Role: "user",
				Content: []Content{
					{
						Type: "text",
						Text: prompt,
					},
				},
			},
		},
	}

	body, err := json.Marshal(payload)
	if err != nil {
		log.Fatal(err)
	}
	return body
}

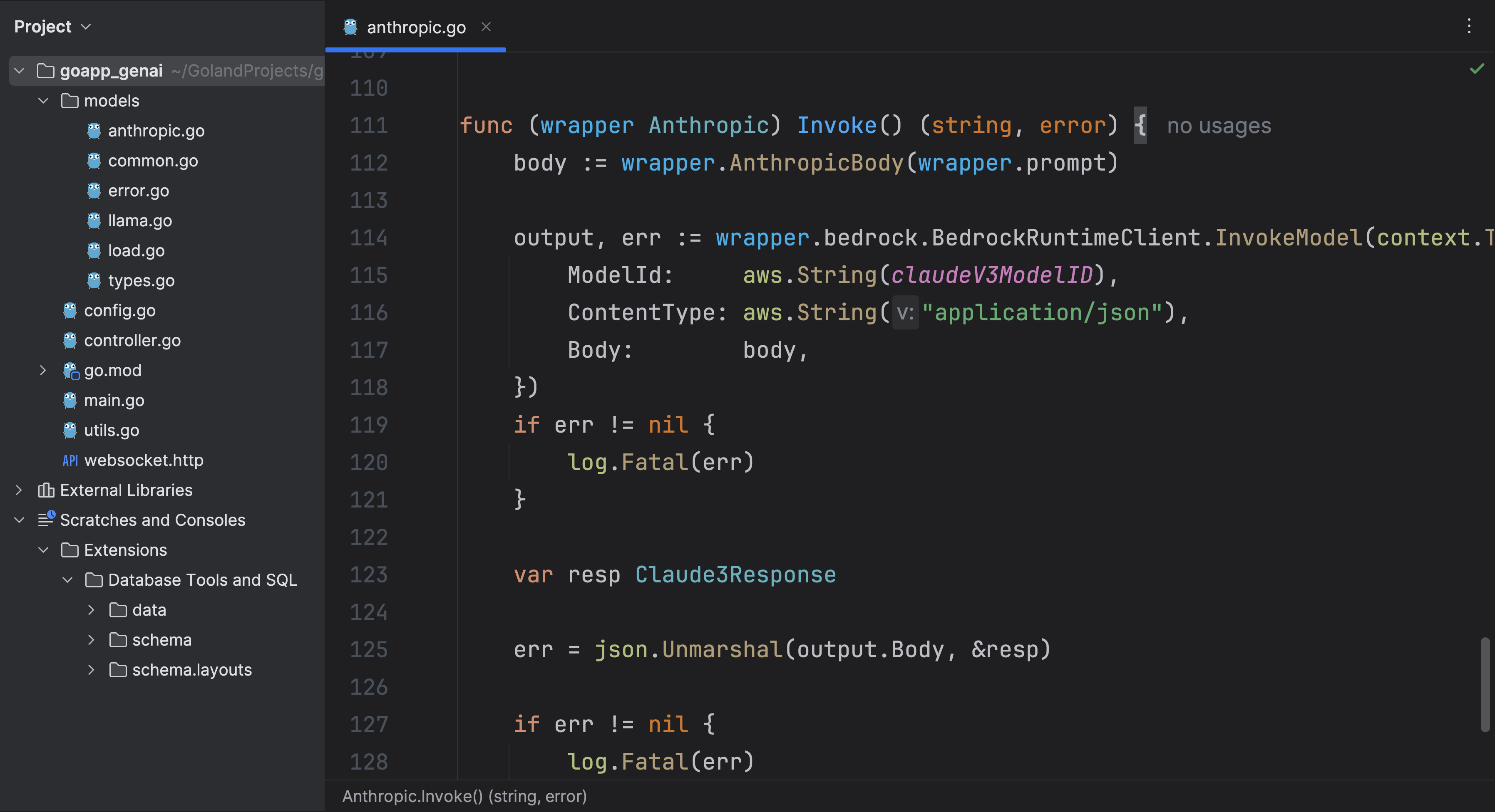

Moving forward, lets implemented the Invoke method, which is similar to the llama3.

step5

This function wraps the behavior of invoking a model using BedrockRuntimeClient. First, it calls AnthropicBody to prepare the input body. The model is then invoked using the AWS client with a ModelId and ContentType specified within InvokeModelInput. If the model invocation fails, a fatal error will be logged.

func (wrapper Anthropic) Invoke() (string, error) {
	body := wrapper.AnthropicBody(wrapper.prompt)

	output, err := wrapper.bedrock.BedrockRuntimeClient.InvokeModel(context.TODO(), &bedrockruntime.InvokeModelInput{
		ModelId:     aws.String(claudeV3ModelID),
		ContentType: aws.String("application/json"),
		Body:        body,
	})
	if err != nil {
		log.Fatal(err)
	}

	var resp Claude3Response

	err = json.Unmarshal(output.Body, &resp)

	if err != nil {
		log.Fatal(err)
	}

	return resp.ResponseContent[0].Text, nil
}

Now, we will move on to add the missing logic. Earlier we handled the llama3 - now it's time for Anthropic.

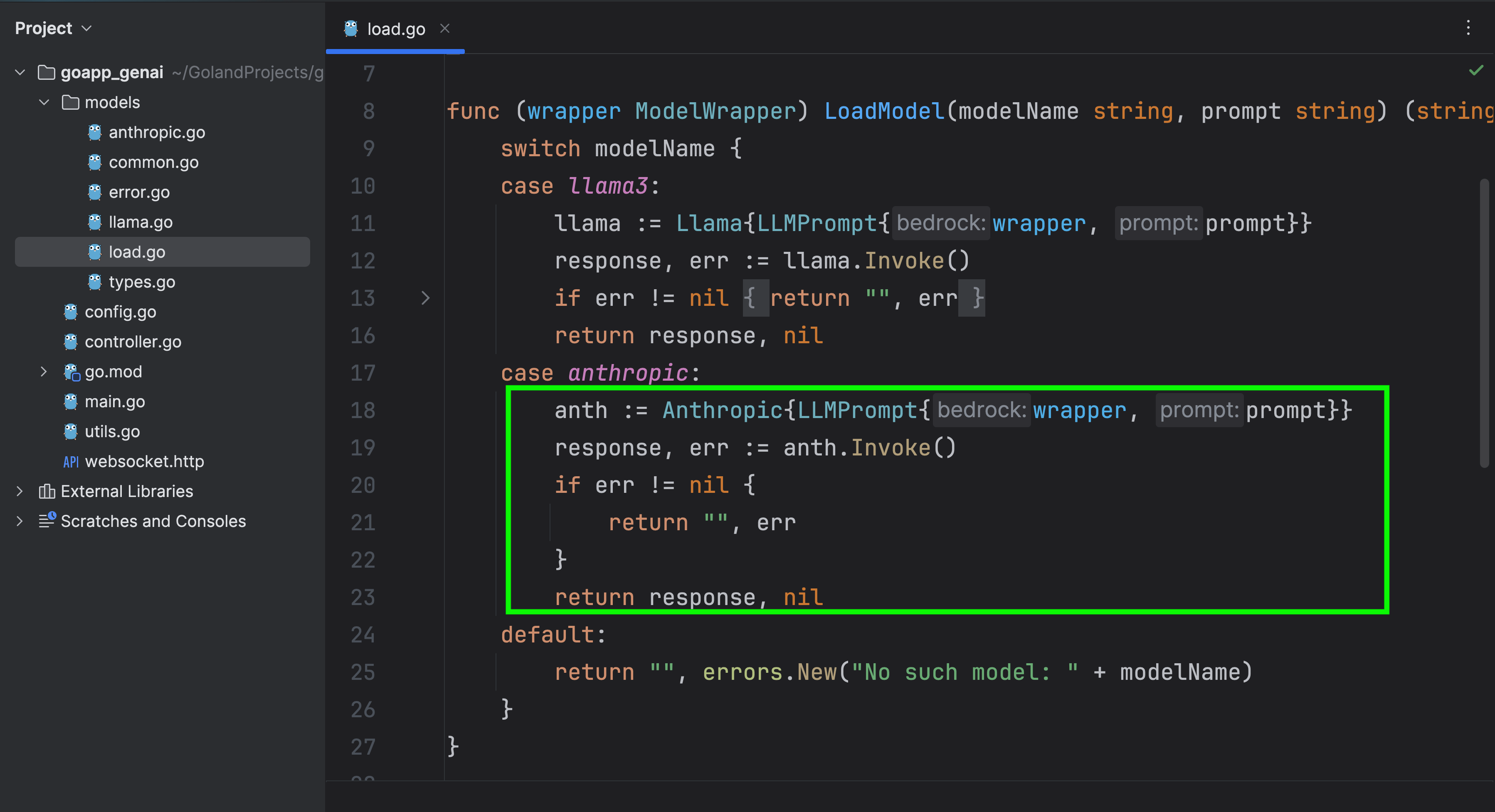

Move to load.go file and look for the switch case in the LoadModel function.

step6

It is quite similar to what we did before. If we receive the model name as anthropic from WebSocket, then we invoke the respective model.

	case anthropic:
		anth := Anthropic{LLMPrompt{wrapper, prompt}}
		response, err := anth.Invoke()
		if err != nil {
			return "", err
		}
		return response, nil

Well, we are all set. As you know, in the previous we have already generalized our controller which can invoke the model dynamically, as we pass the model name through query params.

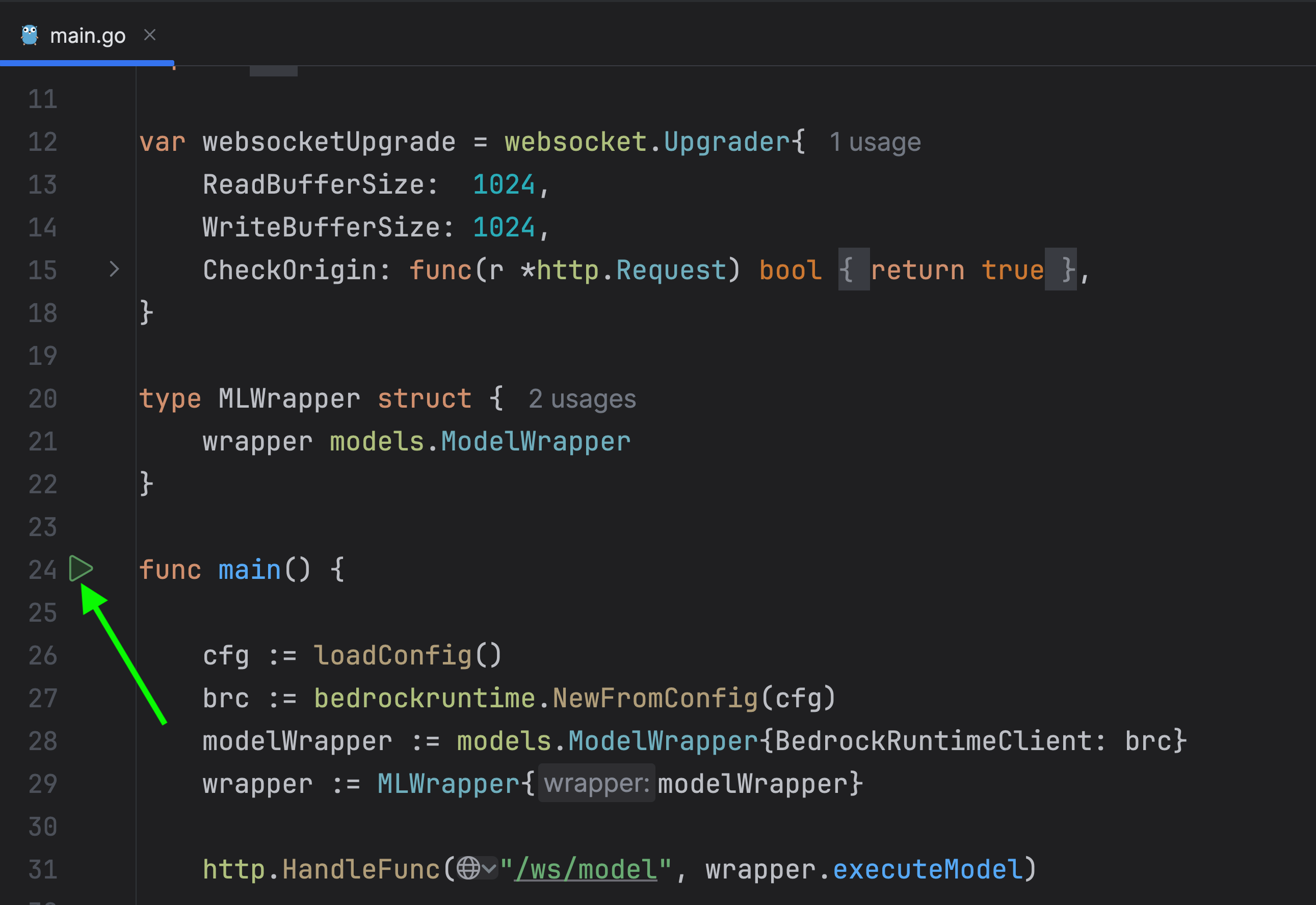

Now, go ahead and start your server.

step7

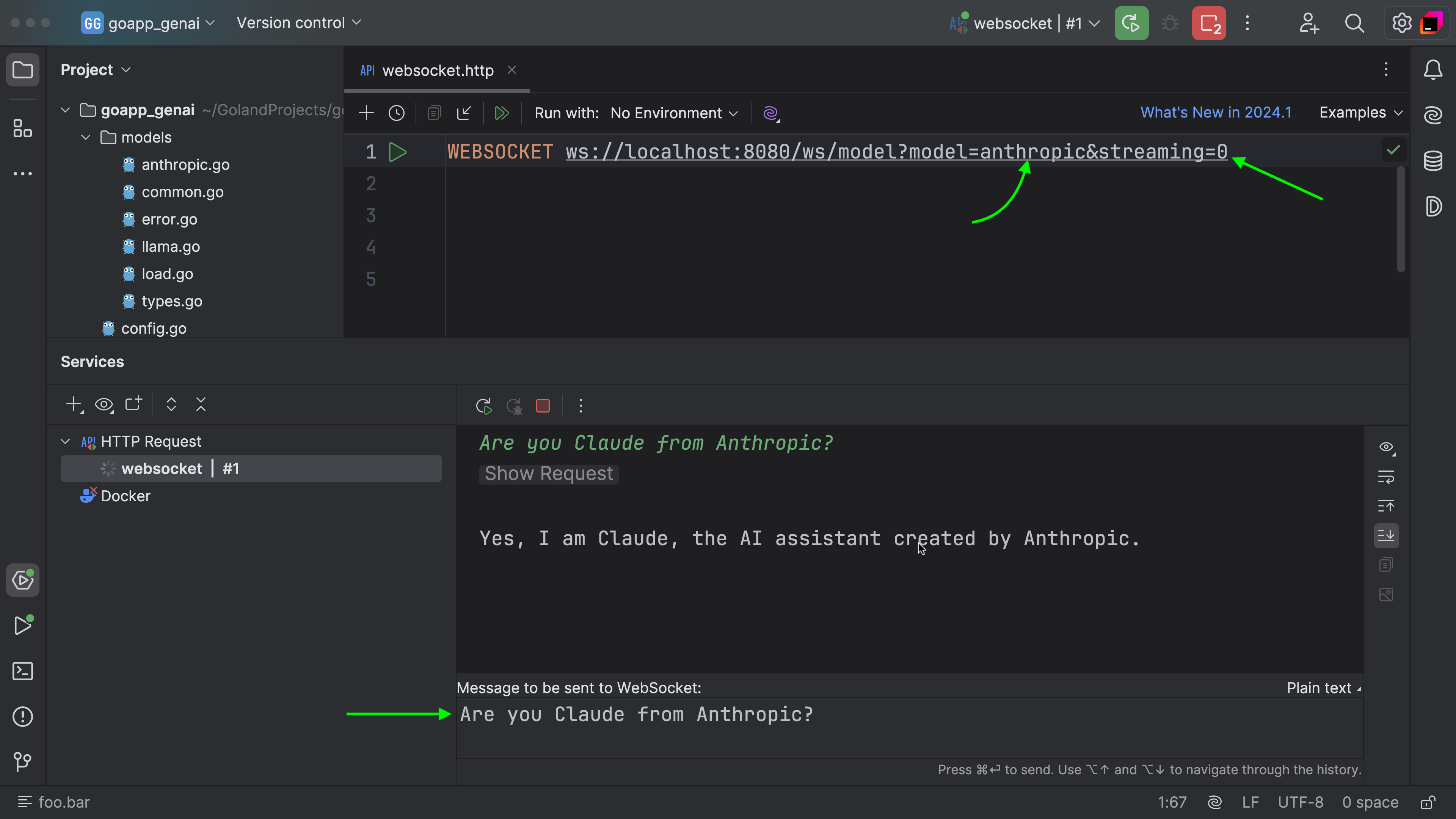

Next, open the websocket.http file which we created earlier and pass model=anthropic and streaming=0 because we are working on the non-streaming part.

step8

WooHoo! It worked. You will observe the response time is faster compared to llama3. But we can observe more speed once we implement the streaming part. Let's go ahead.

Streaming

Open anthropic.go and create a new function called Stream().

This is similar to what we did for llama3.

step9

This function is attached to the Anthropic struct. It prepares a JSON payload with the AnthropicBody() function and sends a request to BedrockRuntimeClient.InvokeModelWithResponseStream. If any errors occur during the model invocation, they're processed for more meaningful error messages with the ProcessError() function and if everything is working as per expectation, then it returns the response stream.

func (wrapper Anthropic) Stream() (*bedrockruntime.InvokeModelWithResponseStreamOutput, error) {
	body := wrapper.AnthropicBody(wrapper.prompt)

	output, err := wrapper.bedrock.BedrockRuntimeClient.InvokeModelWithResponseStream(context.TODO(), &bedrockruntime.InvokeModelWithResponseStreamInput{
		ModelId:     aws.String(claudeV3ModelID),
		ContentType: aws.String("application/json"),
		Body:        body,
	})

	if err != nil {
		ProcessError(err, claudeV3ModelID)
	}
	return output, nil

}

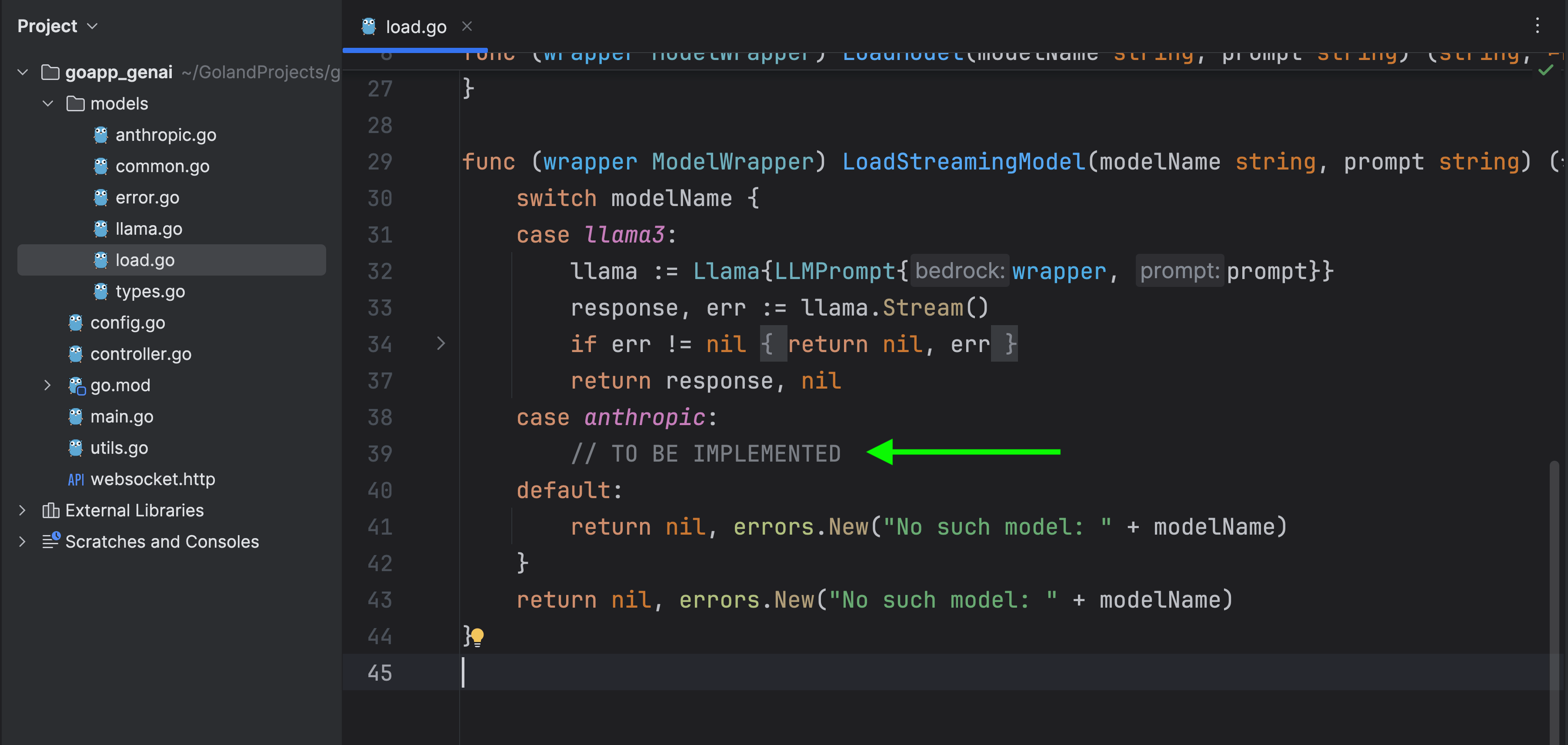

Moving forward, update the LoadStreamingModel function in load.go.

As you can see we have already handled the llama3. Now the switch condition will tackle anthropic as well.

step10

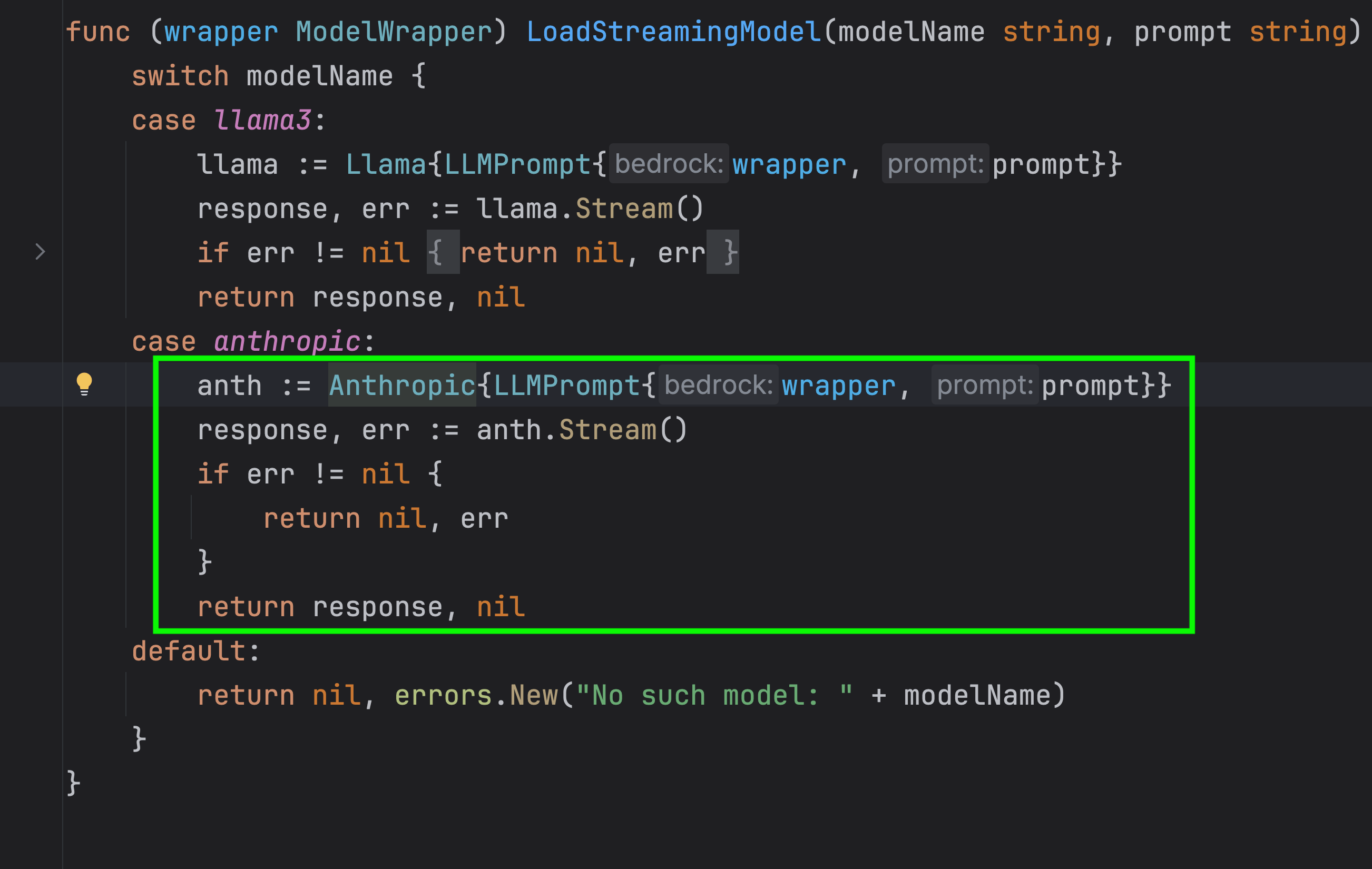

step11

The code snippet is part of a function that handles loading and calling different models based on their names. In this specific case, when the model name is anthropic, an Anthropic object is created, and its Stream method is called, which tries to invoke the model and returns a streamed response.

		anth := Anthropic{LLMPrompt{wrapper, prompt}}
		response, err := anth.Stream()
		if err != nil {
			return nil, err
		}
		return response, nil

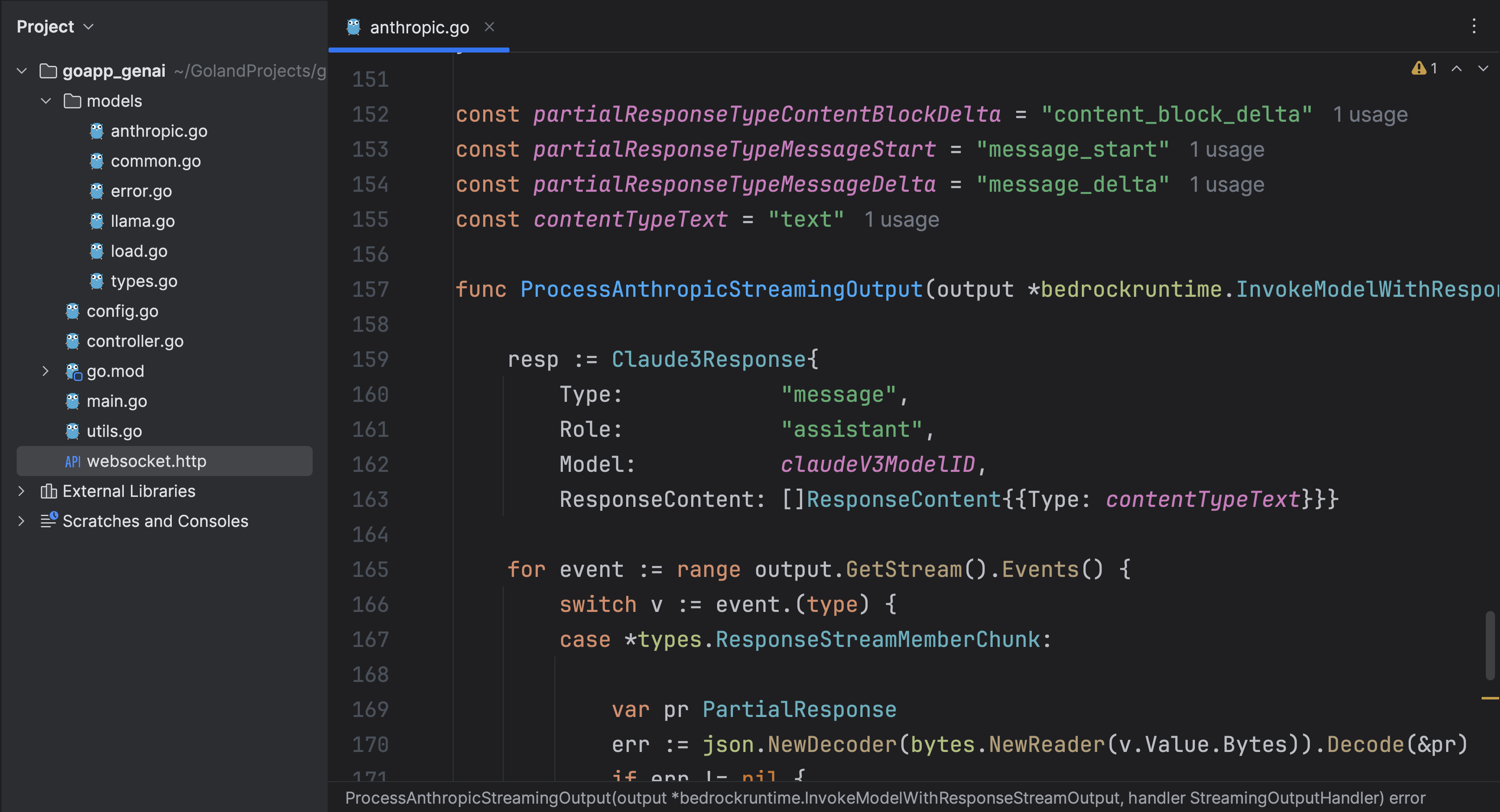

Moving further, we need to create a new function ProcessAnthropicStreamingOutput in anthropic.go.

step12

This function processes a continuous stream of data output (output) from an invoked model with response stream (response from Stream() function), and handles it using a StreamingOutputHandler named handler.

  • The function starts by creating a Claude3Response struct with some preset values. This struct is designed to handle a specific type of response.

  • Next, the function enters a loop where it processes each event from the streaming output. These events are expected to be of different types, hence a switch statement is used to handle different cases.

  • If an event is of type ResponseStreamMemberChunk, it is processed, and a JSON decoder is used to decode the event value into a PartialResponse struct.

  • The system then checks the Type of the PartialResponse. Depending on its value, one of the following actions could be performed:

    • If the type is partialResponseTypeContentBlockDelta, the handler function is called with the pr.Delta.Text.
    • If it's partialResponseTypeMessageStart, several fields in the initial response are updated with values from this partial response.
    • If it's partialResponseTypeMessageDelta, again some fields in the response are updated.
  • If the event is of type UnknownUnionMember, an error is returned stating that an unknown tag was found.

  • If the event doesn't match any of the expected types, falling under the default case, an error is returned noting that the union is nil or is of an unknown type.

Once all the events from the stream have been processed, the function ends and returns nil, indicating that there were no errors.

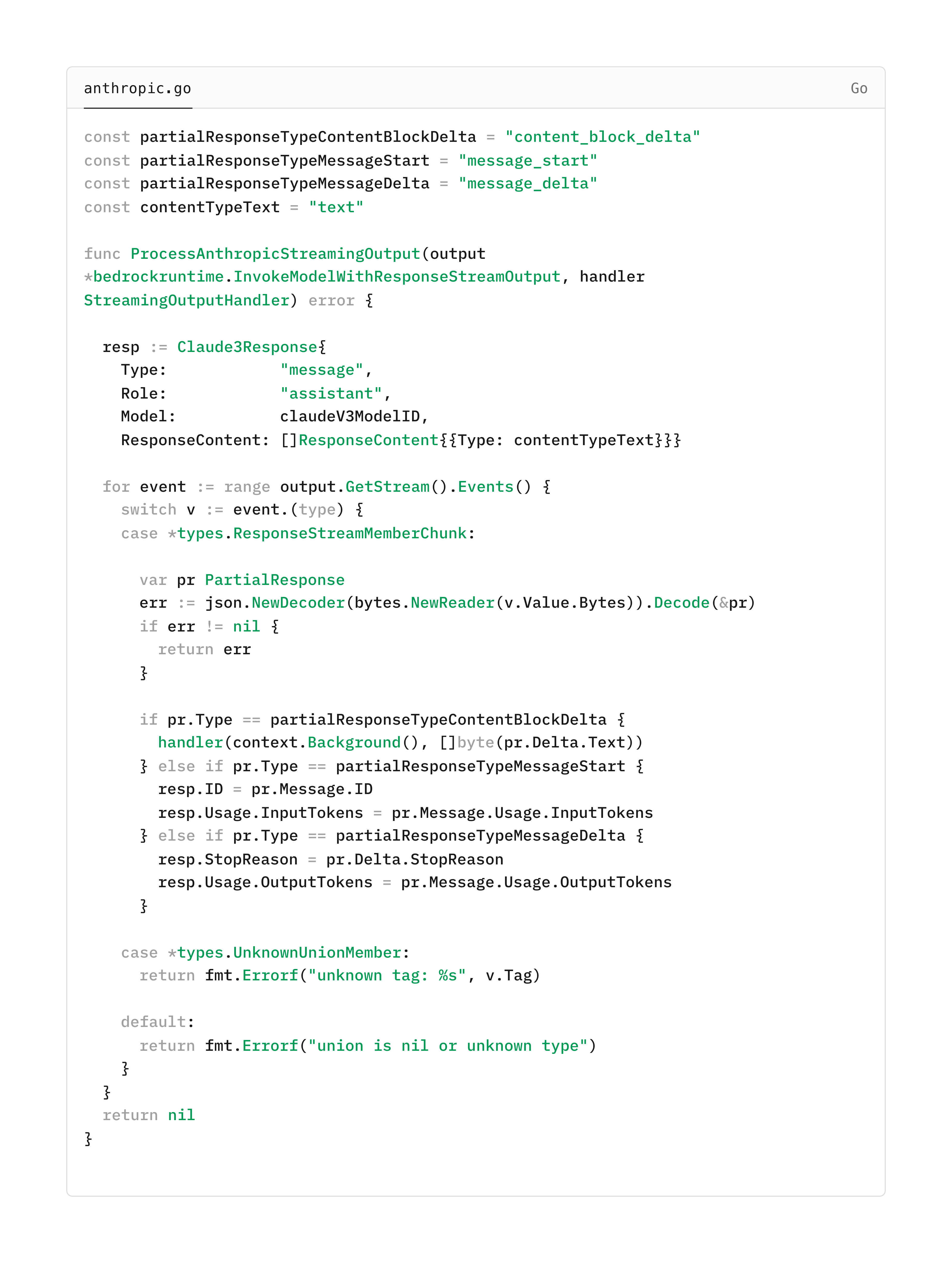

step12_1

step12_2

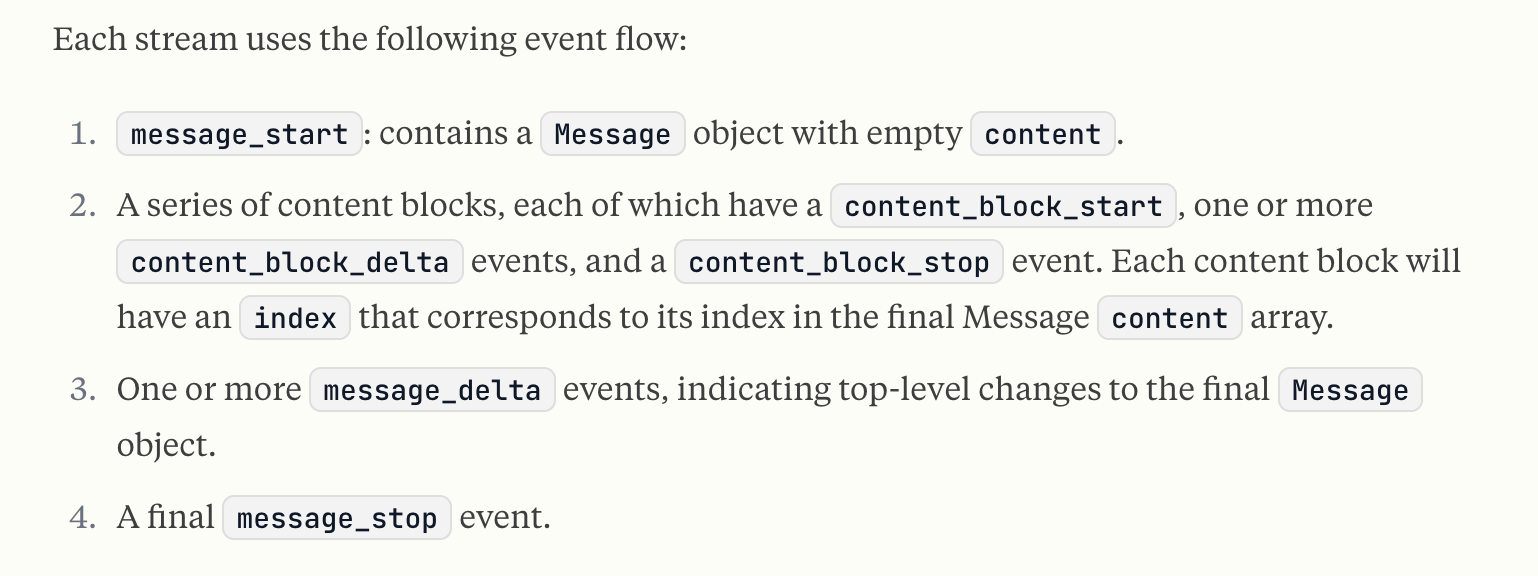

Interested to know more on streaming, then check the following Anthropic API Reference - Streaming Messages

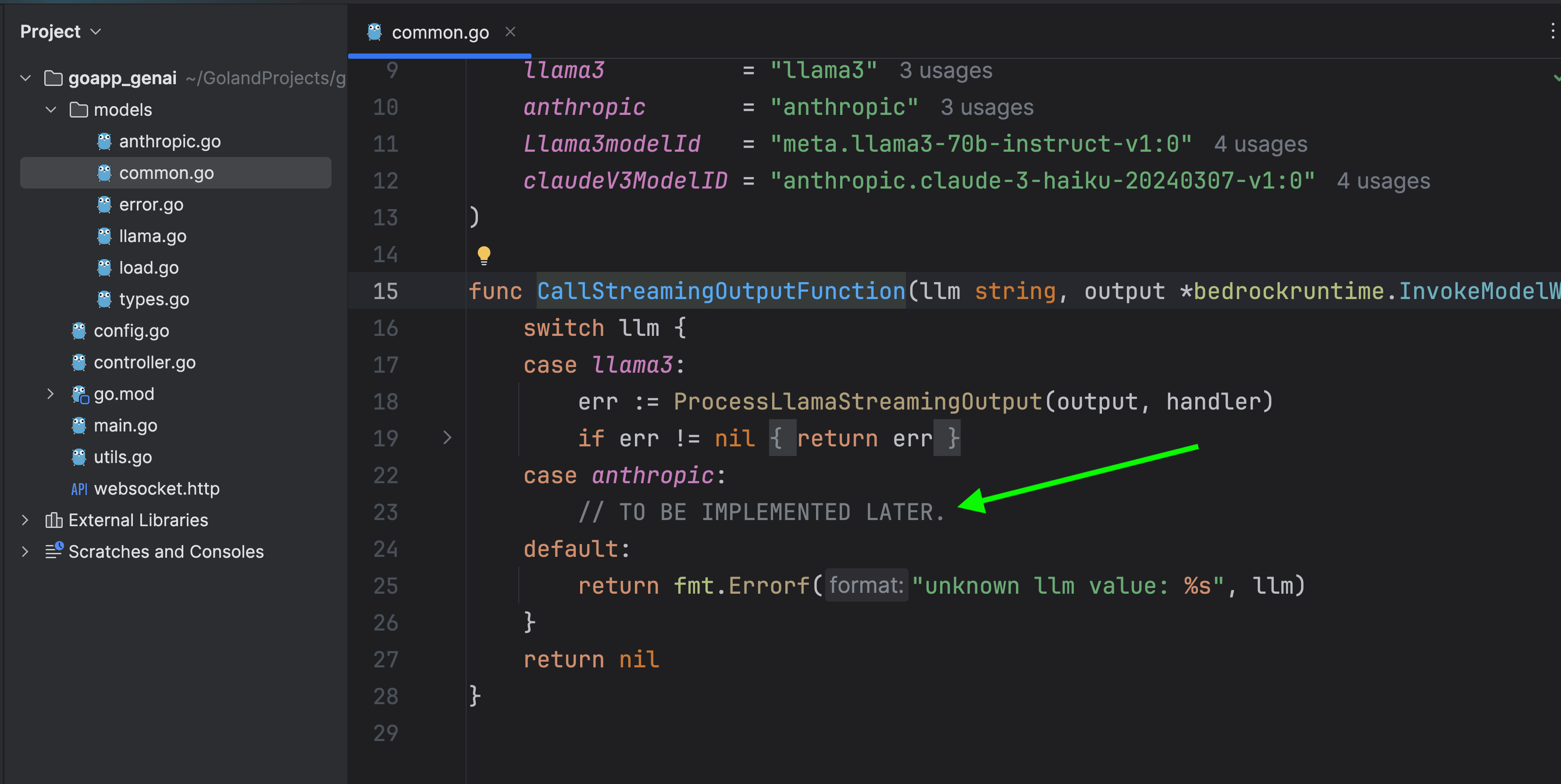

Coming to the final part, where we need to update the switch case to handle streaming functionality for anthropic.

step13

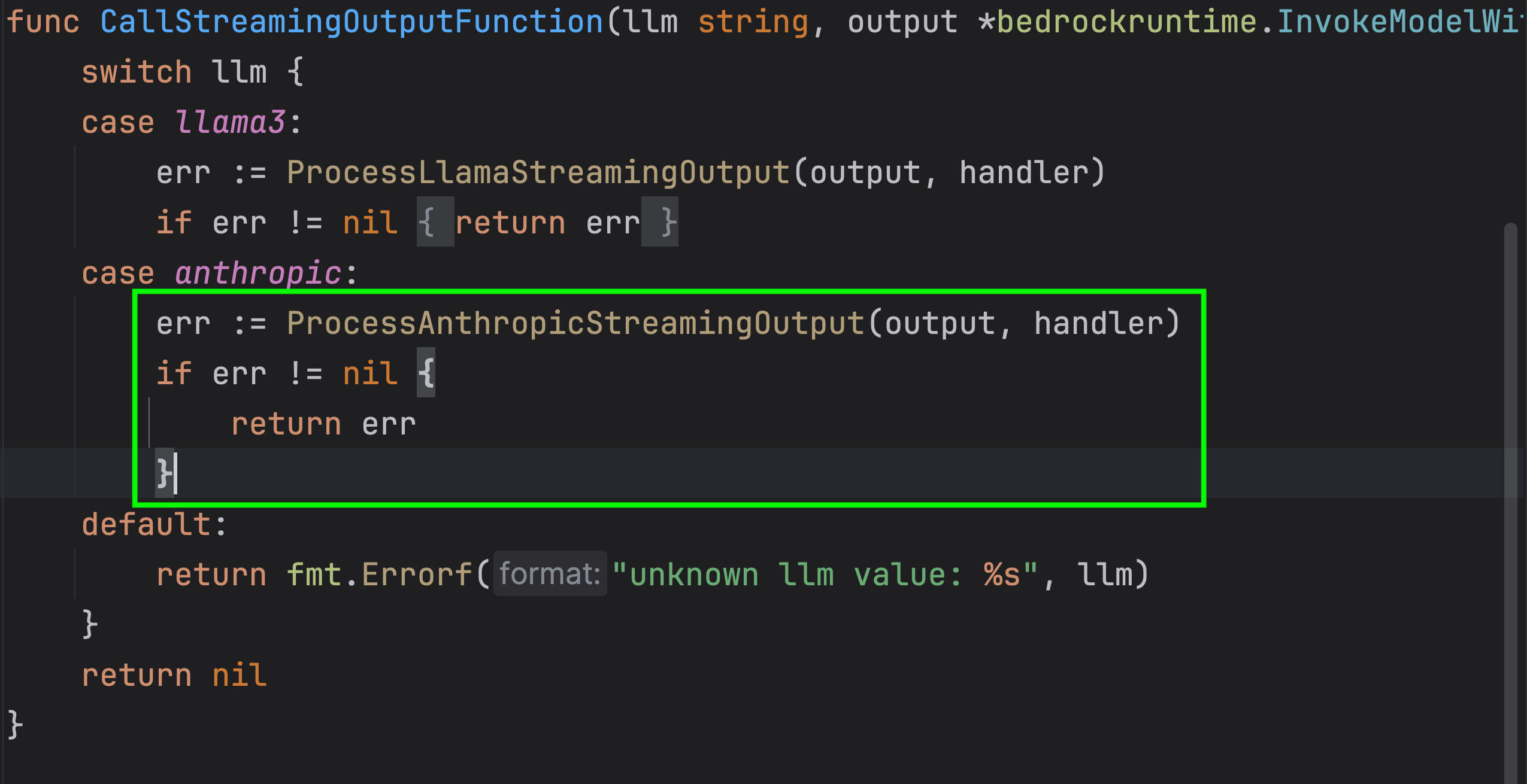

Update CallStreamingOutputFunction under common.go.

step14

func CallStreamingOutputFunction(llm string, output *bedrockruntime.InvokeModelWithResponseStreamOutput, handler StreamingOutputHandler) error {
	switch llm {
	case llama3:
		err := ProcessLlamaStreamingOutput(output, handler)
		if err != nil {
			return err
		}
	case anthropic:
		err := ProcessAnthropicStreamingOutput(output, handler)
		if err != nil {
			return err
		}
	default:
		return fmt.Errorf("unknown llm value: %s", llm)
	}
	return nil
}

Well, we are all set to launch. Make sure to start your server and head over to the websocket.http file.

step15

Yes! We did it. You can play around and see what kind of response you get from these LLM models.😉

In the following section, we’ll build a frontend app using React and integrate it with our Go application.
