Building APIs

AWS Go SDK Integration & Streamlit Python UI

In the previous section, we completed the entire process of creating the knowledge base, interacted with it, and successfully tested it. Now, it's time to integrate with the AWS SDK and interact with the LLM using Go.

Just so you know, you can clone the repository and begin working right away.

step1

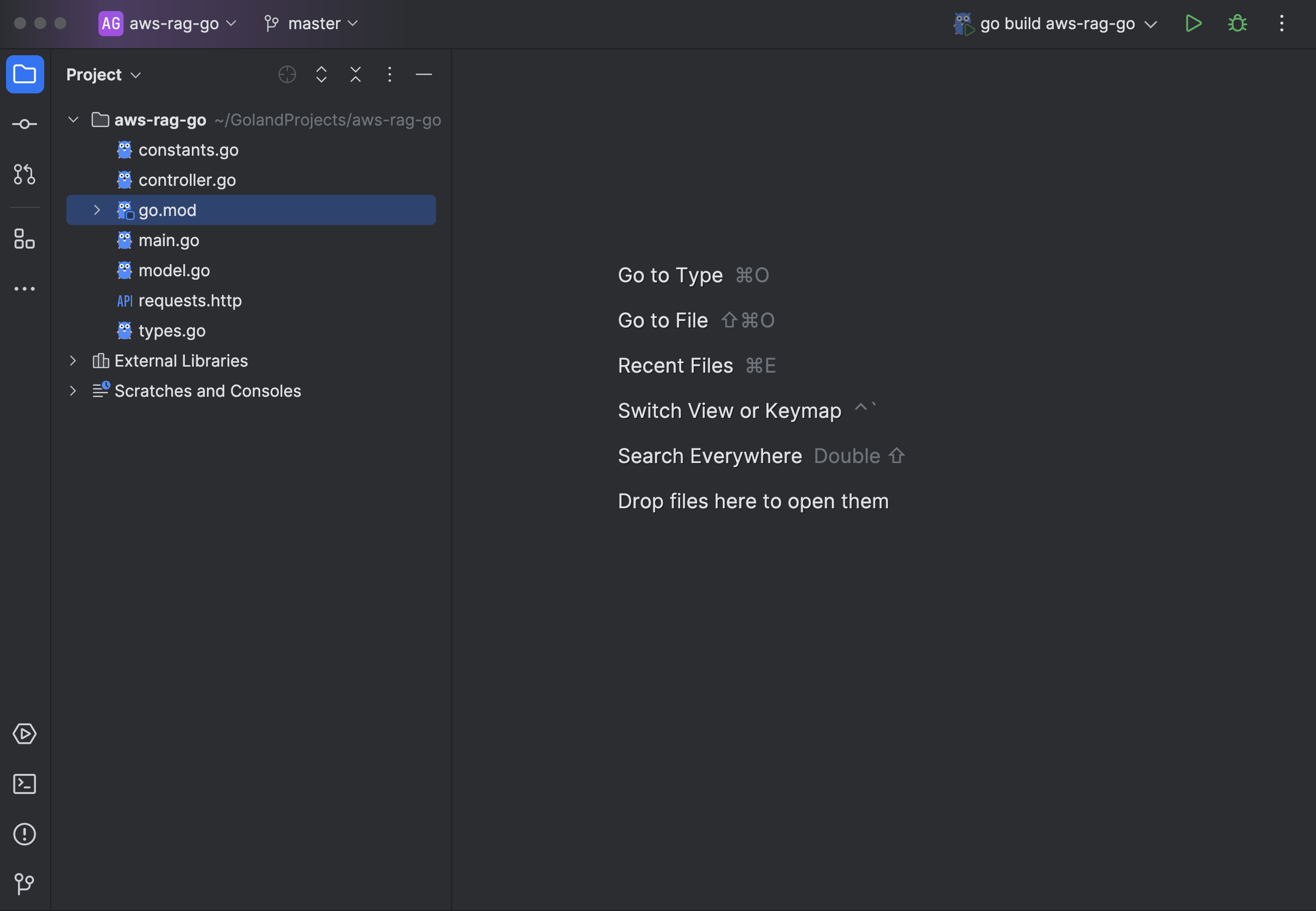

Once you open the project in GoLand, the dependencies will be automatically synced. But there is one more approach.

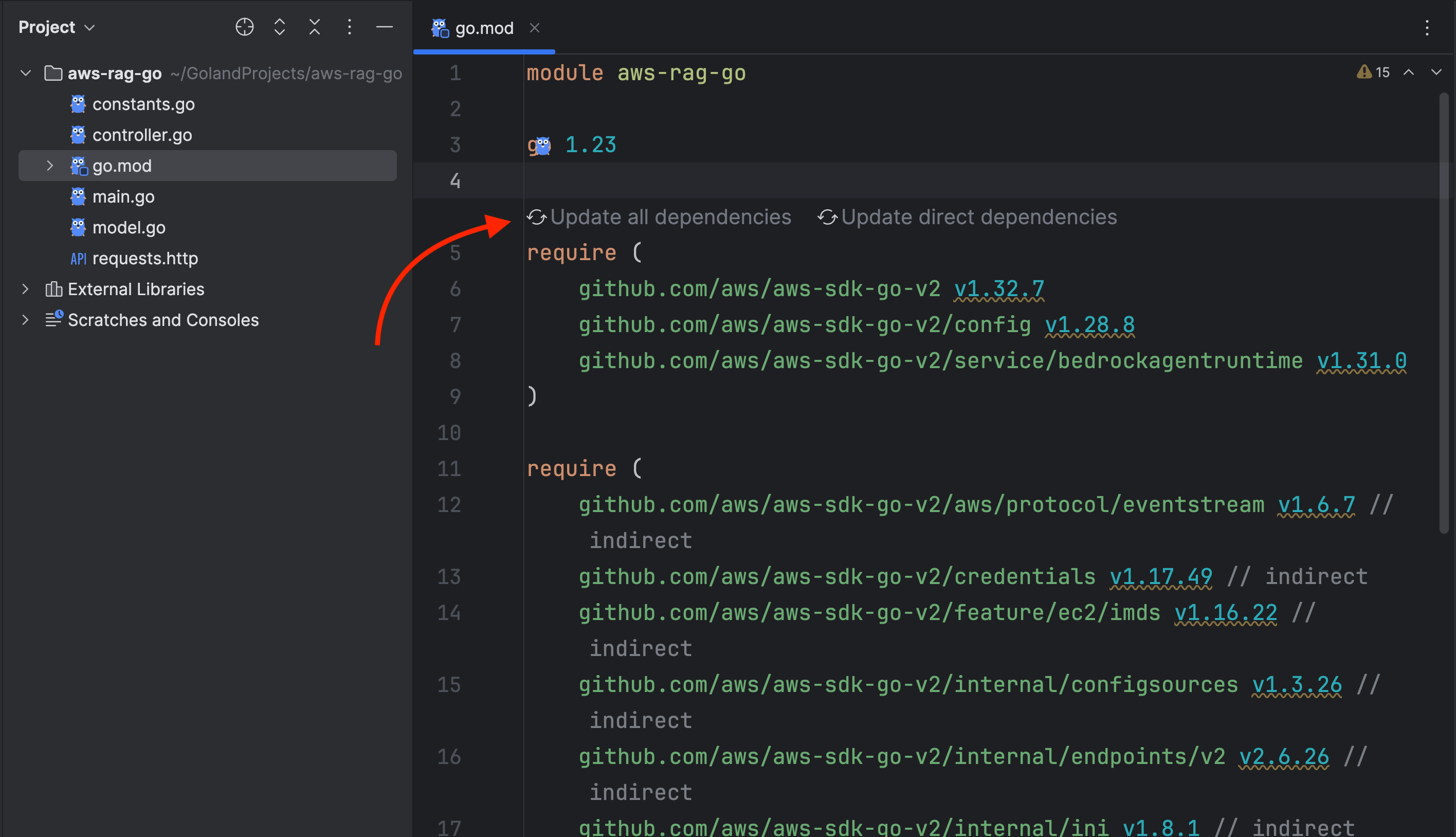

  • Open the go.mod file and click Update all dependencies.

step2

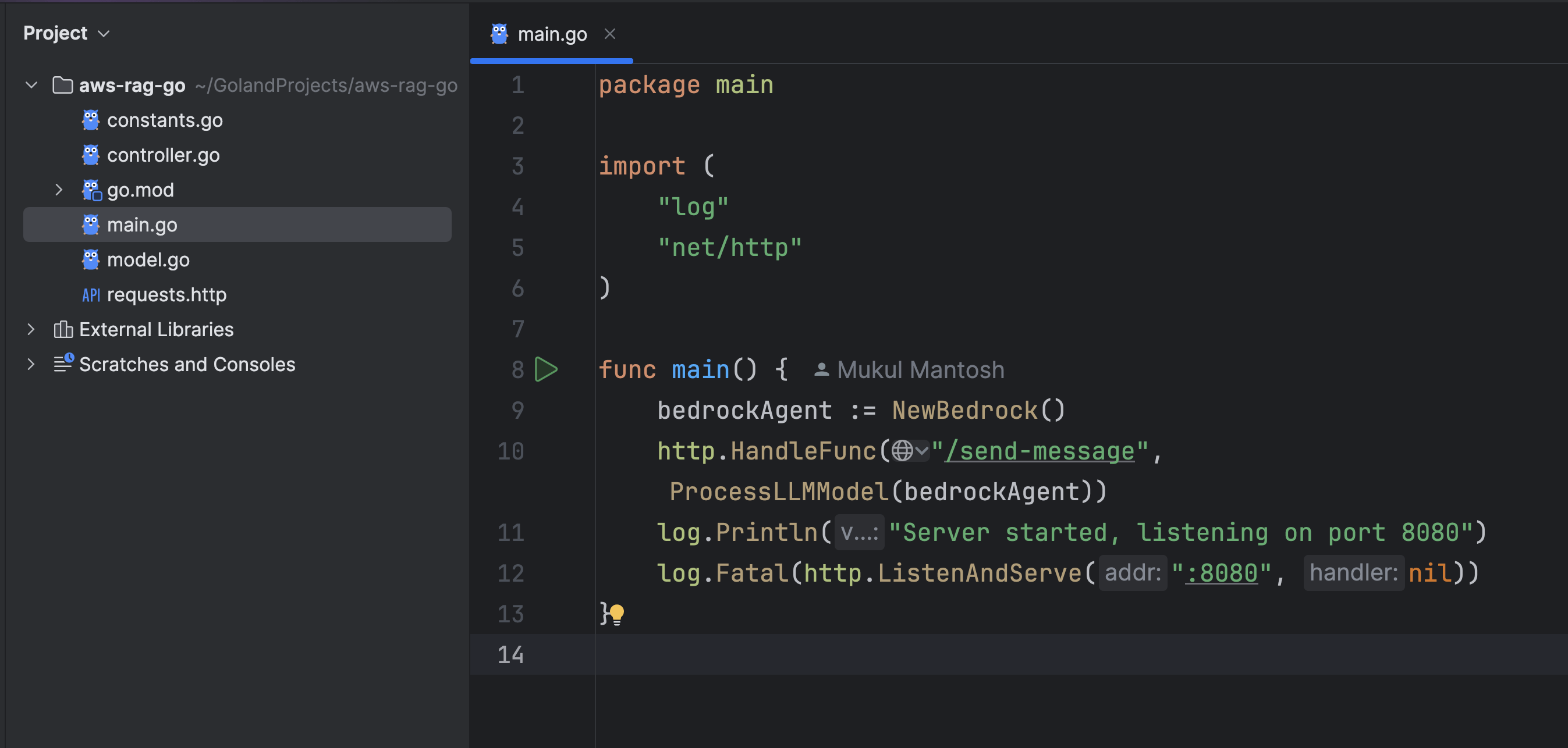

main.go

step3

The following code sets up a simple HTTP server on port 8080 to handle requests received from users at the /send-message endpoint. The request is then forwarded to the LLM function, which processes it and returns a response. I will get into more detail about how this works.

package main

import (
	"log"
	"net/http"
)

func main() {
	bedrockAgent := NewBedrock()
	http.HandleFunc("/send-message", ProcessLLMModel(bedrockAgent))
	log.Println("Server started, listening on port 8080")
	log.Fatal(http.ListenAndServe(":8080", nil))
}

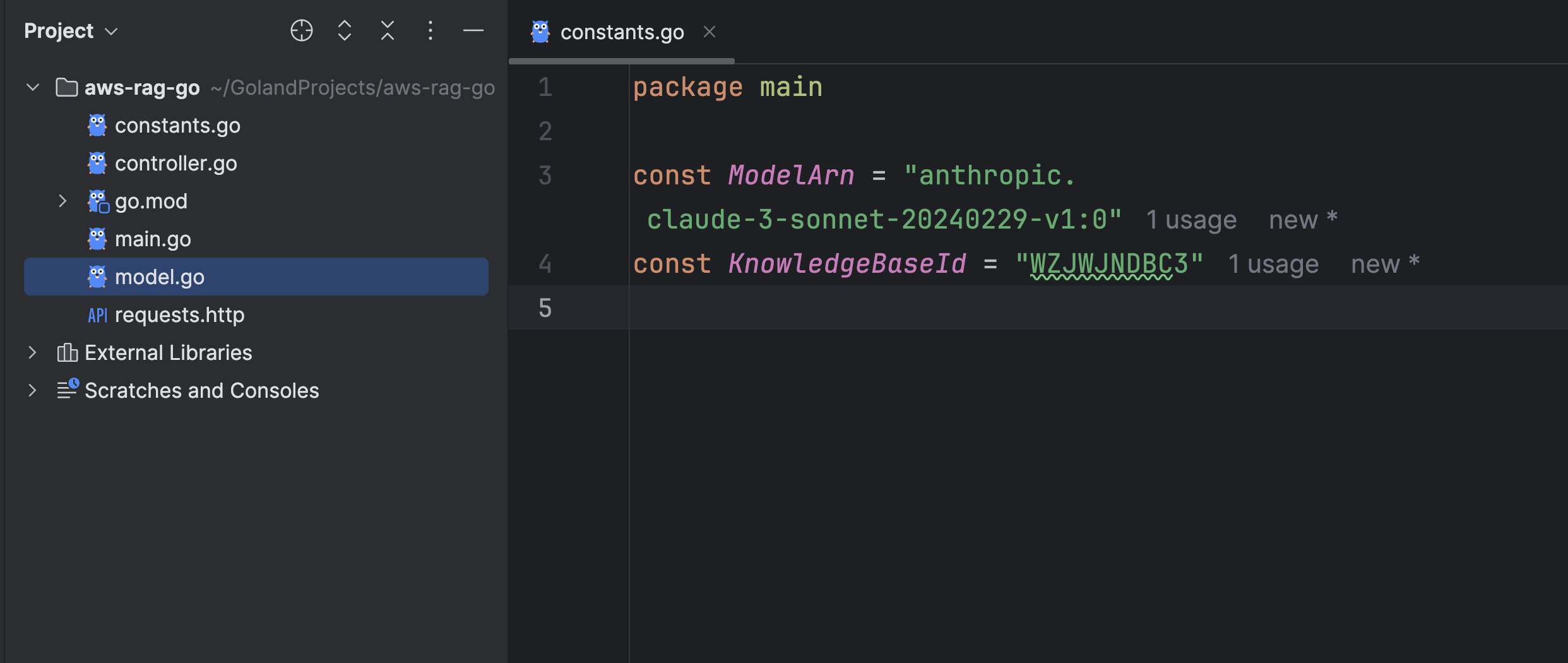

constants.go

step4

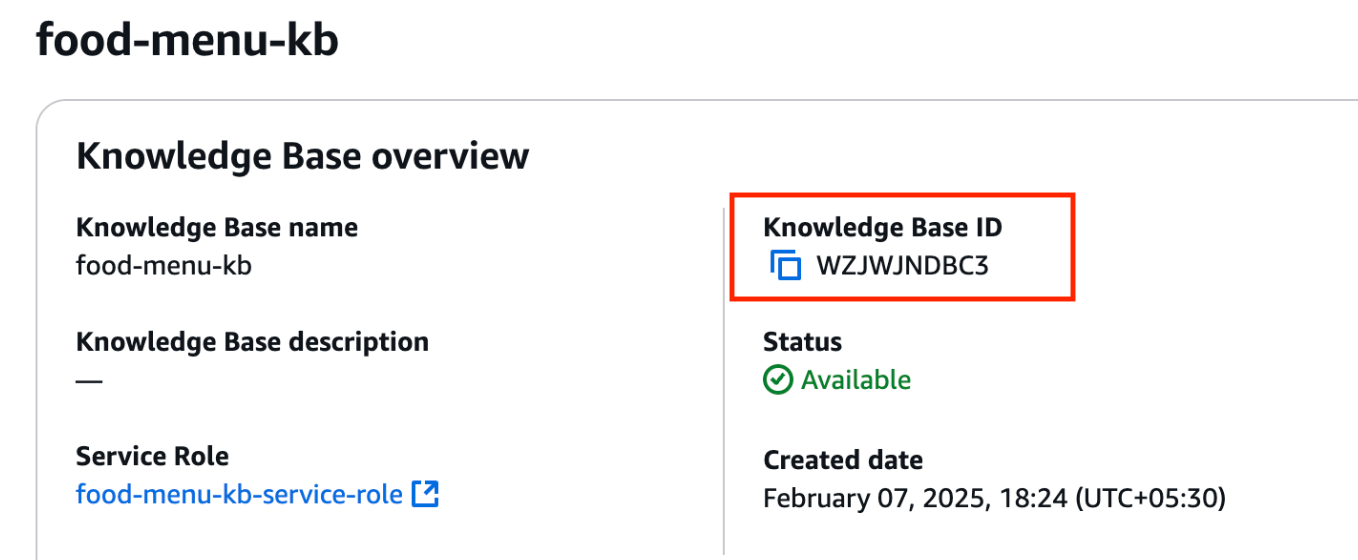

In this file, we declare two constants: ModelArn and KnowledgeBaseId. You can obtain the knowledge base ID from the KnowledgeBase dashboard.

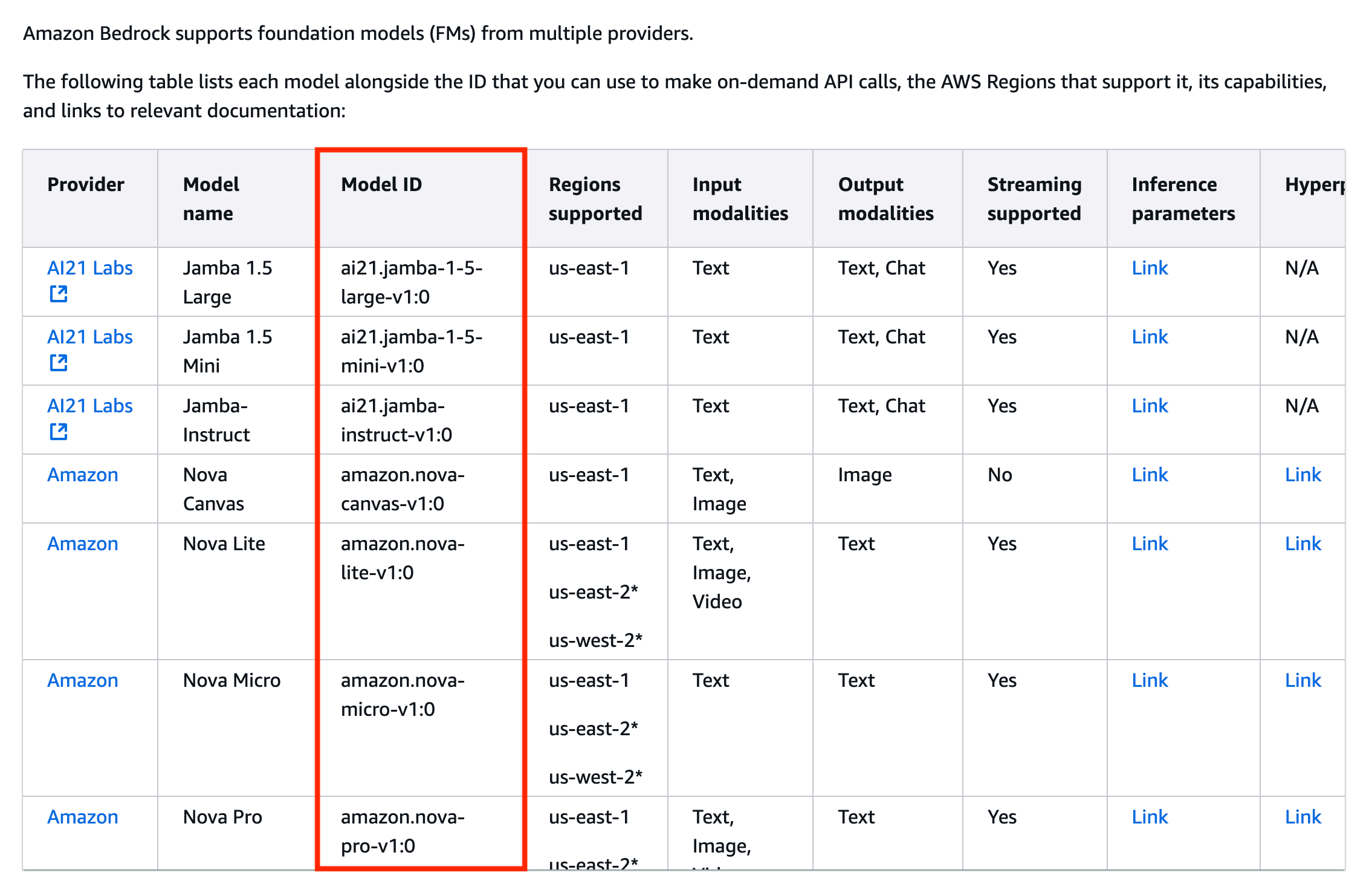

For ModelArn, you can refer to the list of supported foundation models. In our case, we have chosen Claude 3 Sonnet.

  • Note: If you're choosing a different model, make sure it is already enabled in your account.

kb

foundational_models

model.go

step5

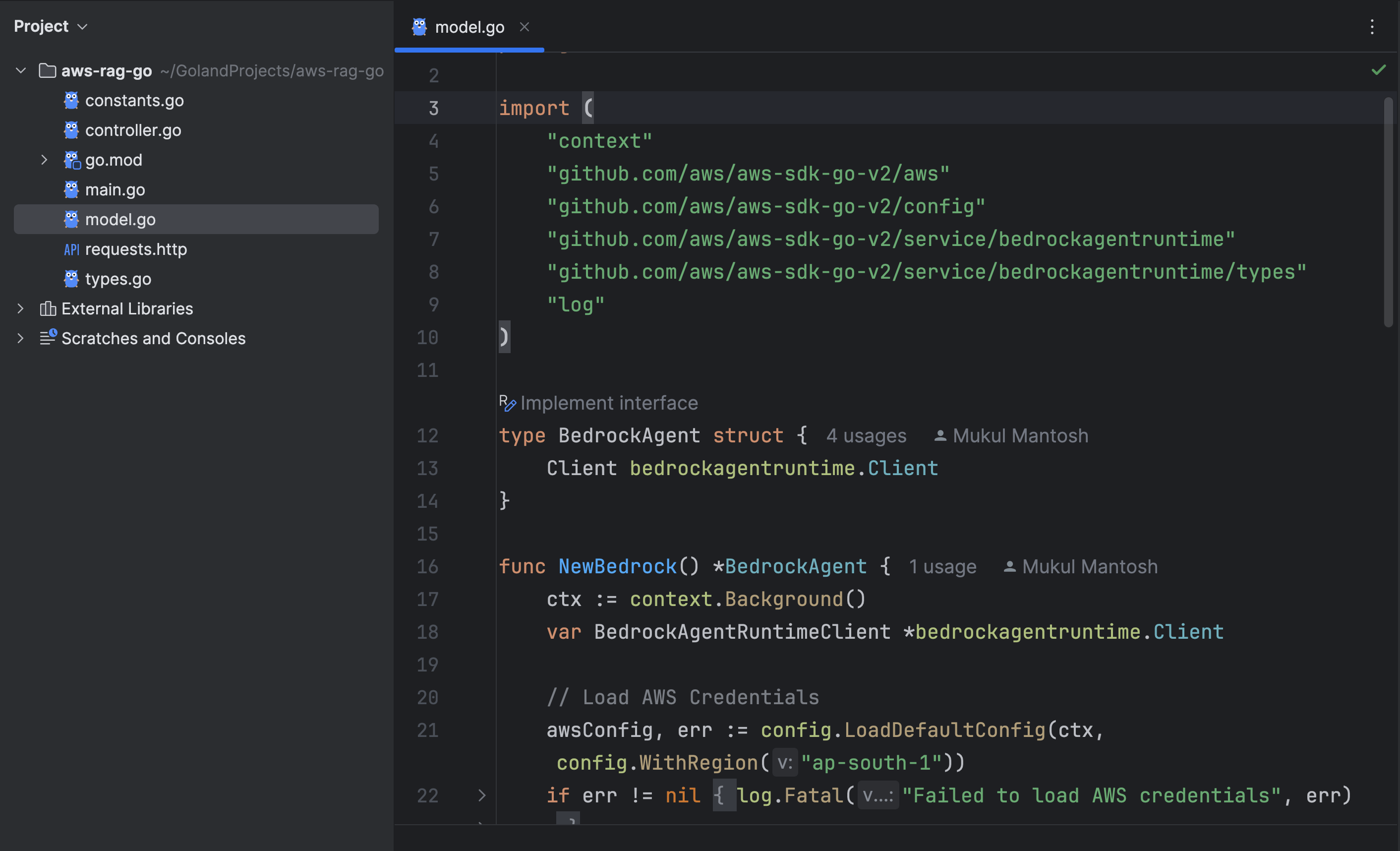

Let me break down the code in model.go step-by-step.

The code defines a BedrockAgent struct that interacts with AWS bedrock agent runtime. It has two main components:

  1. NewBedrock: Sets up the bedrock agent client using AWS credentials.
  2. RetrieveResponseFromKnowledgeBase: Queries the knowledge base to retrieve and generate a response for a given question, which we receive from the POST request.
package main

import (
	"context"
	"github.com/aws/aws-sdk-go-v2/aws"
	"github.com/aws/aws-sdk-go-v2/config"
	"github.com/aws/aws-sdk-go-v2/service/bedrockagentruntime"
	"github.com/aws/aws-sdk-go-v2/service/bedrockagentruntime/types"
	"log"
)

type BedrockAgent struct {
	Client bedrockagentruntime.Client
}

func NewBedrock() *BedrockAgent {
	ctx := context.Background()
	var BedrockAgentRuntimeClient *bedrockagentruntime.Client

	// Load AWS Credentials
	awsConfig, err := config.LoadDefaultConfig(ctx, config.WithRegion("ap-south-1"))
	if err != nil {
		log.Fatal("Failed to load AWS credentials", err)
	}

	// create BedrockAgentClient
	BedrockAgentRuntimeClient = bedrockagentruntime.NewFromConfig(awsConfig)

	return &BedrockAgent{
		Client: *BedrockAgentRuntimeClient,
	}
}
  • RetrieveResponseFromKnowledgeBase - In this function we are querying the knowledge base from a user-provided question. It uses a specific knowledge base ID and a vector search strategy to retrieve related results.

    • The RetrieveResponseFromKnowledgeBase function uses the Bedrock runtime client to:

    • Send a question to a configured knowledge base.

    • Retrieve a response using the RetrieveAndGenerate function, which:

      • Specifies the knowledge base ID.
      • Configures a vector search (e.g., searching for results with related vectors) with 6 results.
      • Uses a specific ModelArn for processing the input.
    • Returns the generated response (output.Output.Text).

You can even customize queries and response generation, follow this link for more details.

func (bedrockAgent *BedrockAgent) RetrieveResponseFromKnowledgeBase(question string) string {
	// invoke bedrock agent runtime to retrieve and generate
	output, err := bedrockAgent.Client.RetrieveAndGenerate(
		context.TODO(),
		&bedrockagentruntime.RetrieveAndGenerateInput{
			Input: &types.RetrieveAndGenerateInput{
				Text: aws.String(question),
			},
			RetrieveAndGenerateConfiguration: &types.RetrieveAndGenerateConfiguration{
				Type: types.RetrieveAndGenerateTypeKnowledgeBase,
				KnowledgeBaseConfiguration: &types.KnowledgeBaseRetrieveAndGenerateConfiguration{
					KnowledgeBaseId: aws.String(KnowledgeBaseId),
					ModelArn:        aws.String(ModelArn),
					RetrievalConfiguration: &types.KnowledgeBaseRetrievalConfiguration{
						VectorSearchConfiguration: &types.KnowledgeBaseVectorSearchConfiguration{
							NumberOfResults: aws.Int32(6),
						},
					},
				},
			},
		},
	)

	if err != nil {
		log.Fatal("RetrieveResponseFromKnowledgeBase::", err)
	}
	result := output.Output.Text
	return *result
}

controller.go

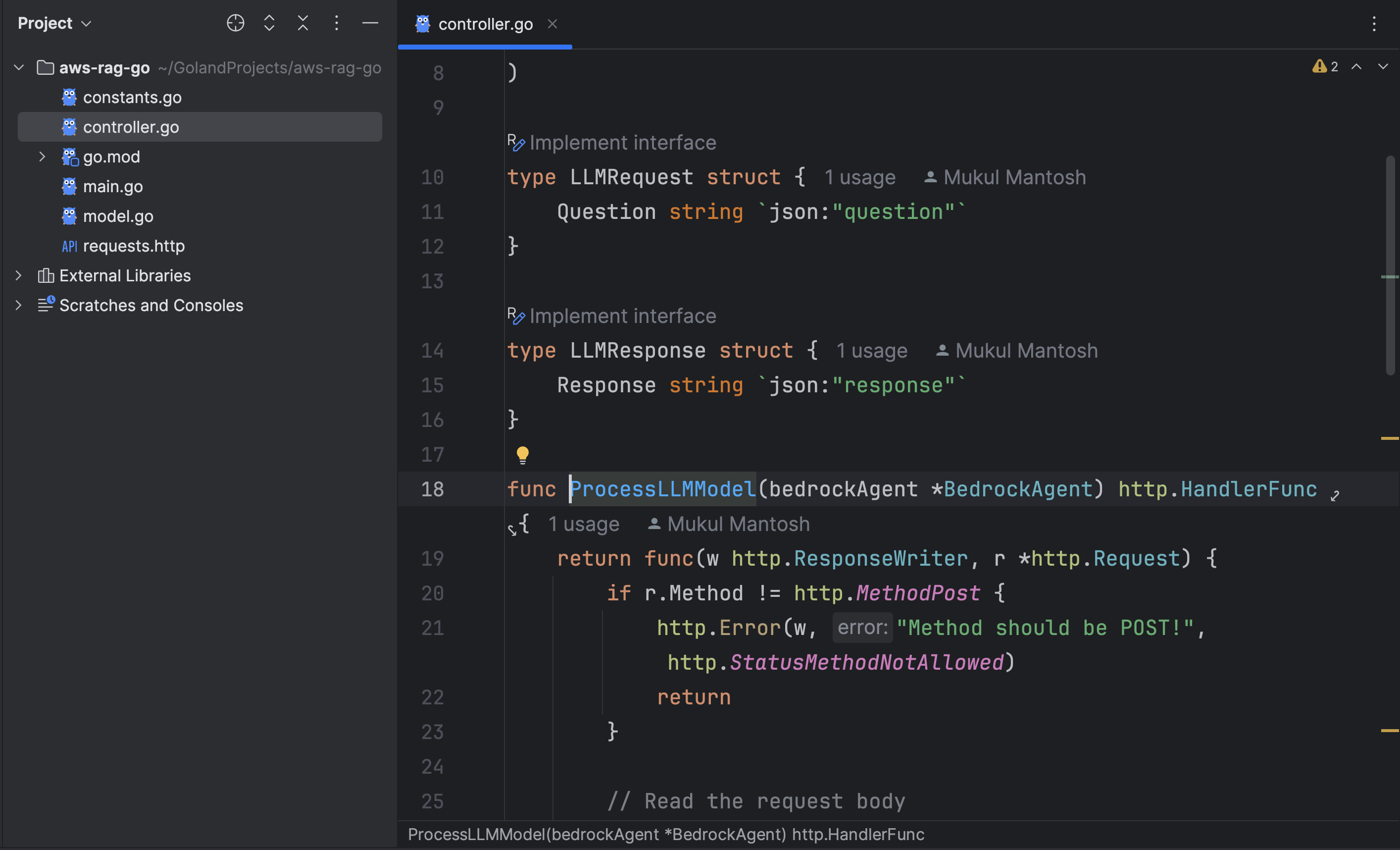

Let's move to the controller.go file where we define the HTTP handler function ProcessLLMModel. It processes the POST requests to query the knowledge base.

step6

It also includes a request struct LLMRequest that expects a JSON object with a question field, and a response struct LLMResponse that contains the result.

When the ProcessLLMModel function is invoked:

  1. It first verifies that the HTTP method is POST; otherwise, it responds with a 405 error.
  2. It reads the request body and ensures it is valid JSON, deserializing it into an LLMRequest.
  3. It trims whitespace and validates that the question field is not empty; if empty, it responds with a 400 error.
  4. If valid, the question is passed to the knowledge base and waits to receive a response.
  5. The final response is wrapped in a JSON object (LLMResponse) and sent back to the client.
package main

import (
	"encoding/json"
	"io"
	"net/http"
	"strings"
)

type LLMRequest struct {
	Question string `json:"question"`
}

type LLMResponse struct {
	Response string `json:"response"`
}

func ProcessLLMModel(bedrockAgent *BedrockAgent) http.HandlerFunc {
	return func(w http.ResponseWriter, r *http.Request) {
		if r.Method != http.MethodPost {
			http.Error(w, "Method should be POST!", http.StatusMethodNotAllowed)
			return
		}

		// Read the request body
		body, err := io.ReadAll(r.Body)
		if err != nil {
			http.Error(w, "Failed to read request body", http.StatusBadRequest)
			return
		}
		defer r.Body.Close()

		// Parse the request body as JSON
		var req LLMRequest
		err = json.Unmarshal(body, &req)
		if err != nil {
			http.Error(w, "Invalid JSON format", http.StatusBadRequest)
			return
		}

		question := strings.TrimSpace(req.Question)

		// Check if the question field is empty.
		if question == "" {
			http.Error(w, "The 'question' field is required", http.StatusBadRequest)
			return
		}

		// Pass the question to Knowledge Base and return back the response.
		response := bedrockAgent.RetrieveResponseFromKnowledgeBase(question)
		var llmResponse LLMResponse
		llmResponse.Response = response

		w.Header().Set("Content-Type", "application/json")
		w.WriteHeader(http.StatusOK)
		json.NewEncoder(w).Encode(llmResponse)
	}
}

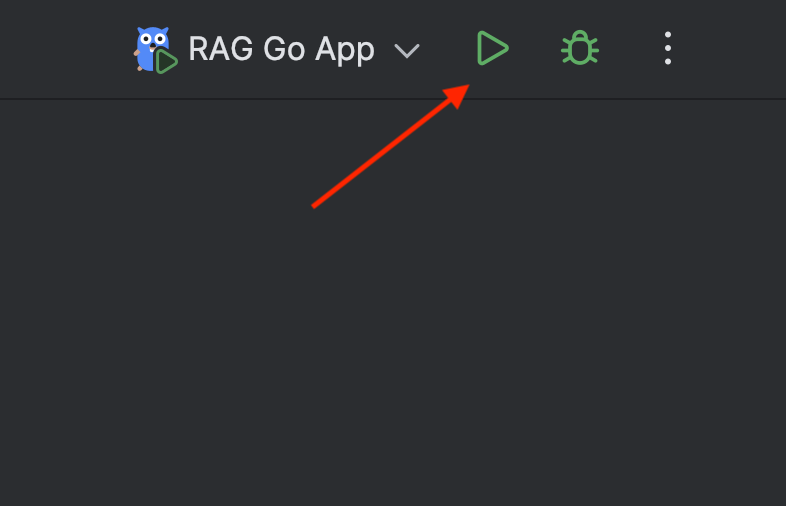

Next, we will proceed to start the application.

run_app

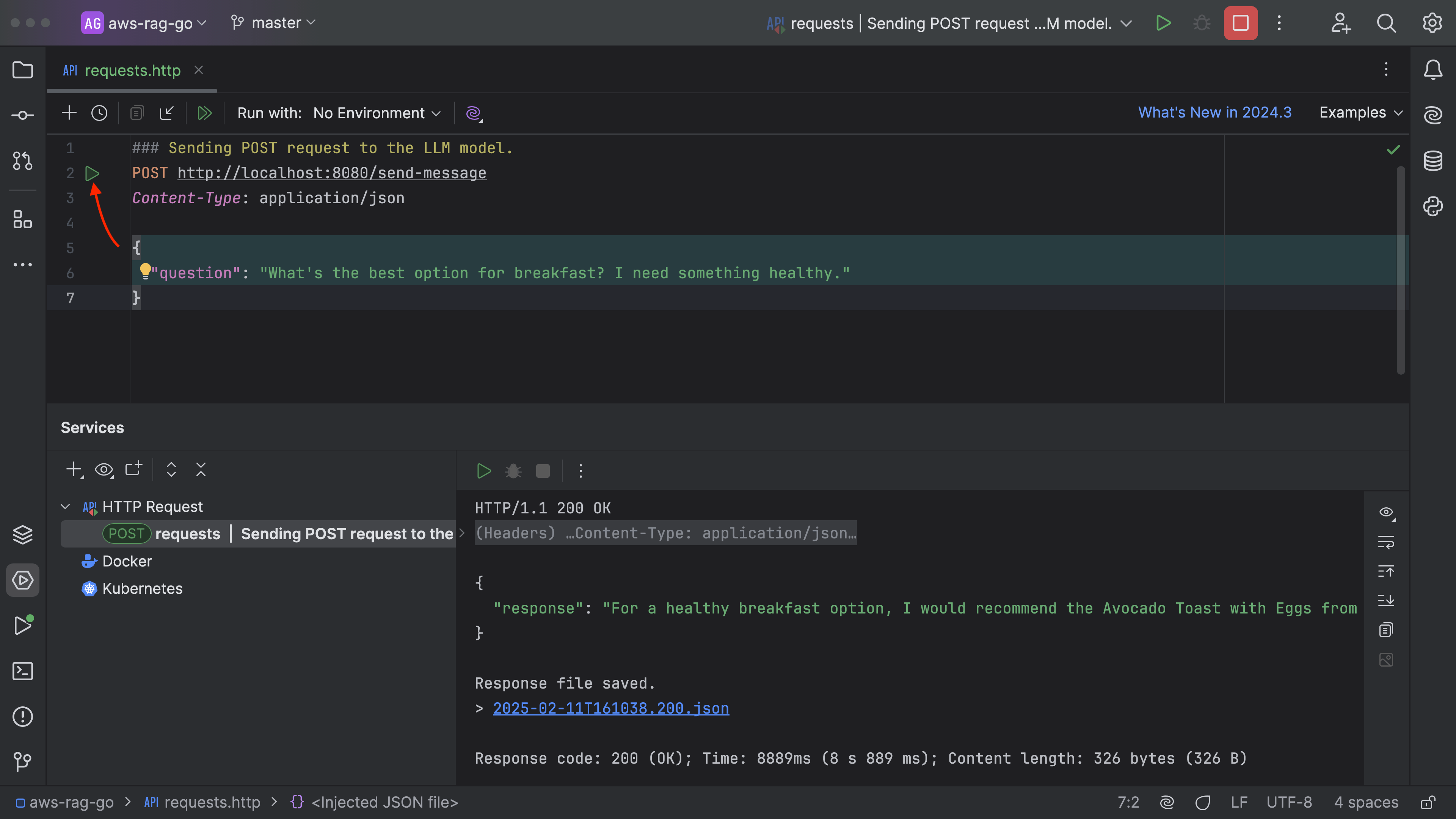

You can find a file in the project root named requests.http, which you can use to play around with APIs.

You can see in the image that we are receiving a successful response.

http_requests

Since our APIs are functioning perfectly, we will now focus on building the UI, utilizing Python for assistance.

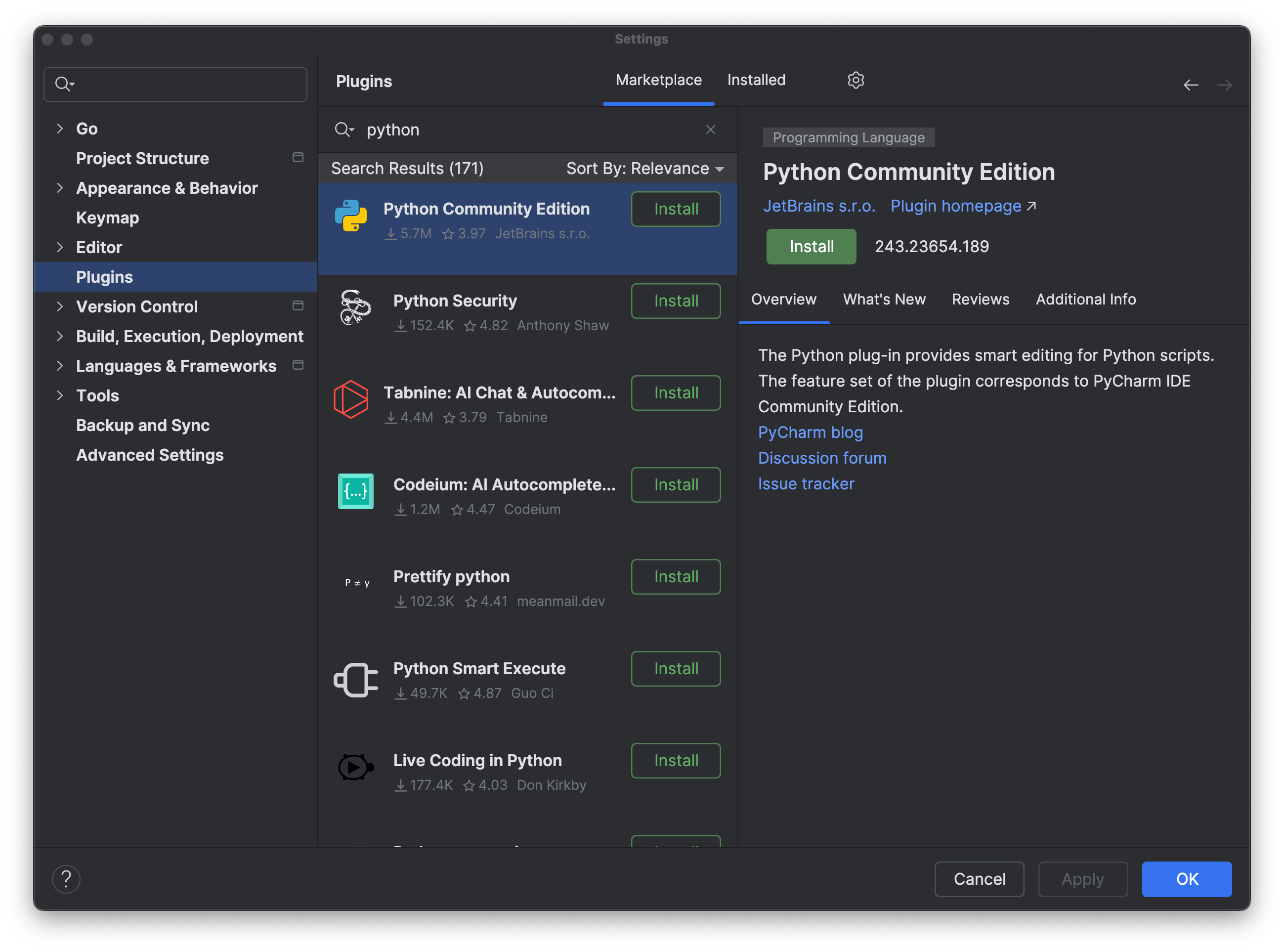

To install the plugin, we need to configure the IDE by selecting GoLand | Settings on macOS or File | Settings on Windows and Linux.

Head over to Plugins and install Python Community Edition.

Note: You might need to restart the IDE after installing this plugin.

python1

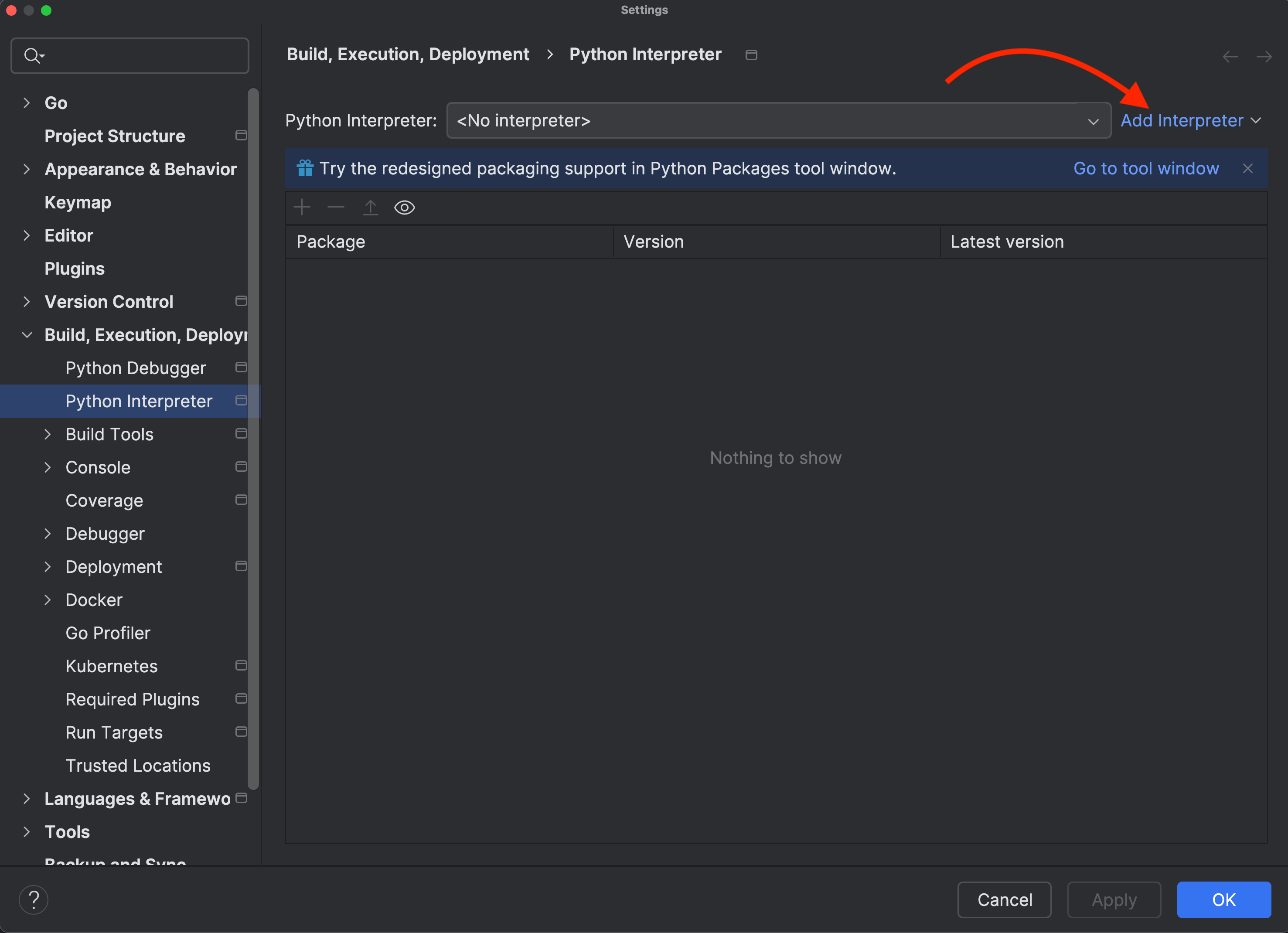

To run Python code, you need to set up the interpreter. You can find the Add Interpreter option under Settings > Build, Execution, Deployment > Python Interpreter.

Click Add Interpreter.

python2

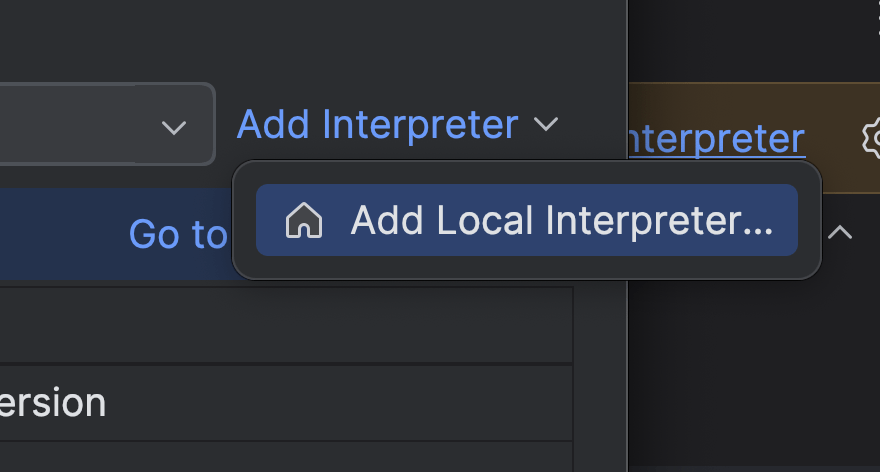

Click Add Local Interpreter.

python3

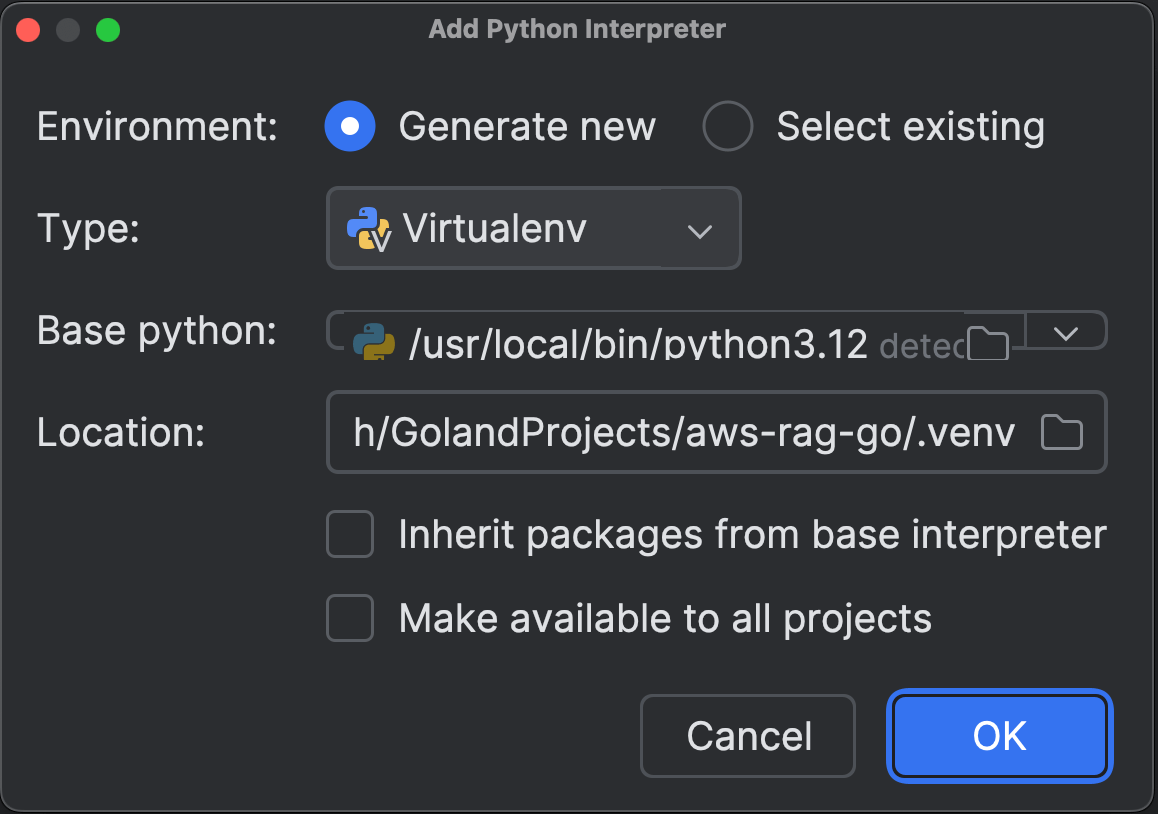

Create a new virtual environment and click OK.

python4

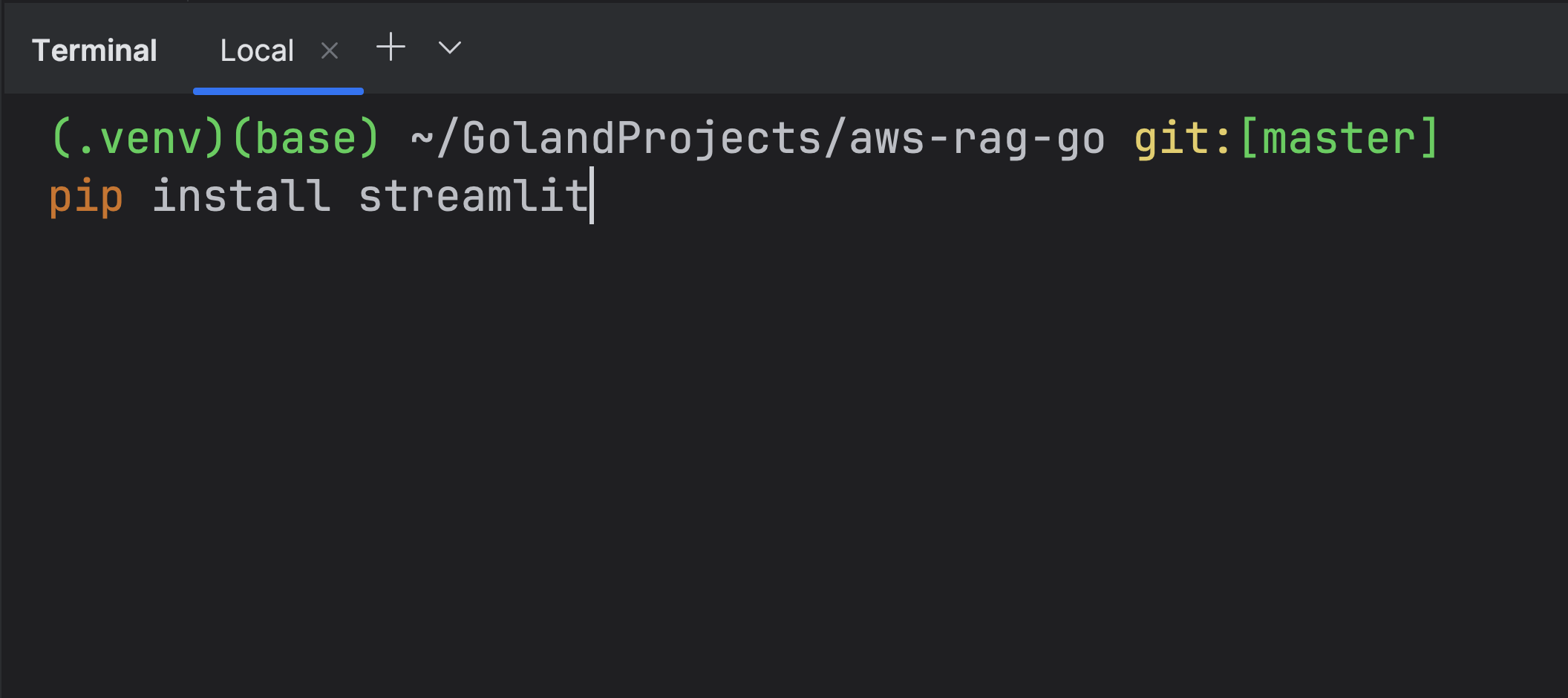

Once the virtual environment is created, you need to install the Python dependencies. They are already stored in the requirements.txt file, which you can find in the repository.

Run the following command:

pip install -r requirements.txt

or

pip install streamlit
pip install requests

python5

What is Streamlit?

Streamlit is a popular open-source Python framework for building interactive and data-driven web applications with minimal effort. Here are some key benefits of using Streamlit:

Simple, Pythonic syntax that allows you to create web apps with just a few lines of code. No need for HTML, CSS, or JavaScript—everything is written in Python.

Running Frontend

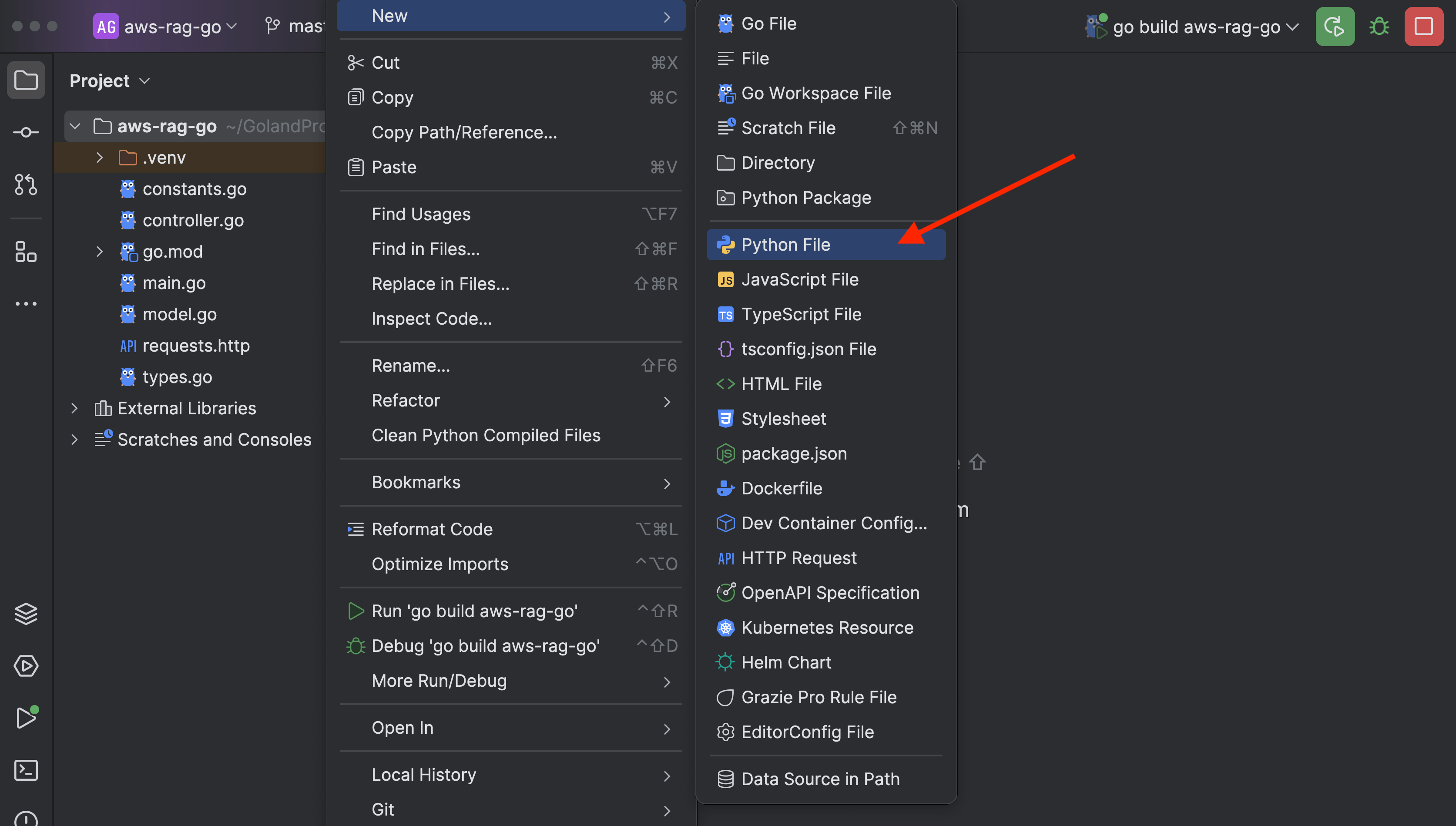

Once the dependencies have been installed successfully, create a new python file and name it frontend.py.

python6

frontend_ui

I won't go into too much detail, but at a high level:

  • We are creating a UI that takes user input.
  • Sends the information to the Go backend.
  • Waits for a response from the knowledge base and displays it in the UI.
import streamlit as st
import requests

def get_api_response(request_question: str):
    api_url = "http://localhost:8080/send-message"
    headers = {
        "Content-Type": "application/json",
    }
    payload = {
        "question": request_question
    }

    try:
        response = requests.post(api_url, json=payload, headers=headers)
        if response.status_code == 200:
            return response.json()["response"]
        else:
            return {"error": "Failed Response!"}
    except Exception as e:
        return "Error::Something went wrong! " + str(e)


st.title("AWS Knowledge Base with Go")

question = st.text_input("Ask a question:")

if st.button("Submit"):
    if question:
        with st.spinner("Getting the answer..."):
            answer = get_api_response(question)
            if "Error" in answer:
                st.error(answer)
            else:
                st.write(answer)
    else:
        st.warning("Please enter the question before submitting.")

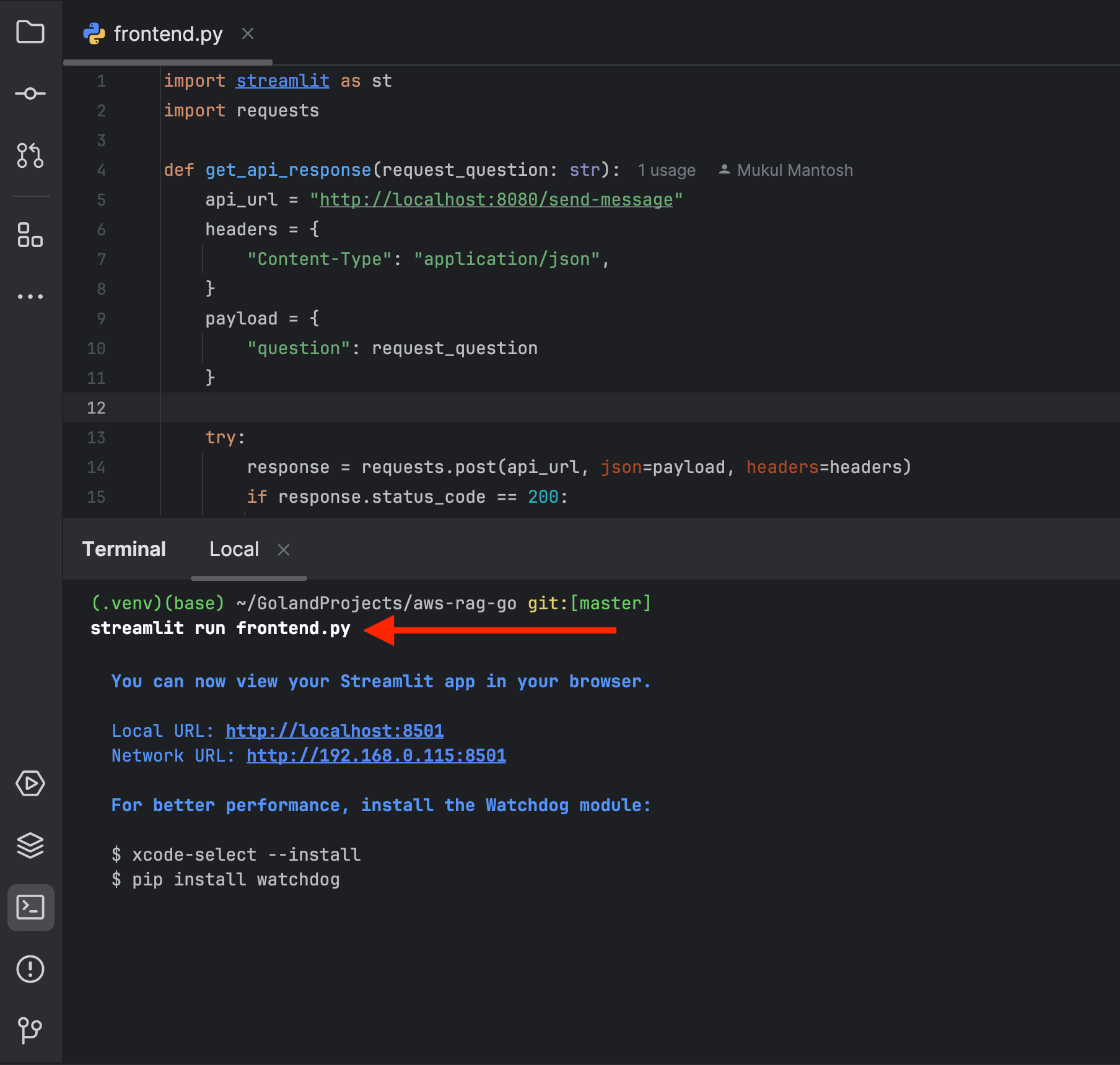

After completing the setup, run the following command in the terminal. You may receive a local URL with a different port number.

streamlit run frontend.py

Open the URL in your browser.

frontend_runcode

And here is the final result.

I hope you enjoyed going through this tutorial. If you're interested in GenAI with Go and AWS, feel free to check out their repository.
