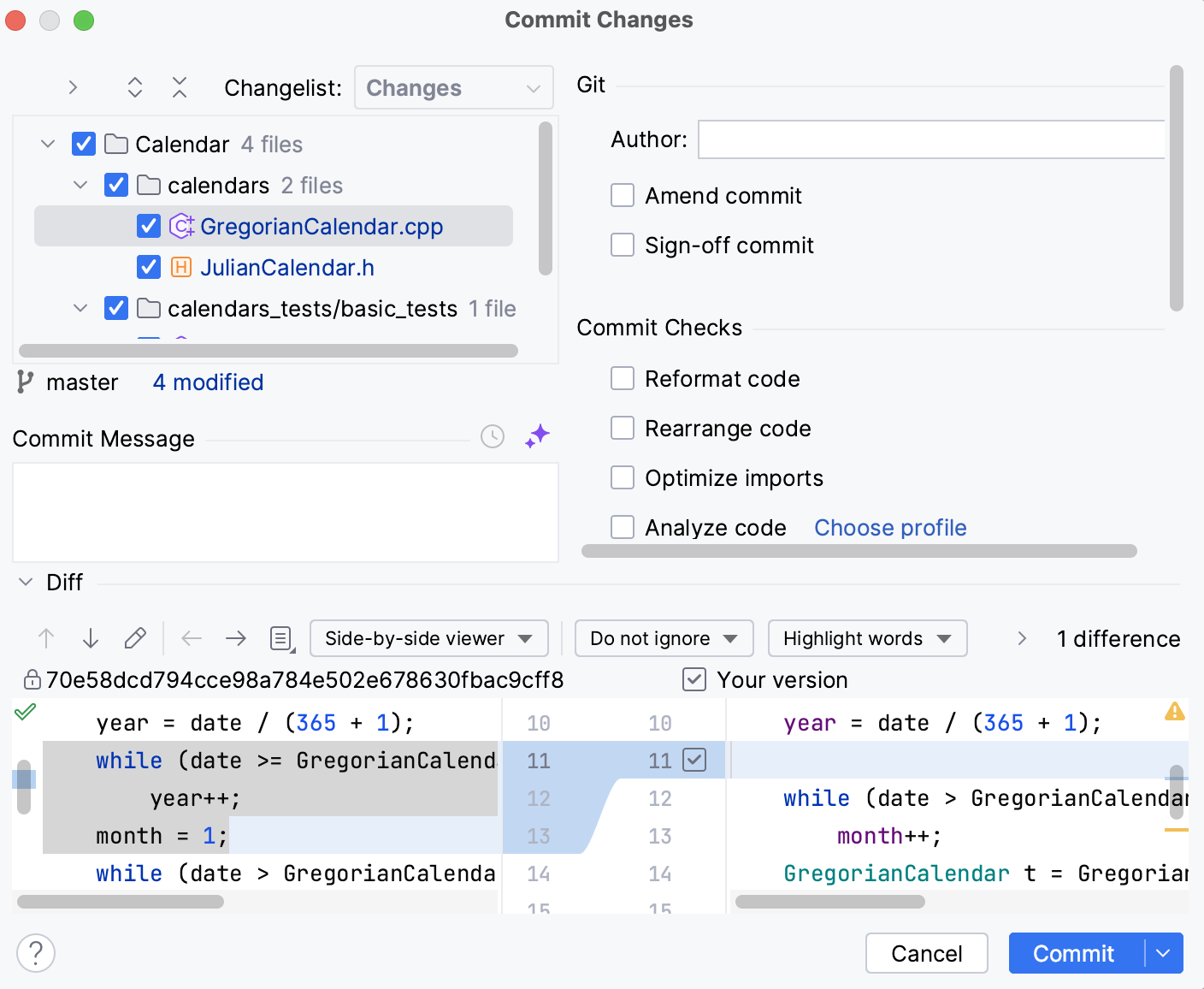

Commit Changes dialog

Modified files pane

Item	Tooltip and Shortcut	Description
	Show Differences `Ctrl0D`	Open the Differences dialog that highlights the differences between your local working copy of the selected file and its repository version.
	Revert	Revert all changes made to the local working copy of the selected files.
	Refresh Changes `CtrlF5`	Click this button to reload the Changed files tree view so it is up-to-date.
	Group By	Choose how you want to group the modified files - by directory or module
	Expand or collapse all nodes `CtrlNumPad +` `CtrlNumPad -`	Click these buttons to expand or collapse all nodes in the directory tree. These buttons are not available in flat view.
Changelist	N/A	From this list, select the changelist that contains the modified files to be checked in or included in the patch. The active changelist is selected by default.

Commit Message pane

VCS-specific controls

Item	Description
Author	Use this list to select the author of the changes that you are going to commit. This may be useful when you are committing changes made by another person.
Amend commit	Select this checkbox to replace the previous commit with the current changes. For more information, refer to Git Basics: Undoing Things.
Sign-off commit	select if you want to sign off your commit to certify that the changes you are about to check in have been made by you, or that you take the responsibility for the code you're committing. When this option is enabled, the following line is automatically added at the end of the commit message: Signed off by: <username>

Item

Description

Author

Use this list to select the author of the changes that you are going to commit. This may be useful when you are committing changes made by another person.

Amend commit

Select this checkbox to replace the previous commit with the current changes. For more information, refer to Git Basics: Undoing Things.

Sign-off commit

select if you want to sign off your commit to certify that the changes you are about to check in have been made by you, or that you take the responsibility for the code you're committing.

When this option is enabled, the following line is automatically added at the end of the commit message: Signed off by: <username>

Item	Description
Amend commit	Select this checkbox to replace the previous commit with the current changes. For more information, refer to Git Basics: Undoing Things.

Item	Description
Keep files locked	Select this checkbox to keep the changed files locked after they are checked in.

Item	Description
Jobs	This area is available only if you select the Enable Perforce Jobs Support checkbox on the Perforce settings page. Use the controls in this area to search for Perforce jobs, link jobs to the selected changelist, and detach the currently linked jobs. Unlink selected jobs: click this button to detach the selected job from the changelist. Edit associated jobs: click this button to open the Edit Jobs Linked to Changelist dialog where you can search for available jobs, view their details, and link jobs to the selected changelist. Find and link job matching the pattern: click this button to start quick search for the job that matches the pattern specified in the field and attach the job to the changelist. In the field, specify the exact name of the job or a search pattern according to the Perforce jobs syntax rules. tip If only one job matching the pattern is found, it is attached to the changelist automatically. Otherwise, to select a job among several available jobs, click the button and find the desired job using the Edit Jobs Linked to Changelist dialog. The list in the bottom of the area displays the jobs that are currently attached to the selected changelist.

Item

Description

Jobs

This area is available only if you select the Enable Perforce Jobs Support checkbox on the Perforce settings page.

Use the controls in this area to search for Perforce jobs, link jobs to the selected changelist, and detach the currently linked jobs.

Unlink selected jobs: click this button to detach the selected job from the changelist.
Edit associated jobs: click this button to open the Edit Jobs Linked to Changelist dialog where you can search for available jobs, view their details, and link jobs to the selected changelist.
Find and link job matching the pattern: click this button to start quick search for the job that matches the pattern specified in the field and attach the job to the changelist.
In the field, specify the exact name of the job or a search pattern according to the Perforce jobs syntax rules.
tip
If only one job matching the pattern is found, it is attached to the changelist automatically. Otherwise, to select a job among several available jobs, click the button and find the desired job using the Edit Jobs Linked to Changelist dialog.

The list in the bottom of the area displays the jobs that are currently attached to the selected changelist.

Submit / Commit section

Item	Description
Reformat code	Perform code formatting according to the Project Code Style settings.
Rearrange code	Rearrange your code according to the arrangement rules preferences.
Optimize imports	Remove redundant import statements.
Analyze code	Analyze modified files while committing them. Click Configure to select an inspection profile from which the IDE will run inspections.
Check TODO (<filter name>)	Review the TODO items matching the specified filter. Click Configure to choose an existing TODO filter, or open the TODO settings page and define a new filter to be applied.
Cleanup	Automatically apply the current inspection profile to the files you are going to commit/shelve.

After Submit / After Commit section

Item	Description	Available for
Run tool	From this list, select the external tool that you want CLion to launch after the selected changes have been committed. You can select a tool from the list, or click the Browse button and configure an external tool in the External Tools dialog that opens.	All VCSs
Upload files to	From this list, select the server access configuration or a server group to use for uploading the committed files to a local or remote host, a mounted disk, or a directory. To suppress uploading, choose None. To add a server configuration to the list, click and fill in the required fields in the Add Server dialog that opens. The list is only available if the FTP/SFTP/WebDAV Connectivity plugin is enabled.	All VCSs
Always use selected server or group of servers	Select this checkbox to always upload files to the selected server or a server group. The checkbox is only available if the FTP/SFTP/WebDAV Connectivity plugin is enabled.	All VCSs
Auto-update after commit	Select this checkbox to automatically update your project after the commit. Enabling this option will help prevent your working copy against the mixed-revision state. The mixed-revision state of a working copy may affect the Move and Rename refactoring applied to folders, in which case items in revisions different from the moved subtree root will be tracked separately, which can be confusing. When the Auto-update after commit option is enabled: Merge will fail with an error if the merge target is a mixed-revision working copy. Your own changes will never cause a 409 conflict.	Subversion

Diff pane

Diff pane toolbar

Item	Tooltip and Shortcut	Description
/	Previous Difference / Next Difference `ShiftF7` `F7`	Jump to the next or previous difference. When the last or the first difference is reached, CLion suggests clicking the arrow buttons or pressing `F7`/`ShiftF7` once more and comparing other files modified locally. This behavior depends on the Go to the next file after reaching last change option in the Diff Viewer settings.
	Jump to Source `F4`	Open the selected file in the editor. The caret is placed in the same position as in the Diff Viewer.
	Compare Previous/Next File `Alt0←` `Alt0→`	Click these buttons to compare the local copy of the previous/next file with its update from the server. tip These buttons are only available when there is more than one file in the selected changelist.
Viewers		Select a viewer mode: side-by-side or unified. The side-by-side mode has two panels, and the unified mode has one panel. You can edit code and perform the Accept, Append, Revert actions in both viewers. You can change text only in the right-hand part of the side-by-side viewer or in the lower line in the unified viewer. You can edit only local versions of your files. You cannot edit files that have read-only status.
Whitespace		Define how the Diff Viewer should treat whitespaces. Do not ignore: white spaces are important, and all the differences are highlighted. This option is selected by default. Trim whitespaces: trim whitespaces if they appear in the end and at the beginning of a line (`("\t", " ")`). If two lines differ in trailing whitespaces only, these lines are considered equal. If two lines are different, trailing whitespaces are not highlighted in the By word mode. Ignore whitespaces: white spaces are not important, regardless of their location in the source code. Ignore whitespaces and empty lines: ignores whitespaces and empty lines. The following entities are ignored: all whitespaces (as in the 'Ignore whitespaces' option) all added or removed lines consisting of whitespaces only all changes consisting of splitting or joining lines without changes to non-whitespace parts. For example, differences between `a b c` and `a \n b c` are not highlighted in this mode.
Highlighting mode		Select the way differences granularity is highlighted. The available options are: Highlight words: modified words are highlighted Highlight lines: modified lines are highlighted Highlight split changes: if this option is selected, big changes are split into smaller changes. For example, `A \n B` and `A X \n B X` are treated as two changes instead of one. Highlight characters: modified symbols are highlighted Do not highlight: if this option is selected, the differences are not highlighted at all. Use the Do not highlight option when you work with the files that were significantly modified. In such cases, highlighting might introduce additional difficulties during a review.
	Collapse Unchanged Fragments	Collapse all the unchanged fragments in both files. The amount of non-collapsible unchanged lines is configurable on the Diff & Merge settings page. To open the Diff & Merge page, open settings by pressing `CtrlAlt0S` and navigate to Tools \| Diff & Merge. .
	Synchronize scrolling	Scroll both differences panes simultaneously. If this button is released, each pane can be scrolled independently.
	Disable editing	Enable editing of the local copy of the selected file, which is disabled by default. When editing is enabled, you can make last-minute changes to the modified file before committing it.
	Editor settings	Open a list of available options. Select or clear these options to show or hide line numbers, indentation guides, white spaces, and soft wraps.
	Help `F1`	Open a browser and show the corresponding help page.
