Merge, rebase, or cherry-pick to apply changes

In Git, there are several ways to integrate changes from one branch into another:

Merge branches

Suppose you have created a feature branch to work on a specific task, and want to integrate the results of your work into the main code base after you have completed and tested your feature:

feature branch diagram

Merging your branch into master is the most common way to do this.

It is very common that while you are working in your feature branch, your teammates continue to commit their work to master:

feature branch diverged from master

When you run merge, the changes from your feature branch are integrated into the HEAD of the target branch:

merge result

Git creates a new commit (M) that is referred to as a merge commit that results from combining the changes from your feature branch and master from the point where the two branches diverged.

The major benefit of merging is full traceability, as commits merged into the main code base preserve their original hash and author, and all commits that are part of one feature can be grouped together.

This workflow is good for projects where committing changes to the main code base involves pull or merge requests, or a hierarchical approval procedure, as existing branches are not changed in any way.

The main drawback of this approach is that extraneous merge commits are created each time you need to incorporate changes, which intensely pollutes project history and makes it difficult to read.

Merge branches

  1. In the Branches popup (main menu Git | Branches) or in the Branches pane of the Git tool window, select the target branch that you want to integrate the changes to, and choose Checkout from the context menu to switch to that branch.

  2. Do one of the following:

    • If you do not need to specify options for the merge, select the branch that you want to merge into the current branch and choose Merge into Current from the submenu.

    • If you need to specify merge options, from the main menu choose VCS Git | Merge Changes to open the Merge dialog:

      The Merge dialog

      Select the branch that you want to merge into the current branch, click Modify options and choose from the following:

      • --no-ff: a merge commit will be created in all cases, even if the merge could be resolved as a fast-forward.

      • --ff-only: the merge will be resolved only if it is possible to fast-forward.

      • --squash: a single commit with all pulled changes will be created on top of the current branch.

      • -m: you will be able to edit the message for the merge commit.

      • --no-commit: a merge will be performed, but a merge commit will not be created so that you can inspect the result of the merge before committing.

    Click Merge.

If your working tree is clean (which means you have no uncommitted changes), and no conflicts occur between your feature branch and the target branch, Git will merge the two branches, and the merge commit will appear in the Log tab of the Git tool window Alt+9:

merge commit

If conflicts occur between your branch and the target branch, you will be prompted to resolve them (refer to Resolve conflicts). If there are unresolved conflicts left after a merge, the Merge Conflicts node will appear in the corresponding changelist in the Changes view with a link to resolve them.

If you have local changes that will be overwritten by merge, DataGrip will suggest performing Smart merge. If you select this option, DataGrip will stash uncommitted changes, perform merge, and then unstash the changes.

Rebase branches (git-rebase)

When you rebase a branch onto another branch, you apply the commits from the first branch on top of the HEAD commit in the second branch.

Suppose you have created a feature branch to work on a specific task and make several commits to that branch:

feature branch

While you develop in your branch, your teammates continue to commit their work to master:

feature branch diverged from master

When you perform the rebase operation you integrate changes you have done in your feature branch to the master branch by applying your commits on top of the current HEAD commit in master:

rebase operation result

The major benefit of rebasing is that you get a clean project or directory history that is easy for others to read and understand. Your log does not contain unnecessary merge commits produced by the merge operation, and you get linear history that is easy to navigate and search through.

When deciding to adopt this workflow, you should keep in mind, however, that rebase rewrites project or directory history as it creates new commits for each commit in the original feature branch, so they will have different hashes, which obstructs traceability.

Rebase a branch on top of another branch

  1. From the main menu select Git | Rebase

  2. From the list, select the target branch onto which you want to rebase the current branch:

    Choose target branch in the Git rebase dialog
  3. If you need to rebase the source branch starting from a particular commit instead of rebasing the entire branch, click Modify options and choose --onto.

    In the source branch field, enter the hash of the commit starting from which you want to apply the current branch to the new base:

    Specify commit hash with --onto
  4. If the branch you want to rebase is not currently checked out, click Modify options, click Select another branch to rebase, and choose a branch from the list that appears:

    Choose the branch you want to rebase

    DataGrip will check out this branch before starting the rebase operation.

  5. If you want to rebase all commits reachable in the branch, click Modify options and choose --root (for more information on this option, refer to git-rebase).

  6. If you need to keep empty commits, which are commits that do not change anything from their parent, click Modify options and choose --keep-empty (for more information on this option, refer to git-rebase).

  7. If you want to preserve merge commits during the rebase for the sake of keeping them in the branch history, click Modify options and choose --preserve-merges (this option is unavailable for interactive rebase).

  8. Click Rebase.

If you do not need to specify options for the rebase, you can initiate a rebase without invoking the rebase dialog. In the Branches popup or in the Branches pane of the Git tool window select a branch and choose one of the following actions:

  • Pull into Current Using Rebase (for remote branches) to fetch changes from the selected branch and rebase the current branch on top of these changes.

  • Checkout and Rebase onto Current (for both remote and local branches) to check out the selected branch and rebase it on top of the branch that is currently checked out. If the remote branch doesn't exist locally, DataGrip will silently create a tracked local branch, checkout into it and rebase.

  • Rebase Current onto Selected (for both remote and local branches) to rebase the branch that is currently checked out on top of the selected.

Watch this video to get a better view on how rebase operation can be performed:

Edit Git history by performing interactive rebase

With Git integration in DataGrip, you can edit history for the sake of making it linear and meaningful by performing interactive rebase. This allows you to clean up the history of commits by altering individual commits, changing their order, squashing commits into one, skipping commits that contain extraneous changes, and so on before you integrate changes from your feature branch to another branch.

Edit the history of the current branch

DataGrip allows you to edit the commits history in the current branch before you apply the changes to a different branch.

  1. Open the Git tool window Alt+9 and switch to the Log tab.

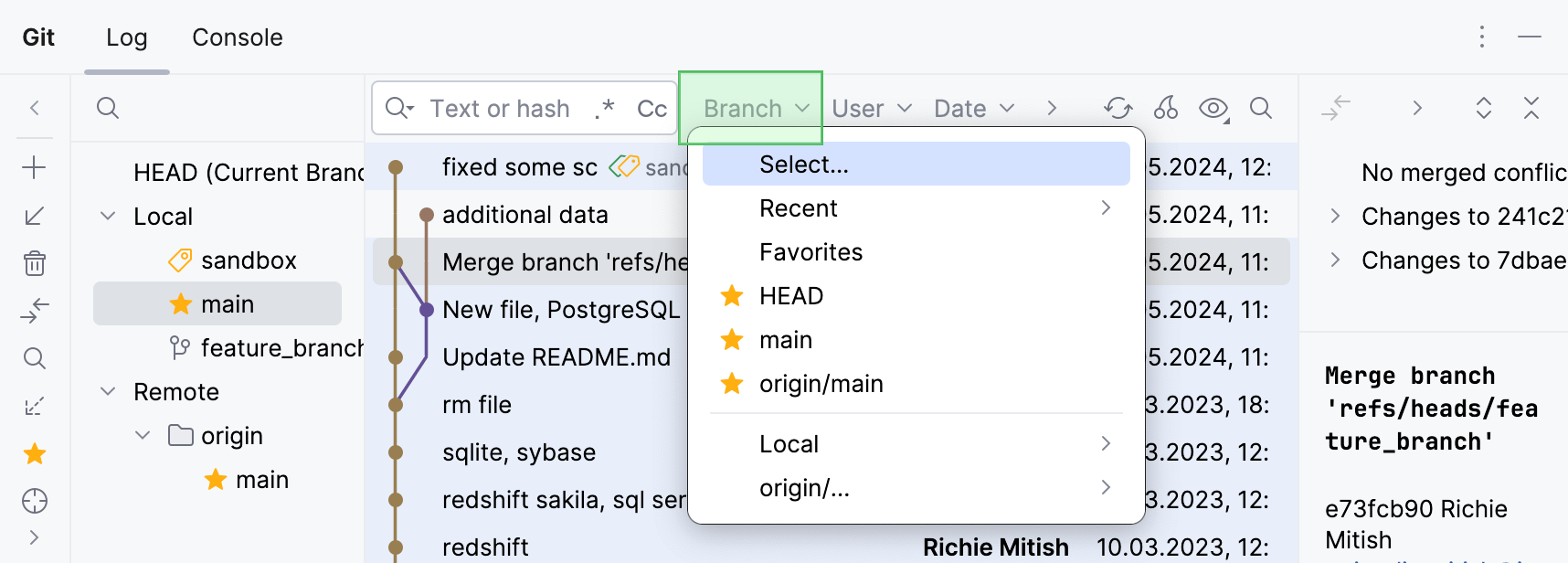

  2. Filter the log so that it only displays commits from the current branch:

    Filter log by branch
  3. Select the oldest commit in the series of commits that you want to edit, right-click it and choose Interactively Rebase from Here.

    The Interactive Rebase dialog will be displayed containing the list of all commits in the current branch that were made after the selected commit:

    Interactive Rebase dialog

    If the Interactively Rebase from Here option is disabled, this may be due to one of the following reasons:

    • the selected commit has several parents

    • the selected commit is not in the current branch

    • the selected commit is pushed to a protected branch

    To identify the reason, hover over the action in the context menu and look for the message in the status bar:

    Status bar message: interactive rebase is disabled
  4. You can perform the following changes to the branch history:

    • Change the order in which commits should be applied: use the up arrow and down arrow buttons to move commits up and down the list.

    • Pick a commit: this is the default state for all commits. If you need to undo an action you've already taken on a commit, click Pick so that this commit is applied as is.

    • Edit: click Stop to Edit the Pause button so that when you start the rebase, you stop at this commit to be able to edit it.

      When rebase is stopped at a commit, a notification pops up in the bottom-right corner of the DataGrip window letting you continue or abort the rebase:

      The rebase status notification

      You can modify this commit using the context actions (such as Revert, Undo, Amend, and so on before continuing the rebase. If you don't perform any actions, this commit will be applied as is.

      If you've closed the notification, from the main menu choose Git | Continue rebase to resume it.

    • Reword the commit message: click Reword or double-click a commit and edit the text in the mini-editor that opens.

    • Combine two commits into one: select the commit you want to meld into the previous one and click Squash or the arrow next to the Squash button and then Fixup.

      If you click Squash, by default the messages from the two commits will be combined, so if you don't modify the resulting commit message this action will be reflected in the branch history.

      If you click Fixup, the commit message of the fixup commit will be discarded, so this change will be invisible in the branch history.

      In both cases, you will be able to edit the commit message in the mini editor that opens when you apply one of these actions.

    • Ignore a commit: click Drop so that the changes from the selected commit are not applied.

    • Undo all changes: click Reset to discard all actions you've applied to the commits.

    As a result, the Rebasing Commits dialog shows a graph illustrating all actions you've applied to commits in your branch, so that you can review them before starting the rebase:

    Interactive Rebase graph
  5. Click Start Rebasing.

Edit a branch history and integrate it into another branch

DataGrip allows you to rebase a branch on top of another branch and edit the source branch history before you apply the changes.

  1. From the main menu select Git | Rebase

  2. Click Modify options and choose --interactive.

  3. From the list, select the target branch onto which you want to rebase the current branch:

    Choose target branch in the Git rebase dialog
  4. If you need to rebase the source branch starting from a particular commit instead of rebasing the entire branch, click Modify options and choose --onto.

    In the source branch field, enter the hash of the commit starting from which you want to apply the current branch to the new base:

    Specify commit hash with --onto
  5. If the branch you want to rebase is not currently checked out, click Modify options, click Select another branch to rebase, and choose a branch from the list that appears:

    Choose the branch you want to rebase

    DataGrip will check out this branch before starting the rebase operation.

  6. If you want to rebase all commits reachable in the branch, click Modify options and choose --root (for more information on this option, refer to git-rebase).

  7. If you need to keep empty commits, which are commits that do not change anything from their parent, click Modify options and choose --keep-empty (for more information on this option, refer to git-rebase).

  8. Click Rebase.

    The Interactive Rebase dialog will be displayed containing the list of all commits in the current branch that were made after the selected commit.

    Interactive Rebase dialog
  9. You can perform the following changes to the branch history:

    • Change the order in which commits should be applied: use the up arrow and down arrow buttons to move commits up and down the list.

    • Pick a commit: this is the default state for all commits. If you need to undo an action you've already taken on a commit, click Pick so that this commit is applied as is.

    • Edit: click Stop to Edit the Pause button so that when you start the rebase, you stop at this commit to be able to edit it.

      When rebase is stopped at a commit, a notification pops up in the bottom-right corner of the DataGrip window letting you continue or abort the rebase:

      The rebase status notification

      You can modify this commit using the context actions (such as Revert, Undo, Amend, and so on before continuing the rebase. If you don't perform any actions, this commit will be applied as is.

      If you've closed the notification, from the main menu choose Git | Continue rebase to resume it.

    • Reword the commit message: click Reword or double-click a commit and edit the text in the mini-editor that opens.

    • Combine two commits into one: select the commit you want to meld into the previous one and click Squash or the arrow next to the Squash button and then Fixup.

      If you click Squash, by default the messages from the two commits will be combined, so if you don't modify the resulting commit message this action will be reflected in the branch history.

      If you click Fixup, the commit message of the fixup commit will be discarded, so this change will be invisible in the branch history.

      In both cases, you will be able to edit the commit message in the mini editor that opens when you apply one of these actions.

    • Ignore a commit: click Drop so that the changes from the selected commit are not applied.

    • Undo all changes: click Reset to discard all actions you've applied to the commits.

    As a result, the Rebasing Commits dialog shows a graph illustrating all actions you've applied to commits in your branch, so that you can review them before starting the rebase:

    Interactive Rebase graph
  10. Click Start Rebasing.

Cherry-pick separate commits

Sometimes you only need to apply a single commit to a different branch instead of rebasing or merging an entire branch. This may be useful, for example, if you are working in a feature branch and want to integrate a hotfix from master that was committed after the two branches have diverged. Or you may want to backport a fix to a previous release branch. You can do so by using the Cherry-pick action.

The status of a cherry-pick operation is displayed in the status bar. You can always abort an ongoing cherry-pick by selecting Abort Cherry-Pick in the Git Branches popup.

Cherry pick operation status

Apply a commit to another branch

  1. In the Branches popup (main menu Git | Branches), select the target branch that you want to integrate the changes to and choose Checkout from the popup menu to switch to that branch.

  2. Open the Git tool window Alt+9 and switch to the Log tab.

  3. Locate the commit containing the changes you want to cherry-pick.

    You can filter commits by branch, user or date. You can also click eye icon on the toolbar and select Highlight | Non-Picked Commits option to grey out the commits that have already been applied to the current branch. If you know the commit hash, or are looking for a tagged commit, you can also use the Go to Hash / Branch / Tag action (press Ctrl+F in the Log tab of the Git tool window Alt+9, or click Search on the toolbar).

  4. Select the required commit. Use the information in the Commit Details area to make sure these are the changes you want to transfer to another branch.

  5. Click Cherry-pick the Cherry-Pick button on the toolbar. DataGrip will apply and commit changes to the target branch.

  6. If the cherry-pick failed with conflicts, the selected changes will appear in the Changes area that you can see in the Changes view. You can review these changes and commit them later if necessary.

    If you want DataGrip to create changelists automatically in case of cherry-pick fail, switch on the corresponding setting in Settings | Version Control | Changelists.

  7. Push the changes to the target branch.

The following video will help you see how cherry-pick works:

Apply separate changes

Imagine you've made some changes to a file that you want to apply to a different branch, but these changes were committed together with other modified files. DataGrip lets you apply separate changes instead of cherry-picking an entire commit.

  1. In the Branches popup (main menu Git | Branches), select the target branch that you want to integrate the changes to and choose Checkout from the popup menu to switch to that branch.

  2. Open the Git tool window Alt+9 and switch to the Log tab.

  3. Locate the commit that contains the changes that you want to apply.

    You can filter commits by branch, user or date. You can also click eye icon on the toolbar and select Highlight | Non-Picked Commits option to grey out the commits that have already been applied to the current branch. If you know the commit hash, or are looking for a tagged commit, you can also use the Go to Hash / Branch / Tag action (press Ctrl+F in the Log tab of the Git tool window Alt+9, or click Search on the toolbar).

  4. In the Commit details pane on the right, select the files containing the changes you want to apply to the target branch and select Cherry-Pick Selected Changes from the context menu.

  5. In the dialog that opens, select an existing changelist or enter the name for a new changelist and click OK.

  6. Commit the changes and then push them to the target branch.

Apply separate files

In addition to applying separate changes to a single file, you can copy an entire file's contents to a different branch. This may be useful, for example, if the file you want to apply doesn't exist in the target branch, or if changes to it were made within several commits.

  1. Switch to the branch to which the changes will be applied.

  2. In the Branches popup (main menu Git | Branches) or in the Branches pane of the Git tool window, select the branch that contains the file you want to apply and choose Show Diff with Working Tree from the context menu.

    The Changes tool window that opens shows a list of all files that are different in the selected branch compared with the branch that is currently checked out:

    Show diff between selected branch and current working tree
    • Files that exist in the selected branch and are missing in the current branch are marked with grey.

    • Files that exist in the current branch but are missing in the selected branch are marked with green.

    • Files that contain differences between the selected and the current branch are marked with blue.

    You can click the Swap Branches link to change which branch is considered as a base against which you are comparing the other branch.

  3. Select the file that you want to apply to the current branch, and choose Get from Branch from the context menu or click Get from Branch on the toolbar .

  4. Commit and push the changes. DataGrip will copy the entire contents of the file to the current branch.

Last modified: 26 May 2024
