SQLite
Enable the Database Tools and SQL plugin
This functionality relies on the Database Tools and SQL plugin, which is bundled and enabled in JetBrains Rider by default. If the relevant features are not available, make sure that you did not disable the plugin.
Press Ctrl+Alt+S to open settings and then select .
Open the Installed tab, find the Database Tools and SQL plugin, and select the checkbox next to the plugin name.
Official documentation and software
For full information about SQLite, refer to the official documentation.
To download SQLite database software, refer to the official software downloads.
Before you begin
This topic presents a general procedure on how you can create a data source for the connection to your SQLite database in JetBrains Rider, and run a test connection. It is assumed that you already have the necessary connection details and the database file is accessible.
To learn about your DBMS software, refer to its official documentation.
Connect to an SQLite database
In the Database tool window () , click
New and select Connect to Database.If you have a connection string for the database defined in your solution or elsewhere, leave the Use connection string option selected and choose SQLite in the Database type selector.
Use the String selector to choose the desired connection string from your solution or type it in manually, then click Connect.
You can also choose Add data source manually, click Next and select SQLite in the Database source selector. Follow the wizard steps to form the connection string by configuring individual options.
To access all available options for the new database connection, click
in the Database window, then click New and select SQLite.In the General tab of Data Sources and Drivers dialog right pane, specify the driver and connection type.
In the Driver list, leave the default driver option, unless another driver is required for your connection.
From the Connection type list, select the connection type depending on the connection details that you have:

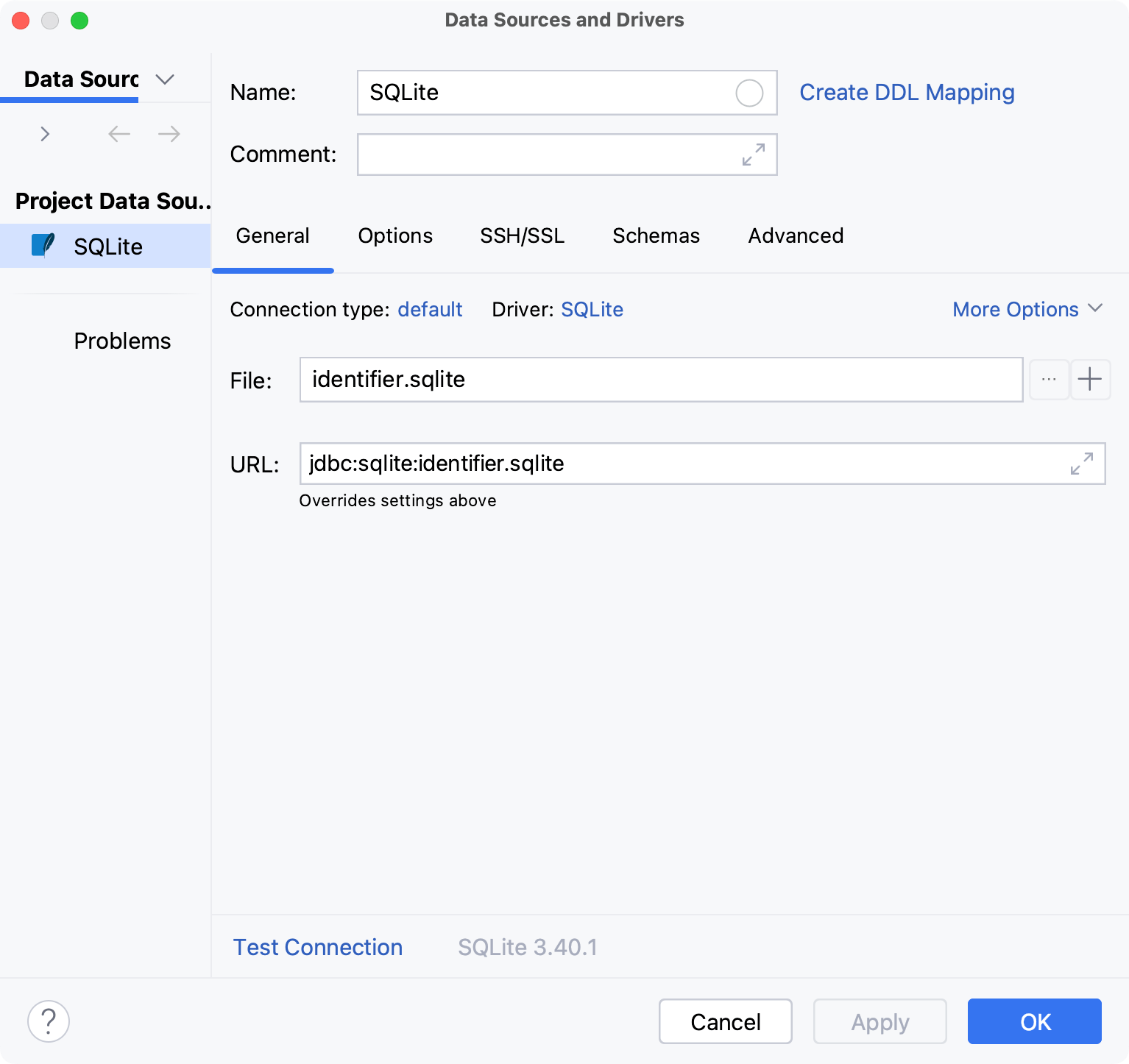

default: connect by using the path to SQLite database file.

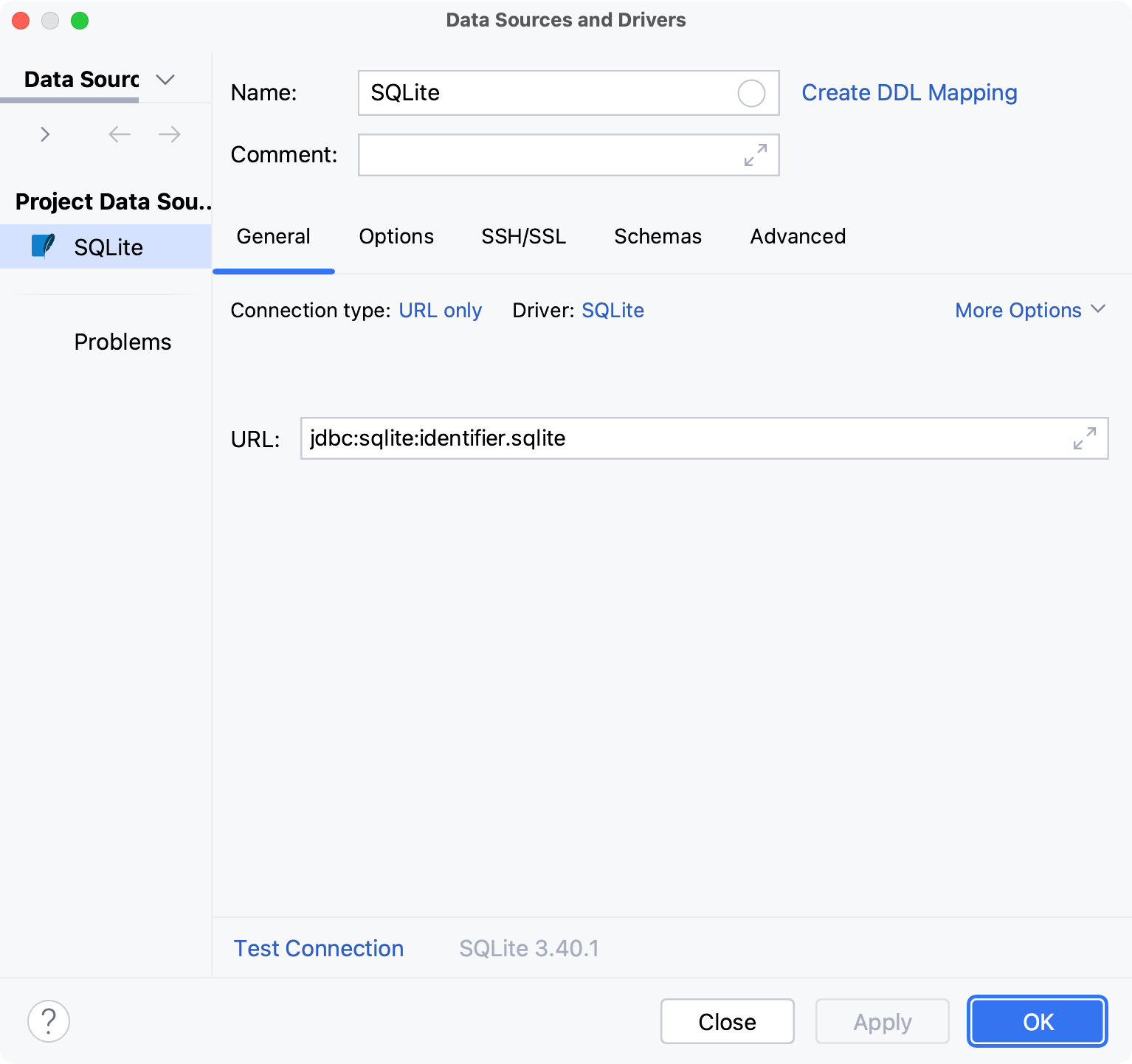

URL only: connect by using only the URL.
For the URL only connection type, the JDBC URL that you enter is used and as is, including the database credentials.
For the other connection types, the JDBC URL is broken down into connection details. You can either specify them separately and use the automatically generated URL, or you can enter the URL directly in the corresponding field.
Check if there is a Download missing driver files link at the bottom of the connection settings area. Click this link to download drivers that are required to interact with a database. For a direct download link, refer to the JetBrains JDBC drivers page.
Location for the downloaded JDBC drivers is the JetBrains Rider configuration directory.
You can also use your drivers for the database instead of the provided ones. For more information about connecting to a database with your driver, refer to Add a user driver to an existing connection.
If there is no Download missing driver files link, then you already have the required drivers.
Specify the database connection details. Alternatively, paste the JDBC URL in the URL field.
To connect to an existing SQLite database, specify a file path to the database file in the File field. Alternatively, click the Open button (
) and navigate to the file.To create a new SQLite database, change the default
identifier.sqlitename of the database, if needed. Alternatively, click the New button () and specify the name and location for your new database file.Also, to create a database, you can drag an SQLite database file to the Database tool window.
In the URL field, JetBrains Rider generates the JDBC URL automatically using the values of other connection settings.
If you need to use a JDBC URL with certain additional settings, paste it in the URL field. The general URL to use is as follows:
Format:
jdbc:sqlite:<path_to_database_file>/<database_file_name>Example:
jdbc:sqlite:/Users/JetBrains/db/myDatabase
Paste the JDBC URL in the URL field.
In the URL field, JetBrains Rider generates the JDBC URL automatically using the values of other connection settings.
If you need to use a JDBC URL with certain additional settings, paste it in the URL field. The general URL to use is as follows:
Format:
jdbc:sqlite::memory:Example:
jdbc:sqlite::memory:
Paste the JDBC URL in the URL field.
In the URL field, JetBrains Rider generates the JDBC URL automatically using the values of other connection settings.
If you need to use a JDBC URL with certain additional settings, paste it in the URL field.
For the reference information about connection settings (for example, Host, Port, and so on) on the General and other tabs of Data Sources and Drivers dialog (Ctrl+Alt+Shift+S) , see Data Sources.
Ensure that the connection to the database can be established using the provided details. To do that, click the Test Connection link at the bottom of the connection details area.
In case of any connection issues, refer to the Cannot connect to a database page.
(Optional) By default, only the default schema is introspected and available to work with. If you also want to work with other schemas, in the Schemas tab, select them for the introspection.
Click OK to create the data source.
Find your new data source in the Database tool window (⌘ 1) .
For more information about the Database tool window, see the corresponding reference topic.
For more information about working with database objects in JetBrains Rider, refer to Database objects.
To write and run queries, open the default query console by clicking the data source and pressing F4.
To view and edit data of a database object, open Data editor and viewer by double-clicking the object.
