Types

The Types view shows a list of objects in the selected object set. For convenience, all objects are grouped by their type: each row in the list represents a specific type. All objects of that type existing in the set are counted under this row. You can use the Types view to identify objects that consume too much memory or shouldn't be in memory.

The list consists of the following columns:

Name	Description
Type	Type name.
Objects count	The number of objects of the same type.
Bytes	The overall shallow size of objects in bytes.
Minimum retained bytes	The overall size of all exclusively retained objects in bytes. This is a lower estimate of how many bytes will be freed if you remove all objects of a certain type.

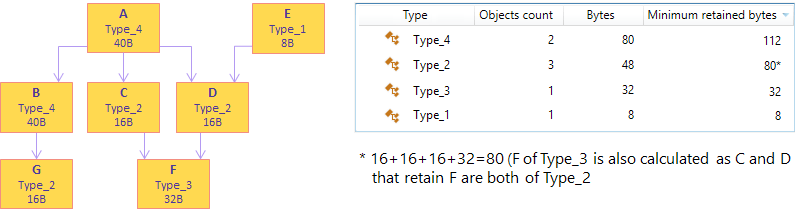

Example

Group objects in the list

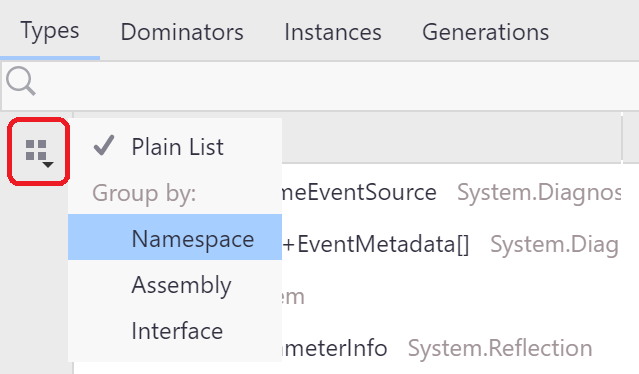

For convenience, you can group the list in four different ways:

Plain List
Objects are displayed in a plain list. This is the easiest way to identify objects with the highest memory usage.
Group by Namespace
Objects are grouped by their namespace. This type of grouping is very convenient when you want to focus on determining issues in your own classes.
Group by Assembly
Objects are grouped by the assembly they come from. This type of grouping can also be used to separate your own classes from the system ones.
Group by Interface
Objects are grouped by interfaces they implement. If an object implements more than one interface, it will be displayed under each implemented interface.

Filter objects

You can filter out objects that are of no interest to your analysis by type .

To narrow the list

Start typing the desired string pattern. JetBrains Rider will highlight matching strings.

You can make your search more efficient by using the following tips:

Use CamelHumps. E.g. fo will return objects of both System.Drawing.Font and MS.Utility.FrugalObjectList types.
Use special symbols, like wildcards and others. The full list is shown in the table below.

Special symbols and filter examples

Symbol	Description	Example
`*`	Wildcard	`*` All objects in the set
		`sys.*.data` All types and namespaces that match the pattern. E.g. `System.Data`, `System.Windows.Controls.Datagrid`, and `System.Windows.Data.Binding`.
		`sys.*.data.` Only namespaces that match the pattern. E.g. `System.Windows.Data.Binding` but not `System.Windows.Controls.Datagrid`.
Arrays
`[]`	Leave only arrays	`str[]` Arrays, containing `str` in their type or namespace. E.g. `String[]`.
`[,` `[,,` `...` or `[,]` `[,,]` `...`	Leave only arrays of the specified or higher (if brackets are not closed) dimension	`str[,,` Arrays with the dimension 3 and higher containing `str` in their type or namespace. E.g. `String[,,]` and `String[,,,]`.
`[,` `[,,` `...` or `[,]` `[,,]` `...`		`str[,,]` Three-dimensional arrays containing `str` in their type or namespace. E.g. `String[,,]`.
`!a`	Exclude arrays from the result	`!a str` Objects (excluding arrays) containing `str` in their type or namespace. E.g. `String` but not `String[]`.
Generic type arguments
`<`	Leave only types with generic type arguments	`str<` Only objects containing `str` in their type or namespace and having generic type arguments. E.g. `FileStreamStorage<Char>` but not `List<String>`.
`<`	Leave only types with generic type arguments	`<str` Only objects containing `str` in their generic type arguments. E.g. `List<String>` but not `FileStreamStorage<Char>`.
`<,` `<,,` `...` or `<,>` `<,,>` `...`	Leave only objects with the specified number of generic type arguments	`fun<,,>` Objects containing `fun` in their type or namespace and having three generic type arguments. E.g. `Func<String, Object, Object>`.
`<,` `<,,` `...` or `<,>` `<,,>` `...`		`fun<str,,task` Objects containing `fun` in their type or namespace and having three or generic type arguments that match the pattern. E.g. `Func<Stream, IAsyncResult, TaskResult, EventArgs>`.
`!g`	Exclude generic type arguments from the search scope	`!g str` Objects (that do not have generic type arguments) containing `str` in their type or namespace. E.g. `String` but not `List<String>`.
`#c` `#struct` `#m` `#ns`	Search by type, value type, method, or namespace.	`#ns Feature` Objects containing `Feature` in their namespace.

Select objects for further analysis

In the Types view, you can select the following subjects for further analysis:

Objects of a certain type;
Objects exclusively retained (dominated) by the whole object set.

To select objects of a specific type

Do one of the following:
- Double-click the type in the list.
- Right-click the type and choose Open this object set.
After this, the selected object set is added to the analysis path on the left and you can use other object set views to analyze the objects in more detail.

To select the objects that are exclusively retained by the analyzed objects set

Click the Open objects retained by this set button.
After this, the Exclusively retained objects subject will be added to the analysis path on the left and the list of desired objects will be displayed in the Group by Types view.

Last modified: 19 November 2024
