Structural search and replace examples

As you know the main difference between regular search and the structural search is that in the structural search we are looking for a structural template in a programming language.

The beauty of a structural search is that you can create a pattern based on the existing template and save yourself time when searching and replacing code.

The extensive list of existing templates covers a lot of use-cases from simple patterns to more complex ones.

Each item in a pattern consists of variables that are limited by $ sign on both sides.

Examples for HTML and XML

The following examples show how you can use structural search in HTML and XML code.

Searching for XML and HTML tags, attributes, and their values

The simplest template to search for a tag is <$tag$/>.

By placing constraints on the variable $tag$ , you can specify tags that you want to find. For example, if you specify li, you will get all li tags.
Consider the following template for searching in XML and HTML: <$tag$ $attribute$=$value$ />. For example, if you specify the text filter id for the $attribute$ variable and the \d+ regular expression as the text filter for the $value$ variable, you can find all tags that have numeric values in the id attribute.

Delete all lines with the id attribute greater than 2

Create an HTML file and paste the following code:
<!doctype html> <html> <head> <title>Structural Search Example</title> <body> <ul> <li id="1">Example line 1</li> <li id="2">Example line 2</li> <li id="3">Example line 3</li> <li id="a">Example line a</li> <li id="5">Example line 5</li> </ul> </body> </html>
In the main menu, go to Edit | Find | Search Structurally.
From the Language list, select HTML.
Paste the following string to the Search template field:
<$tag$ $attribute$="$value$">
Click the $tag$ variable.
In the filter panel, click Add modifier, select Text and type li in the value field.
If the filter panel is not visible, click Toggle Modifier Panel.
Click the $attribute$ variable.
In the filter panel, click Add modifier, select Text and type id in the value field.
Click the $value$ variable.
In the filter panel, click Add modifier, select Text and type \d+ in the value field.
The \d+ regular expression limits search results to numeric values. So, the line with the id="a" will be filtered out.

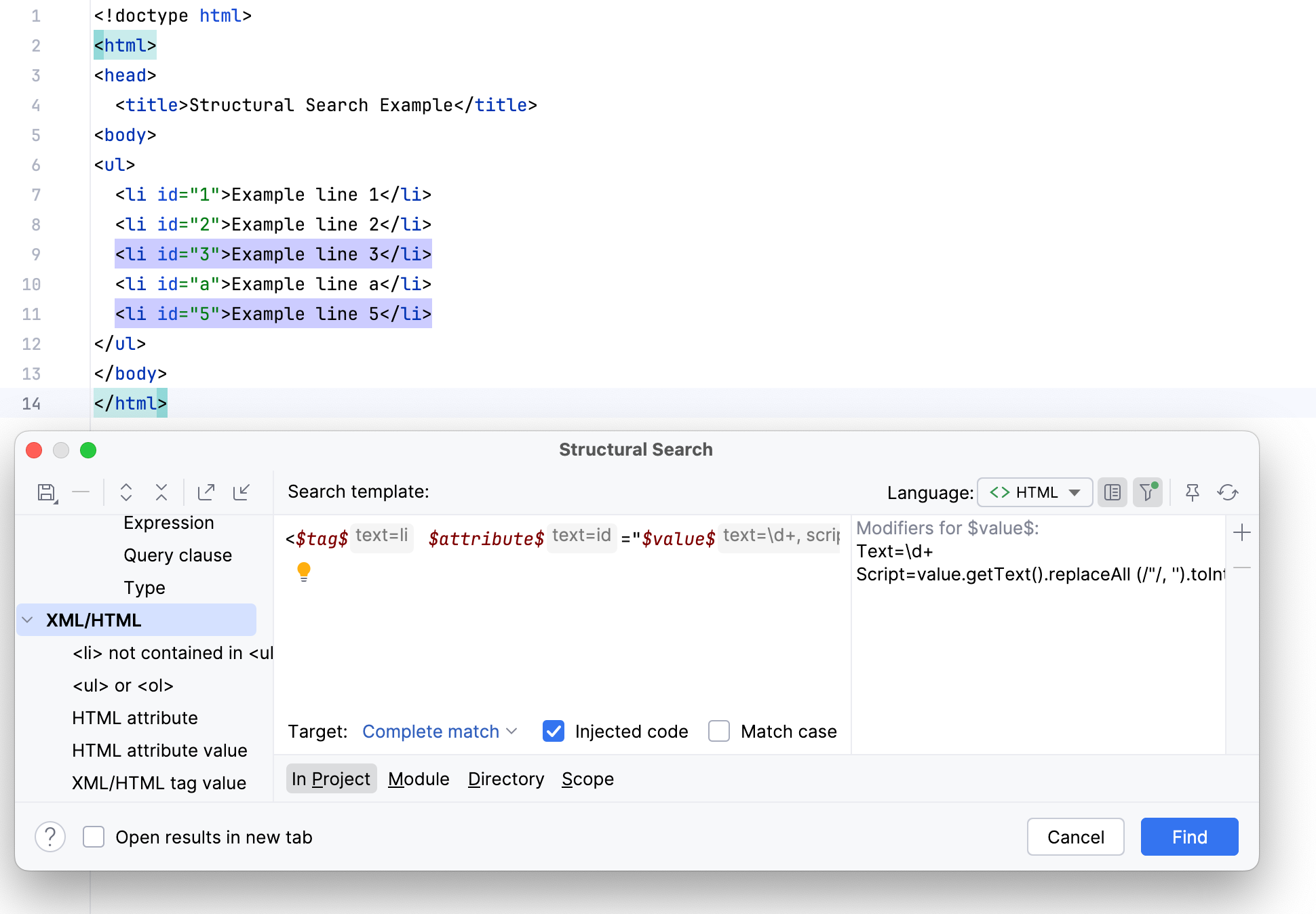

Without switching the focus from the filter panel, click the Add button, select Script and paste the following code:
value.getText().replaceAll (/"/, '').toInteger() > 2
The script reads the content of the $value$ variable and returns it as a string (for example, "1"). Then the script replaces all the quotes and converts the string value to integer and compares it with 2.

Convert uppercase values of the class attribute in li tags to lowercase

Create an HTML file and paste the following code:
<!doctype html> <html> <head> <title class="EXAMPLE">Structural Replace Example</title> <body> <ul> <li class="EXAMPLE">Example line 1</li> <li class="example">Example line 2</li> <li class="EXAMPLE">Example line 3</li> <li class="example">Example line a</li> <li id="EXAMPLE">Example line 5</li> </ul> </body> </html>
In the main menu, go to Edit | Find | Replace Structurally.
From the Language list, select HTML.
Paste the following string to the Search template field:
<$tag$ $attribute$="$value$">
Select the Match case checkbox.
Click the $tag$ variable.
In the filter panel, click Add modifier, select Text and type li in the value field.
Click the $attribute$ variable.
In the filter panel, click Add modifier, select Text and type class in the value field.
Click the $value$ variable.
In the filter panel, click Add modifier, select Text and type [A-Z].* in the value field.
The [A-Z].* regular expression limits search results to uppercase values.
From the Target list, select value. This procedure highlights all the uppercase values of the class attribute.

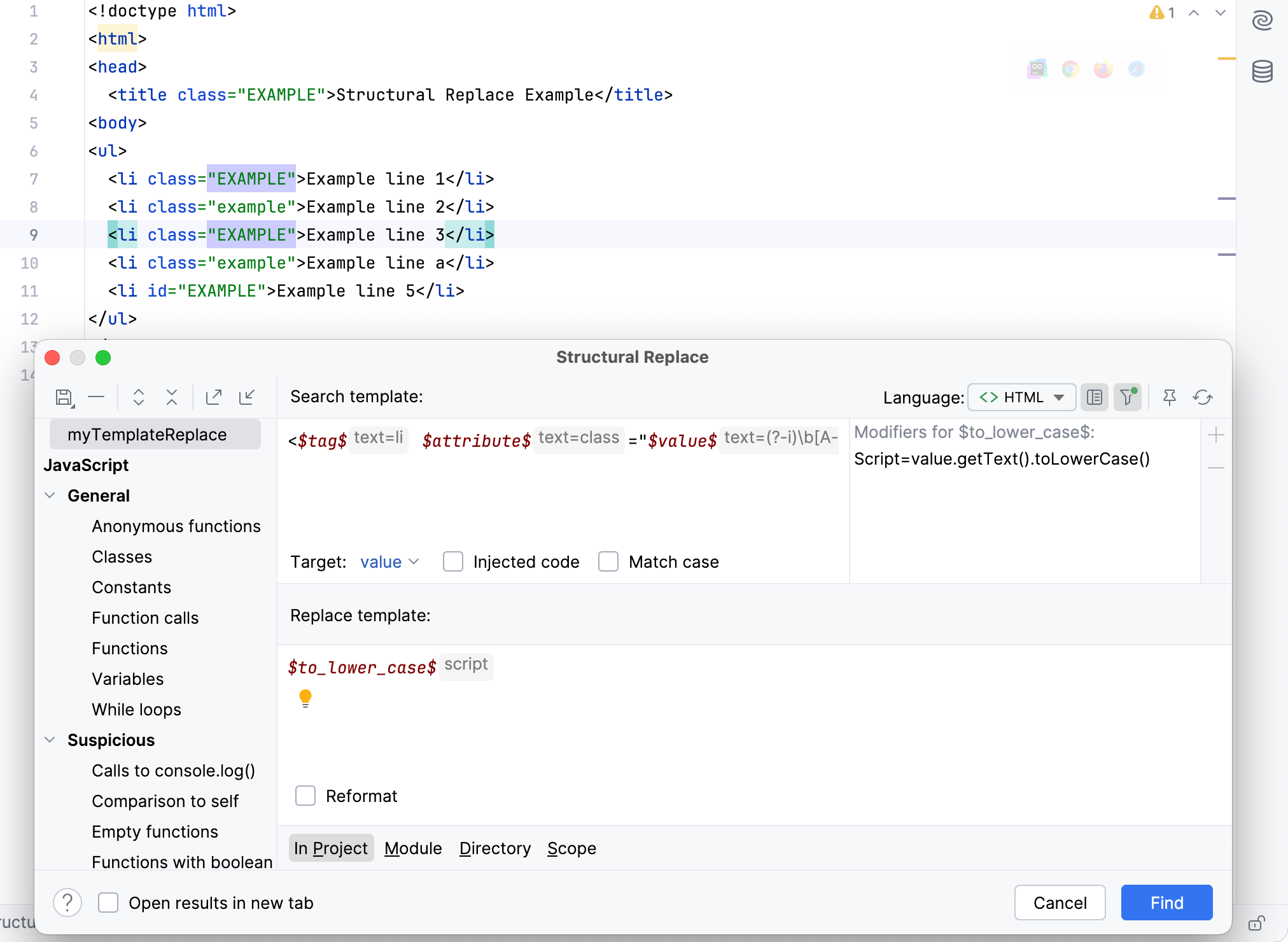

In the Replace template field, paste the $to_lower_case$ variable.
Click the $to_lower_case$ variable.
In the filter panel, click Add modifier, select Script and paste the following code:
value.getText().toLowerCase()
Click Find.

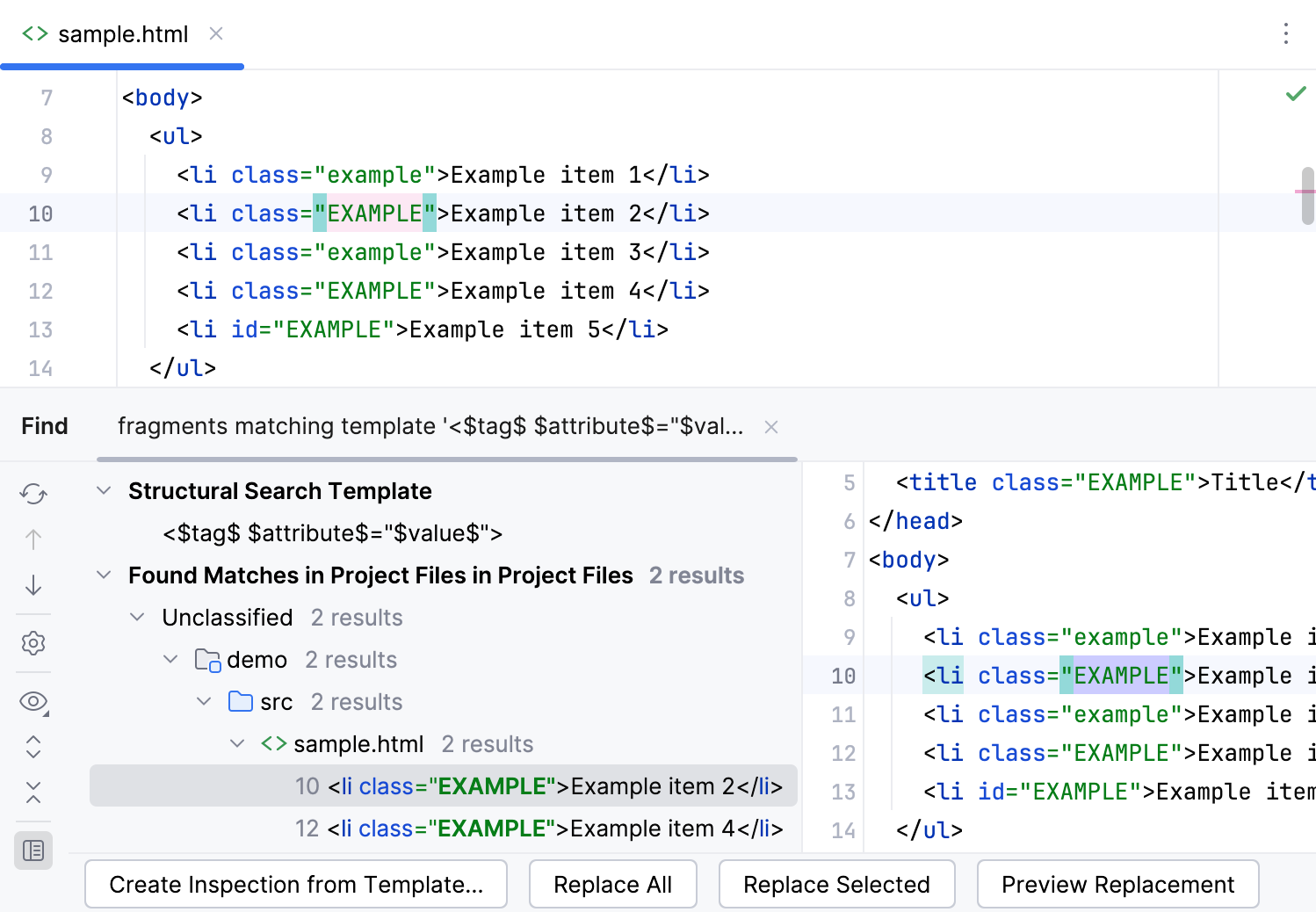

In the Find tool window, preview the found results and click Replace All.
