DataGrip 2024.1 Help

View differences in properties

Install the Subversion plugin

This functionality relies on the Subversion plugin, which you need to install and enable.

  1. Press Ctrl+Alt+S to open settings and then select Plugins.

  2. Open the Marketplace tab, find the Subversion plugin, and click Install (restart the IDE if prompted).

With DataGrip, you can view differences in properties between a file in the local copy and in the repository or between two revisions of a file in the local copy.

To view property difference between the local copy and the repository version

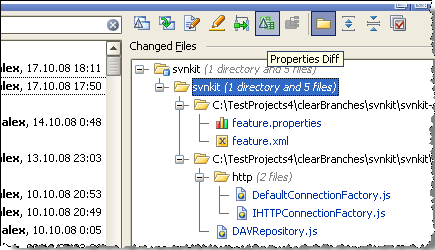

  1. Open the Version Control tool window and switch to the Repository tab.

  2. In the Changed Files pane, select the file for which you want to view property differences.

  3. Choose Properties Diff From the context menu of the selection or click propertiesDiff.png on the toolbar.

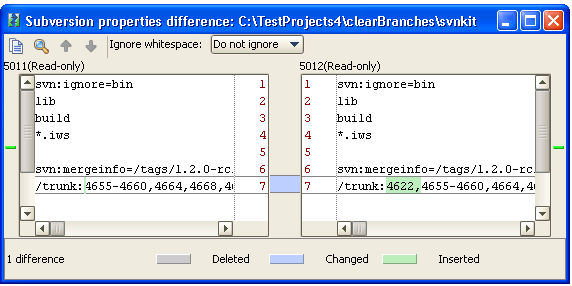

  4. In the Subversion properties difference viewer, explore the differences:


To view property difference between two revisions in the local copy

  1. Open the Commit tool window Alt+0.

  2. Select the file for which you want to view property differences between revisions and choose Subversion | Properties Diff with Local in the context menu.

  3. In the Subversion properties difference viewer explore the differences:

Last modified: 26 May 2024
