Compare files, folders, and text sources
IntelliJ IDEA lets you review the differences between files, folders, local files and their repository versions, database objects, and text sources.
tip
For more information about examining the differences between two revisions of a file or a folder, refer to Compare file and folder versions using Diff viewer.
In the Project tool window Alt01, select the files you want to compare and choose Compare Files, or press Ctrl0D.
Alternatively, select one file, choose Compare With from its context menu, and select a file that is outside your project.
tip
If you are comparing two files and want to add a third file to the comparison, right-click either left or right panel, select Switch to Three-Side Viewer, and load the required file by clicking Select file.
If you often need to compare files that are outside your project with the active editor, or don't want to have the Project tool window Alt01 open, you can use the Compare File with Editor action that lets you choose any file and compare it with the active editor.
To add this action to the editor tab's context menu:
Press CtrlAlt0S to open settings and then select Appearance & Behavior | Menus and Toolbars.
In the right pane, expand the Editor Tab Popup Menu node, select where you want to add the new action, click and select Add Action.
Find and add the Compare File with Editor action under Version Control Systems | Diff & Merge.
IntelliJ IDEA displays the differences in the Diff Viewer for Files:
Color | Description |
---|---|
Green | Added |
Blue | Modified |
Gray | Deleted |
To apply changes, use the chevron buttons: and .
To append changes, press Ctrl — the buttons will turn into .
- Assign shortcuts for 'accept' and 'append'
To assign shortcuts to the accept and append actions, open the Keymap settings page CtrlAlt0S and locate these actions under Version Control Systems | Diff & Merge.
- Swap sides
When you are comparing two files, or a file with the Clipboard contents, you can swap sides by clicking on the toolbar.
- Compare files from the command line
You can compare two or three files from the command line and use IntelliJ IDEA as an external diff tool. For more information, refer to Compare files from the command line.

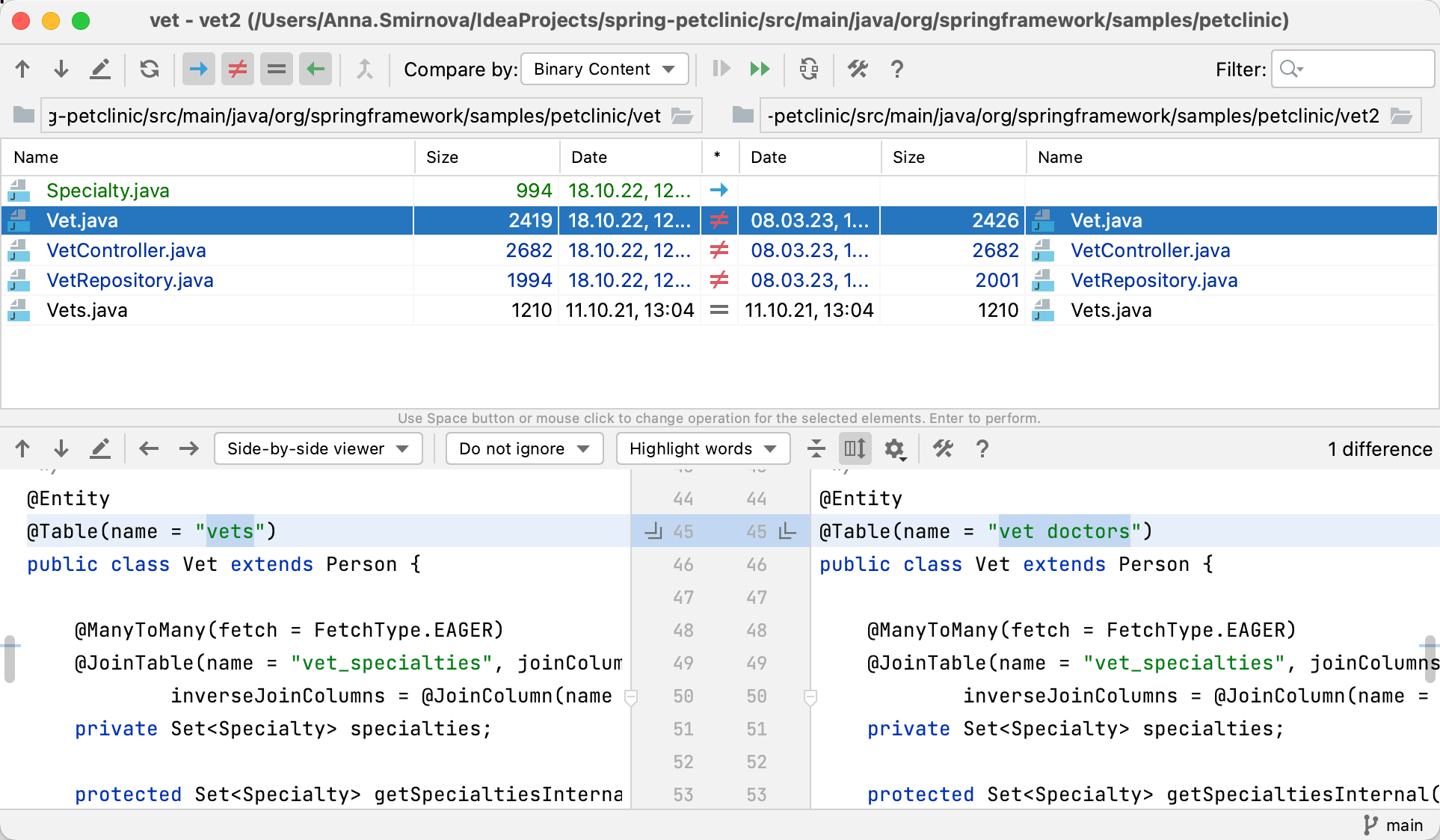

IntelliJ IDEA lets you compare files in two folders against their file size, content, or timestamp. The differences are displayed in the Diff Viewer for Folders:
The top pane lists all files in the selected folders, while the bottom pane shows the differences between two versions of the selected file (refer to Compare files).
Select the folders you want to compare in the Project tool window Alt01.
note
You can also open the Diff Viewer without running IntelliJ IDEA. Run the following command:
<path to IntelliJ IDEA executable file> diff <path_1> <path_2>
wherepath_1
andpath_2
are paths to the folders you want to compare.From the context menu, choose Compare Directories, or press Ctrl0D.
Use the following toolbar buttons to filter the list:
: click to display files that are present in the left folder, but are missing from the right one.
: click to display files that are present in the right folder, but are missing from the left one.
: click to display files that are present in both folders, but whose contents, timestamp or size are different.
: click to display files that are present in both folders and that are identical with regard to the option selected in the Compare by dropdown.
Use the text filter in the search field to include or exclude files from the list:
To include files, input a matching pattern. For example,
.txt
validates all paths that end with.txt
.To exclude files, add
!
before your pattern. For example,!build/*
excludes all files that are located within the build directory.Use
&
(AND
) and|
(OR
) to combine several filters. For example,*.txt|.xml&!build/*
validates all paths that end with.txt
or.xml
and are not located within the build directory.
IntelliJ IDEA lets you sync the contents of two folders, or apply changes from one folder to another.
For each file, click the icon in the * column until you've set an action to be taken on that file.
: copy the selected item from the left to the right folder. If such file already exists in the right folder, it will be overwritten.
: copy the selected item from the right to the left folder. If such file already exists in the left folder, it will be overwritten.
: no action will be performed (the two files are identical).
: no action will be performed (the two files are different).
: remove the selected item.
Do one of the following:
To apply the selected action to the current item, click the Synchronize Selected button on the toolbar or press Enter.
To apply the selected actions to all items, click the Synchronize All button on the toolbar.
Sometimes a file may be present in one folder, and another file with a similar name in the other folder (for example, VCS_library_1.4 and VCS_library_1.5). These may be versions of the same file that you want to compare. Also, there may be a situation when you think a file was renamed, but is otherwise identical to a file in another folder. IntelliJ IDEA lets you compare two files, one of which is present in the right folder, and another one in the left even though such files are treated as different entities.
note
This action is only available for files in folders with the same relative path.
Select the files you want to compare in the left and the right pane.
Click the Compare New Files with Each Other icon on the toolbar. The differences between the selected files will be displayed in the bottom pane.
Apart from comparing contents of files or folders, you can open an empty Diff Viewer and paste any text or drag files into the right and left panels to compare. This can be useful, for example, if you want to compare the console output of an application with the output from a slightly modified version of the same application.
Press CtrlShift0A and start typing to locate the Open Blank Diff Window action.
Paste any text you want to compare in the left and right panels.
Right-click either left or right panel and select Switch to Three-Side Viewer to compare any three text sources.
You can set up and launch an external diff tool to compare your files and changes right from IntelliJ IDEA. Make sure to install the necessary diff tool on your machine beforehand.

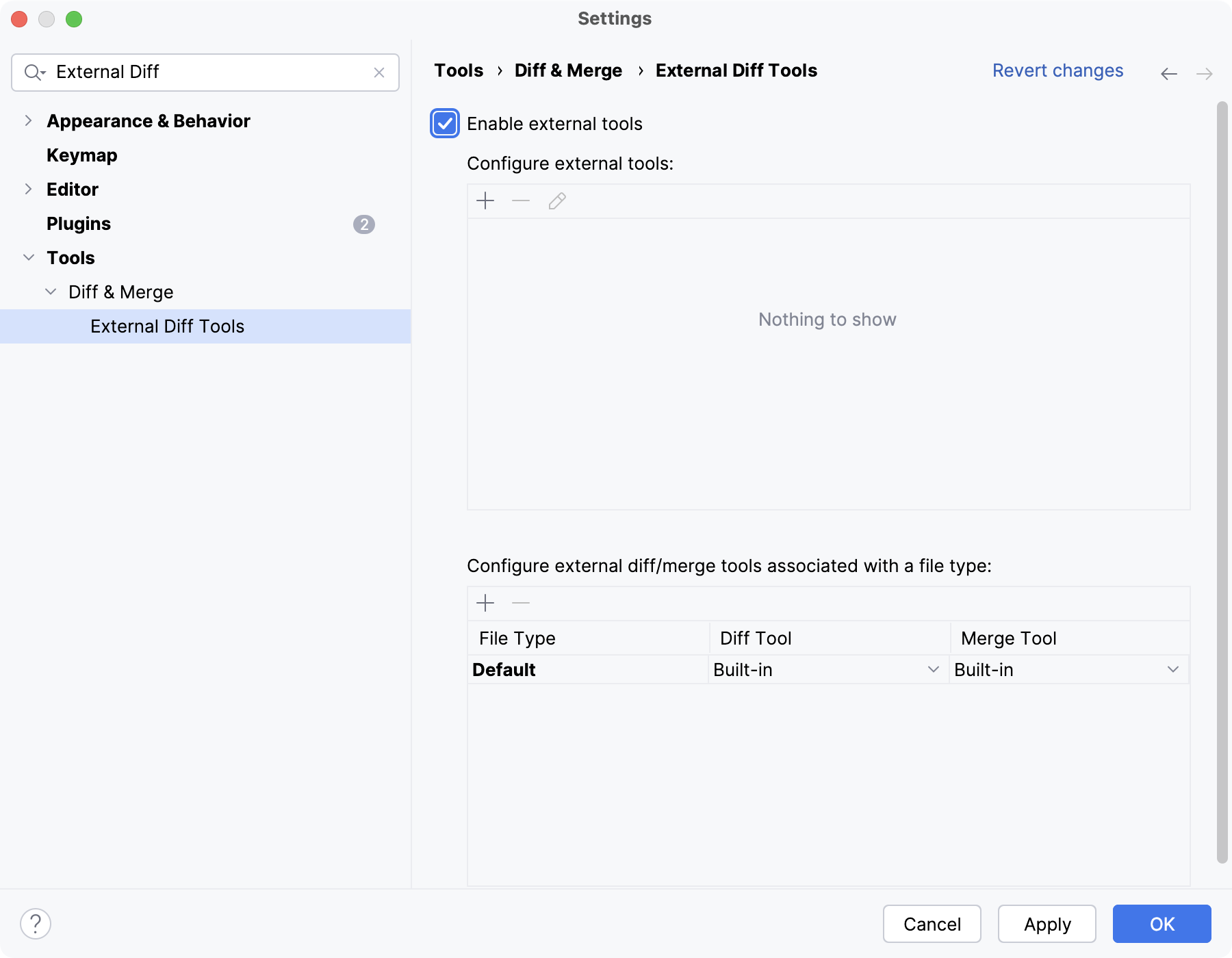

Press CtrlAlt0S to open settings and then select Tools | Diff & Merge | External Diff Tools.
Select the Enable external tools option.
In the Configure external tools section, click .

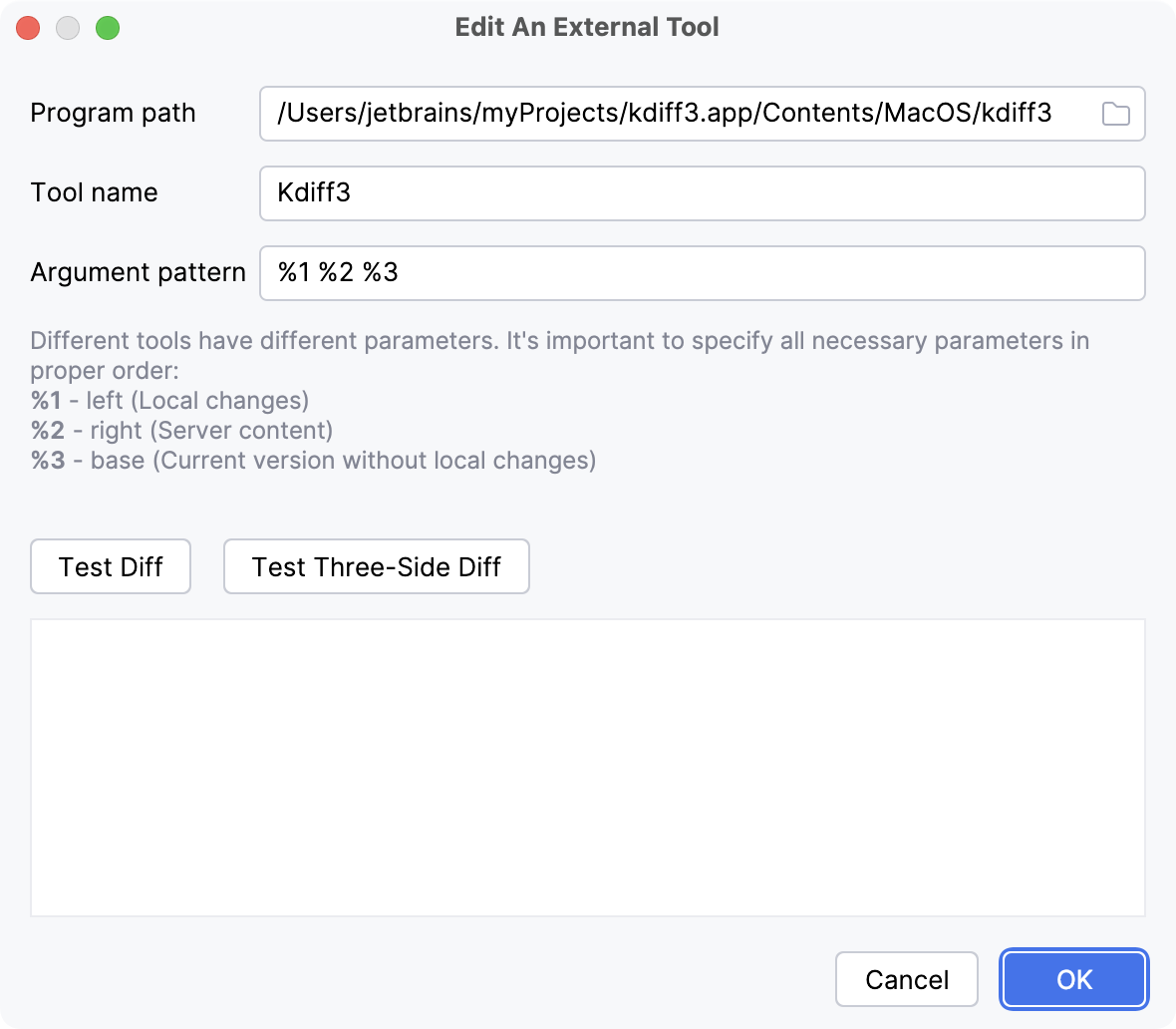

In the Add An External Tool dialog that opens, fill in the following details:
Tool group: select Diff tool from the list.
Program path: specify the path to the diff tool executable in your system.
Argument pattern: if necessary, adjust the pattern for displaying changes, where:
%1 - local changes
%2 - content from the remote server
%3 - the current version without local changes
Click Test Diff or Test Three-Side Diff to check that the external diff tool launches from IntelliJ IDEA successfully.
Click OK to save the changes.

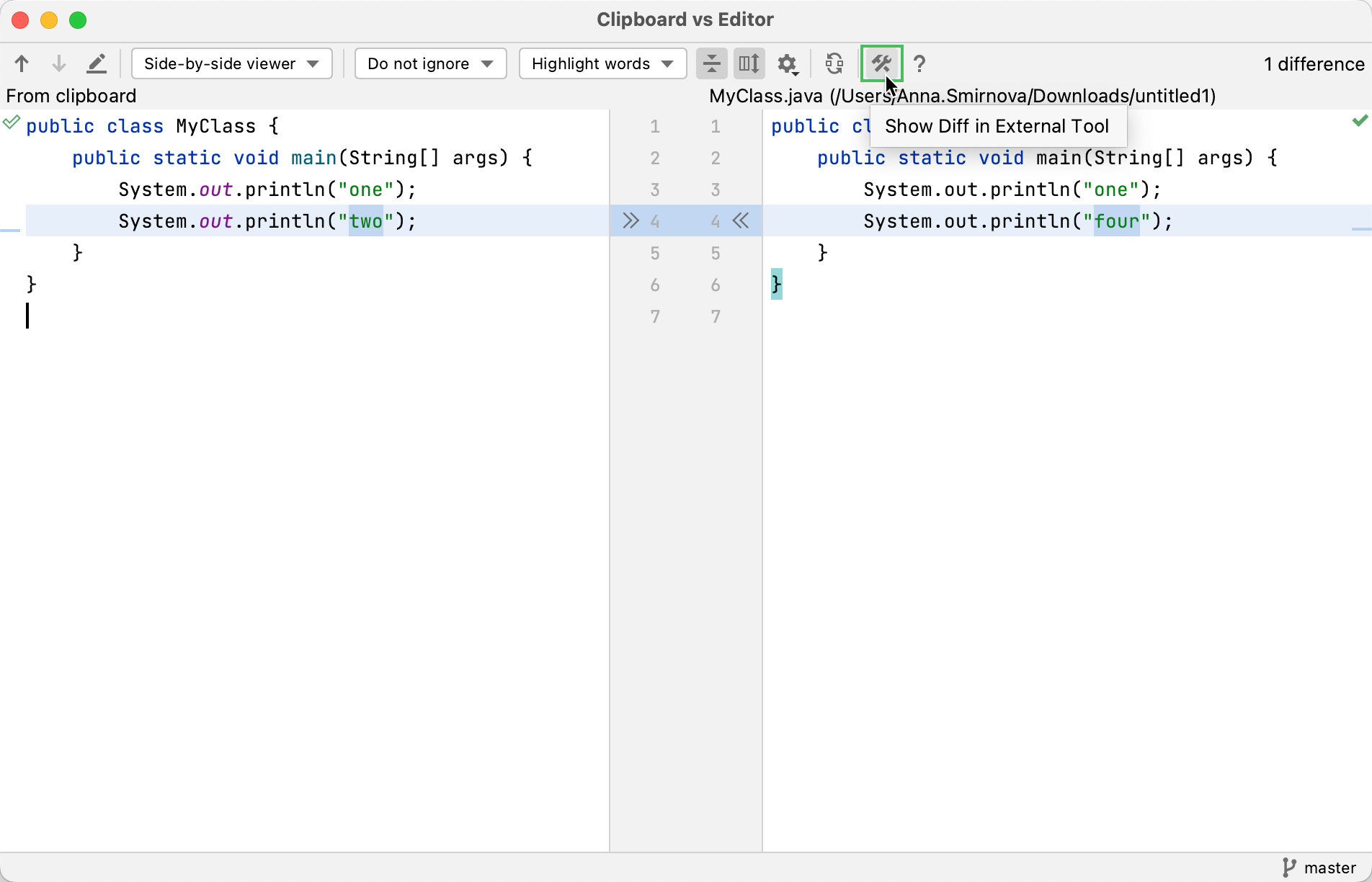

When examining differences in Diff Viewer, click to have IntelliJ IDEA launch the configured external diff tool.
