File structure

IntelliJ IDEA allows you to view and navigate the structure of a file in the Structure tool window and the Structure popup.

You can see the VCS status colors in the Structure tool window and the Structure popup if your project is under version control. It helps you track changes in files. The names of modified objects become blue, and the names of the newly added objects appear highlighted in green.

Hover over icons in Structure to get additional information in tooltips about the items. For example, you can learn whether methods are static.

The popup provides less information than the tool window, but it allows you to navigate the structure faster due to the Narrow down on typing option.

Open a file in the editor and press Ctrl+F12, or go to Navigate | File Structure in the main menu.
In the popup, start typing the name of the element that you want to find. The IDE will narrow down the search results as you type.
You can also use CamelHumps, that is, for example, you can type dsu to match DoSomethingUseful.

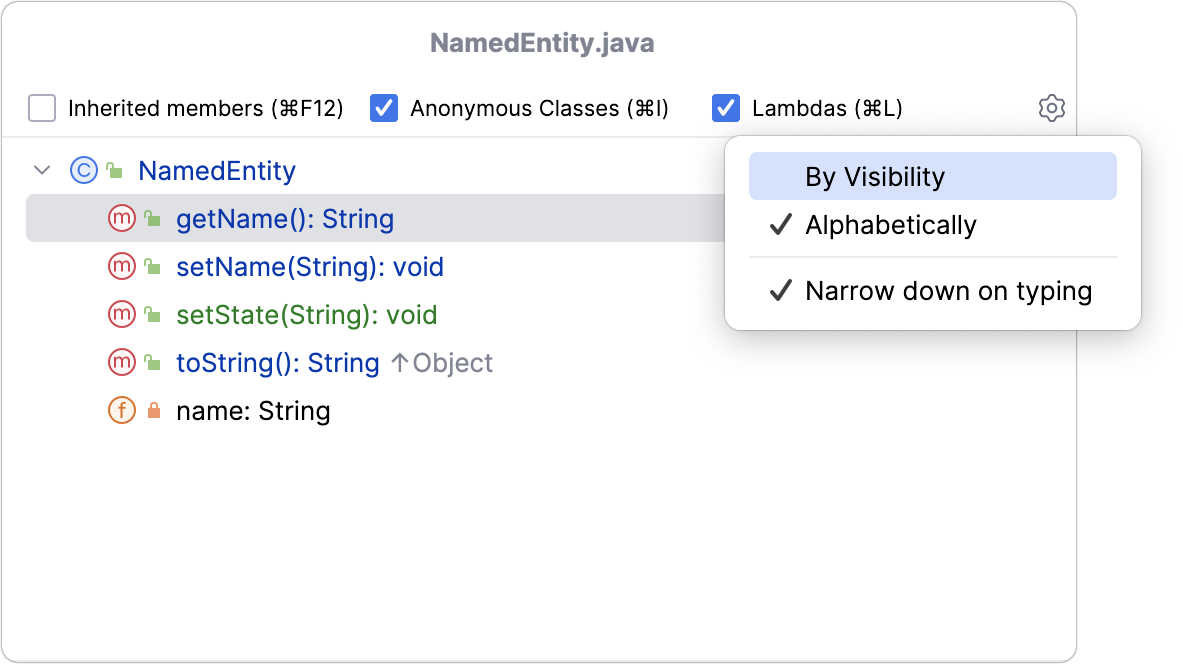

You can additionally narrow down your search results by using the checkboxes in the popup. To change the sorting, click and select the necessary option.
Press Enter or click an item to close the popup and navigate to the selected element in the editor.

Inherited members: Displays all methods and fields inherited by the current class and accessible from it. The inherited members are displayed gray to distinguish them from the members defined in the current class.
Anonymous Classes: Displays inner anonymous classes in the tree view.
Lambdas: Displays all lambdas in the tree.

Alphabetically: Sorts elements within a class alphabetically.
By Visibility: Sorts items by their visibility in the following order: public - protected - package local - private.
Narrow down on typing: Hides irrelevant items as you type. When this option is disabled, the IDE highlights all items that match your search query without hiding irrelevant items.

Structure tool window

Open a file in the editor or select it in the Project tool window.
Press Alt+7 or go to View | Tool Windows | Structure in the main menu.
In the tool window, start typing the name of the element that you want to find. You can also use CamelHumps. The IDE will highlight the search results as you type.

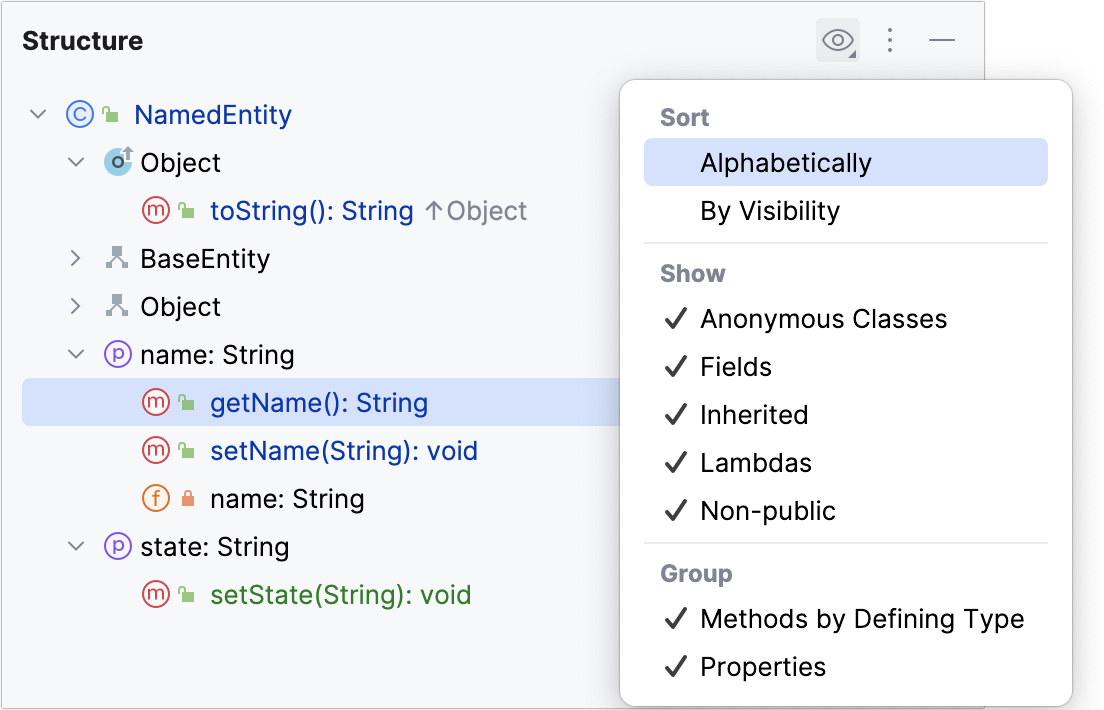

You can additionally narrow down your search results or sort the items in the tool window by using the options located under .

View options

Sort

Alphabetically: Sorts elements within a class alphabetically.
By Visibility: Sorts the items by their visibility in the following order: public - protected - package local - private.

Show

Anonymous Classes

Displays inner anonymous classes in the tree view.

Fields

Displays all fields (properties) in the tree.

Inherited

Displays all methods and fields inherited by the current class and accessible from it. The inherited members are displayed gray to distinguish them from the members defined in the current class.

Lambdas

Displays all lambdas in the tree.

Non-public

Displays all non-public class members.

Turn the option off to hide all non-public members.

HTML Outline

(Only for HTML files) Displays HTML 5 outline of an HTML file

DDL statements

(Only for SQL files) Displays only DDL statements (for example, CREATE, ALTER, DROP, and other statements).

DML statements

(Only for SQL files) Displays only DML statements (for example, SELECT, INSERT, UPDATE, DELETE, and other statements).

Select statements

(Only for SQL files) Displays only SELECT statements.

Other

(Only for SQL files) Displays only statements that do not fall under the previous categories.

Group

Methods by Defining Type: Groups all methods that override or implement the methods of a particular class or interface under the node that corresponds to this class or interface.
Properties: Displays getters, setters, and fields in the tree.
Group by type: (Only for SQL files) Group statements by their type (for example, DDL statements, DML statements, SELECT statements, and Other).

Run code from the Structure tool window

The Structure tool window allows you to run and debug your code.

Right-click a runnable method in the Structure tool window and select Run 'method name' (Ctrl+Shift+F10) or Debug 'method name' (⌃ ⇧ D).

Run tests from Structure

In the Structure tool window, you can select one or several test methods in a class to run. In this case, the IDE also creates a temporary run configuration with these methods that you can save and edit.

In the Structure tool window, right-click one or several test methods and select Run 'method name' (Ctrl+Shift+F10).
The tool window allows you to add test methods to an existing run configuration (for JUnit and TestNG tests) in which the test scope is specified by means of a pattern. You can add methods from several different classes creating a test suite.
Right-click a method in the Structure tool window and select:
- Add to temp suite: <Configuration_name> if there is only one configuration with the Pattern test scope.
- Add to JUnit Pattern Suite (JUnit) / Add to Temp Suite (TestNG) if there are several configurations with the Pattern test scope. In this case, a popup appears in which you can select the target configuration.

Group members

In Java, you can group class members in Structure by annotating them in your source code.

In the editor, select a code fragment and press Ctrl+Alt+T or go to Code | Surround With in the main menu. Select the necessary folding region comment, region or editor-fold.
IntelliJ IDEA inserts the comments around the selected code. Learn more from Surround code fragments.
The Structure tool window and Structure popup mark these regions with .

Show members in the Project tool window

In the Project tool window Alt+1, click in the header and select Appearance | Members.

Logical structure

For Spring and Jakarta EE classes and JPA entities, IntelliJ IDEA provides advanced insights into the file structure, displayed in two tabs:

The Physical tab represents class methods and fields, similarly to regular Java classes, and allows you to sort, group, and quickly search them.
The Logical tab illustrates the file structure from the framework point of view. It helps you understand the purpose of your file and its components in your project and shows meaningful connections with other pieces of the application. The tab displays the following:
- For Spring classes:
  - Autowire relationships
  - Auto-configuration classes for the main Spring application class
  - Endpoints with HTTP methods and URL mappings for Spring controllers
  - Entities for Spring repositories. The repository methods are grouped by find, count, modify, and delete operations.
  - Scopes for Spring beans and services
  - Beans and imports for Spring configuration classes
- Database column mappings for JPA, Spring Data JDBC, Spring Data MongoDB documents, and Exposed entities (also supported in Persistence tool window).
- Jakarta Beans: injections, producer methods and fields, JAX-RS endpoint mappings
- Jakarta Data Repositories: entities, injects, and methods
