Unit testing in AppCode
Last modified: 02 March 2023Initial project: iOSConferences
Final project: iOSConferences
In this tutorial, we will write simple unit tests in AppCode using different testing frameworks — XCTest and Quick/Nimble. You will learn how to create test classes and targets, run and debug tests, view the test coverage information, and more.
Before you start
For this tutorial, we will use the iOSConferences application that we developed in the Use CocoaPods in your project tutorial. This application displays the up-to-date list of the upcoming conferences from the cocoaconferences.com website.
Download the iOSConferences project.
Open the application in AppCode using the iOSConferences.xcworkspace file so that the pods already added to the project can be recognized by the IDE.
If CocoaPods gem is not installed yet, install it:
Click Tools | CocoaPods | Select Ruby SDK from the main menu.
In the Preferences dialog that opens, click Add Ruby SDK and specify the path to the SDK (by default,
/usr )./bin /ruby Click Install CocoaPods.
In the run/debug configuration selector, select a device or simulator to run the application on and press Shift+F10 or click
:
The launched application should display the list of conferences:
tip
If you encounter problems with running the application, make sure that you are using AppCode 2019.3 or later (with SwiftUI supported) and CocoaPods is successfully installed on your side.
Step 1. Add a test target
When creating a new project, you can select the Include Unit Tests checkbox to have a test target and an XCTest class added. However, you can add it anytime while working with an existing project.
Press Ctrl+Alt+Shift+S to open the project settings.
Click
, select iOS | Test | Unit Testing Bundle from the dialog that opens, and click Next:
On the next page, leave the default values in all the fields including the automatically generated target name iOSConferencesTests in the Product Name field and click Finish:
A new test target will be added to the project.

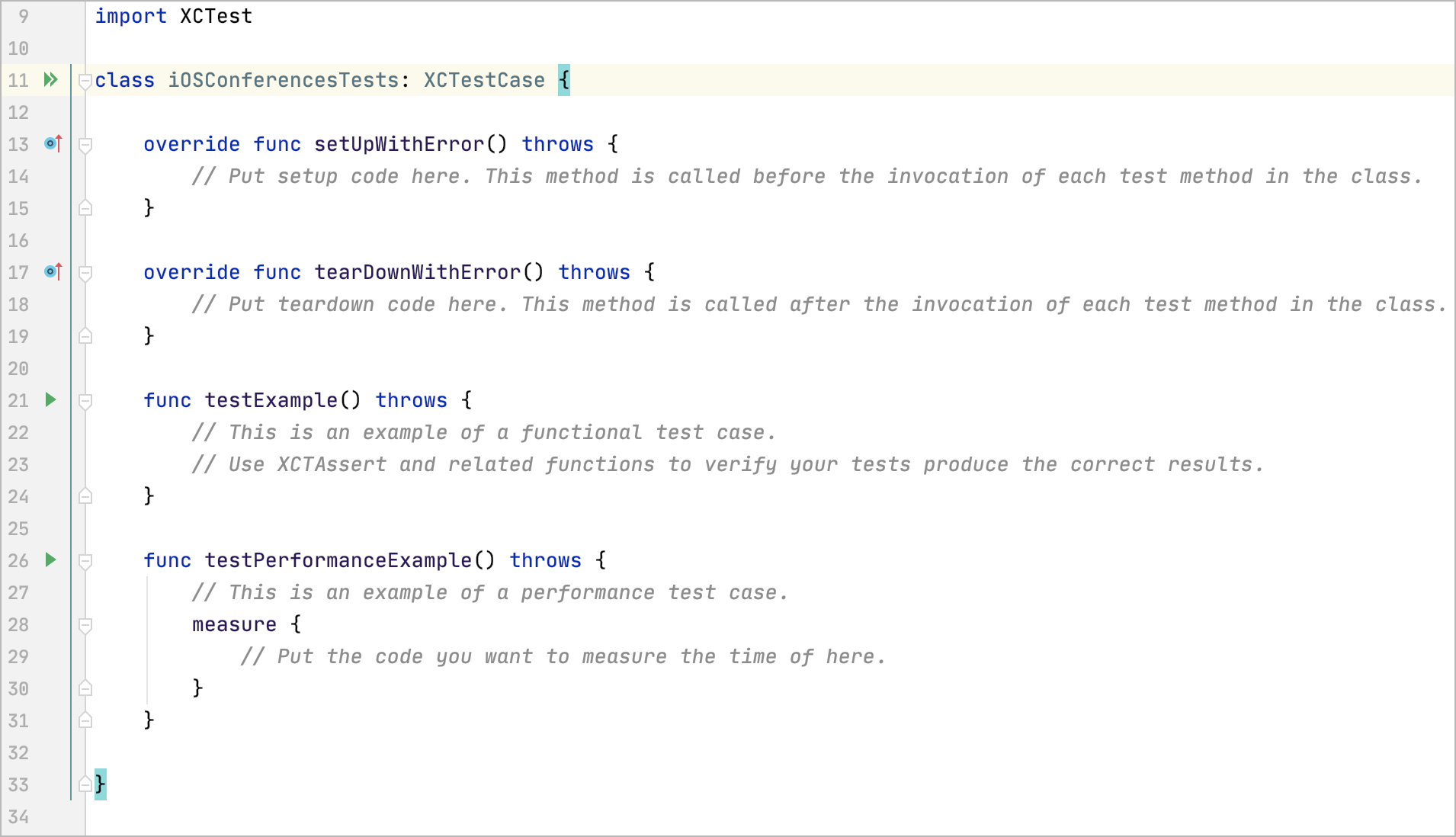

This target contains a default XCTest class with stub code for several test methods:

Step 2. Create XCTest tests
Let's create some tests to check if the conference date is displayed correctly on the details screen.
Rename the
iOSConferencesTests
class toDateTests
using the Rename refactoring Shift+F6:GifImport the Yams library that is used for decoding the YAML file:
import Yams
Make the application code available for tests by adding the following line right after the import statements:
@testable import iOSConferences
Delete all existing stub code inside the
DateTests
class.In the
DateTests
class, add thedecoder
instance variable:let decoder = YAMLDecoder()
Add the following test methods:
func testSameStartEndDatesShownCorrectly() { let yaml = try! decoder.decode([Conference].self, from: """ - name: mDevCamp link: https://mdevcamp.eu/ start: 2019-05-30 end: 2019-05-30 location: 🇨🇿 Prague, Czech Republic """ ) let conference: Conference = yaml[0] let textDate = conference.textDates() XCTAssertEqual(textDate, "May 30, 2019") } func testDateWithoutEndShownCorrectly() { let yaml = try! decoder.decode([Conference].self, from: """ - name: mDevCamp link: https://mdevcamp.eu/ start: 2019-05-30 location: 🇨🇿 Prague, Czech Republic """ ) let conference: Conference = yaml[0] let textDate = conference.textDates() XCTAssertEqual(textDate, "May 30, 2019") } func testEndEarlierThanStartReplaced() { let yaml = try! decoder.decode([Conference].self, from: """ - name: mDevCamp link: https://mdevcamp.eu/ start: 2019-05-30 end: 2019-05-29 location: 🇨🇿 Prague, Czech Republic """ ) let conference: Conference = yaml[0] let textDate = conference.textDates() XCTAssertEqual(textDate, "May 29, 2019 - May 30, 2019") }
These methods test if the application shows the conference dates correctly in some specific cases:
testSameStartEndDatesShownCorrectly()
: if the values in thestart
andend
fields are the same, the application should display just one date instead of an interval (May 30, 2019
instead ofMay 30, 2019 - May 30, 2019
).testDateWithoutEndShownCorrectly()
: if there is noend
value specified for the conference, the application should display just the start date (May 30, 2019
).testEndEarlierThanStartReplaced()
: if the start date is later than the end one, they should be replaced (May 30, 2019 - May 31, 2019
instead ofMay 31, 2019 - May 30, 2019
).
We will run and debug the created tests later. Now, let's see how to create tests with the Quick and Nimble frameworks.
Step 3. Create Quick/Nimble tests
Let's create some tests that will check if the application loads and parses the conferences data properly.
Open the existing Podfile by clicking Tools | CocoaPods | Edit Podfile in the main menu.
Add the Quick and Nimble pods under the iOSConferencesTests target:
target 'iOSConferences' do use_frameworks! pod 'Yams' target 'iOSConferencesTests' do inherit! :search_paths pod 'Quick' pod 'Nimble' end end
Click the Install pods link that appears in the top-right corner of the editor and wait until the two new pods are installed.
In the Project tool window Alt+1, right-click the iOSConferencesTests folder and select New | File from Xcode Template.
In the dialog that opens, select iOS | Source | Unit Test Case Class and click Next.
On the next page, specify the following:
File name:
ApiTests
Language: Swift
Subclass of:
QuickSpec
Targets: iOSConferencesTests
In the newly created Swift file, add the Yams, Quick, and Nimble import statements and delete all the default methods in the
ApiTests
class:import XCTest import Yams import Quick import Nimble class ApiTests: QuickSpec { }
Make the application code available for the tests by adding the following line right after the import statements:
@testable import iOSConferences
Override the
spec()
method of theQuickSpec
class: with the caret placed inside theApiTests
class, press Ctrl+O and selectspec()
in the dialog that opens:Inside the
spec()
method, add thedescribe
block and create thedecoder
andloader
variables there:override func spec() { describe("Application") { let decoder = YAMLDecoder() let loader = ConferencesLoader() } }
Inside the
describe
block, add the following test methods in theit
blocks:it("should load conferences") { waitUntil(timeout: 5) { done in loader.loadConferences { conferences in done() } } } it("should parse conference") { let yaml = try! decoder.decode([Conference].self, from: """ - name: mDevCamp link: https://mdevcamp.eu/ start: 2019-05-30 end: 2019-05-30 location: 🇨🇿 Prague, Czech Republic """ ) let conference: Conference = yaml[0] expect(conference.end).toNot(beNil()) expect(conference.name).to(equal("mDevCamp")) expect(conference.start).toNot(beNil()) expect(conference.location).to(equal("🇨🇿 Prague, Czech Republic")) expect(conference.link).to(equal("https://mdevcamp.eu/")) } it("should ignore unused fields") { let yaml = try! decoder.decode([Conference].self, from: """ - name: mDevCamp link: https://mdevcamp.eu/ start: 2019-05-30 end: 2019-05-30 location: 🇨🇿 Prague, Czech Republic cocoa-only: true cfp: link: https://www.papercall.io/swift-to-2020 deadline: 2020-06-16 """ ) let conference: Conference = yaml[0] expect(conference.end).toNot(beNil()) expect(conference.name).to(equal("mDevCamp")) expect(conference.start).toNot(beNil()) expect(conference.location).to(equal("🇨🇿 Prague, Czech Republic")) expect(conference.link).to(equal("https://mdevcamp.eu/")) }
These methods test the following:
it("should load conferences")
: the network request performed in theloadConferences()
method doesn't return an empty response.it("should parse conference")
: the conference data is parsed correctly.it("should ignore unused fields")
: the conferences with fields not handled by the application (such ascocoa-only
orcfp
) are parsed correctly.
Step 4. Run and debug tests
In AppCode, you can quickly run and debug all methods in a test class as well as single methods (for XCTest) using the gutter icons in the editor /
or the Ctrl+Shift+F10/N/A shortcuts. In this case, a temporary run/debug configuration is created which you can save and edit when needed.
For the XCTest framework, you can also run an arbitrary set of methods of one class by selecting and running Alt+Shift+R them from the Run tool window or by creating a separate run/debug configuration where these methods are listed. See more in Create run/debug configurations for tests.
In this tutorial, we will create a run/debug configuration for running all the test classes available in the project, debug and fix failed tests, and check how much of the application code our tests cover.
To run all test classes in the test target, you need to create a special run/debug configuration.
In the run/debug configuration selector, click Edit Configurations:
In the dialog that opens, click
and select XCTest:
tip
The XCTest run/debug configuration template is used for all XCTest-based frameworks, including Quick and Kiwi.
By default, AppCode creates a run/debug configuration for all classes in the test target:
Save this configuration by clicking OK. Now it is pre-selected in the run/debug configuration selector:
Press Shift+F10 to run all test classes. The Run tool window displays the results for all test classes available in the project, and you can see that there are two tests failed:
tip
To show/hide passed tests in the tree, click
on the toolbar.
Click the DateTests node in the tree. In the right-hand pane, you can see the stack trace with error messages helping you understand why the tests have failed. In our case, the expected values don't match the actual ones returned by the
textDate()
method:Click the testEndEarlierThanStartReplaced test in the tree to navigate to its code in the editor.
tip
If the navigation with a single click doesn't work, double-click the test node or click
and select Navigate with Single Click.
You can also navigate to the methods' code by clicking the links in the stack trace.
Set a breakpoint Ctrl+F8 at the following line:
With the caret placed inside the
testEndEarlierThanStartReplaced()
method, press N/A to run the test in debug mode. The program execution stops at the breakpoint and the Debug tool window opens.tip
For more information on how to examine a suspended program in debug mode, refer to Examine suspended program.
Press F7 or click
to go to the
textDate()
method implementation and step over its code lines pressing F8 or clicking. On the Variables tab of the Debug tool window as well as in the editor, you will see the value this method returns:
As far as you can see, there's no code for swapping the end and start dates in case they are mixed up in the source file. Replace the
textDates()
method's code with the following:func textDates() -> String { var result = start.dateToString() if let end = self.end { if start < end { result = "\(result) - \(end.dateToString())" } else if start > end { result = "\(end.dateToString()) - \(result)" } } return result }
In the Debug tool window, press
to rerun the failed tests and go to the Console tab:
The execution is paused at the breakpoint at the moment. Press F9 or click
to resume the program. All the tests are successfully passed now:
Finally, let's check how much of the application code is covered by the unit tests:
Make sure the All Tests run/debug configuration is selected.
Click
on the toolbar.
The Coverage tool window opens:

Double-click a folder to go to its contents or click the button to navigate to the upper level.
Moreover, you can see the percentage of files and lines covered by the tests in the Project tool window:

In the editor, the colored stripes appear in the gutter. Green means the line is fully covered by the tests, yellow — partially covered, red — uncovered:

tip
You can set up other colors for coverage indication: in the Preferences Ctrl+Alt+S dialog, go to Preferences | Editor | Color Scheme | General and select Line Coverage from the list.
If you click the coverage indicator, the popup appears:

Here you can see how many times the line was executed during testing and hide the coverage data by clicking Hide coverage. To show it again, press Ctrl+Alt+F6 and select the necessary coverage suite from the dialog that opens.
For more information on test coverage in AppCode, refer to Running with coverage.
