Add Annotations

During performance analysis, you may want to leave a comment about a specific function or its behavior. dotTrace lets you add annotations to functions using the Properties dialog.

To add an annotation for a function

  1. Select a function in a view.

  2. Do one of the following:

    • From the menu bar, choose View | Properties.

    • Right-click the function, then click Properties in the context menu.

    • Press Ctrl+Q.

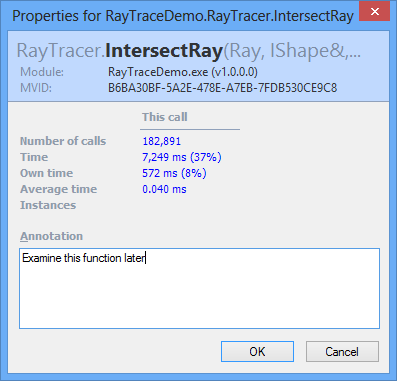

  3. The Properties dialog opens:

  4. Enter your comment in the Annotation field.

As soon as you click OK, your annotation is saved and the function is marked with the Studying_Profiling_Results__Adding_Annotations__Annotation.png icon in all views, except Overview.


In the Overview view, you can look through the list of all annotated functions.
