Kotlin DSL

Create New Project

To add the .teamcity settings directory as a new module to an existing project in IntelliJ IDEA, follow the step below:

1. Go to File | Project Structure, or press Ctrl+Shift+Alt+S.

2. Select Modules under the Project Settings section.

3. Click the plus sign, select Import module and choose the directory containing your project settings. Click OK and follow the wizard.

4. Click Apply. The new module is added to your project structure.

Open Existing Project

To open the Kotlin DSL project in IntelliJ IDEA, open the .teamcity/pom.xml file as a project. All necessary dependencies will be resolved automatically right away.

If all dependencies have been resolved, no errors in red will be visible in settings.kts. If you already have an IntelliJ IDEA project and want to add a Kotlin DSL module to it, follow instructions in the Create New Project section.

Download DSL Documentation

DSL documentation for your local TeamCity server is always available at <TeamCity_server_URL/app/dsl-documentation/index.html. You can also import this documentation to IDE. This way you will be able to view object descriptions and examples as you edit your .kts files.

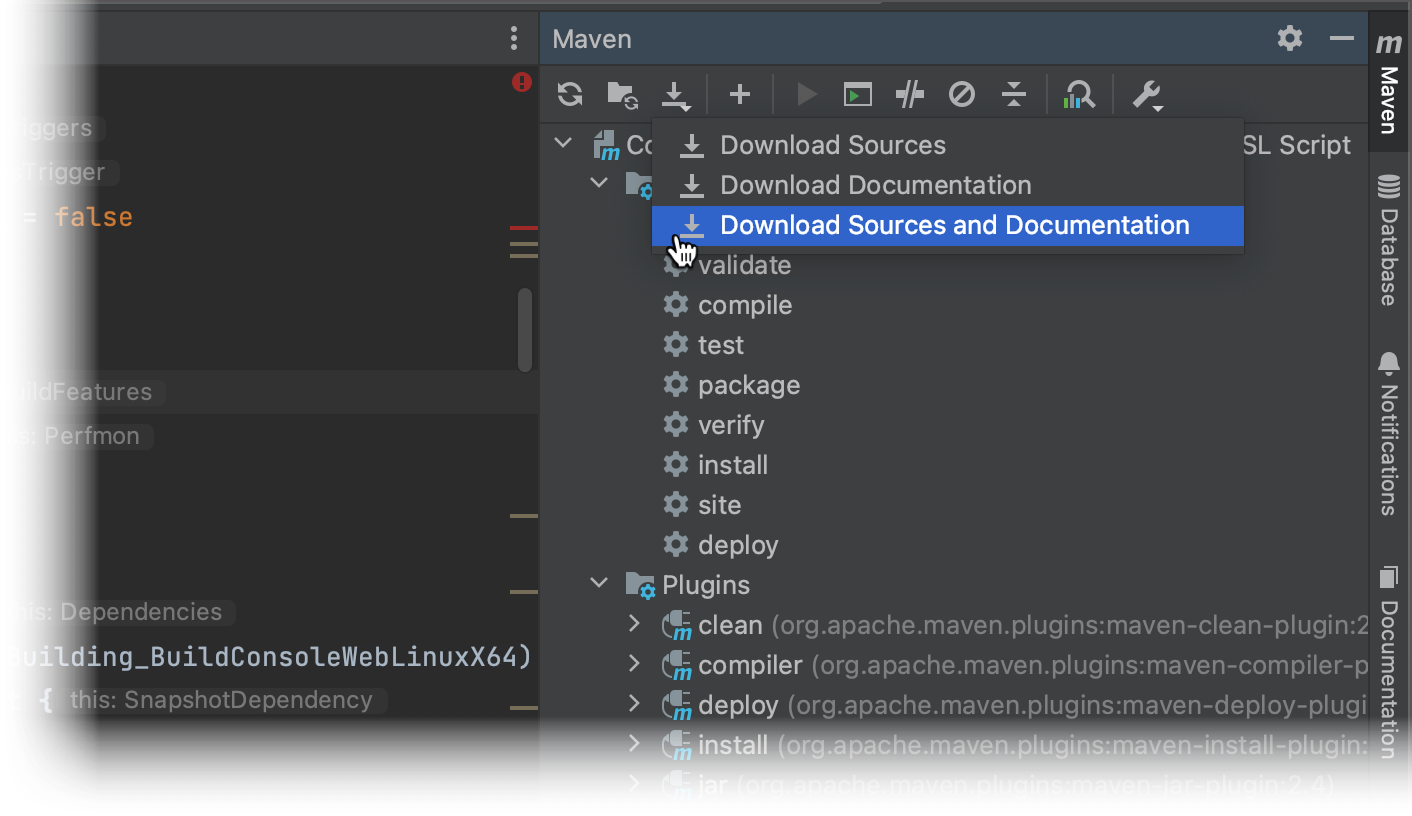

To download these sources, click a corresponding option in the Maven panel...

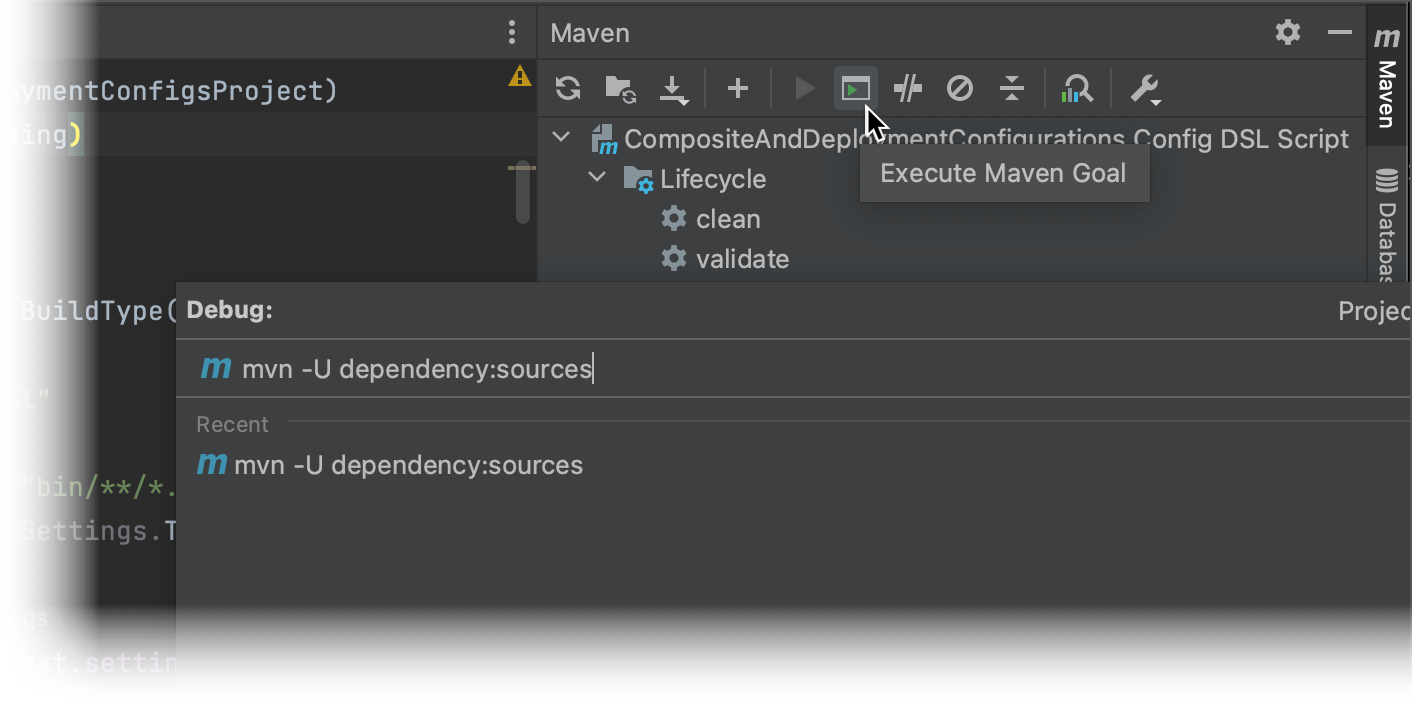

...or run the mvn -U dependency:sources command.

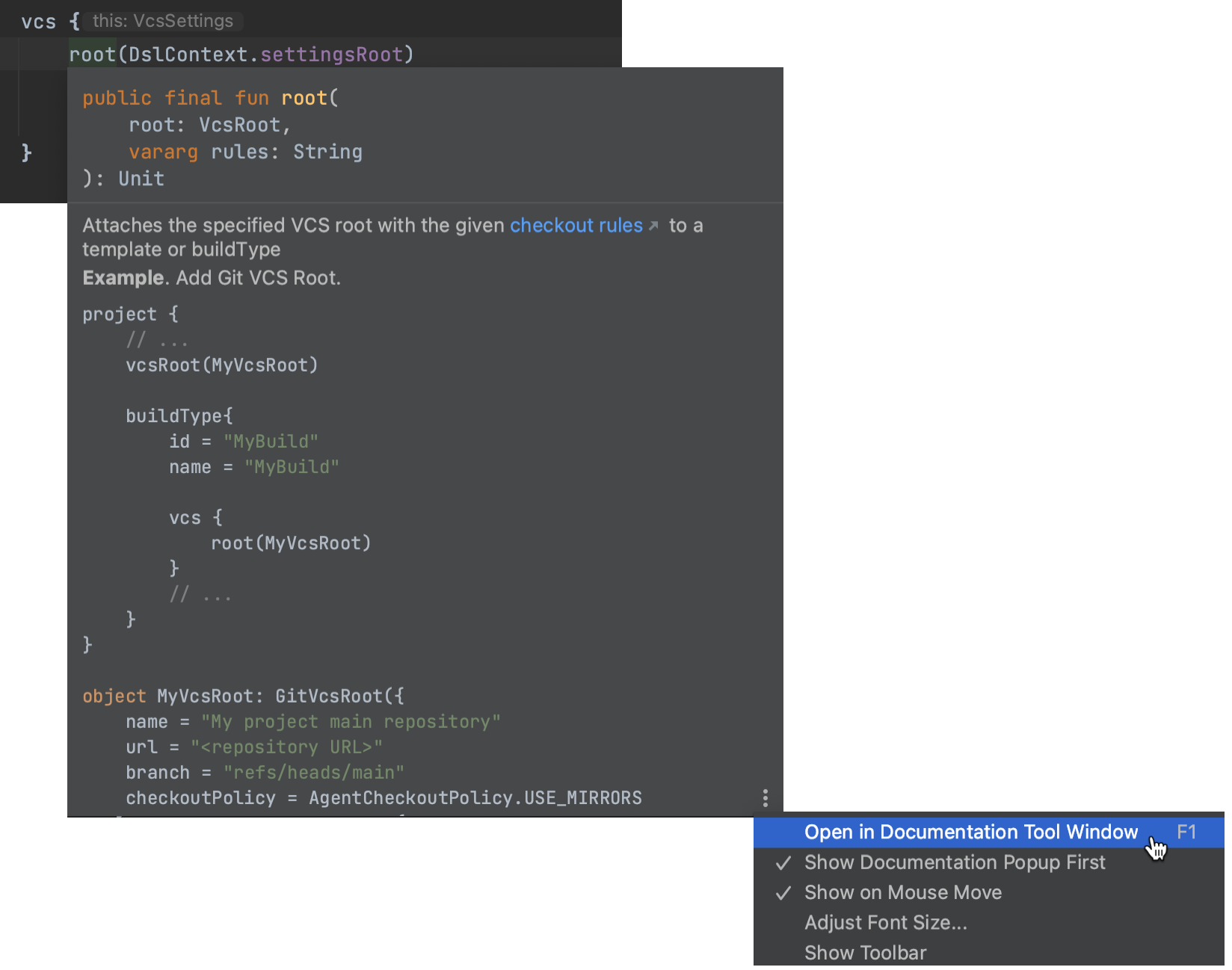

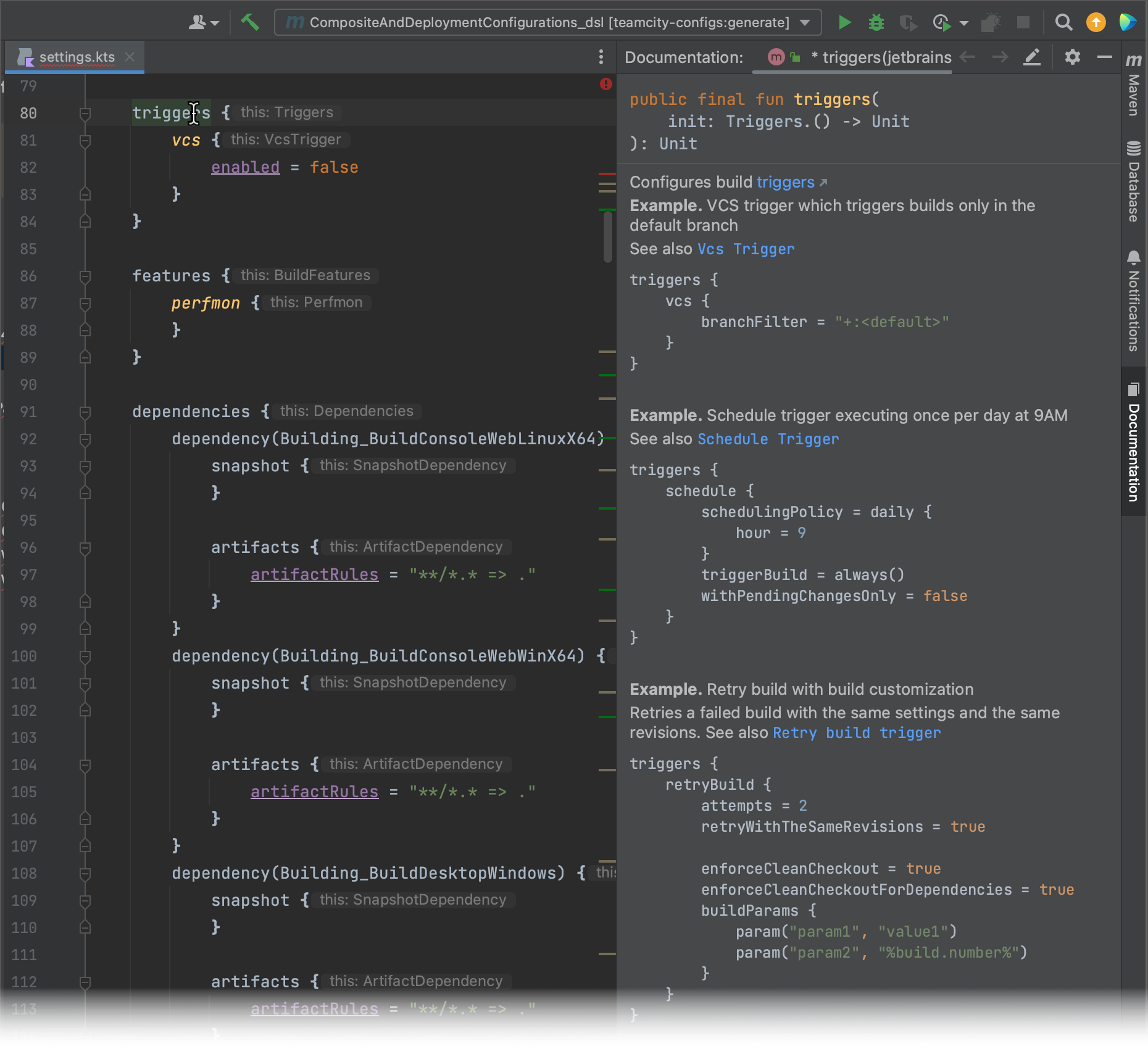

Imported documentation is shown as hints that appear when a pointer hovers over a keyword. To open it in a standalone window, press the documentation hotkey (F1 by default), click View | Tool Windows | Documentation, or use the ellipsis button in a hint panel.

Edit Kotlin DSL

When creating an empty project, that's what you see in settings.kts in your IDE:

Here, project {} represents the current project whose settings you'll define in the DSL (in DSL code it is sometimes referenced as _Self). This is the same project where you enabled versioned settings on the previous step. This project ID and name can be accessed via a special DslContext object but cannot be changed via the DSL code.

The following example shows how to add a build configuration with a command line script:

Here, id will be used as the value of the Build configuration ID field in TeamCity. In the example above the id must be specified. If you omit it, there will be a validation error on an attempt to generate settings from this script.

There is also another way to define the same build configuration:

In this case the usage of the id() function call is optional because TeamCity will generate the id based on the class name (HelloWorld in our case).

After making the necessary changes in settings.kts file, you can submit them to the repository — TeamCity will detect and apply them. If there are no errors during the script execution, you should see a build configuration named "Hello world" in your project.

Generate XML Configuration Files Locally

The pom.xml file provided for a Kotlin project has the generate task which can be used to generate TeamCity XML configuration files locally from the DSL scripts. This task can be started from IDE (see Plugins | teamcity-configs | teamcity-configs:generate node in the Maven tool window), or from the command line:

The result of the task execution will be placed under the .teamcity/target/generated-configs directory.

Debug Kotlin DSL Scripts

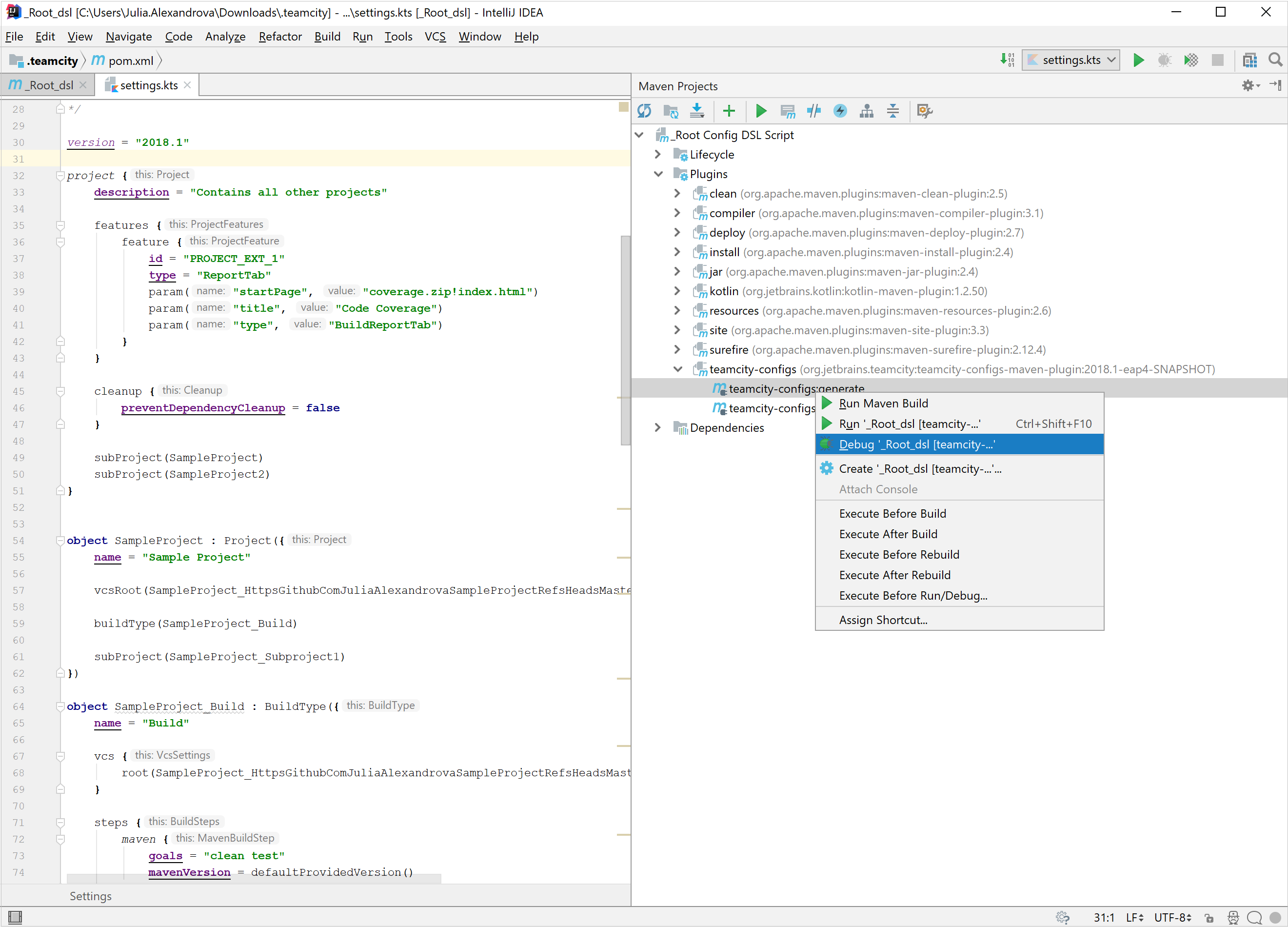

If you are using IntelliJ IDEA, you can easily start debugging of any Maven task:

1. Navigate to View | Tool Windows | Maven Projects. The Maven Projects tool window is displayed.

2. Locate the task node: Plugins | teamcity-configs | teamcity-configs:generate, the Debug option is available in the context menu for the task:

Patch Example

The following patch adds the Build files cleaner (Swabra) build feature to the build configuration with the ID SampleProject_Build:

It is implied that you move the changes from the patch file to the corresponding .kt or .kts file and delete the patch file. Patches generation allows you to continue using the user interface for editing of the project settings and at the same time use the benefits of Kotlin DSL scripts.

Restore Build History After ID Change

To identify a build configuration in a project based on the portable DSL, TeamCity uses the ID assigned to this build configuration in the DSL. We recommend keeping this ID constant, so the changes made in the DSL code are consistently applied to the respective build configuration in TeamCity.

However, if you modify the build configuration ID in the DSL, note that for TeamCity this modification will look as if the configuration with the previous ID was deleted and a new configuration with the new ID was created with a single commit. In this case, TeamCity will automatically attach the builds' history to the build configuration with the new ID. This also applies to the case when IDs of several build configurations are changed within one commit: TeamCity uses the logic that assigns build histories to the configurations most similar to the deleted ones.

If you use two commits to modify the build configuration ID — one to delete the configuration with the previous ID and another to add the build configuration with the new ID — the new build configuration will not contain the builds' history anymore. TeamCity will keep the history of builds for 5 days until cleaning it up, and the history can still be restored manually during this period.

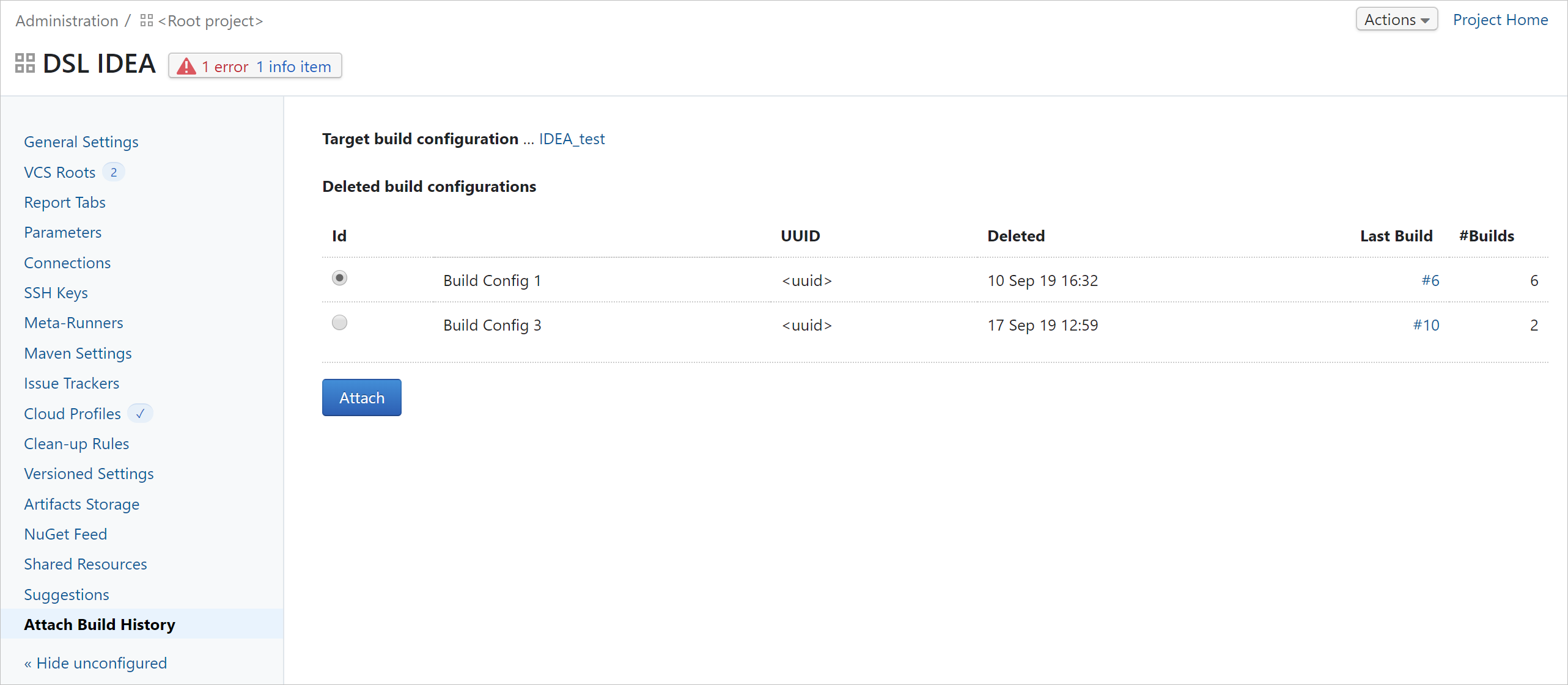

To manually restore the builds' history after changing the build configuration ID, go to the Build Configuration Settings of the build configuration whose ID was changed, open the Actions menu, and click Attach build history. You will be redirected to the Attach Build History tab. Select the detached build history and click Attach.

Define DSL Context Parameters in Maven

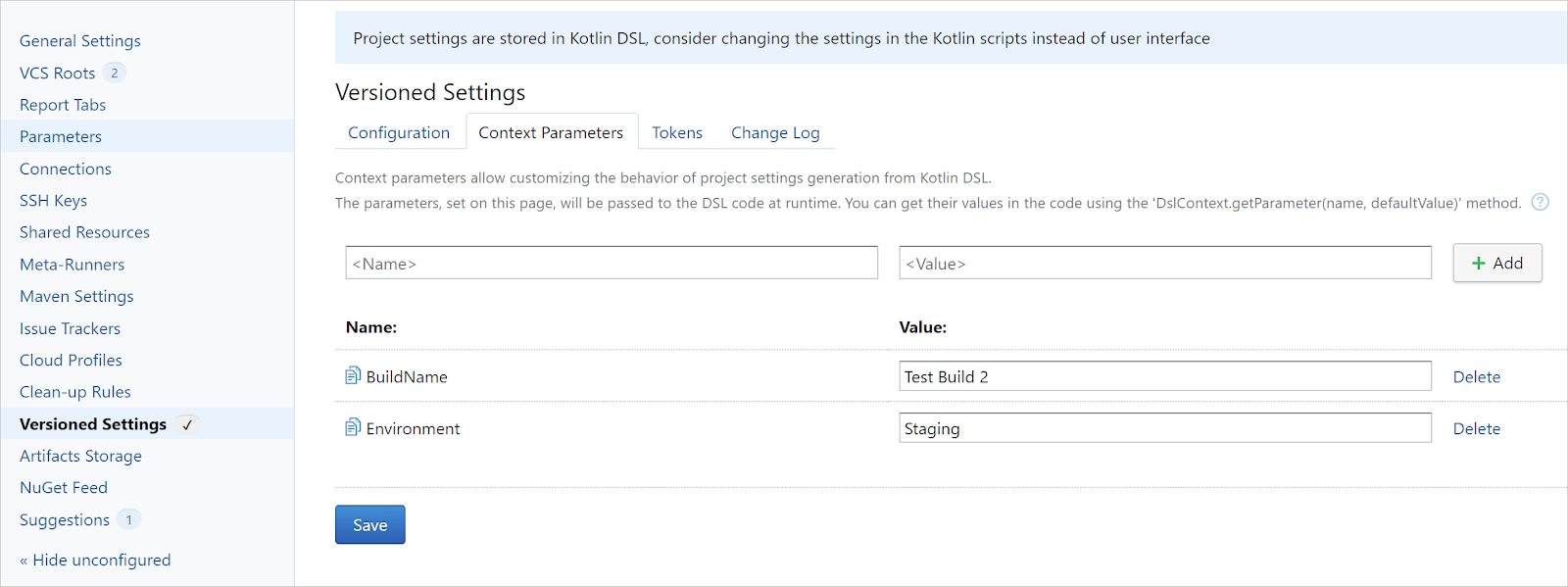

To define specific values for context parameters, add the <contextParameters> block to your pom.xml file.

Example of a Maven plugin with context parameters:

This is useful if you want to verify locally that your DSL scripts produce settings correctly for different values of DSL context parameters.

Build Chain DSL Extension

TeamCity Kotlin DSL provides an alternative way to configure a build chain in a pipeline style.

In the DSL code, a build chain is declared inside a project by the sequential method that lists chained builds one by one. To group builds that will run in parallel to each other inside a chain, use the parallel method: the first subsequent build after the parallel block will depend on all the preceding parallel builds.

The following example illustrates a typical pipeline for compiling and deploying an application:

If you define a build chain in a pipeline style, ensure there are no explicit snapshot dependencies defined within the referenced build configurations themselves.

In the example above, a build chain references already declared builds. Alternatively, you can register all listed builds after the chain declaration with a simplified syntax:

Explicit snapshot dependencies can be defined via a dependsOn() statement within both parallel and sequential blocks, with an optional lambda argument that allows setting dependency options. Non-default values of options for implicit snapshot dependencies can be set via the options lambda argument of any block.

Settings Validation

The settings using the DSL API version v2017_2+ are validated during DSL execution on the TeamCity server. You can also perform validation locally by generating XML configuration files with help of generate task.

Validation checks that the mandatory properties are specified, for example a build step like this:

will produce a validation error saying that the mandatory path property is not specified. This is similar to the checks performed by TeamCity when you create a new build step in the UI.

You can also extend the validation in a way relevant for your setup. To do that, you need to override the validate() method. For example, the following class adds a custom validation to Git VCS roots:

Ability to Use External Libraries

You can use external libraries in your Kotlin DSL code, which allows sharing code between different Kotlin DSL-based projects.

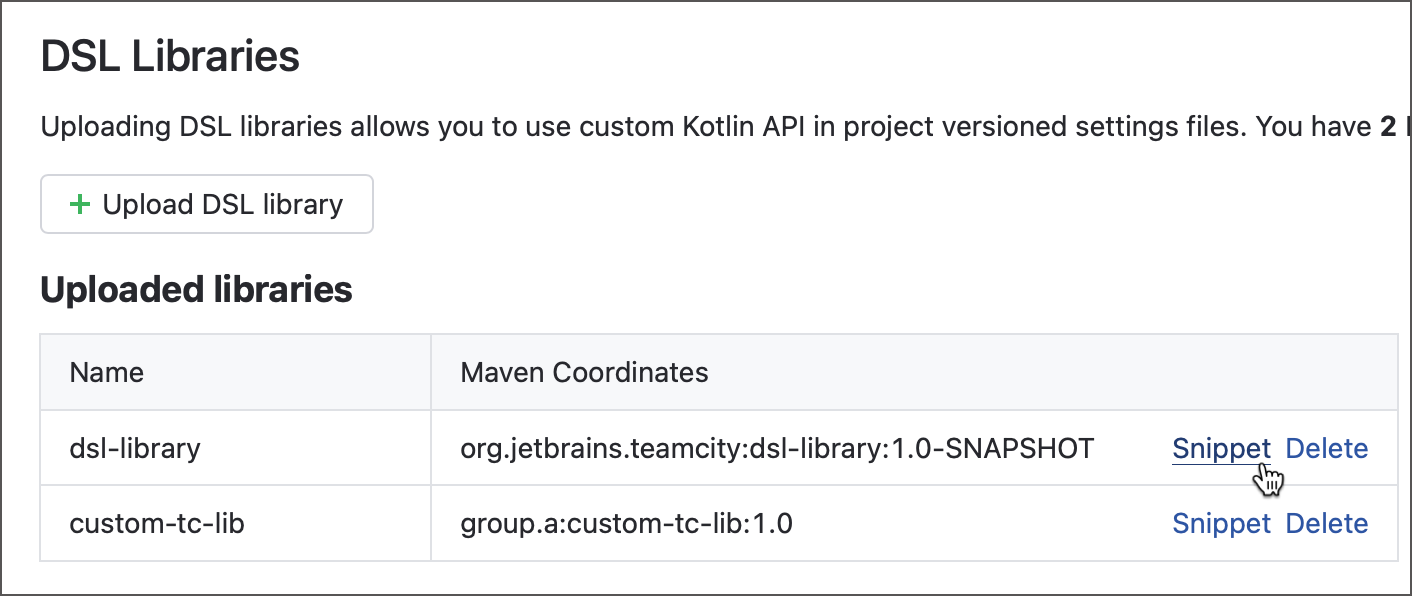

To use an external library in your Kotlin DSL code, add a dependency on this library to the .teamcity/pom.xml file in the settings repository and commit this change so that TeamCity detects it. Then, before starting the generation process, the TeamCity server will fetch the necessary dependencies from the Maven repository, compile code with them, and then start the settings' generator.

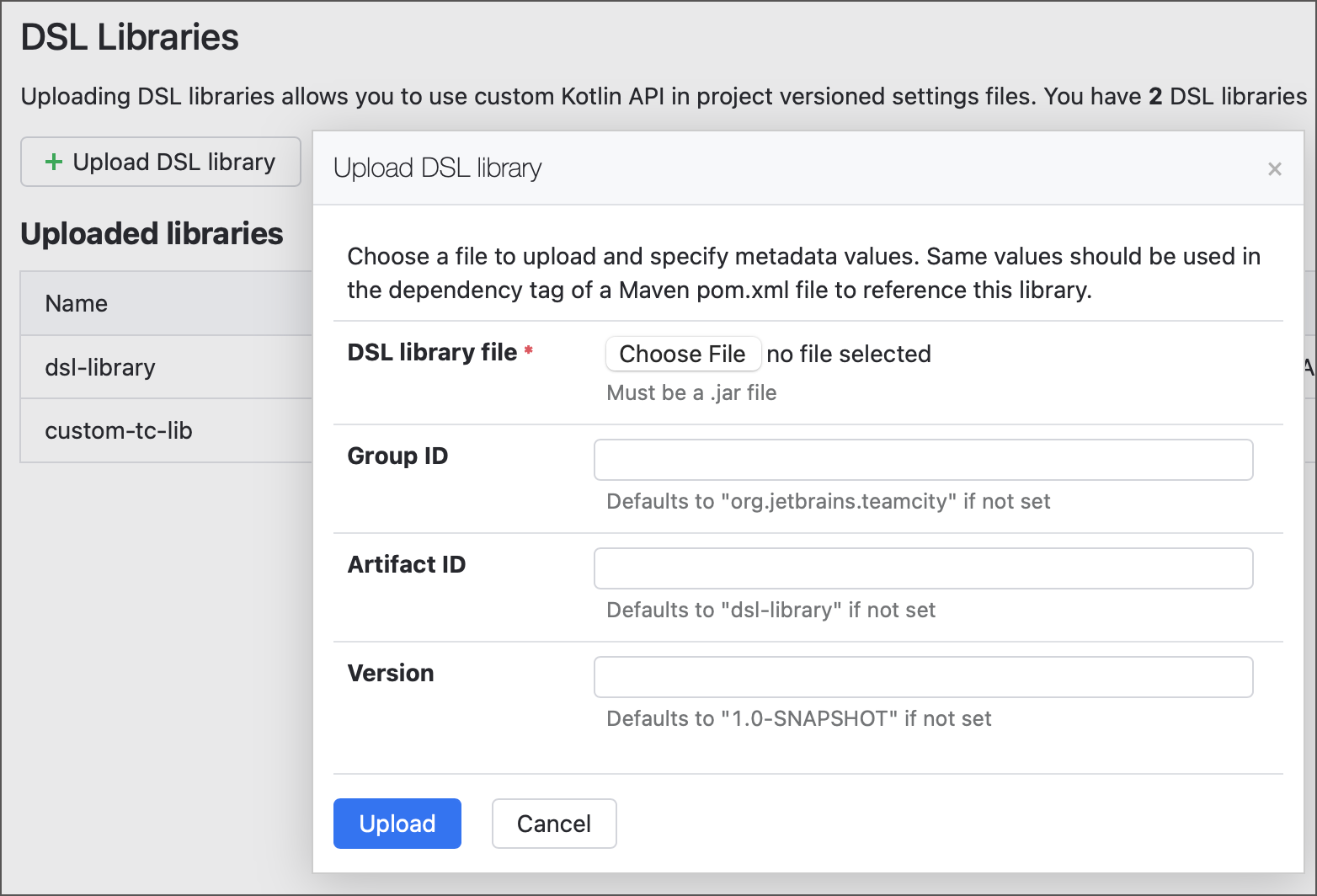

You can establish access to external libraries in private repositories. For this, specify all the required credentials in the Maven settings file (mavenSettingsDsl.xml) and upload it on the Maven Settings page of the Root project.

Non-Portable DSL

TeamCity versions before 2018.1 used a different format for Kotlin DSL settings. If you import a project in this obsolete non-portable format, TeamCity will allow working with it. In this case, the Generate portable DSL scripts option will become available.

When TeamCity generates a non-portable DSL, the project structure in the .teamcity directory looks as follows:

• pom.xml

• <project id>/settings.kts

• <project id>/Project.kt

• <project id>/buildTypes/<build conf id>.kt

• <project id>/vcsRoots/<vcs root id>.kt

where <project id> is the ID of the project where versioned settings are enabled. The Kotlin DSL files producing build configurations and VCS roots are placed under the corresponding subdirectories.

Working with secure values in DSL

In general, TeamCity processes a DSL parameter as a string. To mark a DSL value as secure, you can assign it to a parameter of the password type:

where <parameter_name> is a unique name which can be used as a key for accessing the secure value via DSL (for example, in the File Content Replacer build feature); <token> is the token corresponding to the target secure value.

Example:

Why portable DSL requires the same prefix for all IDs?

Templates, build configurations, and VCS roots have unique IDs throughout all the TeamCity projects on the server. These IDs usually look like: <parent project id>_<entity id>.

Since these IDs must be unique, there cannot be two different entities in the system with the same ID.

However, one of the reasons why portable DSL is called portable is because the same settings.kts script can be used to generate settings for two different projects even on the same server.
To achieve this while overcoming IDs uniqueness, TeamCity operates with relative IDs in portable DSL scripts. These relative IDs do not have parent project ID prefix in them. So when TeamCity generates portable Kotlin DSL scripts, it has to remove the parent project ID prefix from the IDs of all the generated entities.

But this will not work if not all the project entities have this prefix in their IDs. In this case the following error can be shown:

Build configuration id '<some id>' should have a prefix corresponding to its parent project id: '<parent project id>'

To fix this problem, change the ID of the affected entity. If there are many such IDs, use the Bulk edit IDs project action to change all of them at once.

How to Access Auxiliary Scripts from DSL Settings

To keep your settings files neat, it is convenient to store lengthy code instructions in separate files. Such auxiliary scripts can be put in the .teamcity directory alongside the settings files. You can refer to them by their relative paths.

For example, this part of settings.kts creates an object with a function readScript which reads the contents of the file it receives on input:

In the build step, we call this function, so it reads the scripts\test.sh file located under the .teamcity directory:

As a result, your Command Line build step will run a custom script with the body specified in scripts\test.sh.

How to Use Special Characters

When writing Kotlin DSL for script runners (Command Line, PowerShell, Python, and others), be aware that special characters used in the scripts may conflict with Kotlin DSL syntax. These potential issues most commonly fall under either of the following categories:

• Not escaping special characters as required by Kotlin guidelines. For example, the echo $(date +"%A") Shell command does not conflict with Kotlin syntax rules and can be used in Kotlin DSL as is:

  script { id = "simpleRunner" scriptContent = """ #... echo $(date +"%A") """.trimIndent() }

  However, a direct variable reference will result in the "Kotlin DSL compilation error: Unresolved reference" build log message, if not escaped.

  script { id = "simpleRunner" scriptContent = """ day_of_week=Monday echo $day_of_week // Compilation error echo ${'$'}day_of_week // No compilation error, returns "Monday" """.trimIndent() }

• Not escaping % characters. TeamCity may interpret such non-escaped strings as references to build parameter. To escape a percent character, repeat it twice (%%).

  For example, the following Kotlin DSL will produce a configuration with no compatible agents if you replace double percent characters (%%regex%%) with single ones (%regex%):

  script { name = "Bash script" scriptContent = """ //... set "regex=[0-9]+[.][0-9][0-9](.1)? EAP" set "items=" for /r "$tcInstallDir" %%i in (*) do ( findstr /r "%\%regex%%" "%%i" >nul 2>nul if errorlevel 1 ( set "items=1" ) ) //... """ }

New URL of Settings VCS Root (Non portable format)

Problem: I changed the URL of the VCS root where settings are stored in Kotlin, and now TeamCity cannot find any settings in the repository at the new location.

Solution:

• Fix the URL in the Kotlin DSL in the version control and push the fix.

• Disable versioned settings to enable the UI.

• Fix the URL in the VCS root in the UI.

• Enable versioned settings with the same VCS root and the Kotlin format again. TeamCity will detect that the repository contains the .teamcity directory and ask you if you want to import settings.

• Choose to import settings.

How to Read Files in Kotlin DSL

Problem: I want to generate a TeamCity build configuration based on the data in some file residing in the VCS inside the .teamcity directory.

Solution:
You can access the location of the .teamcity directory from DSL scripts with help of the DslContext.baseDir property, for example:

Since 2019.2, this is the preferable approach as TeamCity no longer guarantee that the current working directory for DSL scripts is the same as the .teamcity directory.

Before 2019.2, the following code could be used:

How to reorder projects and build configurations

To reorder subprojects or build configurations inside a project via DSL, similarly to the respective UI option, pass their lists to subProjectsOrder or buildTypesOrder respectively. For example,

With these settings, the build configurations will be displayed in the UI in the following order: C, A, B.

How to split a .kts file

A single .kts file that describes settings for all projects on your server can be difficult to maintain. You can end up with such file in two cases:

• The file was produced by TeamCity. When you export project settings via the Actions | Download settings in Kotlin format... menu, TeamCity first calculates how many entities (projects, configurations, roots) you currently have. If this number is less than 20, TeamCity writes a single .kts file. Otherwise, it produces multiple folders with individual .kt files for each project.

• The file was created manually. If you start with a single .kts file and keep adding new projects to it, over time it may become too bulky to manage.

In the first case, TeamCity automatically splits its settings once your build server grows beyond 20 entities. For manually created .kts files, you can split them as follows:

Each folder (including the "_Self" folder for the <Root> project) has the following structure:

You can download the ZIP archive attached to the TW-64768 ticket to inspect a sample hierarchly and learn what content individual .kt files typically store.

How to Test Kotlin DSL Scripts

Kotlin scripts can be tested using regular testing frameworks such as JUnit. See this blog post for more information: Configuration as Code, Part 6: Testing Configuration Scripts.
