Entity Relationship diagram
For an Entity Framework or EF Core project, you can create a graphic representation of the database model and the relationships between entities, including one-to-one and one-to-many relationships.
Build Entity Relationship diagram
Right-click the editor adornment next to any EF entity and choose Show Entity Relationship Diagram.
If the adornments are disabled, choose
from the main menu.

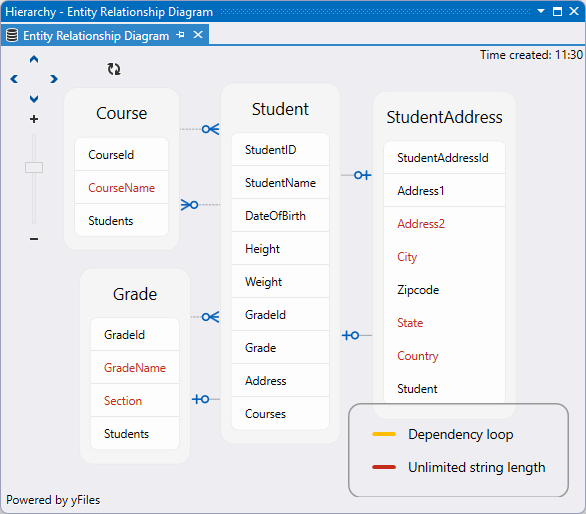

Relationships between entities are displayed using Crow's foot notation. The diagram also highlights potential problems of specific fields:
Possible performance issues due to unlimited string length are highlighted in yellow.
Possible dependency loops are highlighted with red.
