Google sanitizers
Sanitizers are open-source tools for dynamic code analysis designed by Google. CLion integrates with the following Sanitizers:
AddressSanitizer (ASan)
LeakSanitizer (LSan)
ThreadSanitizer (TSan)
UndefinedBehaviorSanitizer (UBSsan)
MemorySanitizer (MSan)
tip
Sanitizers are implemented in Clang starting 3.1 and GCC starting 4.8. All the sanitizers are available on Linux x86_64 machines. You can use AddressSanitizer on Windows 10 with clang-cl under the MSVC toolchain. For macOS, the supported sanitizers are AddressSanitizer, ThreadSanitizer, and UndefinedBehaviorSanitizer.
As Sanitizers are based on compiler instrumentation, you need to rebuild your project in order to start using these tools.
Adjust the following template line and add it to your CMakeLists.txt:
set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -fsanitize=[sanitizer_name] [additional_options] [-g] [-OX]")
note
Use
CMAKE_C_FLAGS
instead ofCMAKE_CXX_FLAGS
for C projects.For
[sanitizer_name]
use one of the following:address for AddressSanitizer
leak for LeakSanitizer
thread for ThreadSanitizer
undefined for UndefinedBehaviorSanitizer (other options are also available, refer to the UBSan section)
memory for MemorySanitizer
[Additional_flags]
are other compilation flags, such as-fno-omit-frame-pointer
,fsanitize-recover/fno-sanitize-recover
,-fsanitize-blacklist
, etc.Use
[-g]
to have file names and line numbers included in warning messages.Add optimization level
[-OX]
to get reasonable performance (see recommendations in the particular Sanitizer documentation).

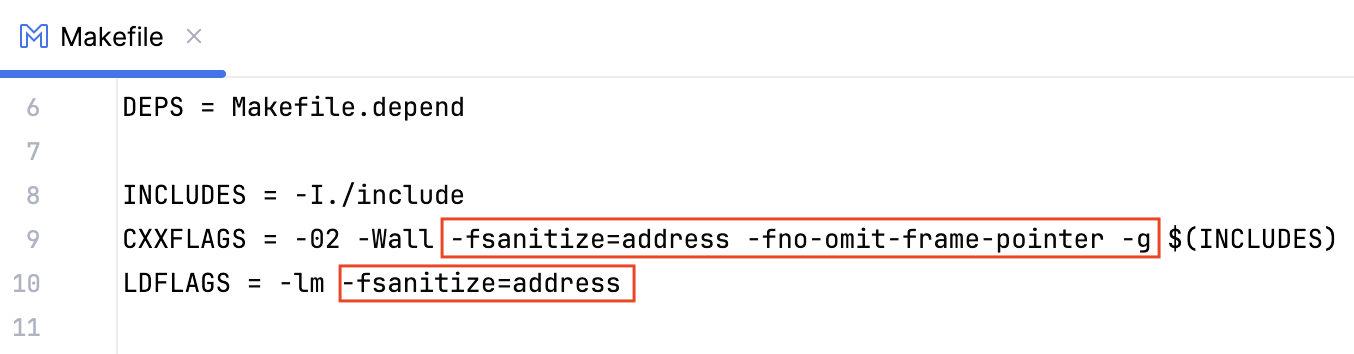

If you are working with a Makefile project or a compilation database project with custom build targets, make sure to specify linker flags along with the compiler flags. For example, in the case of a Makefile and AddressSanitizer:
note
Sanitizers' output visualization is available for CMake projects only. For Makefiles and compilation databases, the output is logged to console in plain text.

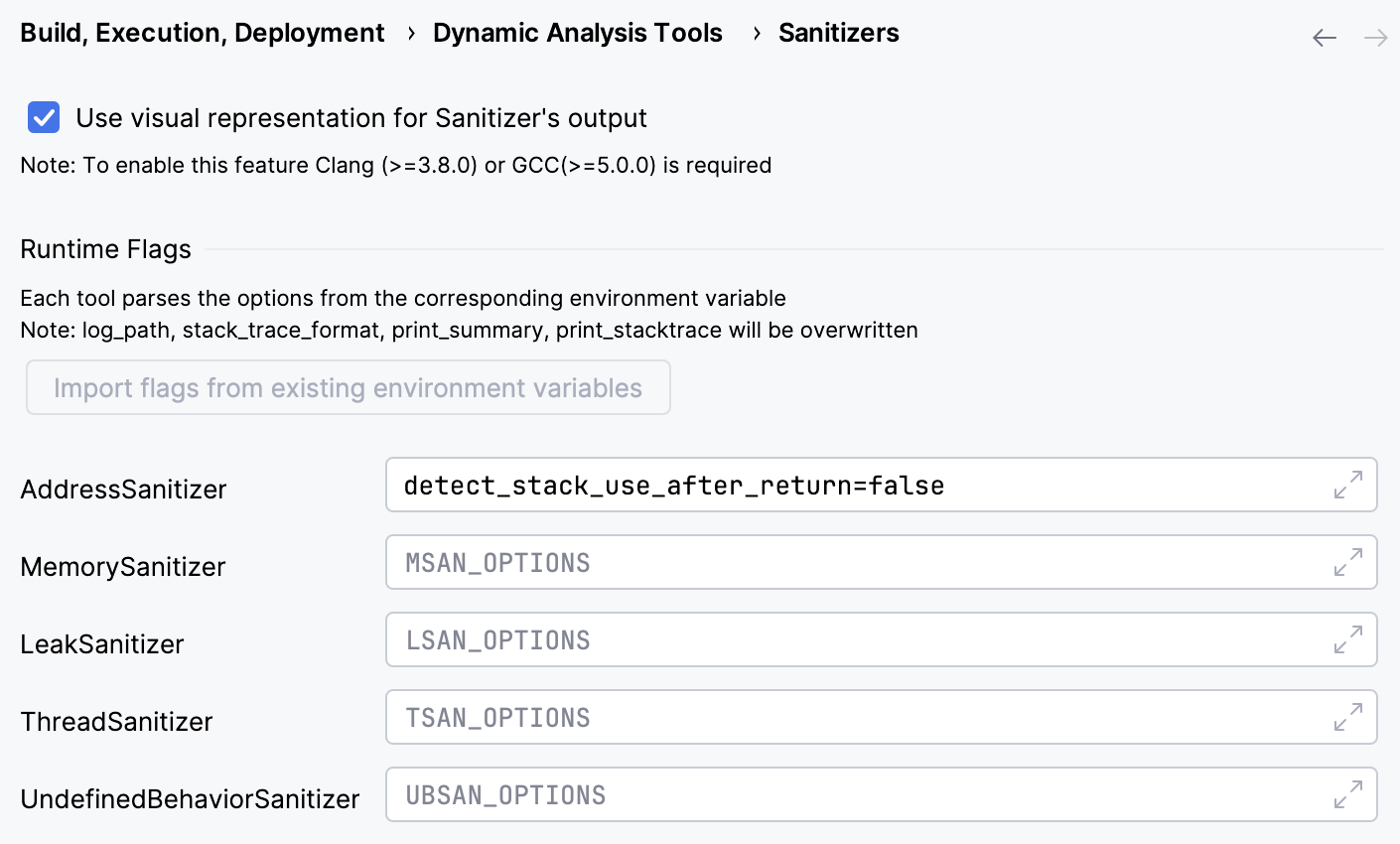

Go to Settings | Build, Execution, Deployment | Dynamic Analysis Tools | Sanitizers and set up the following:
Run-time flags
In this section, specify the run-time options for each Sanitizer. You can do that manually or by clicking the Import flags from existing environment variables button (this button becomes available if the variables
ASAN/MSAN/LSAN/TSAN_OPTIONS
are presented). See Sanitizer Common flags.Use visual representation for Sanitizer's output

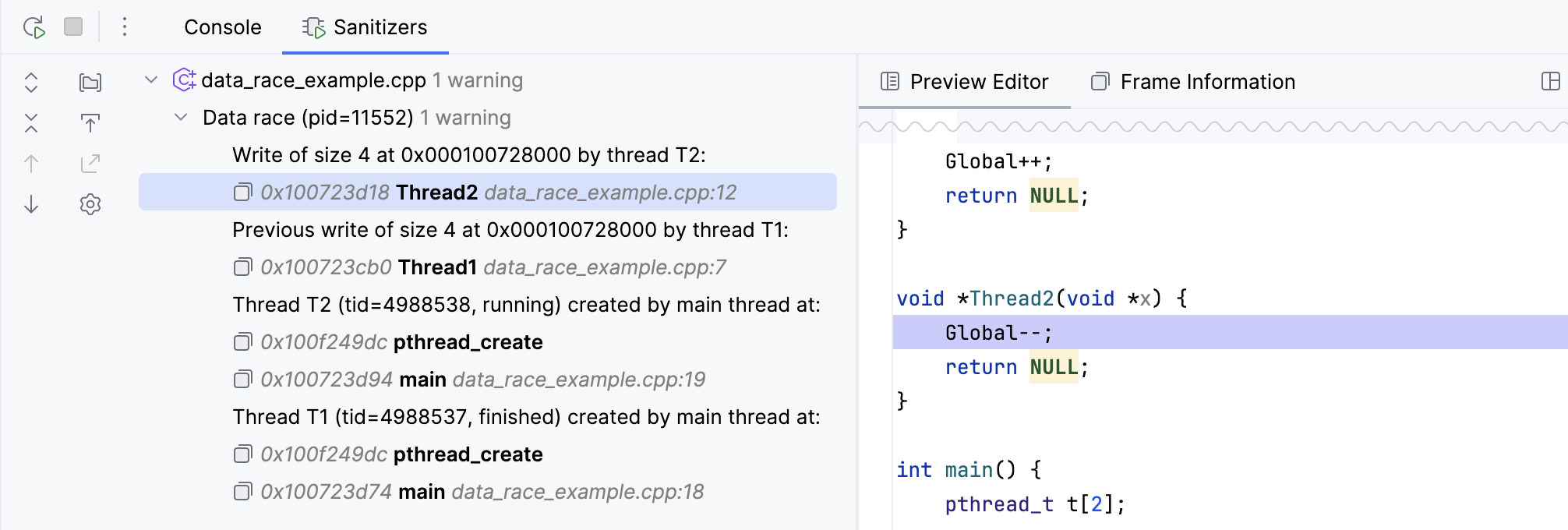

Set this checkbox to have a tree-view output with the Preview Editor and Frame Information:
For the visualized output to be available, switch to Clang at least 3.8.0 or GCC at least 5.0.0. For more information about changing a compiler in CLion, refer to this instruction.

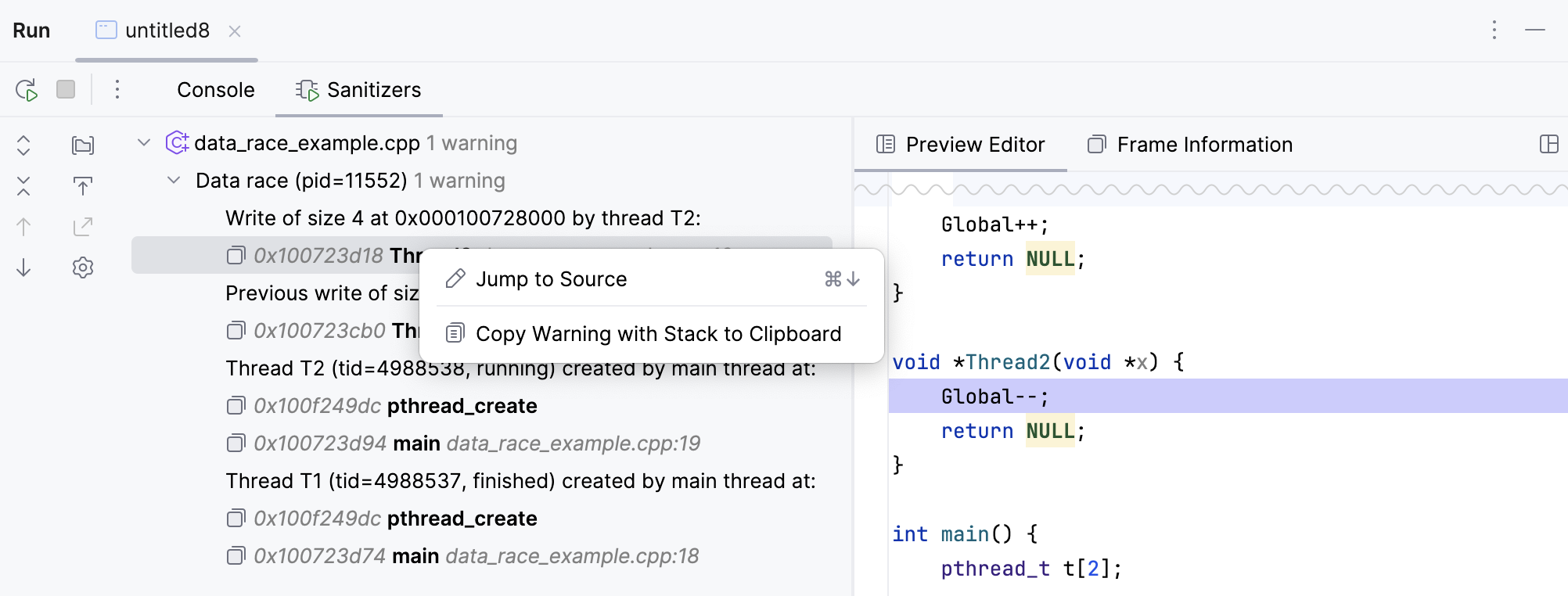

The Sanitizers view allows jumping back to source code and also copying the warning data to clipboard:

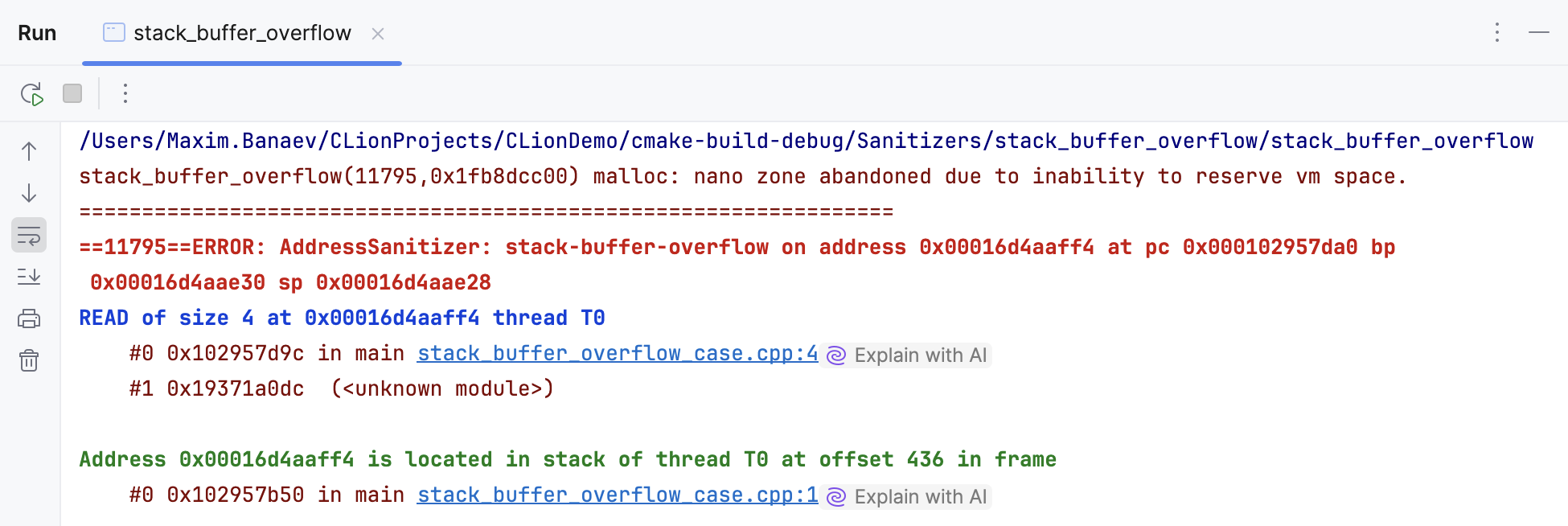

When the visual representation checkbox is cleared, or the compiler does not fit the requirements, the sanitizers output is presented in plain text:
To let Sanitizers convert addresses into source code locations and make stack-traces easy to understand, ensure that the PATH or *SAN_SYMBOLIZER_PATH environment variable contains the location of llvm-symbolizer.
Use one of the options:
Add the path to llvm-symbolizer directory (for example,
/usr ) to system PATH./bin/ In the Environment variables field of the run/debug configuration, add *SAN_SYMBOLIZER_PATH pointing to the particular binary (like
/usr )./bin /llvm-symbolizer

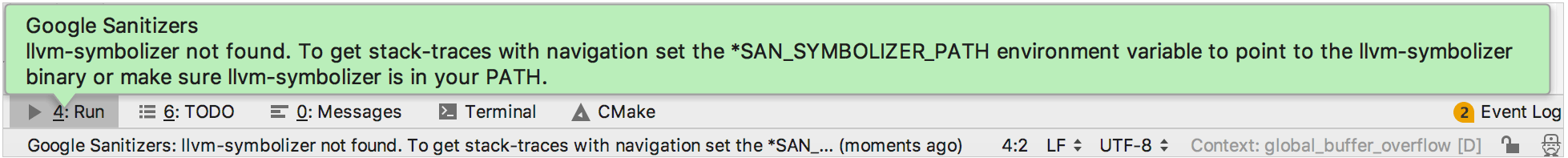

In case of using Clang compiler, you will get a notification from CLion if none of the PATH or *SAN_SYMBOLIZER_PATH variables points to llvm-symbolizer:
![cl_sanitizer_symbolizerwarning.png cl_sanitizer_symbolizerwarning.png](https://resources.jetbrains.com/help/img/idea/2024.3/cl_sanitizer_symbolizerwarning.png)
AddressSanitizer (ASan) is a memory corruption detector, capable of finding the following types of bugs:
Heap-, stack-, and global buffer overflow
Use-after-free (dangling pointer dereference)
Use-after-scope
-fsanitize-address-use-after-scope
Use-after-return (pass
detect_stack_use_after_return=1
toASAN_OPTIONS
)Double free, invalid free
Initialization order bugs
tip
ASan in details: FAQ, List of flags, How to use ASan with GDB, Turning off ASan instrumentation, ASan Algorithm, ASan in Clang.
As an example, consider the following code fragment:
int global_array[100] = {-1};
int main(int argc, char **argv) {
return global_array[argc + 100]; // global buffer overflow
}

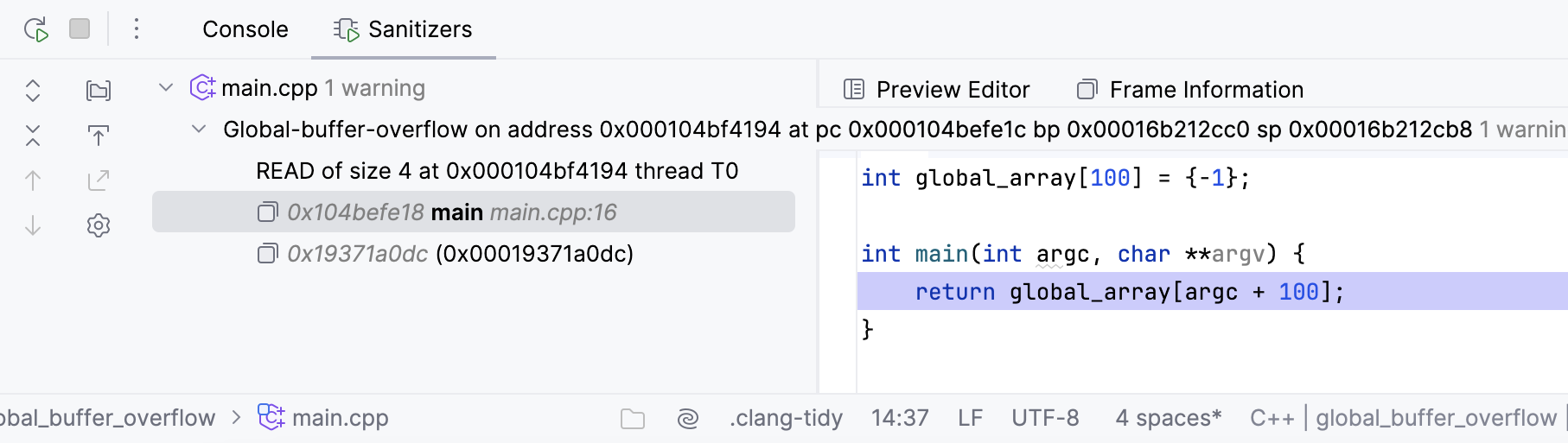

When built with -fsanitize=address -fno-omit-frame-pointer -O1
flags, this program will exit with a non-zero code due to the global buffer overflow detected by AddressSanitizer:
![AddressSanitizer AddressSanitizer](https://resources.jetbrains.com/help/img/idea/2024.3/cl_sanitizers_asan.png)
Note that ASan halts on the first detected error. To change this behavior and make ASan continue running after reporting the first error, add -fsanitize-recover=address
to compiler flags and halt_on_error=false
to ASAN_OPTIONS
.
On Windows, you can work with AddressSanitizer under the MSVC toolchain using the clang-cl compiler.

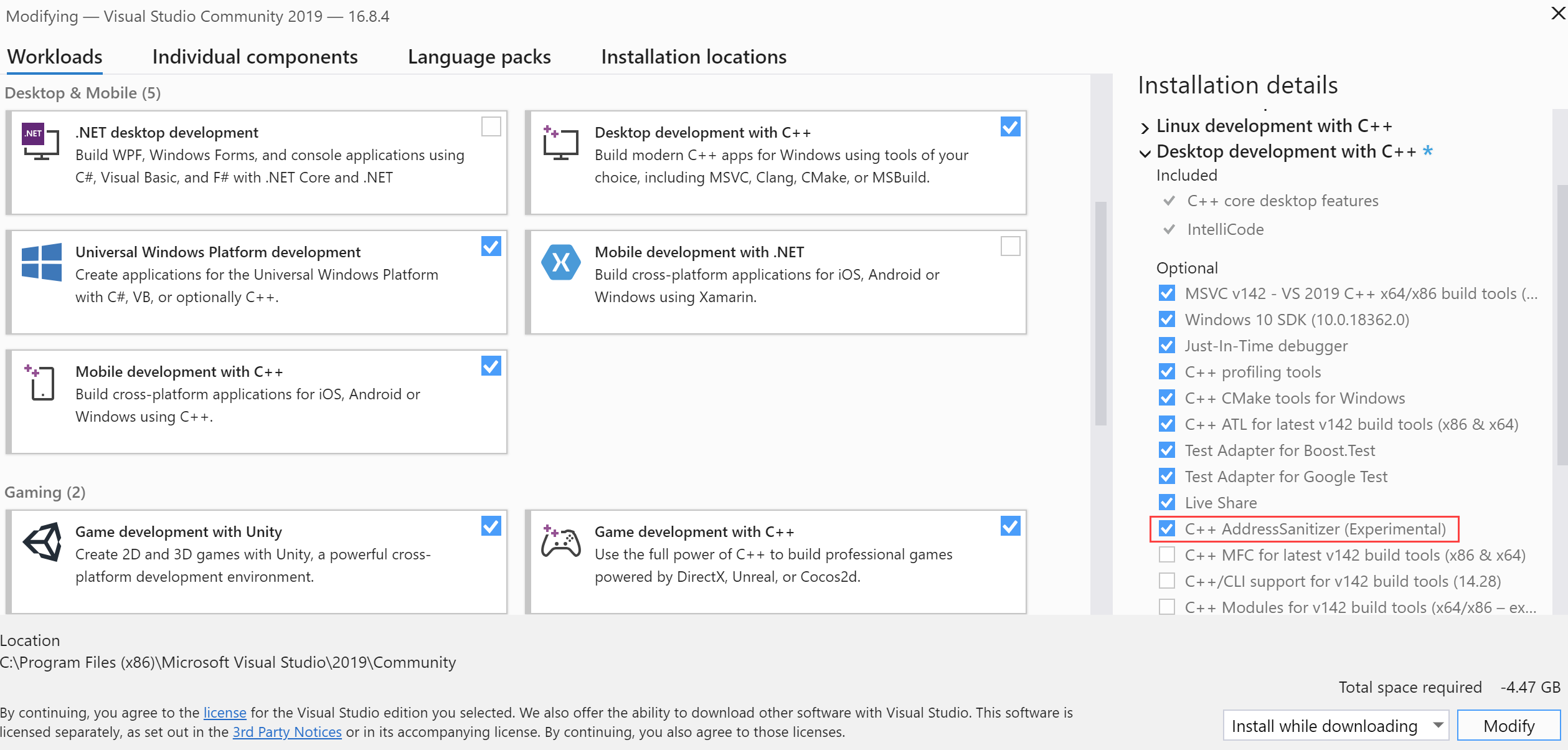

Run the Visual Studio Installer and make sure to install the C++ AddressSanitizer component. You can find it under the Desktop Development with C++ node:

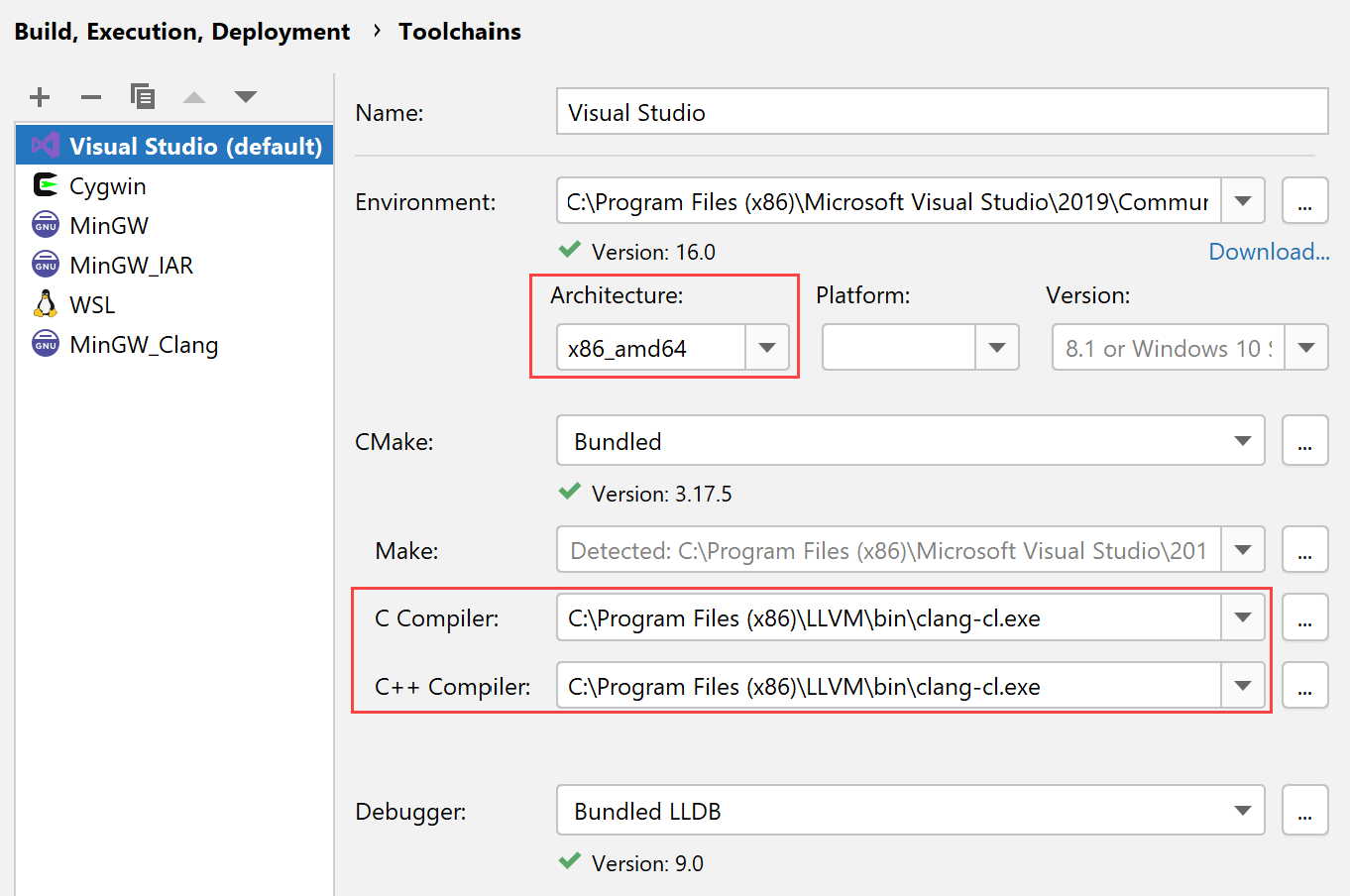

In CLion, go to Settings | Build, Execution, Deployment | Toolchain and create a new Visual Studio toolchain or edit an existing one.
Set Architecture to x86_amd64.
Set the paths to clang-cl in the C Compiler and C++ Compiler fields.
You can use clang-cl from the LLVM distribution or from the Visual Studio tools. In the latter case, the path will be, for example, C:
\Program Files(x86) .\Microsoft Visual Studio \2019 \Community \VC \Tools \Llvm \bin \clang-cl.exe
In your CMakeLists.txt, add the following lines after the
add_executable
command (replaceexec
with the name of your executable):target_compile_options(exec PRIVATE -fsanitize=address) target_link_directories(exec PRIVATE "$ENV{ProgramFiles\(x86\)}/Microsoft Visual Studio/2019/Professional/VC/Tools/Llvm/x64/lib/clang/10.0.0/lib/windows") target_link_libraries(exec PRIVATE clang_rt.asan_dynamic-x86_64 clang_rt.asan_dynamic_runtime_thunk-x86_64) target_link_options(exec PRIVATE /wholearchive:clang_rt.asan_dynamic_runtime_thunk-x86_64.lib)
Adjust the ProgramFiles

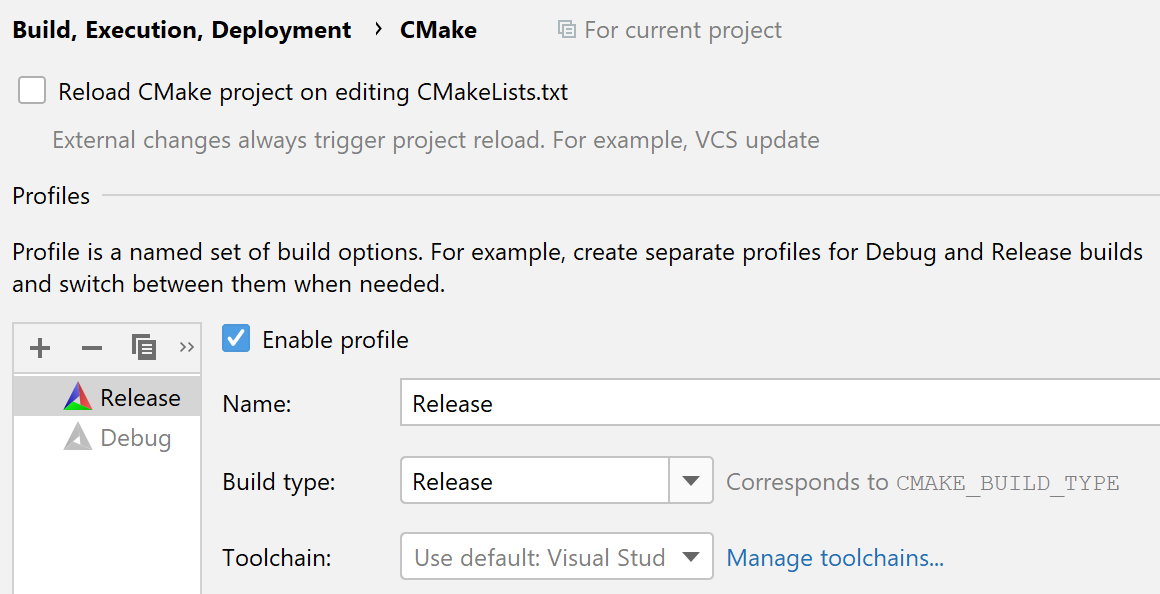

\(x86 path if required. This directory contains the libraries required for AddressSanitizer.\)} /Microsoft Visual Studio /2019 /Professional /VC /Tools /Llvm /x64 /lib /clang /10.0.0 /lib /windows Go to Settings | Build, Execution, Deployment | CMake, create a Release profile, and set it as the default (move it to the top of the profile list):
Try to load and build the project. In case of linker errors, copy all the files from ProgramFiles
\(x86 into the cmake-build-release folder.\)} /Microsoft Visual Studio /2019 /Professional /VC /Tools /Llvm /x64 /lib /clang /10.0.0 /lib /windows
LeakSanitizer (LSan) is a memory leak detector. In a stand-alone mode, this Sanitizer is a run-time tool that does not require compiler instrumentation. However, LSan is also integrated into AddressSanitizer, so you can combine them to get both memory errors and leak detection.
tip
Learn more about LSan: Design Document, LSan in Clang.
To enable LeakSanitizer as a part of AddressSanitizer, pass detect_leaks=1
to the ASAN_OPTIONS
variable. To run ASan-instrumented program without leak detection, set detect_leaks=0
.
To run LSan only (and avoid the ASan's slowdown), use -fsanitize=leak
instead of -fsanitize=address
.
The following code leads to a memory leak due to no-deleting of a heap-allocated object:
int main(){
int *x = new int(10);
return 0;
}

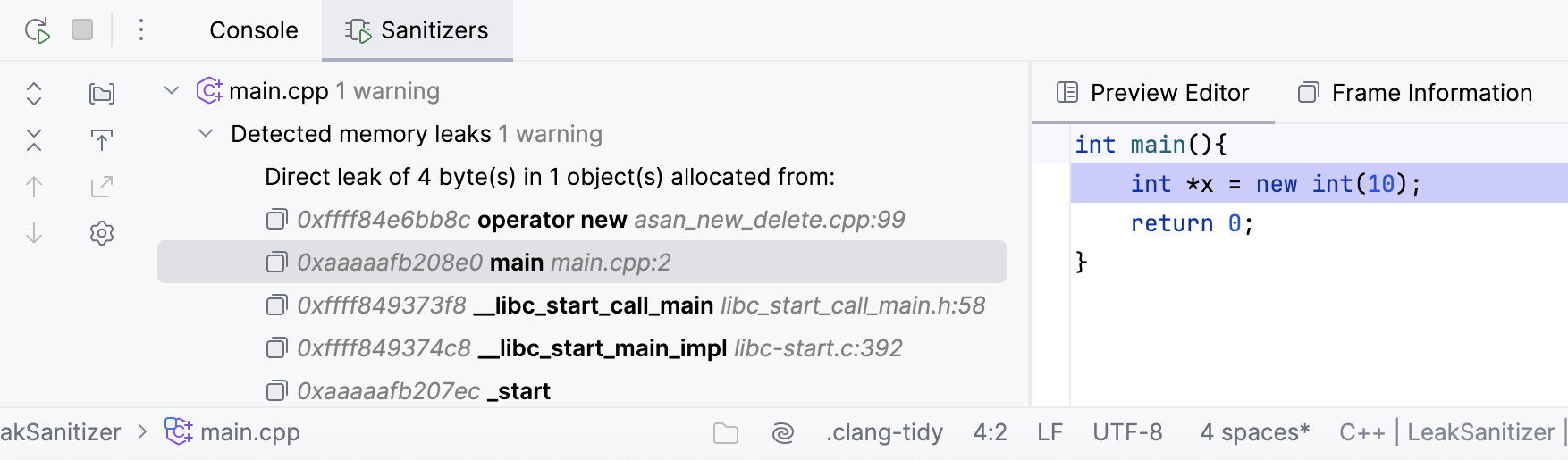

LSan detects and reports the problem:
![LeakSanitizer LeakSanitizer](https://resources.jetbrains.com/help/img/idea/2024.3/cl_sanitizers_lsan.png)
note
LeakSanitizer doesn't work under ptrace, so it can't be used in debug mode.
ThreadSanitizer (TSan) is a data race detector. Data races occur when multiple threads access the same memory without synchronization and at least one access is a write.
tip
Take a look at the following code that produces data races:
#include <pthread.h>
#include <stdio.h>
int Global;
void *Thread1(void *x) {
Global++;
return NULL;
}
void *Thread2(void *x) {
Global--;
return NULL;
}
int main() {
pthread_t t[2];
pthread_create(&t[0], NULL, Thread1, NULL);
pthread_create(&t[1], NULL, Thread2, NULL);
pthread_join(t[0], NULL);
pthread_join(t[1], NULL);
}

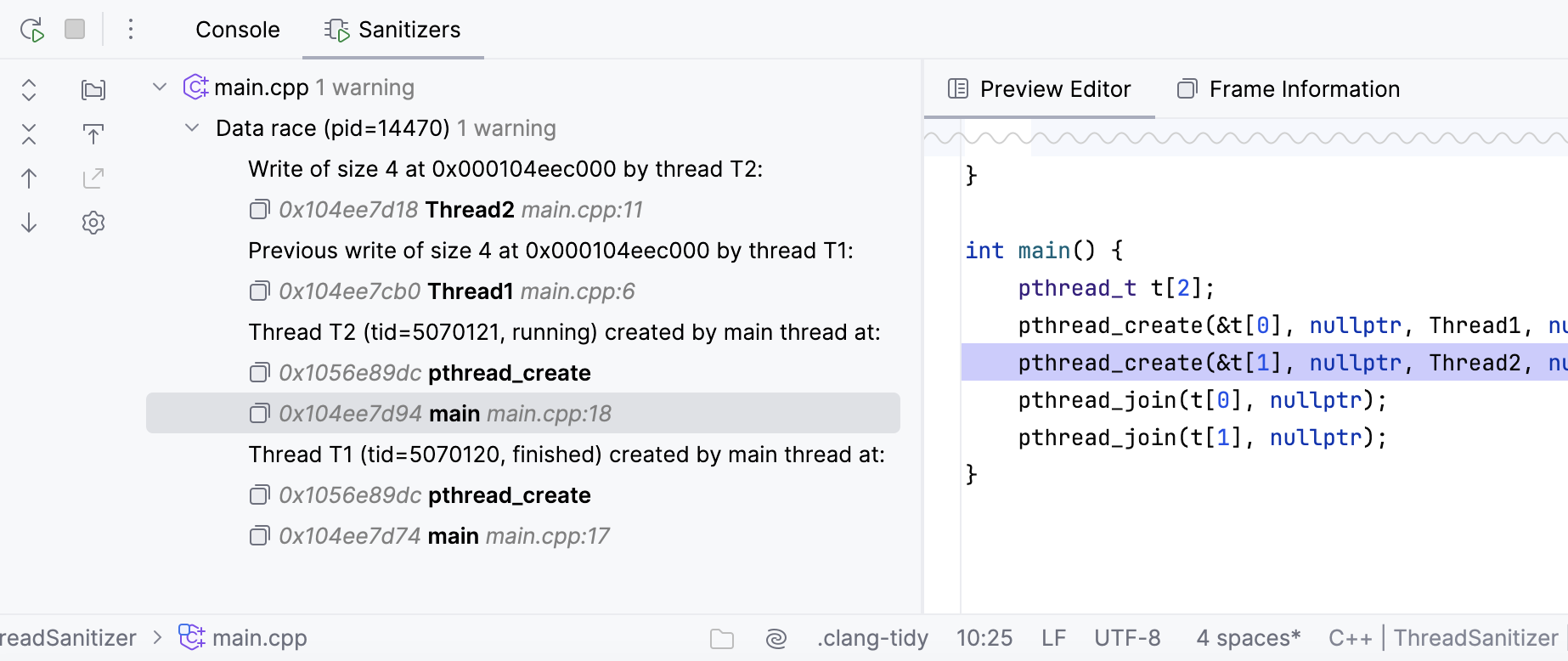

When you run this program compiled with -fsanitize=thread -fPIE -pie -g
, TSan prints a report of a data race. For more information about the output format, refer to ThreadSanitizerReportFormat.
![ThreadSanitizer ThreadSanitizer](https://resources.jetbrains.com/help/img/idea/2024.3/cl_sanitizers_tsan.png)
UndefinedBehaviorSanitizer (UBSan) is a runtime checker for undefined behavior, which is a result of any operation with unspecified semantics, such as dividing by zero, null pointer dereference, or usage of an uninitialized non-static variable.
UBSan catches various kinds of undefined behavior, see the full list at clang.llvm.org. You can turn the checks on one by one, or use flags for check groups -fsanitize=undefined
, -fsanitize=integer
, and -fsanitize=nullability
.
Code below illustrates the situation of an undefined result of a shift operation:
int main() {
int i = 2048;
i <<= 28;
return 0;
}

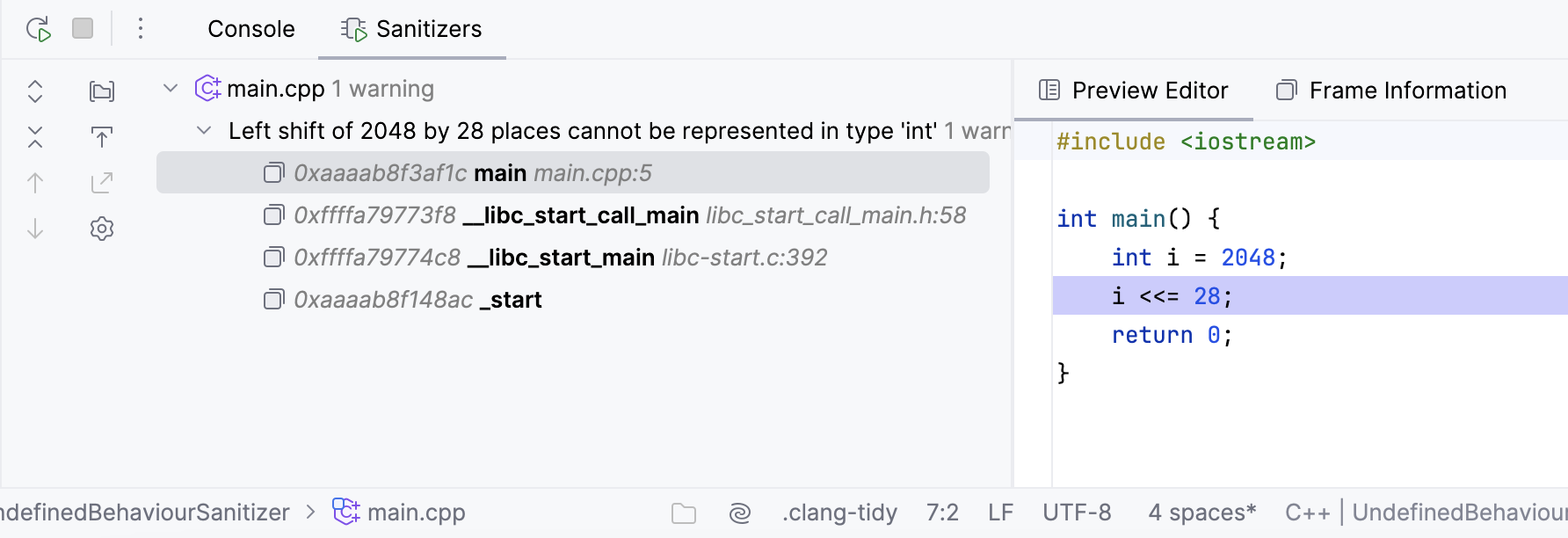

If you compile this code with the -fsanitize=undefined
flag (alternatively, use -fsanitize=shift
) and launch, the program will finish successfully despite of the UBSan warning:
![UndefinedBehaviorSanitizer UndefinedBehaviorSanitizer](https://resources.jetbrains.com/help/img/idea/2024.3/cl_sanitizer_ubsan.png)
To make a program exit due to UBSan's diagnostics, use the -fno-sanitize-recover
option.
MemorySanitizer (MSan) is a detector of uninitialized memory reads. This Sanitizer finds the cases when stack- or heap-allocated memory is read before it is written. MSan is also capable of tracking uninitialized bits in a bitfield.
note
MSan is only available in Clang for Linux x86_64 targets.
MSan can track back the origins of an uninitialized value to where it was created and report this information. Pass the -fsanitize-memory-track-origins
flag to enable this functionality.
To efficiently use MSan, compile your program with -fsanitize=memory -fPIE -pie -fno-omit-frame-pointer -g
, add -fno-optimize-sibling-calls
and -O1
or later.

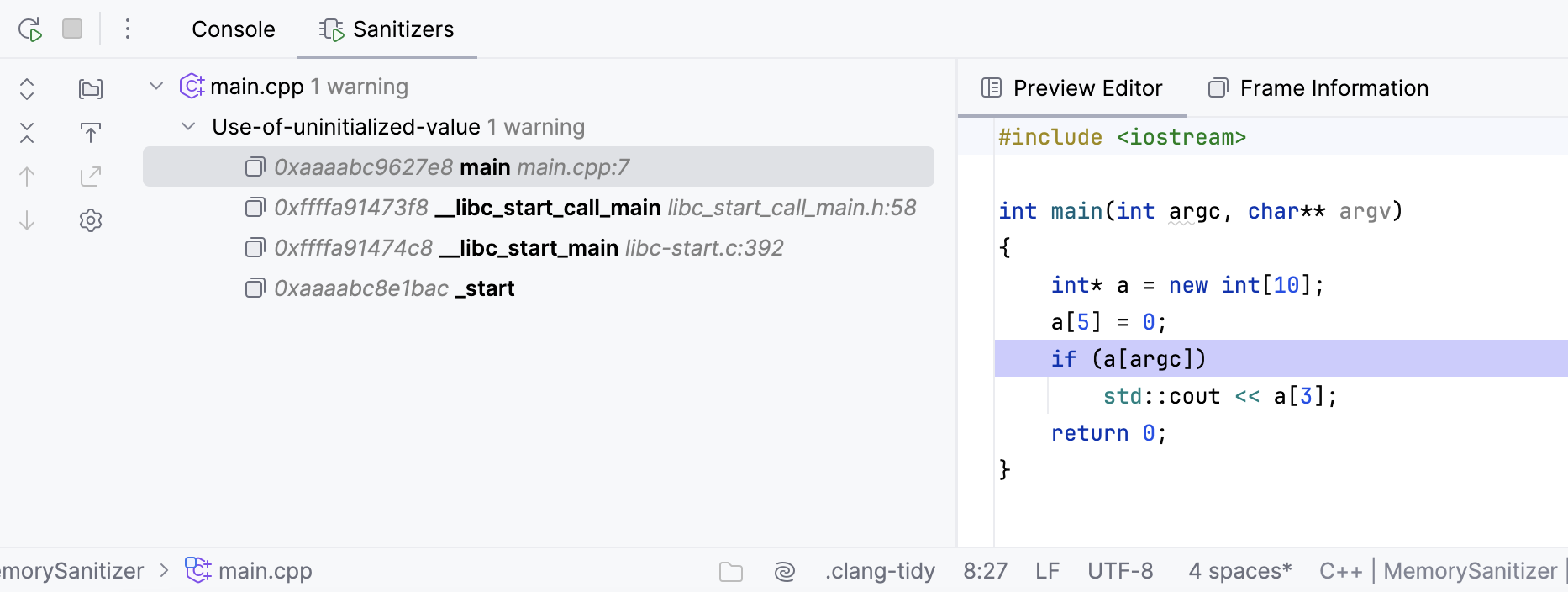

Find the example of code with an uninitialized read and the corresponding MSan output below:
int main(int argc, char** argv) {
int* a = new int[10];
a[5] = 0;
if (a[argc])
std::cout << a[3];
return 0;
}
![MemorySanitizer MemorySanitizer](https://resources.jetbrains.com/help/img/idea/2024.3/cl_sanitizers_msan.png)
