Azure Pipelines

Before you start

1. All configuration examples in this section use a project token generated by Qodana Cloud. This token is required for the paid Qodana linters and optional for use with the Community linters. You can see these sections to learn how to generate the project token in the Qodana Cloud UI:

   • The project setup section explains how to generate a project token when first working with Qodana Cloud.

   • The Manage a project section explains how to create a project token within an existing Qodana Cloud organization.

   Once you obtain the project token, go to your pipeline UI, create the QODANA_TOKEN secret variable, and save the project token as its value.

   If you are using a Qodana Cloud instance other than https://qodana.cloud/, override it by setting the QODANA_ENDPOINT environment variable.

2. In your Azure DevOps organization, install the Qodana Azure Pipelines extension.

Basic configuration

note

Triggering Qodana Scan depends on the repository type that you are using in Azure Pipelines.

You can run the Qodana Scan task on any OS and x86_64/arm64 CPUs, but it requires the agent to have Docker installed. Additionally, since most Qodana Docker images are Linux-based, the Docker daemon must support running Linux containers.

You can configure this task using either a YAML-formatted file or the Classic interface.

YAML file

Classic interface

# Start with a minimal pipeline that you can customize to build and deploy your code.
# Add steps that build, run tests, deploy, and more:
# https://aka.ms/yaml

trigger:
  - main

pool:
  vmImage: ubuntu-latest

steps:
  - task: Cache@2  # Not required, but Qodana will open projects with cache faster.
    inputs:
      key: '"$(Build.Repository.Name)" | "$(Build.SourceBranchName)" | "$(Build.SourceVersion)"'
      path: '$(Agent.TempDirectory)/qodana/cache'
      restoreKeys: |
        "$(Build.Repository.Name)" | "$(Build.SourceBranchName)"
        "$(Build.Repository.Name)"
  - task: QodanaScan@2024
    inputs:
      uploadResult: true
      args: -e,AUSERNAME=$(AUSERNAME),-e,APASSWORD=$(APASSWORD)
    env:
      QODANA_TOKEN: $(QODANA_TOKEN)

Here, the -e option adds input arguments, and the QODANA_TOKEN variable refers to the project token generated by Qodana Cloud.

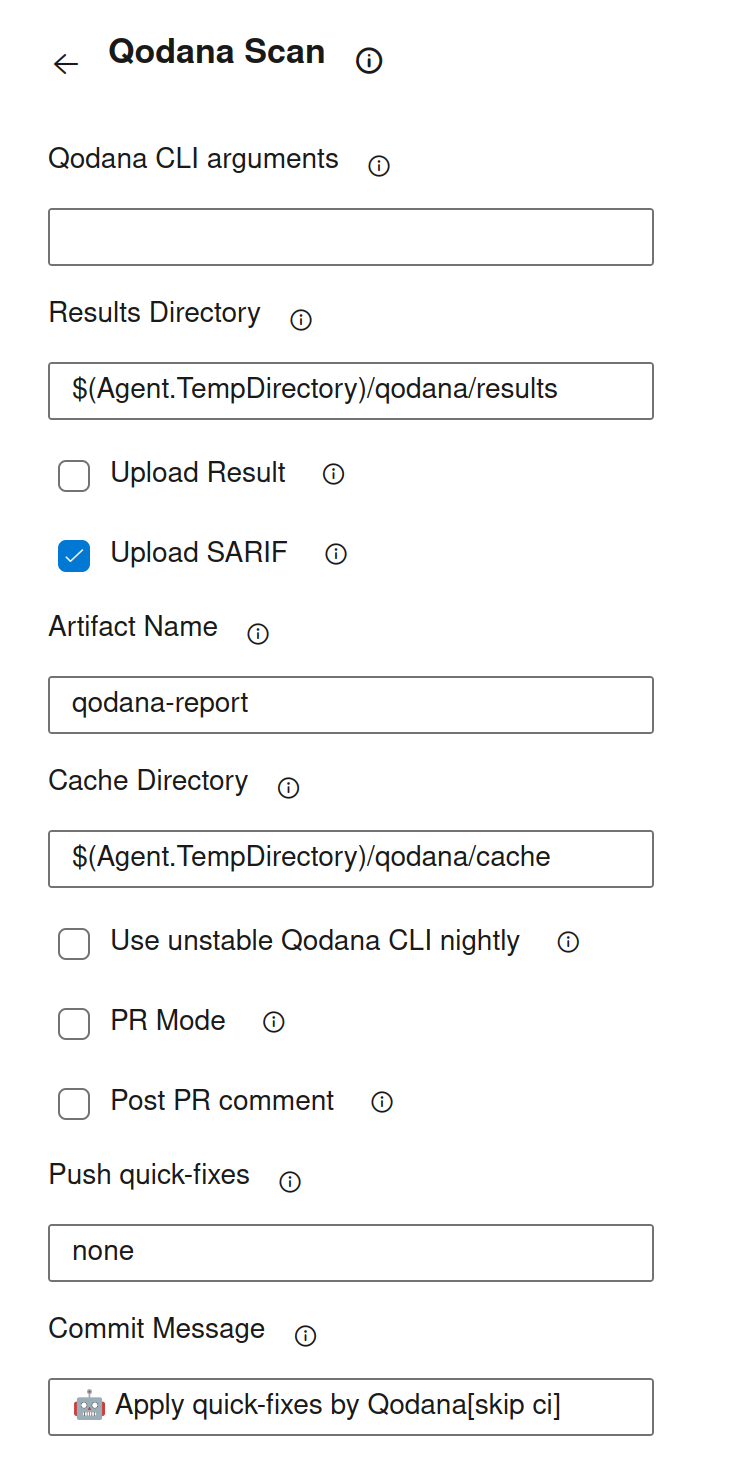

Add the Qodana Scan task to the pipeline configuration and then configure it as shown below.

The description of configuration options is available in the Configuration chapter of this section.

Pull requests

This is how you can enable Qodana analysis for pull requests:

YAML file

Classic interface

pr:
  branches:
    include:
      - '*'

pool:
  vmImage: ubuntu-latest

steps:
  - checkout: self
    fetchDepth: 0
  - task: QodanaScan@2024
    env:
      QODANA_TOKEN: $(QODANA_TOKEN)
    inputs:
      prMode: true

Here, QODANA_TOKEN refers to the project token generated by Qodana Cloud.

Check the PR Mode option in the pipeline configuration as shown below.

Quality gate and baseline

You can also configure the quality gate and baseline features as shown below.

YAML file

Classic interface

In this configuration, the args: block configures the quality gate and baseline features using comma-separated options.

# Start with a minimal pipeline that you can customize to build and deploy your code.
# Add steps that build, run tests, deploy, and more:
# https://aka.ms/yaml

trigger:
  - main

pool:
  vmImage: ubuntu-latest

steps:
  - task: Cache@2  # Not required, but Qodana will open projects with cache faster.
      key: '"$(Build.Repository.Name)" | "$(Build.SourceBranchName)" | "$(Build.SourceVersion)"'
      path: '$(Agent.TempDirectory)/qodana/cache'
      restoreKeys: |
        "$(Build.Repository.Name)" | "$(Build.SourceBranchName)"
        "$(Build.Repository.Name)"
  - task: QodanaScan@2024
    env:
      QODANA_TOKEN: $(QODANA_TOKEN)
    inputs:
      args: '--baseline,qodana.sarif.json,--fail-threshold,5'

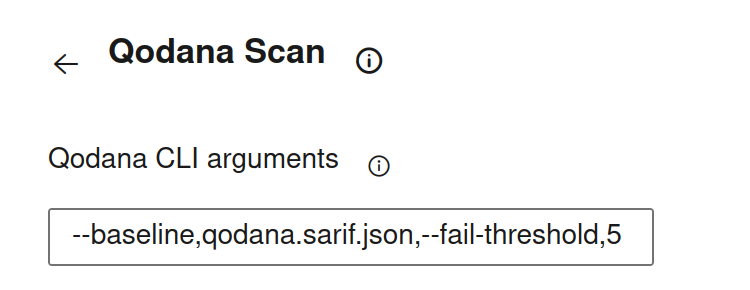

Use the Qodana CLI arguments field to configure the baseline and quality gate features using comma-separated options.

Code coverage

Follow recommendations from the Code coverage section to prepare your project. Use these examples to instruct Qodana to map the directory containing code coverage results.

YAML file

Classic interface

In this configuration, the args: block maps the results of code coverage analysis to the /data/coverage directory.

# Start with a minimal pipeline that you can customize to build and deploy your code.
# Add steps that build, run tests, deploy, and more:
# https://aka.ms/yaml

trigger:
  - main

pool:
  vmImage: ubuntu-latest

steps:
  - task: Cache@2  # Not required, but Qodana will open projects with cache faster.
      key: '"$(Build.Repository.Name)" | "$(Build.SourceBranchName)" | "$(Build.SourceVersion)"'
      path: '$(Agent.TempDirectory)/qodana/cache'
      restoreKeys: |
        "$(Build.Repository.Name)" | "$(Build.SourceBranchName)"
        "$(Build.Repository.Name)"
  - task: QodanaScan@2024
    env:
      QODANA_TOKEN: $(QODANA_TOKEN)
    inputs:
      args: '-v,  $(System.DefaultWorkingDirectory)/<ProjectPath>/.qodana/:/data/coverage'

Use the Qodana CLI arguments field to map the results of code coverage analysis to the /data/coverage directory.

SARIF SAST Scans Tab

To display Qodana report summary in Azure DevOps UI on the Scans tab, install Microsoft DevLabs’ SARIF SAST Scans Tab extension and set the uploadSarif/Upload SARIF option in your pipeline configuration to true.

Configuration

You won't probably need other options than args: all other options can be helpful if you are configuring multiple Qodana Scan jobs in one workflow.
