Analyze memory allocation

Use the Memory Allocation view to analyze allocations on a specific time interval: find out what objects were allocated on this interval and what functions allocated these objects. The view can show you allocation data even when profiling is still in progress: memory snapshots are not required.

Data collection modes

dotMemory can collect memory allocation data in one of two modes:

Sampled

(Default, Windows only) dotMemory collects limited allocation data: For each function that allocates objects you can view only approximate object sizes. The information about object count is not available.

The pros of the Sampled mode:

  • It doesn't slow down the profiled application.

  • You can use it when the profiler is attached to an already running application.

The data is not detailed because it is based on ETW events: the allocation event is triggered each time the size of the allocated memory exceeds 100KB in total. For example, a thread allocates five 50 KB memory blocks during profiling. In such a case, dotMemory will detect only two allocations of 100 KB.

Memory allocation
Full

dotMemory collects detailed allocation data: It includes the exact size of allocated objects and object count.

The cons of the Full mode:

  • It significantly slows down the profiled application.

  • You cannot use it when the profiler is attached to an already running application.

You can switch between these modes anytime during the profiling session. Note that if you want to analyze full allocation data, the Full data collection mode must be enabled during the desired time range. If this range contains intervals with Sampled data, the Memory Allocation view will show you only sampled allocation data.

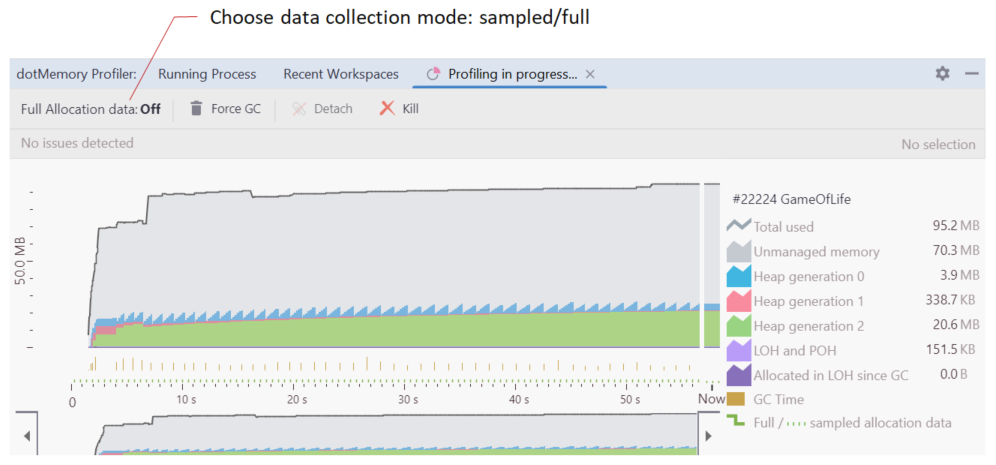

Data collection mode

How to get memory allocation data

To analyze memory allocation on an arbitrary time interval

  1. Start a profiling session or open an existing workspace.

  2. Depending on how detailed data you want to get, use either Sampled or Full data collection mode.

  3. On the timeline graph, select a desired time interval.

  4. Click the Allocated: ... MB link or the Show memory allocation button to open the Memory Allocation view.

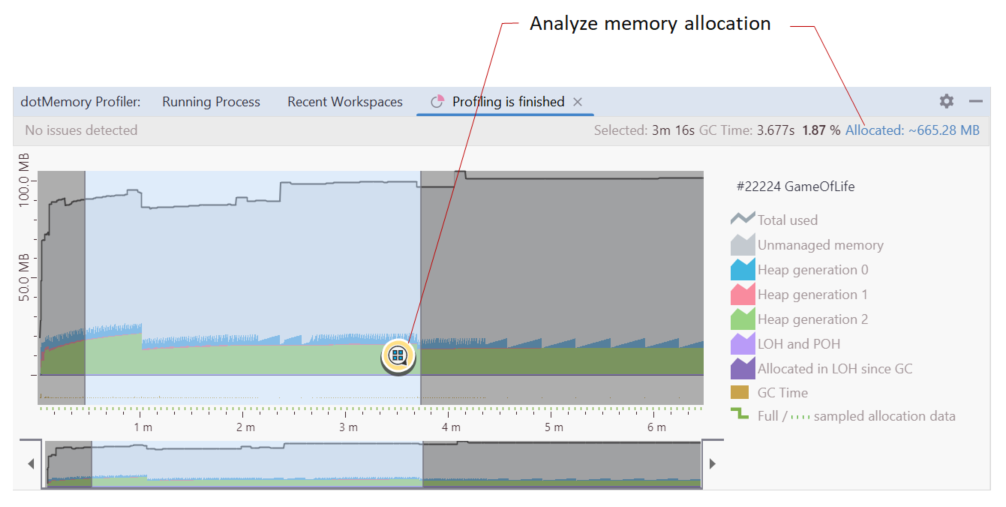

    Analyze memory allocation

    This will open a new editor document with allocation data on the selected interval.

  5. In the document, choose how you want to analyze the data: using grouping by Types, by Methods, by Call Tree, or by Subsystems.

To analyze memory allocation between start of the session and a specific snapshot

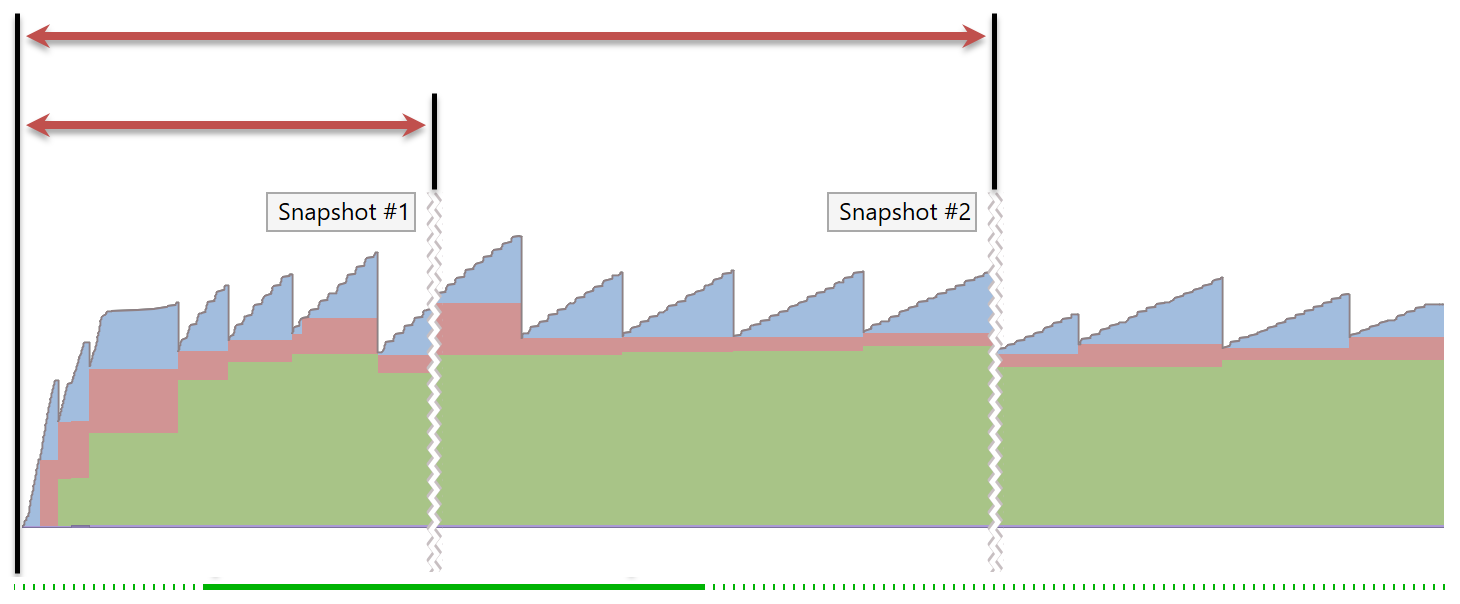

Analyzing traffic
  1. Start a profiling session or open an existing workspace.

  2. Under Memory Snapshots, find the required snapshot and click Memory allocation.

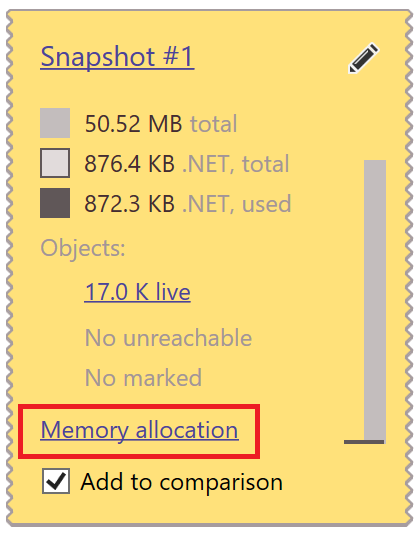

    View Memory Allocation Snapshot
  3. Choose how you want to analyze the data: using grouping by Types, by Methods, Call Tree, or by Subsystems.

To analyze memory allocation between two snapshots

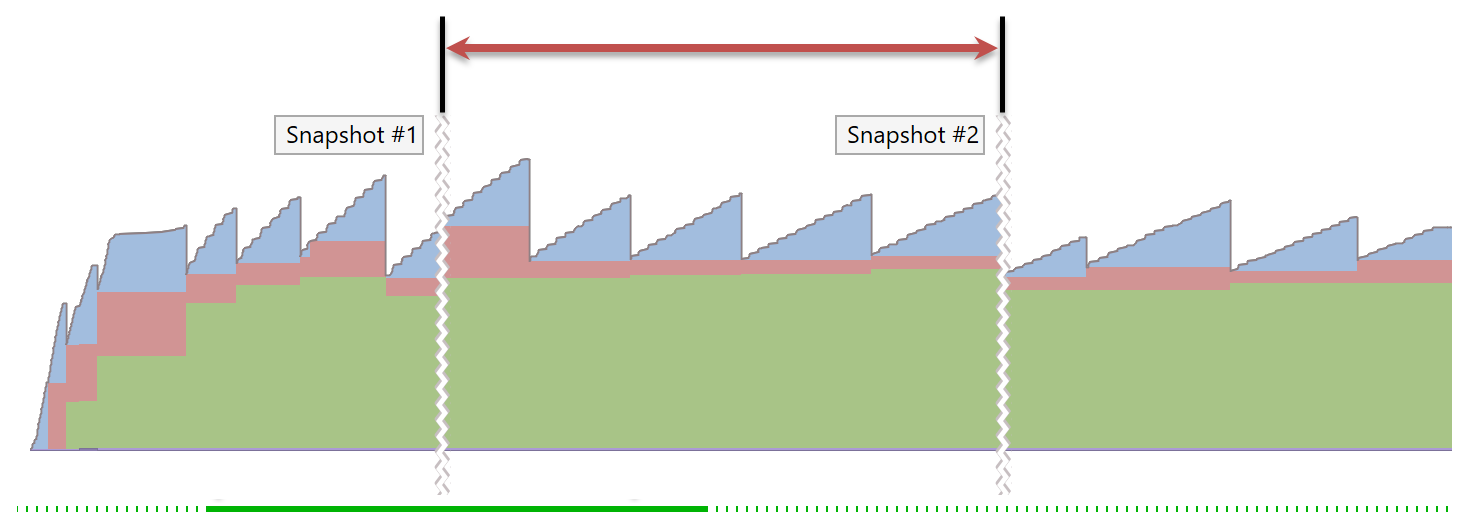

Analyzing traffic
  1. Start a profiling session or open an existing workspace.

  2. Under Memory Snapshots, find the required snapshots and add them to the Snapshot Comparison area by clicking Add to comparison for each snapshot.

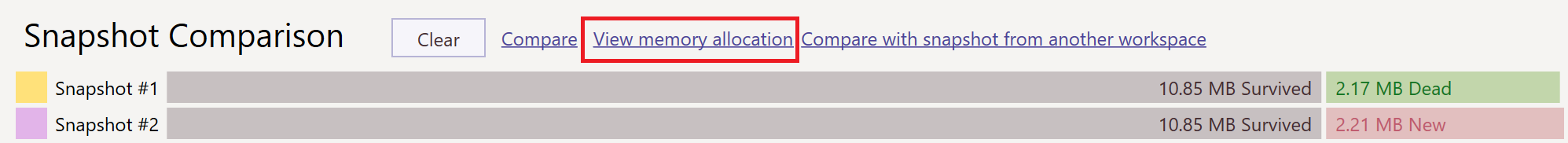

  3. In Snapshot Comparison, click View memory allocation.

    View Memory Allocation Two Snapshots
  4. Choose how you want to analyze the data: using grouping by Types, by Methods, by Call Tree, or by Subsystems.

Types

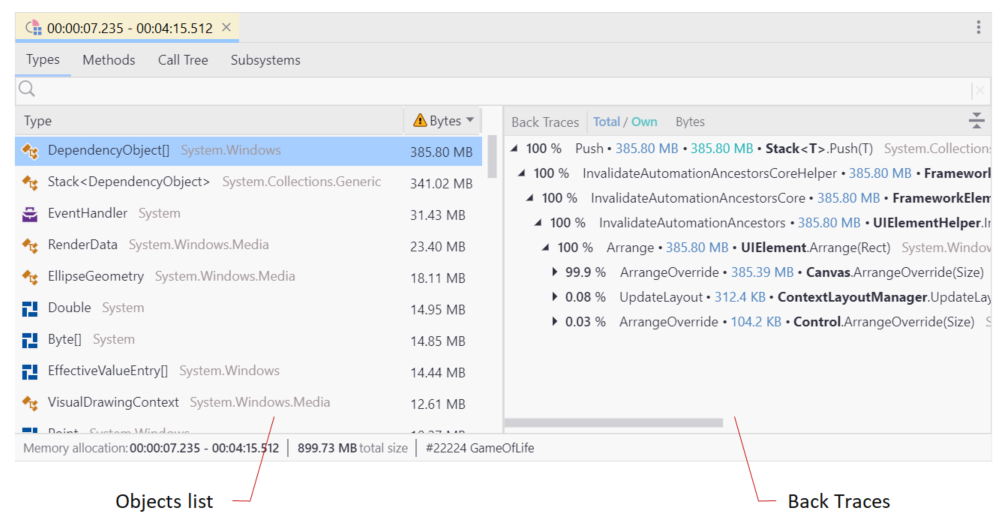

Memory Allocation view

The Types view consists of two parts: the objects list and the Back Traces tree.

Objects list

The list shows you the objects allocated on the selected time interval grouped by the object type. Select a particular type to see what functions allocated the objects of this type.

Name

Description

Type

Type name.

Objects

The number of objects of the same type.

Bytes

The overall shallow size of the objects in bytes.

Back Traces

The Back Traces tree shows you all call trees that allocated the objects currently selected in the objects list. The calls are shown from the bottom up: the last call in the call stack is a top node. In other words, Back Traces is the inverted call tree.

You can sort the tree by the amount of allocated memory (Total / Own Bytes) or by the number of allocated objects (Total / Own Objects). To switch the sorting, click the Total / Own ... column header.

The Total / Own ... column shows how much memory (objects) were allocated in a particular call tree (Total) or in a particular call (Own).

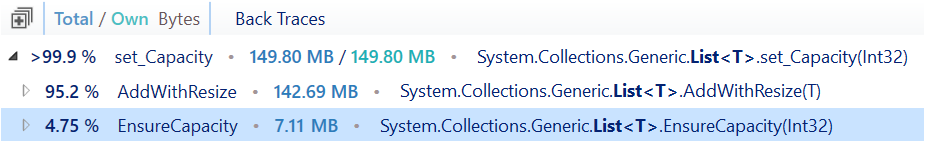

For example:

Back Traces

The set_Capacity method allocated 149.80 MB (Own). The method was called from two call stacks:

  • through the AddWithResize method: 142.69 MB

  • and through the EnsureCapacity method: 7.11 MB

To view where in the Call Tree a particular method is called, right-click the method and choose Show occurrences of this method in 'Call Tree'. This will show the call tree containing all method calls merged.

Methods

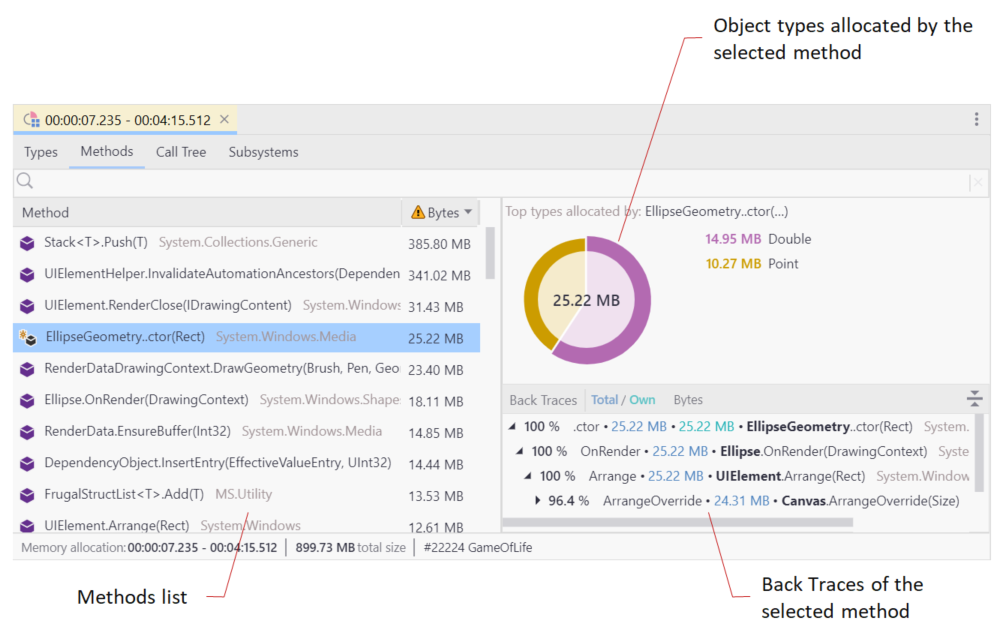

Memory allocation by methods

The Methods view consists of three parts: the methods list, the Back Traces tree, and the sunburst diagram of top five allocated object types.

Methods list

The list shows you the methods that were called during the selected time interval. Select a particular method to see what object types were allocated by the method as well as method's back traces tree. Note that each method in the list is unique - it represents all calls of this method from all call stacks.

Name

Description

Method

Method name.

Objects

The number of objects allocated by method calls.

Bytes

The overall shallow size of the objects in bytes.

Back Traces

The Back Traces tree shows you all call stacks that called the method currently selected in the method list. The calls are shown from the bottom up: the last call in the call stack is a top node. In other words, Back Traces is the inverted call tree.

The Back Traces tree is similar to the one in the Types view.

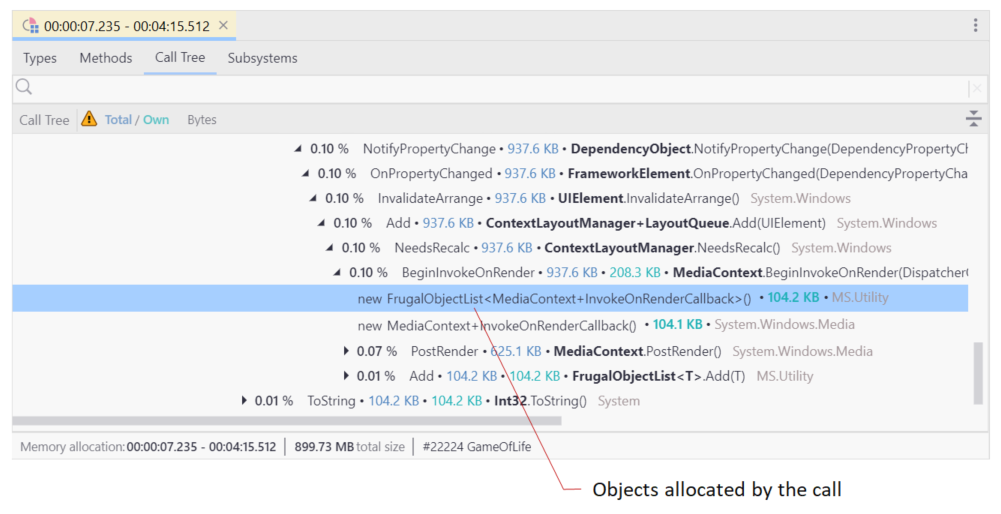

Call Tree

Memory allocation by call tree

The Call Tree view shows the call tree for the selected time interval. If a call allocated objects, the object types will be shown in the tree below the call.

The Total / Own ... column shows how much memory (objects) were allocated in a particular call tree (Total) or in a particular call (Own).

You can sort the tree by the amount of allocated memory (Total / Own Bytes) or by the number of allocated objects (Total / Own Objects). To switch the sorting, click the Total / Own ... column header.

To filter the call tree, start typing in the Search search field on the top of the window. Learn more about how to set filters

To view a subsystem for a particular method, right-click the method and choose Show this method's subsystem.

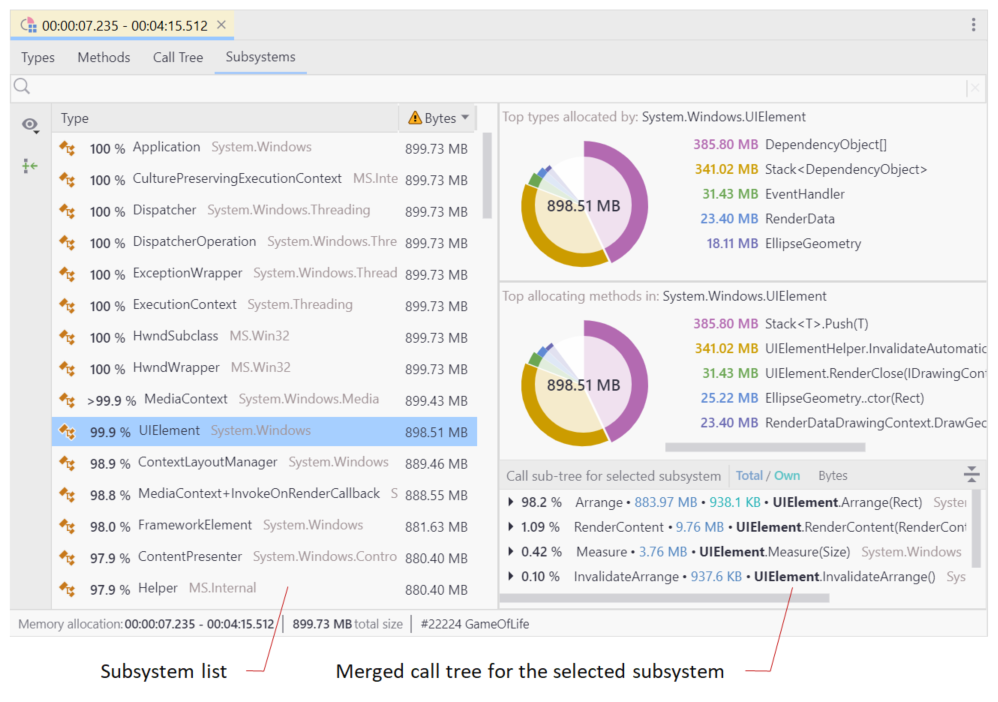

Subsystems

Subsystems

A subsystem groups all methods belonging to a particular type, namespace, or assembly. To switch the grouping type, use the Type, Namespace, and Assembly buttons at the top of the table. Use the Subsystems view to quickly understand how much memory does a particular application component allocate. For example, this view is especially helpful for evaluating memory allocation of your newly added or refactored code.

Each subsystem includes all objects created by its entire call subtree (Total size). For example, in a console application, the subsystem of the type Program will include all objects created by the application as Program.Main() is the top node in the app's call tree.

Subsystems is a master-detail view. Choose a subsystem in the table on the left and on the right you will see:

  • Top five types that were allocated by instances of the selected subsystem.

  • Top five methods of the selected subsystem that allocated most of the memory.

  • Merged call tree for the selected subsystem.

    If a call allocated objects, the object types will be shown in the tree below the call.

    The Total / Own ... column shows how much memory (objects) were allocated in a particular call tree (Total) or in a particular call (Own).

    You can sort the tree by the amount of allocated memory (Total / Own Bytes) or by the number of allocated objects (Total / Own Objects). To switch the sorting, click the Total / Own ... column header.

    To view the location of a particular method in the application call tree, right-click the method and choose Show this method in 'Call Tree'.

Excluding subsystems from scope

An application contains many subsystems of no interest for further analysis. For example, it's obvious that a subsystem for the System.Windows.Application type will include all calls made during the profiling session as the application is started by the Application.Run() method. In such cases, you can exclude the subsystems that you don't want to analyze.

To exclude a subsystem from analysis

  1. Select a subsystem in the list.

  2. Press Del or right-click the subsystem and choose Exclude from scope in the context menu.

  3. dotMemory will gray out the excluded subsystem and put it to the end of the subsystems list.

To return the excluded subsystem back

  1. Scroll to the end of the subsystems list.

  2. Select the excluded subsystem.

  3. Press Del or right-click the subsystem and choose Return back to scope in the context menu.

Filtering results

You can filter out items that are of no interest to your analysis.

To narrow the list

  • Start typing the desired search pattern in the Search search field.

    dotMemory will exclude all items that don't match the pattern.

You can make your search more efficient by using the following tips:

  • Use CamelHumps. E.g. fo will return objects of both System.Drawing.Font and MS.Utility.FrugalObjectList types.

  • Use special symbols, like wildcards and others. The full list is shown in the table below.

Symbol

Description

Example

*

Wildcard

*


All objects in the set

sys.*.data


All types and namespaces that match the pattern. E.g. System.Data, System.Windows.Controls.Datagrid, and System.Windows.Data.Binding.

sys.*.data.


Only namespaces that match the pattern. E.g. System.Windows.Data.Binding but not System.Windows.Controls.Datagrid.

Arrays

[]

Leave only arrays

str[]


Arrays, containing str in their type or namespace. E.g. String[].

[,


[,,


...


or


[,]


[,,]


...

Leave only arrays of the specified or higher (if brackets are not closed) dimension

str[,,


Arrays with the dimension 3 and higher containing str in their type or namespace. E.g. String[,,] and String[,,,].

str[,,]


Three-dimensional arrays containing str in their type or namespace. E.g. String[,,].

!a

Exclude arrays from the result

!a str


Objects (excluding arrays) containing str in their type or namespace. E.g. String but not String[].

Ranked arrays

[N..


[N..]


[N..M]


[N..M, X..Y]


... where N, M, X, Y are integers

Leave only arrays with the specified number of elements

byte[10..100]


Arrays with Byte in their type or namespace with 10 - 100 number of elements. E.g. Byte[98].

byte[10..100, 25..


Two- (or more) dimensional arrays with Byte in their type or namespace with 10 - 100 number of elements in the first dimension and more than 25 elements in the second. E.g. Byte[98, 30, 1000] but not Byte[98].

If range is not specified, the filter is treated as a text filter. For example, byte[1 will match Byte[195] and Byte[1, 50].


byte[1*5] will match Byte[13853].

Generic type arguments

<

Leave only types with generic type arguments

str<


Only objects containing str in their type or namespace and having generic type arguments. E.g. FileStreamStorage<Char> but not List<String>.

<str


Only objects containing str in their generic type arguments. E.g. List<String> but not FileStreamStorage<Char>.

<,


<,,


...


or


<,>


<,,>


...


Leave only objects with the specified number of generic type arguments

fun<,,>


Objects containing fun in their type or namespace and having three generic type arguments. E.g. Func<String, Object, Object>.

fun<str,,task


Objects containing fun in their type or namespace and having three or generic type arguments that match the pattern. E.g. Func<Stream, IAsyncResult, TaskResult, EventArgs>.

!g

Exclude generic type arguments from the search scope

!g str


Objects (that do not have generic type arguments) containing str in their type or namespace. E.g. String but not List<String>.

#c


#struct


#m


#ns

Search by type, value type, method, or namespace.

#ns Feature


Objects containing Feature in their namespace.

Last modified: 17 June 2024
